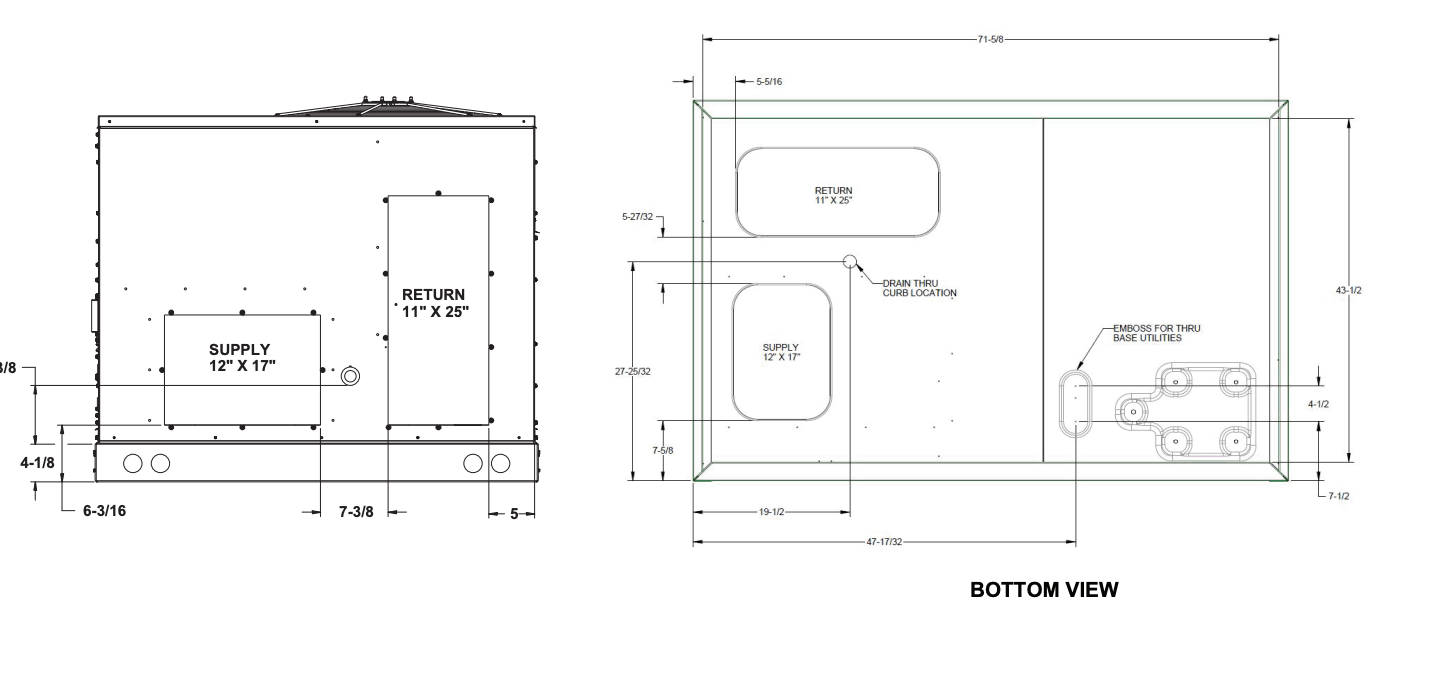

Dimensions (W × D × H): 48-5/16″ × 74″ × 39-7/8″
Free Shipping

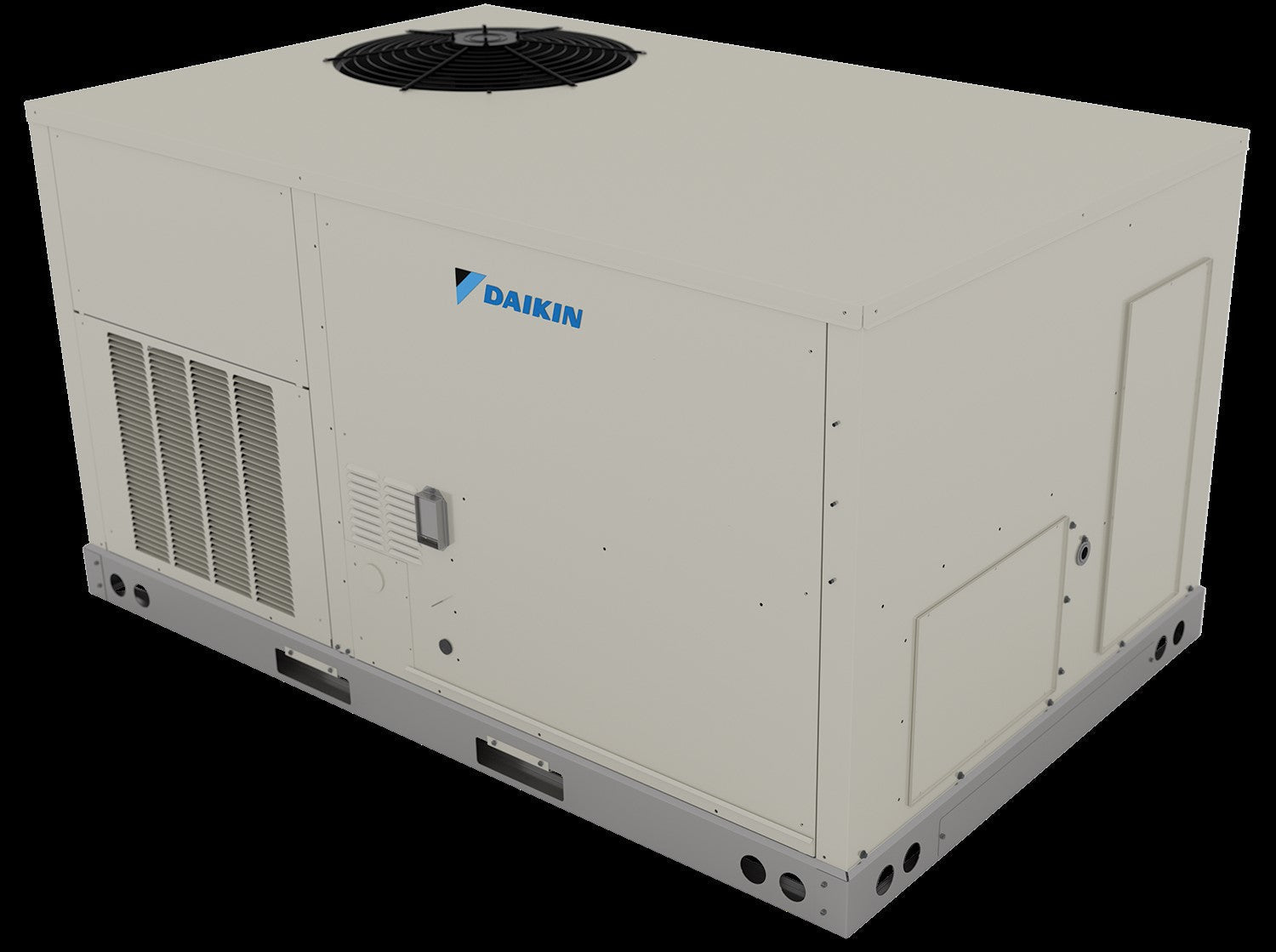

Daikin 4 Ton Light Commercial Packaged Gas Electric 460/3 115K R32 DSG0484DH00001S
Regular price
$4,755.00
Unit price
Daikin 4 Ton Light Commercial Packaged Gas Electric 460/3 115K R32 DSG0484DH00001S is backordered and will ship as soon as it is back in stock.
Is this system right for you?
Is this system right for you?
46000 Btu/H BTU's
115000 Btu/H
Width
48-5/16 in
48-5/16 in
Height
39-7/8 in
39-7/8 in
Depth
74.0 in
74.0 in
Weight
605.090 lb
605.090 lb
Voltage
460 V
460 V
Bundled
Purchase
Purchase
All in
One Buy
One Buy
Good for
Replacements
Replacements
What's in the box
What's in the box
Daikin 4 Ton Light Commercial Packaged Gas Electric 460/3 115K R32 DSG0484DH00001S
Product Specs
Product Brochure
Parts Manual
Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)
Need help with choosing a system or have other questions? Talk with one of our trusted HVAC professionals today! 678-535-7176
Need help with choosing a system or have other questions? Talk with one of our trusted HVAC professionals today! 678-535-7176
Email us at : sales@acunitsforless.com
Call us at : 678-535-7176
Physical Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia 30142, United States
Accessories
Accessories
Accessories of 3–5 Ton Gas Package Unit Accessories & Parts
Got everything you needed to install? See the recommended and/or required options for installation below.
Check the items you would like to include with your order
Regular price
$4,755.00
Unit price
Daikin 4 Ton Light Commercial Packaged Gas Electric 460/3 115K R32 DSG0484DH00001S is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Once you place an order on AC units for less, we will promptly reach out to express our gratitude for your purchase and address any inquiries you may have. Our team will also review your order with you to ensure that you have selected the right equipment for your specific needs.
Order Process
Our order process includes a handling or production time in addition to the transit time. Delivery time = handling time + transit time.
Handling Time
All the products undergo a production process, so there will be a handling time of 2–3 business days from Monday to Friday. If your order is placed and payment is received after 2 p.m., then we will process the order the next business day.
Transit Time
Our shipping providers take 3-4 business days to deliver the order. It's an estimate, so there might be a delay.
Shipping Providers
We primarily use UPS or FEDEX for our deliveries. However, we reserve the right to use other carrier services as required to ensure efficient delivery. After an order ships, the shipping carrier will contact customers to coordinate the delivery schedule.
Once an order has been processed and shipped, it's important to note that the shipping address cannot be altered. Items designated for pickup at the terminal will only be released to the individual listed on the shipping label. A valid driver's license and a signature will be required for the release of the shipment. We adhere strictly to this policy, with no exceptions.
Shipping Rates
We offer free shipping on all orders except for Flat Bed Shipping or Oversized items. Flat Bed Freight Shipping applies to units larger than 7.5 tons. These items will be delivered via flat bed truck and may require additional delivery coordination. Flat rate charges will be shown at checkout for eligible item. Hot Point PTAC items if ordered under 8 Units different freight is charged
Damages and shipping issues
At ACUnitsForLess.com, we are committed to providing our customers with a superior buying experience. We offer free crating to safeguard your equipment during transit, thus eliminating any concerns regarding damage. When you compare our shipping policy to that of our competitors, you'll notice the difference. Customers are not held accountable for any damage to their orders.
Please make your purchase with confidence, knowing that we will ensure you receive the correct equipment that is brand new and in perfect condition.
How do I handle a return shipment?
You may return your unopened order within 60 days for a refund, minus shipping costs and a 15% restocking fee. Customers will be responsible for return shipping costs. Please keep your original box for shipping.
Cancellation
All orders cancelled after 6 hours from the confirmation email will follow the return process, whether or not your order has been shipped. If your order has shipped, you (the buyer) will also be responsible for return shipping charges. Refunds will be issued to the original credit card.
However, if you cancel the order before 6 hours, we will refund your full money.
To process the cancellation, please call us at +1 678-535-7176. We will not be available on Saturday and Sunday, so if somehow you have purchased a product on these days, then contact us on Monday before 3 pm.
If you need any help, feel free to contact us
Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia, 30142, United States
E-Mail: sales@acunitsforless.com
Phone: +1 678-535-7176
Customer Service: Monday to Friday between 9:00 am to 5:00 pm.
Return Policy
Return Policy
If you are not entirely happy with your purchase, you can return your item/s within 60 days of delivery for a full refund of the original payment.
Once we have received the product(s) and, if appropriate, any packaging, a refund will be credited to the payment card account within two weeks; please note that it may take up to 3 days for your bank to credit your account. We are not liable and cannot take responsibility for any bank charges you may incur during the refund process.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right. In this case, we will cover the cost of return shipping as well as we will not charge any restocking fee.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item. The cost of return shipping is the responsibility of the customer if you want to Exchange. Also we will charge 15% restocking fee.
Return Eligibility
Your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging to be eligible for a return. You’ll also need the receipt or proof of purchase.
Non-returnable items
The following items are not eligible for return:
- Items that weren't returned within 60 days from the date the customer received the item
- Items that have been used or damaged by the customer
- Items that are not in their original packaging
- Items that do not have all tags and accessories
- Unfortunately, we cannot accept returns on sale items or gift cards.
- Items that are consumable and other wise stated cannot be returned examples are parts, compressors, misc items
- Special order units
- Custom-configured products
- Commercial Units
- Consumable parts
Return Costs
The cost of return shipping is the responsibility of the customer, except in the case of items that were damaged in transit. In that case, we will cover the cost of return shipping.
Restocking Fee
We charge 15% Restocking Fee, except product got damaged by carrier.
To start a return, you can contact us at sales@acunitsforless.com. If your return is accepted, we’ll send you a return shipping label and instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Cancelled Orders
An order that has shipped cannot be cancelled. If you refuse an order which has already been shipped, not due to damage, you will be responsible for paying an ORDER RETURN FEE. We incur a fee from the freight carrier to return items that have been shipped, this fee is dependent on the item refused and the destination location.
Built-to-Order Items
There are no returns allowed for products which have been specially built for you and shipped by the manufacturer. These items are not routinely stocked at our warehouse and therefore cannot be returned.
Final Sale Policy
By placing an order, the purchaser expressly acknowledges and agrees to the following terms:
1. No Returns or Exchanges
Final sale items are not eligible for return, exchange, substitution, or store credit for any reason, including but not limited to dissatisfaction, incorrect selection, incompatibility, or change of mind.
2. No Refunds
All sales of final sale items are final and non-refundable. Once an order is placed, it cannot be canceled, modified, or refunded.
3. Assumption of Risk
The purchaser assumes full responsibility for determining product suitability, compatibility, and compliance with applicable codes, regulations, and intended use prior to purchase.
4. Condition and Disclaimer
Final sale items are sold “AS IS” and “WITH ALL FAULTS” with no representations or warranties, express or implied, including but not limited to any implied warranties of merchantability, fitness for a particular purpose, or non-infringement, except where prohibited by law.
5. Shipping and Damage Claims
Any damage occurring during transit must be reported in writing within 48 hours of delivery with supporting photographs. Failure to report within this period constitutes acceptance of the product.
6. Chargebacks and Disputes
The purchaser agrees not to initiate any chargebacks or payment disputes related to final sale items. Any chargeback initiated in violation of this policy may be contested with the payment processor using this agreement as evidence.
7. Severability
If any provision of this policy is deemed unenforceable under applicable law, the remaining provisions shall remain in full force and effect.
If you need any help, feel free to contact us
Address: Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia, 30142, United States
E-Mail: sales@acunitsforless.com
Phone: +1 678-535-7176
Customer Service: Monday to Friday between 9:00 am to 5:00 pm.
Refund Policy
Refund Policy
We provide a 60-day return policy for your convenience. To initiate a return, it is essential that the items remain unused and in their original manufacturer's packaging. When returning the equipment, please ensure that you reuse all shipping materials that were initially used to protect the equipment during shipment.
We will provide the return label.
Upon receiving your return, we will issue a refund for the full order amount, minus the return shipping cost and a 15% restocking fee.
Final Sale Policy
By placing an order, the purchaser expressly acknowledges and agrees to the following terms:
1. No Returns or Exchanges
Final sale items are not eligible for return, exchange, substitution, or store credit for any reason, including but not limited to dissatisfaction, incorrect selection, incompatibility, or change of mind.
2. No Refunds
All sales of final sale items are final and non-refundable. Once an order is placed, it cannot be canceled, modified, or refunded.
3. Assumption of Risk
The purchaser assumes full responsibility for determining product suitability, compatibility, and compliance with applicable codes, regulations, and intended use prior to purchase.
4. Condition and Disclaimer
Final sale items are sold “AS IS” and “WITH ALL FAULTS” with no representations or warranties, express or implied, including but not limited to any implied warranties of merchantability, fitness for a particular purpose, or non-infringement, except where prohibited by law.
5. Shipping and Damage Claims
Any damage occurring during transit must be reported in writing within 48 hours of delivery with supporting photographs. Failure to report within this period constitutes acceptance of the product.
6. Chargebacks and Disputes
The purchaser agrees not to initiate any chargebacks or payment disputes related to final sale items. Any chargeback initiated in violation of this policy may be contested with the payment processor using this agreement as evidence.
7. Severability
If any provision of this policy is deemed unenforceable under applicable law, the remaining provisions shall remain in full force and effect.
IMPORTANT: HVAC and Water Heater parts and accessories should only be installed by qualified technicians. Failure to understand and follow the manufacturer’s installation and use instructions may result in fire or explosion, electric shock, property damage, injury or loss of life. It is your responsibility to seek professional advice when installing and using these parts and accessories.
Overview
The Daikin DSG0484DH00001S is a bundled gas/electric system that can handle 4 tons of light commercial application. It has a self-contained design that can be put on rooftops or the ground and combines gas heating and electric cooling. It is designed to work well and can heat and cool at the same time.
Quick Facts
- 46,000 BTU of cooling and 115,000 BTU of heating in a 4-ton system
- 13.7 SEER2 and 11.8 EER2 ratings for energy efficiency
- Uses R-32 refrigerant to meet new performance standards
- Single-stage scroll compressor for dependable performance
- Cabinet made of galvanized steel with a powder coat finish that won't fade in the sun
- Convertible airflow: you can place it horizontally or downflow
- Filter rack built in at the factory for typical 2" filter
- No tools are needed to get to the filter, and the full base rail makes servicing easier
- Daikin offers a limited warranty on parts and the heat exchanger.
-
Capacity & Coverage
This unit is good for small to medium business settings including offices, stores, and rooftops because it can cool 46,000 BTUs and heat 115,000 BTUs.
Efficiency
This unit has a 13.7 SEER2 and an 11.8 EER2 rating, which means it works better than many earlier models. It helps keep costs down while keeping comfort levels steady.
Construction & Durability
The system is housed in a galvanized steel cabinet with a UV-resistant finish. A louvered coil guard and solid base rail add extra protection for long-term outdoor use.
Installation & Maintenance
The system is kept in a cabinet made of galvanized steel that won't fade in the sun. A louvered coil guard and a strong base rail make it safer to use outside for a long time.
Noise & Comfort
The device has a scroll compressor and a direct-drive fan, which work together to create balanced airflow with low noise levels. This makes it good for corporate settings where quiet operation is important.
Warranty
The Daikin DSG0484D100001F comes with a limited warranty that covers the heat exchanger and other important elements. The unit's paperwork has information about the warranty.
FAQs
Q1: What kinds of places are best for this unit?
It works well in light commercial environments like offices, schools, and stores that need heating and cooling.
Q2: What kind of refrigerant does this device use?
The system employs R-32 refrigerant since it is efficient and meets new environmental criteria.
Q3: Do I need to run ductwork for this model?
Yes, it needs ductwork, which may be set up either horizontally or downflow depending on how it is installed.
Q4: What does it indicate when the airflow is convertible?
It lets the system be installed either horizontally or downflow to fit the needs of the building.
5. What does the warranty cover?
Daikin's limited warranty covers the parts and the heat exchanger for this model. The paperwork has all the information you need about the warranty.
Daikin 12.5 Ton Light Commercial Packaged Gas Electric
Daikin 5 Ton Light Commercial Packaged Gas Electric
Daikin 4 Ton Light Commercial Packaged Gas Electric 460/3 115K R32 DSG0484DH00001S Specification Table
Brand
Daikin
Model #
DSG0484DH00001S
SEER2/EER2
13.7
Refrigerant
R-32
Tonnage
4.0 Ton
Voltage Requirements
460 V
Furnace Efficiency / AFUE
80%
Power Phase ( Single/Three)
3 Ph
Dimensions - (Shipping Unit Width)
74.50 in
Dimensions - (Shipping Unit Height)
43.00 in
Weight - (Shipping Unit)
605.090 lb
Refrigerant Pre-Charged Line Length
0
Power Frequency
60 Hz
Motor Speed Type
Multi Speed ECM
Min. Circuit Amps
10.6 A
Min Voltage
0
Max Voltage
0
Max Overcurrent Protection
15 A
Valve Size Suction (O.D.)
0
Valve Size Liquid (O.D.)
0
Energy Source
Gas
Expansion Device
TXV
Decibels (dBA)
76 dBA
Compressor Type
Scroll
Compressor Stages
Single Stage
Heating Capacity - (Nominal)
115000 Btu/H
Cooling Capacity - (Nominal)
46000 Btu/H
Function Category
Light Commercial Packaged Gas/Electric
