MR COOL  |  SKU: DIY-B-348HP091224

MRCOOL DIY Mini Split 45,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump DIY-B-348HP091224


Grand Total

$4,654.00

Free Shipping

We provide Free Shipping

Need help with choosing a Mini Split system or have other questions?Talk with one of our trusted HVAC professionals today!

Email us at : sales@acunitsforless.com

Call us at : 678-672-0213

 Physical Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia 30142, United States





Model: DIY-B-348HP091224

MR COOL Specifications Sheet Click below:

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate

Product Overview:

  • Covers 1875 sq. ft.
  • DIY Installation
  • Wall Mounted
  • Number of Zones: 3
  • Voltage: 208 to 230
  • Outdoor Operating Temp (Cool): 5°F to 122°F
  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

Product Description:

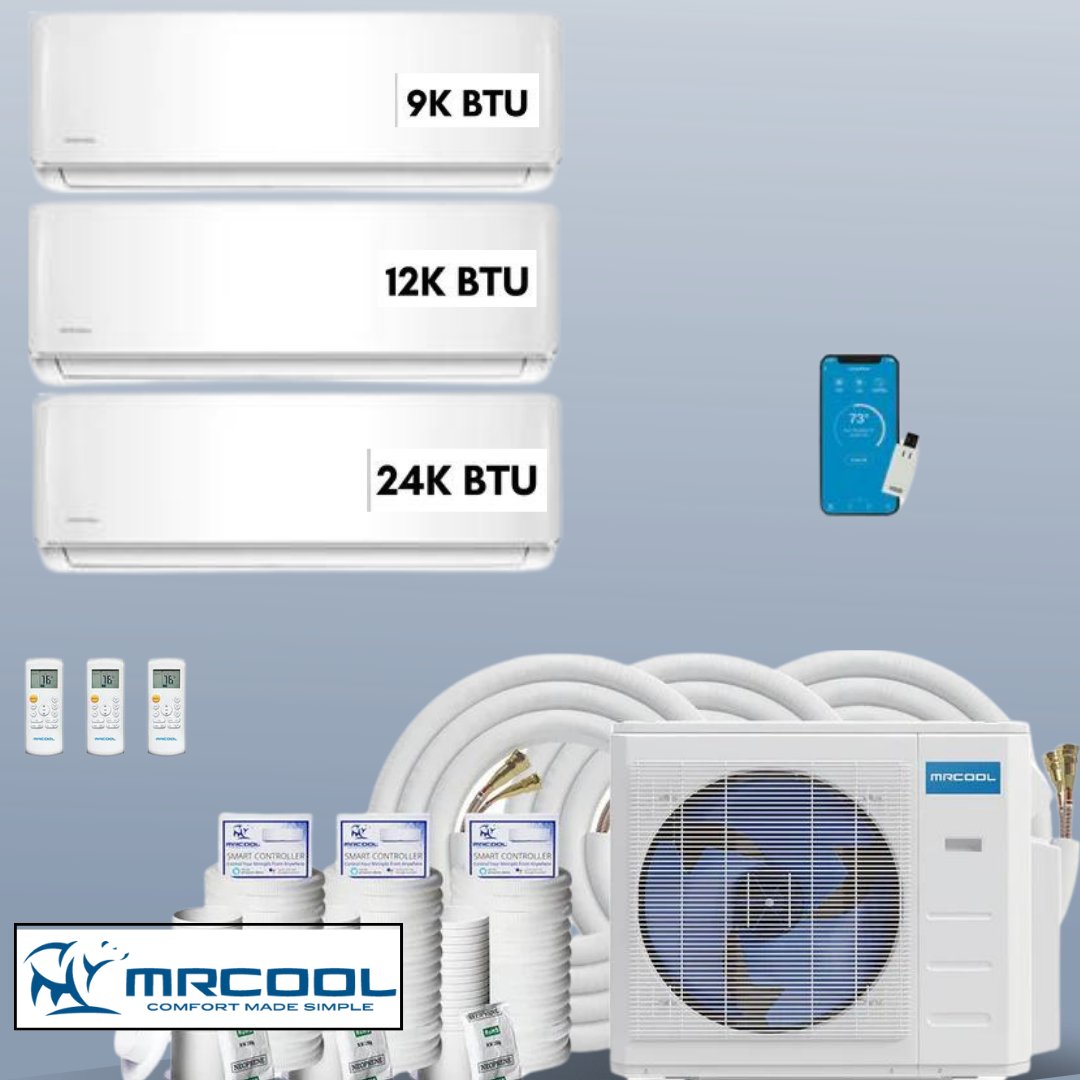

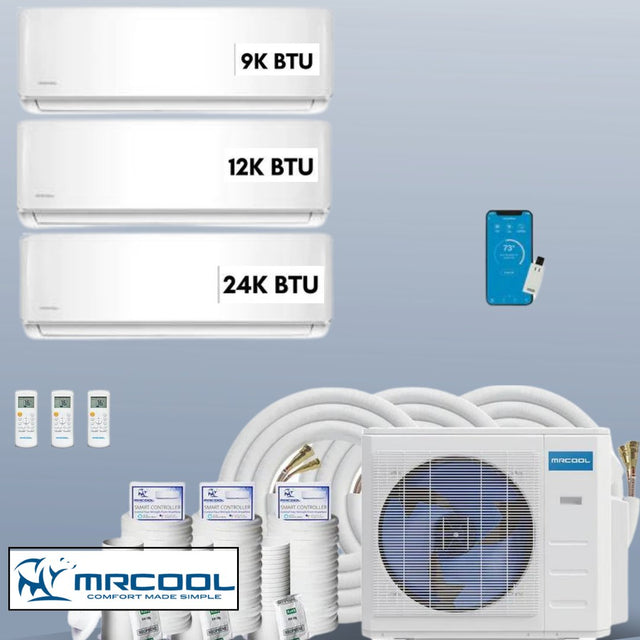

This 4th Generation MRCOOL DIY Mini Split includes everything you need to cool and heat your home, office or more. You'll be sent: 48K BTU Multi-Zone Condenser, 9K, 12K and 24K BTU Wall Mount Air Handler. The best part about all of this is that you can install it yourself! The MRCOOL DIY Mini Split is flexible enough to be installed virtually anywhere without hiring an expensive HVAC technician or the need to use expensive, specialized equipment.

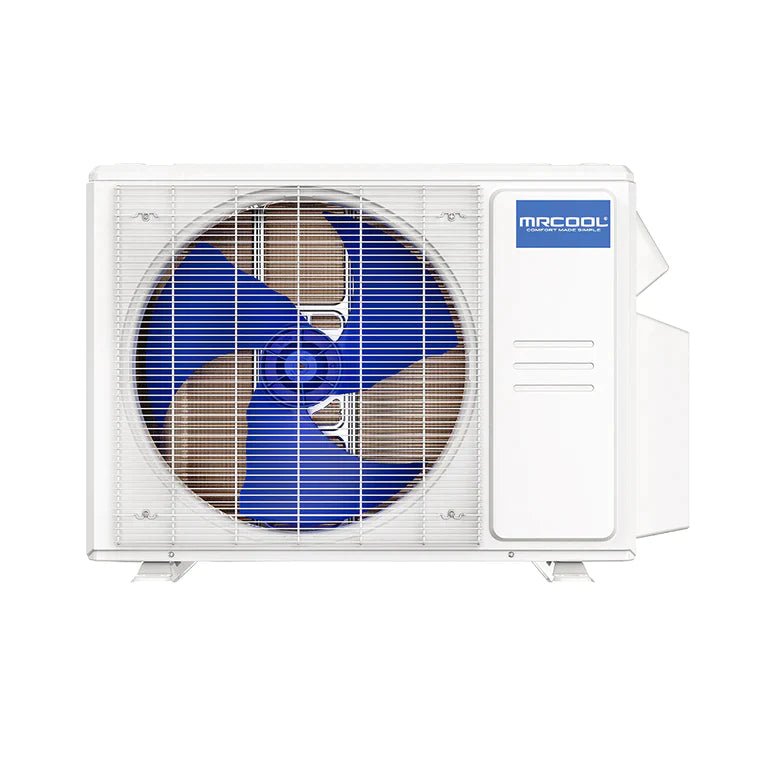

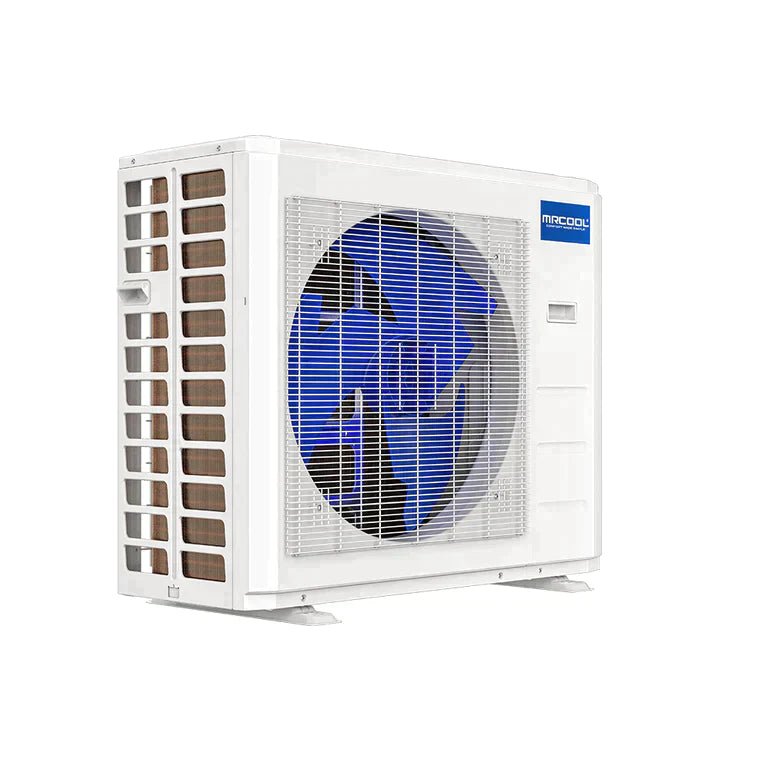

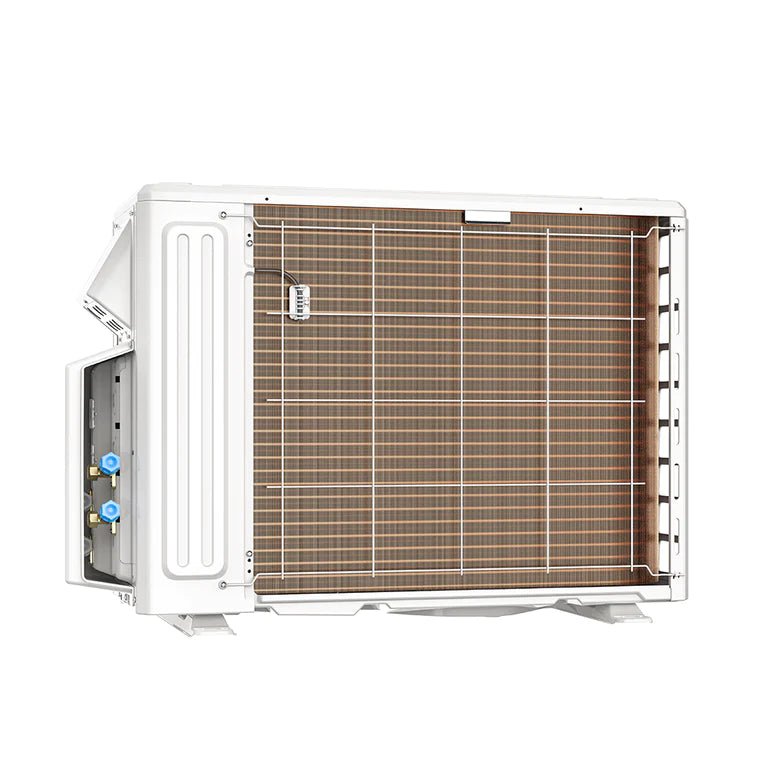

Condenser 48K BTU

  • Energy Efficient. This 48K BTU condenser is capable of producing up to an impressive 20.5 SEER2 efficiency rating. And yes... this qualifies for major savings using energy or tax rebates!
  • Works In Extreme Temperatures. The ability to heat even when temperatures drop to -5°F.
  • Cool and Heat Worry-Free. The condenser comes with a 7 year compressor and 5 year parts warranty. Want lifetime coverage on the compressor? Simply register into the MRCOOL Care Program to get the lifetime warranty!

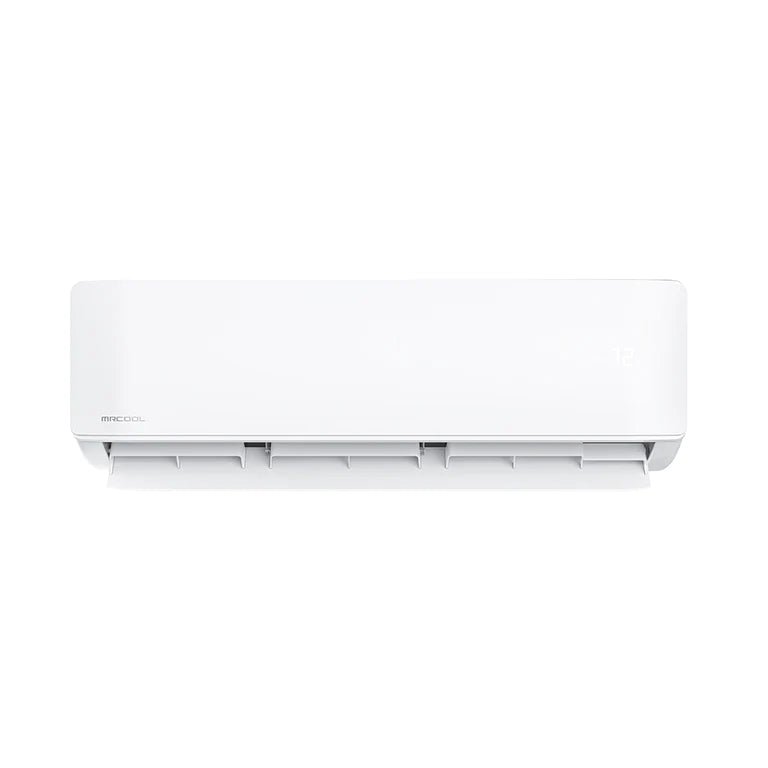

    Air Handler 9K BTU

    • Large Coverage Area. The air handler covers an area between 180 to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler 12K BTU

    • Large Coverage Area. The air handler covers an area between 250 to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler 24K BTU

    • Large Coverage Area. The air handler covers an area between 500 to 1,000 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate

        SPECIFICATIONS AND DIMENSIONS:

         Condenser



        Product Dimensions 37.48"W x 16.34"D x 52.48"H
        Cooling Capacity 48,000 BTU
        Heating Capacity 48,000 BTU
        Zone Capacity 5
        Cool Mode - Outdoor Operating Temperature Range 5°F ~ 122°F
        Heat Mode - Outdoor Operating Temperature Range 5°F ~ 75.2°F
        SEER2 20.50
        EER2 11
        HSPF2 9.2
        Voltage Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
        Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts


        Air Handler 9K BTU

        Product Dimensions 31.57"W x 7.44"D x 11.69"H
        Mount Type Wall
        Cooling Capacity 9,000 BTU
        Heating Capacity 9,000 BTU
        Registered Warranty 5 Years Parts
        Modes Auto (Auto selects Cool, Heat or Fan-Only)
        Cool
        Heat
        Dry
        Fan Only
        Sleep


        Air Handler 12K BTU

        Product Dimensions 31.57"W x 7.44"D x 11.69"H
        Mount Type Wall
        Cooling Capacity 12,000 BTU
        Heating Capacity 12,000 BTU
        Registered Warranty 5 Years Parts
        Modes Auto (Auto selects Cool, Heat or Fan-Only)
        Cool
        Heat
        Dry
        Fan Only
        Sleep


        Air Handler 24K BTU

        Product Dimensions 42.52"W x 8.90"D x 13.19"H
        Mount Type Wall
        Cooling Capacity 23,000 BTU
        Heating Capacity 25,000 BTU
        Registered Warranty 5 Years Parts
        Modes Auto (Auto selects Cool, Heat or Fan-Only)
        Cool
        Heat
        Dry
        Fan Only
        Sleep



        Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

        Square Feet: 180-375 | BTU = 9K
        Square Feet: 376-500 | BTU = 12K
        Square Feet: 501-750 | BTU = 18K
        Square Feet: 751-1,000 | BTU = 24K
        Square Feet: 1,001-1,500 | BTU = 36K
