MR COOL  |  SKU: DIY-B-336HP091218

MRCOOL DIY Mini Split 39,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump DIY-B-336HP091218


Grand Total

$3,847.00

Free Shipping

We provide Free Shipping

Need help with choosing a Mini Split system or have other questions?Talk with one of our trusted HVAC professionals today!

Email us at : sales@acunitsforless.com

Call us at : 678-672-0213

 Physical Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia 30142, United States





Model: DIY-B-336HP091218

MR COOL Specifications Sheet Click below:

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate

Product Overview:

  • Covers 1625 sq. ft.
  • DIY Installation
  • Wall Mounted
  • Number of Zones: 3
  • Voltage: 208 to 230
  • Outdoor Operating Temp (Cool): 5°F to 122°F
  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

Product Description:

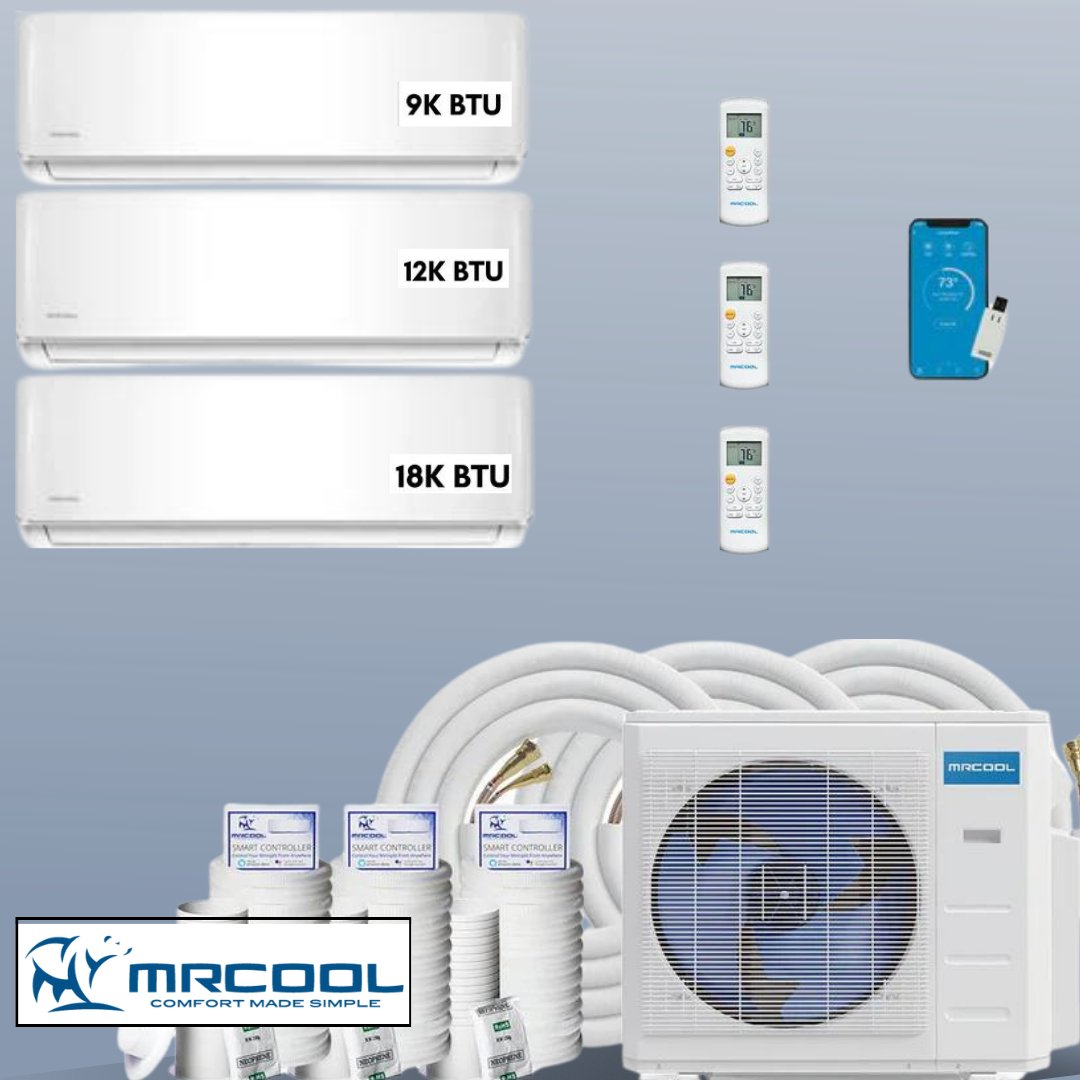

This 4th Generation MRCOOL Mini Split includes a DIY 36,000 BTU Multi-Zone Condenser, one 9,000 BTU Wall Mounted Air Handler, one 12,000 BTU Wall Mounted Air Handler, one 18,000 BTU Wall Mounted Air Handler and three Remotes. The best part about all of this is that you can install it yourself!

This package does not include linesets, don't forgot to scroll up and add them!

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 36K BTU Rating of the Condenser.

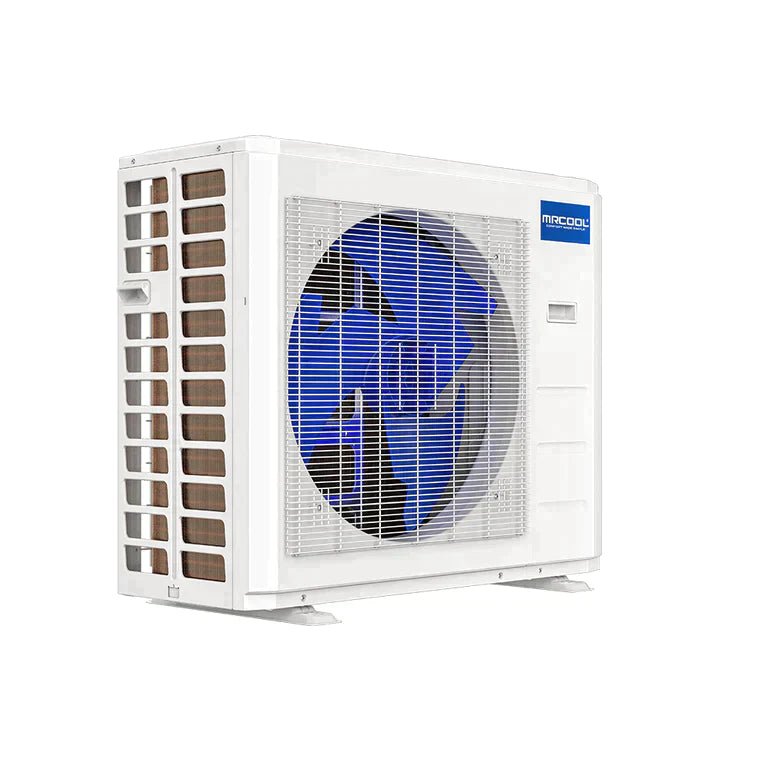

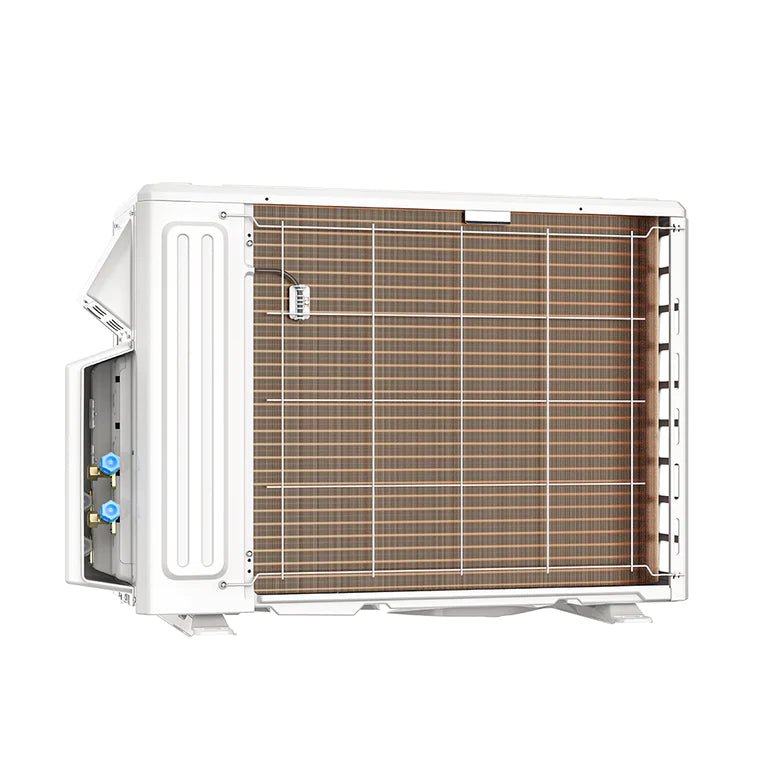

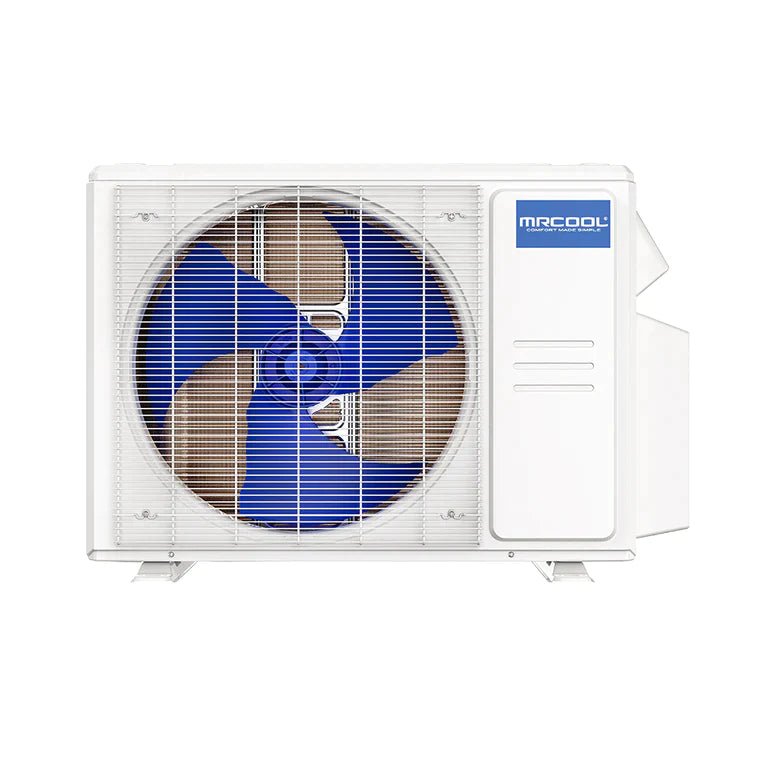

Condenser

  • Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
  • Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

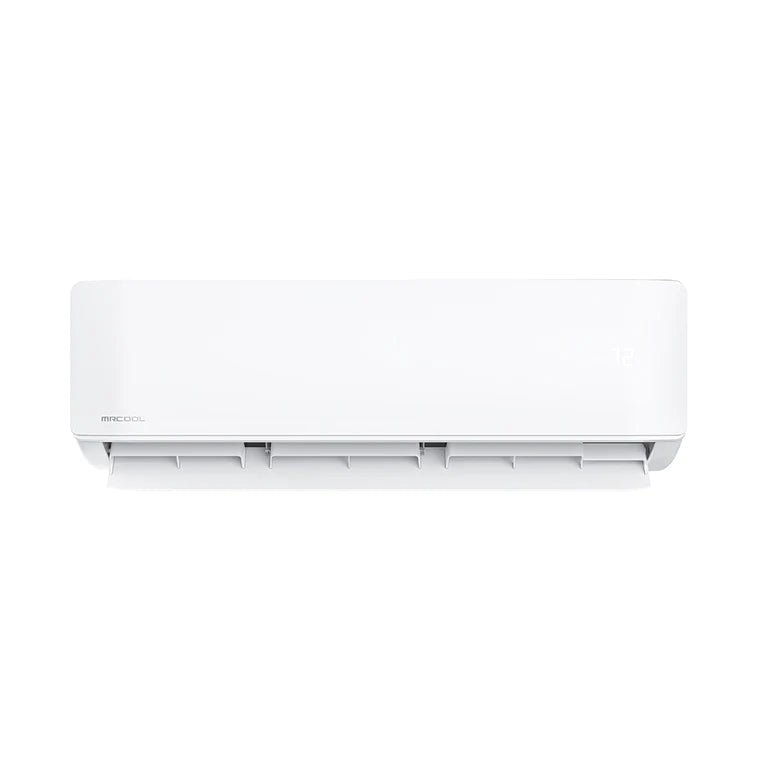

    Air Handler, 9K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 12K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 18K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 750 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate

          SPECIFICATIONS AND DIMENSIONS:

           Condenser



          Product Dimensions 37.24"W x 16.14"D x 31.89"H
          Cooling Capacity 36,000 BTU
          Heating Capacity 36,000 BTU
          Zone Capacity 4
          Min Ambient Cool 5F ~ 122F
          Min Ambient Heat -13F ~ 75.2F
          SEER 21.5
          EER 10.5
          Voltage Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
          Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts


          Air Handler 9K BTU

          Product Dimensions 31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity 9,000 BTU
          Heating Capacity 9,000 BTU
          Registered Warranty
          5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Air Handler 12K BTU

          Product Dimensions 31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity 12,000 BTU
          Heating Capacity 12,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Air Handler 18K BTU

          Product Dimensions 42.52"W x 8.90"D x 13.19"H
          Mount Type Wall
          Cooling Capacity 18,000 BTU
          Heating Capacity 18,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep



          Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

          Square Feet: 180-375 | BTU = 9K
          Square Feet: 376-500 | BTU = 12K
          Square Feet: 501-750 | BTU = 18K
          Square Feet: 751-1,000 | BTU = 24K
          Square Feet: 1,001-1,500 | BTU = 36K
