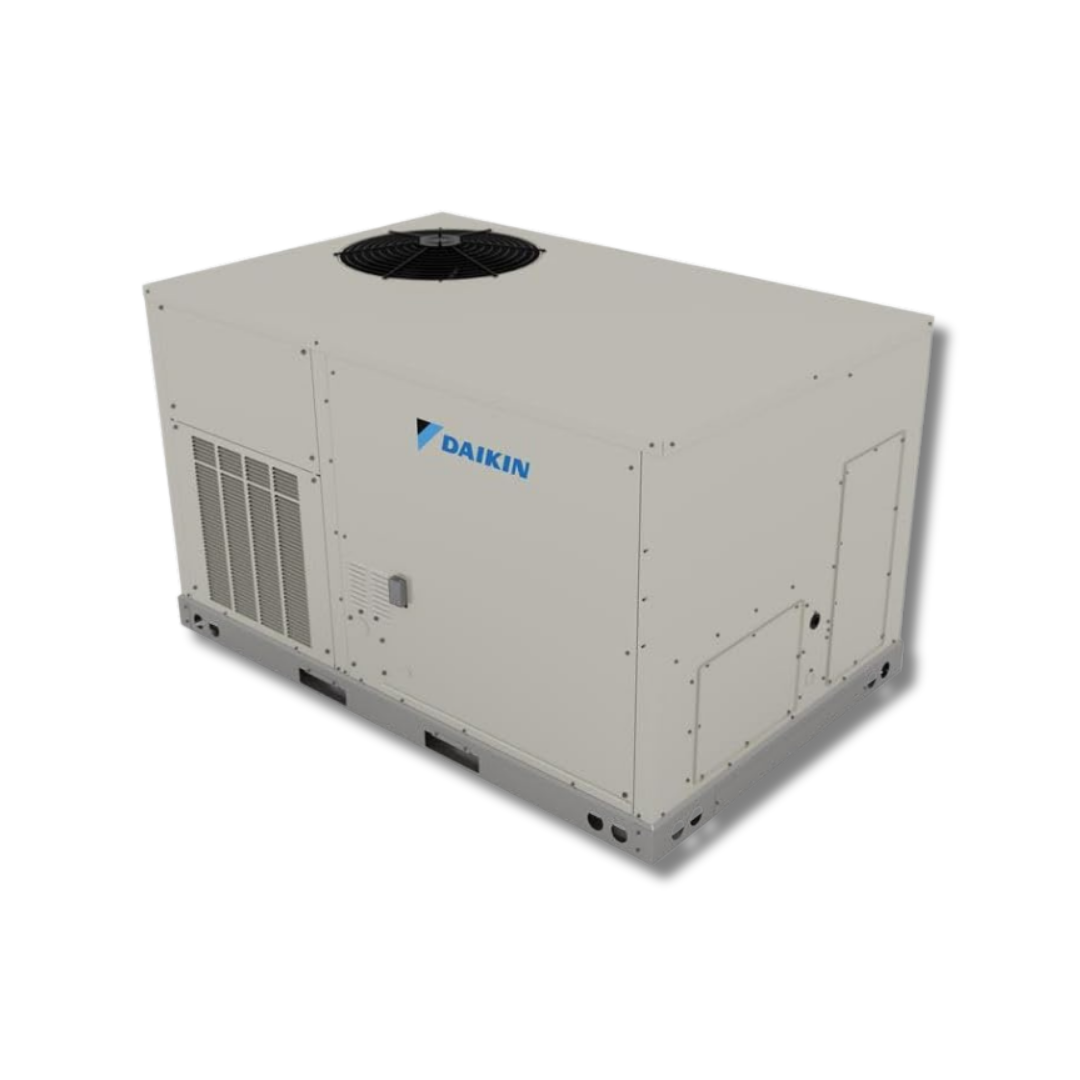

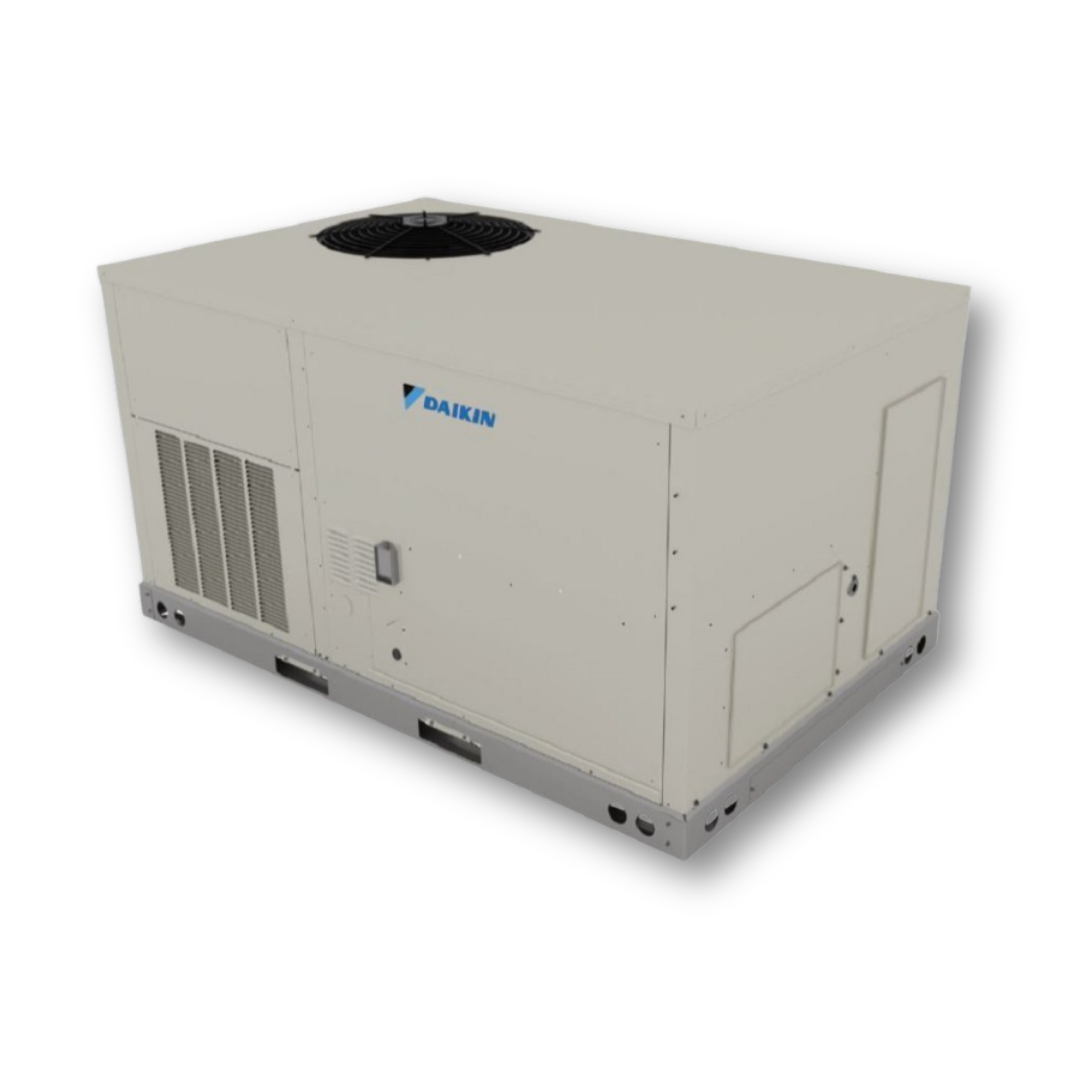

The Daikin DSG0723DL00001S is a powerful Daikin 6 Ton Packaged Gas Electric Unit designed for light commercial applications requiring dependable heating and cooling performance from one complete HVAC system. This packaged rooftop unit combines electric cooling and gas heating into a single durable cabinet, making it an ideal solution for commercial buildings that need efficient year-round climate control. Featuring R32 refrigerant technology, two-stage scroll compressor operation, and commercial-grade construction, this unit provides reliable performance for demanding applications.
The Daikin DSG0723DL00001S packaged gas electric unit is designed to deliver complete heating and cooling functionality through one outdoor packaged system. This 6-ton commercial unit provides approximately 69,000 BTU cooling capacity and 90,000 BTU gas heating capacity while operating on a 208V/230V three-phase electrical supply.
The integrated rooftop design combines the compressor, condenser section, gas heating components, blower assembly, and controls into one factory-assembled cabinet. This helps simplify installation while providing reliable operation for commercial spaces.
Brand: Daikin
Model Number: DSG0723DL00001S
System Type: Packaged Gas Electric Rooftop Unit
Capacity: 6 Ton
Cooling Capacity: 69,000 BTU
Heating Capacity: 90,000 BTU Gas Heat
Efficiency Rating: 16.7 SEER2
Refrigerant: R32
Voltage: 208V/230V
Phase: 3 Phase
Compressor Type: Two-Stage Scroll Compressor
Motor Type: Multi-Speed ECM Motor
Airflow Configuration: Convertible Horizontal / Downflow
Application: Light Commercial
Weight: 690 lbs

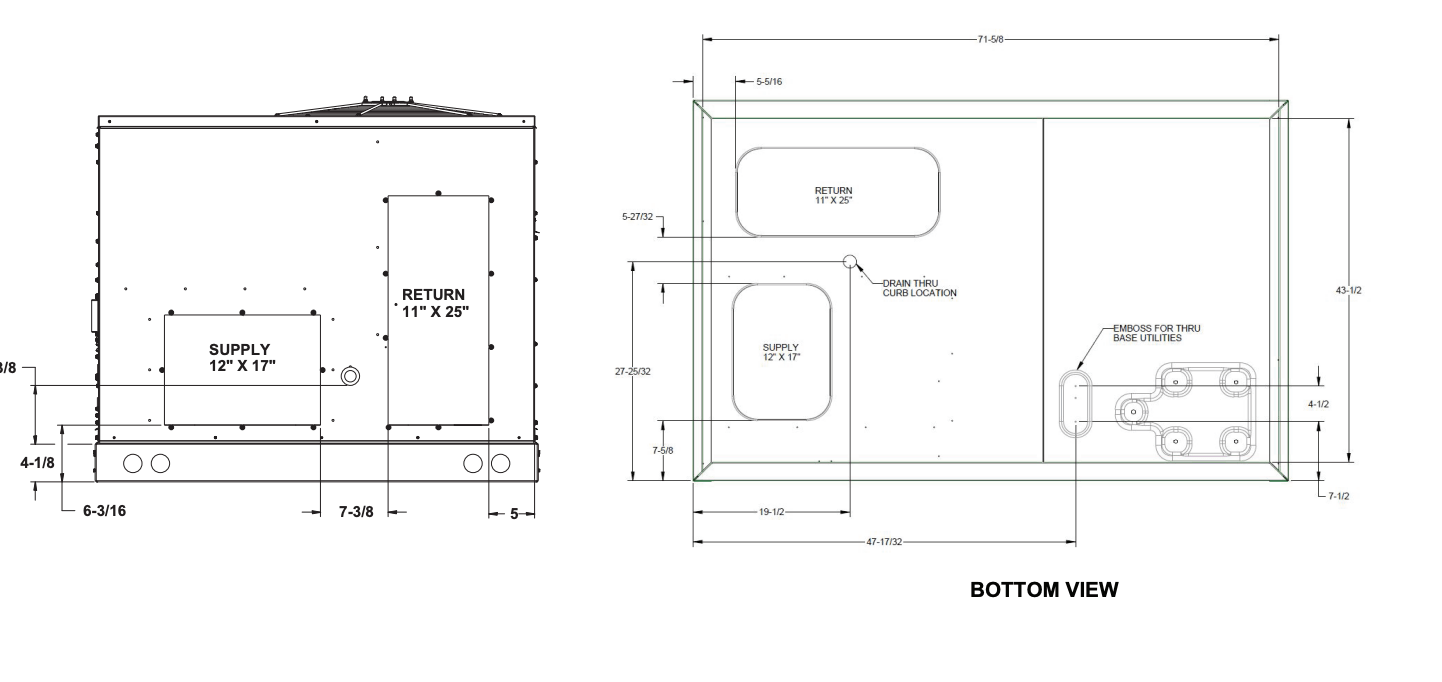

Dimensions: 74" D × 48-5/16" W × 43-1/2" H
6 ton packaged gas/electric HVAC system
Duratek refrigerant technology
Dual-stage scroll compressor
90,000 BTU gas heating capacity
ECM supply fan motor
Convertible airflow design
Heavy-gauge galvanized steel cabinet
UV-resistant powder paint finish
Copper tube aluminum fin coils
Micro Channel condenser technology
Easy-access service panels
The Daikin DSG0723DL00001S packaged gas electric unit provides a complete commercial HVAC solution by combining cooling and heating components into one outdoor cabinet. The two-stage compressor helps adjust operation based on comfort demand, supporting consistent temperature control and efficient performance.
The Daikin 6 Ton Packaged Gas Electric Unit delivers approximately 69,000 BTU cooling capacity, making it suitable for medium to large commercial spaces such as offices, retail buildings, restaurants, warehouses, and professional facilities.
Its packaged rooftop configuration eliminates the need for separate indoor and outdoor HVAC equipment, helping businesses save installation space while maintaining reliable heating and cooling performance.
The Daikin DSG0723DL00001S packaged gas electric unit is designed with efficient commercial HVAC technology. The system features a two-stage scroll compressor and multi-speed ECM motor to provide stable airflow and dependable operation.
With an approximate 16.7 SEER2 efficiency rating, this unit helps support efficient seasonal performance while delivering reliable comfort for commercial environments.
The Daikin 6 ton light commercial HVAC system uses R32 refrigerant technology designed for modern HVAC performance. R32 provides efficient heat transfer characteristics and supports newer commercial HVAC requirements.
This refrigerant technology allows the DSG0723DL00001S to deliver reliable cooling operation while supporting improved environmental performance.
The integrated gas heating system provides dependable warmth during colder weather conditions. With a 90,000 BTU heating capacity, the unit can support commercial spaces that require strong heating performance without installing separate heating equipment.
The combination of gas heating and electric cooling makes this system a complete solution for year-round commercial comfort.
The Daikin DSG0723DL00001S features a durable commercial cabinet built with heavy-gauge galvanized steel and a UV-resistant powder paint finish for outdoor durability.
The unit includes accessible service areas, convertible airflow orientation, and commercial-grade internal components designed for reliable long-term operation.
This commercial rooftop packaged HVAC system is designed for 208V/230V three-phase electrical operation. The convertible airflow design allows installation flexibility for horizontal or downflow applications.
Professional installation is recommended to ensure proper electrical connections, gas setup, airflow configuration, and efficient system operation.
Office buildings
Retail stores
Restaurants
Warehouses
Educational facilities
Commercial complexes
Light industrial buildings
Multi-purpose commercial spaces
Businesses looking to buy Daikin 6 ton packaged gas electric unit equipment can choose the Daikin DSG0723DL00001S for its reliable heating and cooling performance, durable commercial construction, R32 refrigerant technology, and flexible installation options.
This packaged rooftop HVAC system provides complete temperature control from one outdoor unit, making it a practical choice for light commercial applications.
Replace air filters regularly
Inspect condenser coils periodically
Check gas heating components
Keep outdoor airflow areas clear
Inspect electrical connections
Schedule professional HVAC maintenance
|
Specification |
Details |
|
Brand |
Daikin |
|
Model |
DSG0723DL00001S |
|
System Type |
Packaged Gas Electric Unit |
|
Capacity |
6 Ton |
|
Cooling Capacity |
69,000 BTU |
|
Heating Capacity |
90,000 BTU |
|
Efficiency |
16.7 SEER2 |
|
Refrigerant |
R32 |
|
Voltage |
208V/230V |
|
Phase |
3 Phase |
|
Compressor |
Two-Stage Scroll |
|
Motor |
Multi-Speed ECM |
|
Airflow |
Convertible Horizontal/Downflow |
|
Weight |
690 lbs |
|
Dimensions |
74" D × 48-5/16" W × 43-1/2" H |
Q1. What type of system is the Daikin DSG0723DL00001S?
The Daikin DSG0723DL00001S is a packaged gas electric rooftop HVAC unit designed for light commercial heating and cooling applications.
Q2. What is the cooling capacity of DSG0723DL00001S?
The unit provides approximately 69,000 BTU cooling capacity.
Q3. What refrigerant does the Daikin DSG0723DL00001S use?
The system uses R32 refrigerant technology.
Q4. What electrical supply does this unit require?
The DSG0723DL00001S operates on 208V/230V three-phase power.
Q5. What is the heating capacity of this Daikin unit?
This model provides 90,000 BTU gas heating capacity.
Full details regarding coverage and terms are available in the Warranty Information PDF.
Download →Register within 60 days of install to activate your Manufacture's warranty.
Register unit →Our technicians are available to assist you Monday – Friday, 8 AM to 5 PM.
409-757-8330 →
We are not liable for any injuries, damages, or losses resulting from improper service or installation of our products. While we strive to provide reliable and high-quality HVAC products, any issues arising from improper handling, installation, or maintenance are the sole responsibility of the installer or service provider. Customers are encouraged to engage qualified professionals for installation and servicing to ensure safety and optimal performance. By purchasing and using our products, customers agree to hold The Acunitsforless Company harmless from any liability related to improper service or installation. It is essential to follow all manufacturer guidelines, industry standards, and local building codes to mitigate risks and ensure safe operation.
Please note that all installations should be performed by a licensed and experienced HVAC professional. Improper installation may result in equipment malfunction, reduced performance, increased energy consumption, and potential safety hazards.
Furthermore, it is essential to understand that any installation not conducted by a qualified HVAC professional may result in the voiding of warranty coverage. Manufacturers typically require installations to be carried out by certified technicians to uphold warranty terms and conditions.
By choosing to have your HVAC systems installed by a qualified professional, you not only protect your investment but also ensure the optimal performance and safety of your heating, ventilation, and air conditioning systems while maintaining warranty coverage.
Homeowners searching for a reliable cooling upgrade often land on the Goodman GLXS AC unit because of its balance of build quality and efficiency. The GLXS lineup sits within Goodman's...
Sumit Patel |
Discover why reliable backup power is critical for data centers and mission-critical facilities. Learn how Briggs & Stratton commercial standby generators from 80kW to 200kW and Cooper Corporation natural-gas gensets...
Prasad Goswami |
Discover the Briggs & Stratton PowerProtect lineup of 13kW, 18kW, 22kW and 26kW home standby generators. Learn how to choose the right generator size for your home, understand NGMax technology,...
Prasad Goswami |
Generator interlock kit vs transfer switch—which is right for your home? Learn how both generator connection methods work, their key differences, load-management considerations, and how generator size affects the equipment...
Prasad Goswami |
If you're shopping for a whole-house or commercial standby generator, the cooling system is one of the first forks in the road — and it quietly decides almost everything else...
Prasad Goswami |
A commercial power outage isn't simply inconvenient. It can stop production, shut down HVAC systems, compromise refrigeration, interrupt communications and IT equipment, disable pumps and leave employees or customers without...
Prasad Goswami |
One of the first questions homeowners ask when shopping for a standby generator is simple: Will it run my air conditioner? That's a particularly important question during a summer power...
Prasad Goswami |
When the power goes out, most homeowners don't want to think about extension cords, portable generators, or deciding which appliance gets power next. A properly sized whole-house standby generator can...
Prasad Goswami |
If you've ever asked what is a heat pump and why so many homeowners are switching to one, you're not alone. Heat pumps have quietly become one of the most...
Sumit Patel |
A power outage hits EV owners differently than gas-car owners — you can't just drive to a gas station. Here's why a standby generator is worth considering if you charge...
Prasad Goswami |
GE Zoneline PTAC units are built in Louisville, Kentucky, giving hotels and multifamily properties a domestically manufactured option for room-by-room heating and cooling. Learn why Zoneline remains a top pick...
Prasad Goswami |
The Daikin DSG0723DL00001S is a powerful Daikin 6 Ton Packaged Gas Electric Unit designed for light commercial applications requiring dependable heating and cooling performance from one complete HVAC system. This packaged rooftop unit combines electric cooling and gas heating into a single durable cabinet, making it an ideal solution for commercial buildings that need efficient year-round climate control. Featuring R32 refrigerant technology, two-stage scroll compressor operation, and commercial-grade construction, this unit provides reliable performance for demanding applications.
The Daikin DSG0723DL00001S packaged gas electric unit is designed to deliver complete heating and cooling functionality through one outdoor packaged system. This 6-ton commercial unit provides approximately 69,000 BTU cooling capacity and 90,000 BTU gas heating capacity while operating on a 208V/230V three-phase electrical supply.
The integrated rooftop design combines the compressor, condenser section, gas heating components, blower assembly, and controls into one factory-assembled cabinet. This helps simplify installation while providing reliable operation for commercial spaces.
Brand: Daikin
Model Number: DSG0723DL00001S
System Type: Packaged Gas Electric Rooftop Unit
Capacity: 6 Ton
Cooling Capacity: 69,000 BTU
Heating Capacity: 90,000 BTU Gas Heat
Efficiency Rating: 16.7 SEER2
Refrigerant: R32
Voltage: 208V/230V
Phase: 3 Phase
Compressor Type: Two-Stage Scroll Compressor
Motor Type: Multi-Speed ECM Motor
Airflow Configuration: Convertible Horizontal / Downflow
Application: Light Commercial
Weight: 690 lbs
Dimensions: 74" D × 48-5/16" W × 43-1/2" H
6 ton packaged gas/electric HVAC system
Duratek refrigerant technology
Dual-stage scroll compressor
90,000 BTU gas heating capacity
ECM supply fan motor
Convertible airflow design
Heavy-gauge galvanized steel cabinet
UV-resistant powder paint finish
Copper tube aluminum fin coils
Micro Channel condenser technology
Easy-access service panels
The Daikin DSG0723DL00001S packaged gas electric unit provides a complete commercial HVAC solution by combining cooling and heating components into one outdoor cabinet. The two-stage compressor helps adjust operation based on comfort demand, supporting consistent temperature control and efficient performance.
The Daikin 6 Ton Packaged Gas Electric Unit delivers approximately 69,000 BTU cooling capacity, making it suitable for medium to large commercial spaces such as offices, retail buildings, restaurants, warehouses, and professional facilities.
Its packaged rooftop configuration eliminates the need for separate indoor and outdoor HVAC equipment, helping businesses save installation space while maintaining reliable heating and cooling performance.
The Daikin DSG0723DL00001S packaged gas electric unit is designed with efficient commercial HVAC technology. The system features a two-stage scroll compressor and multi-speed ECM motor to provide stable airflow and dependable operation.
With an approximate 16.7 SEER2 efficiency rating, this unit helps support efficient seasonal performance while delivering reliable comfort for commercial environments.
The Daikin 6 ton light commercial HVAC system uses R32 refrigerant technology designed for modern HVAC performance. R32 provides efficient heat transfer characteristics and supports newer commercial HVAC requirements.
This refrigerant technology allows the DSG0723DL00001S to deliver reliable cooling operation while supporting improved environmental performance.
The integrated gas heating system provides dependable warmth during colder weather conditions. With a 90,000 BTU heating capacity, the unit can support commercial spaces that require strong heating performance without installing separate heating equipment.
The combination of gas heating and electric cooling makes this system a complete solution for year-round commercial comfort.
The Daikin DSG0723DL00001S features a durable commercial cabinet built with heavy-gauge galvanized steel and a UV-resistant powder paint finish for outdoor durability.
The unit includes accessible service areas, convertible airflow orientation, and commercial-grade internal components designed for reliable long-term operation.
This commercial rooftop packaged HVAC system is designed for 208V/230V three-phase electrical operation. The convertible airflow design allows installation flexibility for horizontal or downflow applications.
Professional installation is recommended to ensure proper electrical connections, gas setup, airflow configuration, and efficient system operation.
Office buildings
Retail stores
Restaurants
Warehouses
Educational facilities
Commercial complexes
Light industrial buildings
Multi-purpose commercial spaces
Businesses looking to buy Daikin 6 ton packaged gas electric unit equipment can choose the Daikin DSG0723DL00001S for its reliable heating and cooling performance, durable commercial construction, R32 refrigerant technology, and flexible installation options.
This packaged rooftop HVAC system provides complete temperature control from one outdoor unit, making it a practical choice for light commercial applications.
Replace air filters regularly
Inspect condenser coils periodically
Check gas heating components
Keep outdoor airflow areas clear
Inspect electrical connections
Schedule professional HVAC maintenance
|
Specification |
Details |
|
Brand |
Daikin |
|
Model |
DSG0723DL00001S |
|
System Type |
Packaged Gas Electric Unit |
|
Capacity |
6 Ton |
|
Cooling Capacity |
69,000 BTU |
|
Heating Capacity |
90,000 BTU |
|
Efficiency |
16.7 SEER2 |
|
Refrigerant |
R32 |
|
Voltage |
208V/230V |
|
Phase |
3 Phase |
|
Compressor |
Two-Stage Scroll |
|
Motor |
Multi-Speed ECM |
|
Airflow |
Convertible Horizontal/Downflow |
|
Weight |
690 lbs |
|
Dimensions |
74" D × 48-5/16" W × 43-1/2" H |
Q1. What type of system is the Daikin DSG0723DL00001S?
The Daikin DSG0723DL00001S is a packaged gas electric rooftop HVAC unit designed for light commercial heating and cooling applications.
Q2. What is the cooling capacity of DSG0723DL00001S?
The unit provides approximately 69,000 BTU cooling capacity.
Q3. What refrigerant does the Daikin DSG0723DL00001S use?
The system uses R32 refrigerant technology.
Q4. What electrical supply does this unit require?
The DSG0723DL00001S operates on 208V/230V three-phase power.
Q5. What is the heating capacity of this Daikin unit?
This model provides 90,000 BTU gas heating capacity.
