MR COOL  |  SKU: DIY-B-348HP121224

MRCOOL DIY Mini Split 54,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump DIY-B-348HP121224


Grand Total

$4,786.00

Free Shipping

We provide Free Shipping

Need help with choosing a Mini Split system or have other questions?Talk with one of our trusted HVAC professionals today!

Email us at : sales@acunitsforless.com

Call us at : 678-672-0213

 Physical Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia 30142, United States





Model: DIY-B-348HP121224

MR COOL Specifications Sheet Click below:

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate

Product Overview:

  • Covers 2000 sq. ft.
  • DIY Installation
  • Wall Mounted
  • Number of Zones: 3
  • Voltage: 208 to 230
  • Outdoor Operating Temp (Cool): 5°F to 122°F
  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

Product Description:

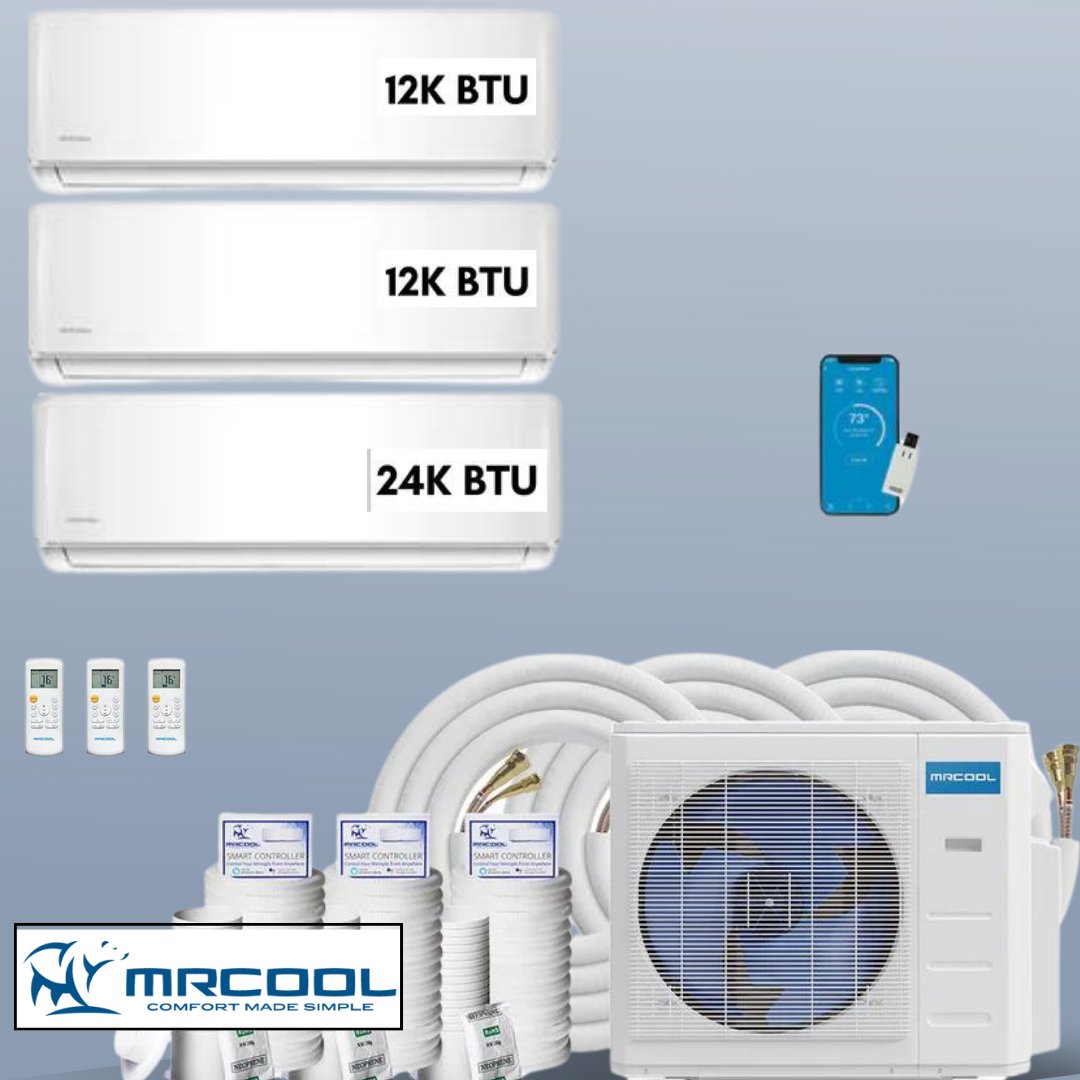

This 4th Generation MRCOOL Mini Split includes a DIY 48,000 BTU Multi-Zone Condenser, two 12,000 BTU Wall Mounted Air Handler, one 24,000 BTU Wall Mounted Air Handler, and three Remotes. The best part about all of this is that you can install it yourself!

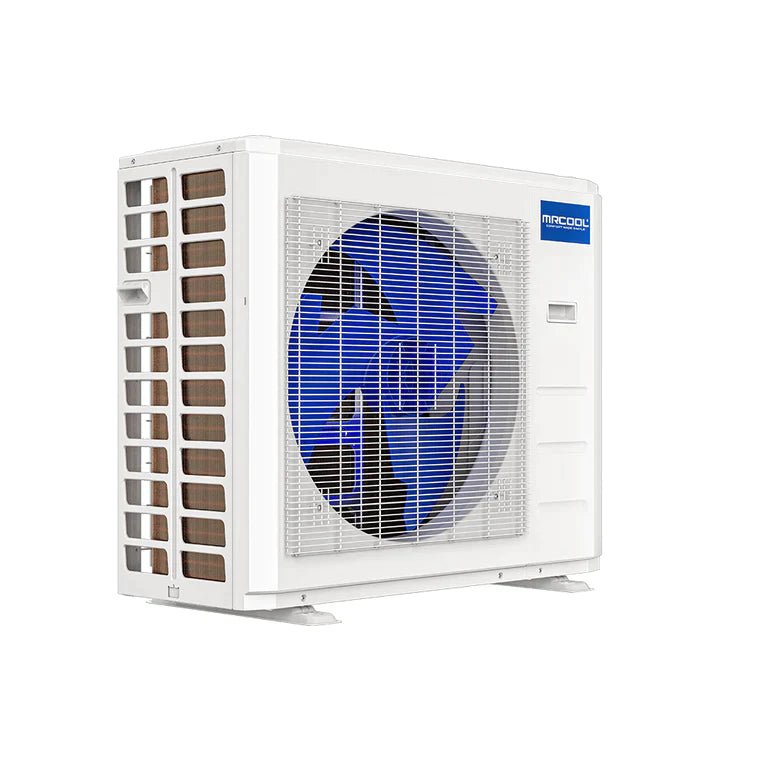

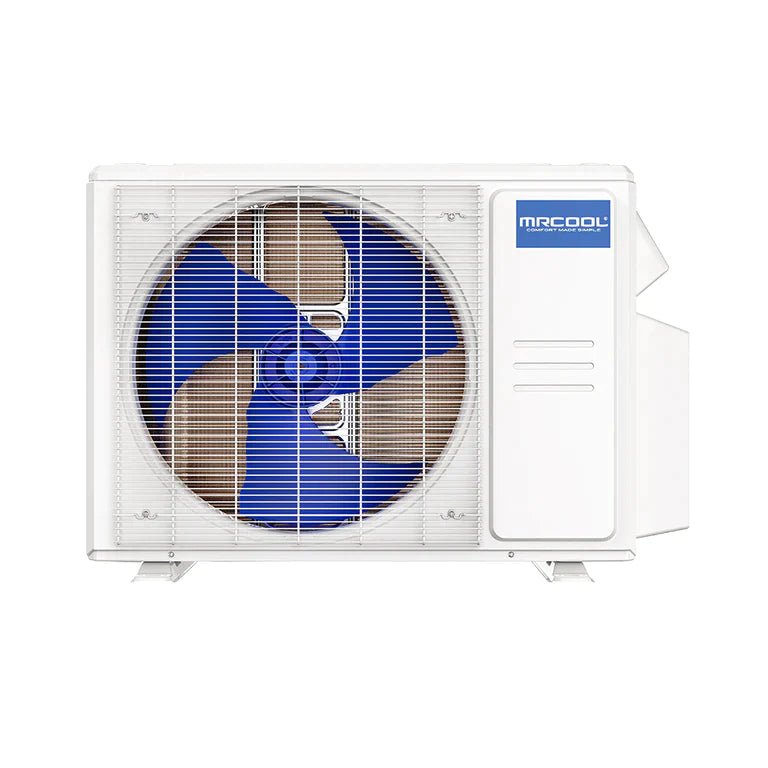

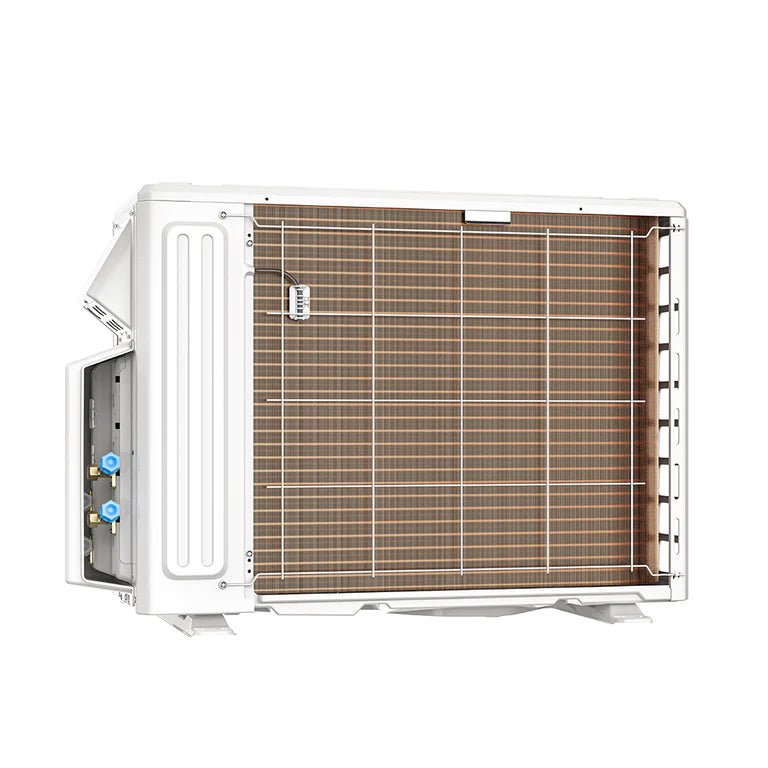

Condenser

  • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
  • Works In All Environments. The capability to continue to deliver heating performance when temperatures reach 5°F
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

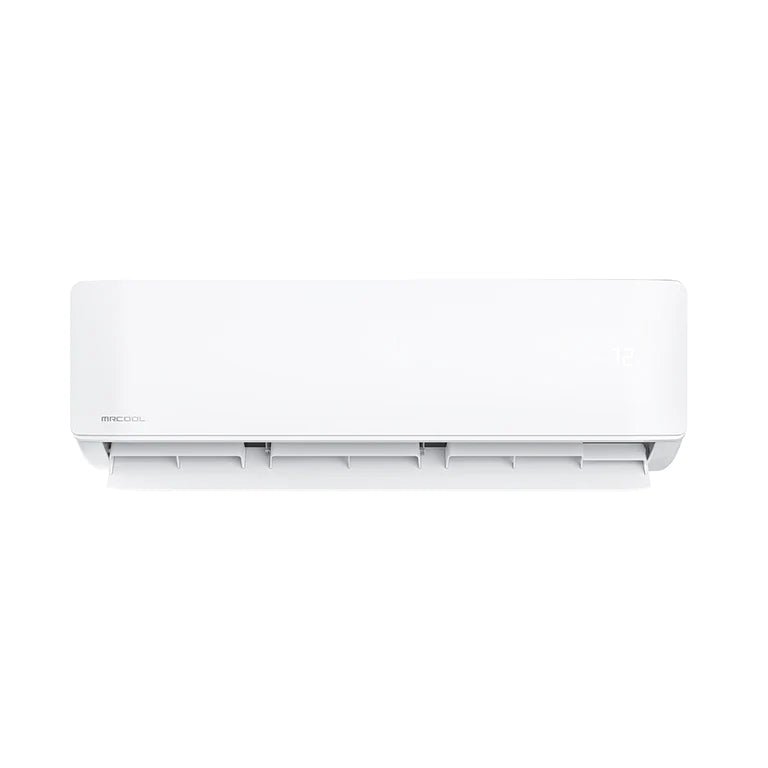

    Air Handler, 12K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 24K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 1,000 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.



      SPECIFICATIONS AND DIMENSIONS:

       Condenser



      Product Dimensions 37.48"W x 16.34"D x 52.48"H
      Cooling Capacity 48,000 BTU
      Heating Capacity 48,000 BTU
      Zone Capacity 5
      Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
      Heat Mode - Outdoor Operating Temperature Range 5F ~ 75.2F
      SEER 20.5
      EER 11
      Voltage Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
      Registered Warranty
      7 Years Replacement on Condenser, 5 Years Parts


      Air Handler 12K BTU

      Product Dimensions 31.57"W x 7.44"D x 11.69"H
      Mount Type Wall
      Cooling Capacity 12,000 BTU
      Heating Capacity 12,000 BTU
      Registered Warranty 5 Years Parts
      Modes Auto - auto selects from Cool, Heat or Fan-Only
      Dry - dehumidify
      Cool
      Heat
      Fan Only
      Quiet
      Sleep


      Air Handler 24K BTU

      Product Dimensions 42.52"W x 8.90"D x 13.19"H
      Mount Type Wall
      Cooling Capacity 23,000 BTU
      Heating Capacity 25,000 BTU
      Registered Warranty 5 Years Parts
      Modes Auto - auto selects from Cool, Heat or Fan-Only
      Dry - dehumidify
      Cool
      Heat
      Fan Only
      Quiet
      Sleep
       COVERAGE AREA:

      Square Feet: 180-375 | BTU = 9K
      Square Feet: 376-500 | BTU = 12K
      Square Feet: 501-750 | BTU = 18K
      Square Feet: 751-1,000 | BTU = 24K
      Square Feet: 1,001-1,500 | BTU = 36K

      Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
