5.0 Ton Goodman 13.4 SEER2 R32 GLXS3BN6010 GR9S800805CN CAPFA6030D3
Model: GR9S800805CN
The Goodman GR9S800805CN is a high-performance, single-stage gas furnace delivering 80,000 BTU of consistent heating power with energy efficiency and quiet operation. With an AFUE rating of 80%, the GR9S800805CN helps reduce energy waste while keeping your indoor space warm and comfortable.
Built with Goodman’s trusted engineering, the GR9S800805CN features a heavy-duty aluminized-steel tubular heat exchanger and a reliable Silicon Nitride igniter for long-lasting performance. The unit’s multi-speed ECM blower motor ensures continuous fan speed and balanced airflow throughout your home.
The GR9S800805CN gas furnace offers flexible installation with upflow and horizontal configuration options. Its compact 21-inch cabinet is fully insulated and built with a durable baked-enamel finish to reduce operating noise and improve longevity.
The GR9S800805CN is an ideal solution for homeowners seeking reliable, energy-efficient heating. With Goodman’s quality and performance backing it, the GR9S800805CN delivers long-term comfort and dependability you can count on.
Documents:
| Brand | Goodman | Model # | GR9S800805CN |
| SEER2/EER2 | Refrigerant | R-32 | |
| Tonnage | Coil Type | ||
| Total Indoor Unit(s) BTU | 80000 | Voltage Requirements | 110V To 120 V |
| Series | Coverage Area (Sq. Ft) | ||
| Indoor Mount Type | Wall Mount | Indoor Unit BTUs | 80K |
| Zone/Rooms | AHRI No | GR9S800805CN | |
| Burner Stages | Single Stage | Cabinet Width | 21" |
| Airflow Direction | Upflow | Furnace Efficiency / AFUE | 80% |
| Furnace BTU | 80,000 BTU's | Power Phase ( Single/Three) | 1 Ph |
| Dimensions - (Shipping Unit Width) | 22.00 in | Dimensions - (Shipping Unit Height) | 35.50 in |
| Dimensions - (Shipping Unit Depth) | Weight - (Shipping Unit) | ||
| Refrigerant Pre-Charged Line Length | Power Frequency | 60 Hz | |
| Nom. CFM | Motor Speed Type | Nine Speed ECM | |
| MOCP | Min. Circuit Amps | 12.45 A | |
| Min Voltage | Max Voltage | ||
| Max Overcurrent Protection | 15 A | LoNox | |
| Valve Size Suction (O.D.) | Valve Size Liquid (O.D.) | ||
| Liquid Line Size | Energy Source | ||
| Expansion Device | Decibels (dBA) | ||
| Compressor Type | Compressor Stages | ||
| Cased vs Uncased | Heating Capacity - (Nominal) | ||
| Cooling Capacity - (Nominal) | Airflow Rate High Cooling | ||
| Function Category | Gas Furnace | Package System Type | |
| Air Handler Mount Type System | Split System Type |
The Goodman CAPFA6030D3 is a heavy-duty 5 Ton evaporator coil designed for upflow/downflow residential HVAC applications. Engineered to work with R-32 refrigerant, it features a factory-installed TXV (Thermal Expansion Valve) for precise refrigerant control and maximum system performance. The 24.5-inch cabinet width supports large-system configurations, making it ideal for high-capacity installations.
Key Features and Benefits:
This unit is part of the trusted Goodman HVAC Products line, delivering reliable comfort, performance, and energy savings.
| Brand | Goodman | Model # | CAPFA6030D3 |
| SEER2/EER2 | Refrigerant | R-32 | |
| Tonnage | Coil Type | Cased | |
| Total Indoor Unit(s) BTU | Voltage Requirements | 208V To 230V | |
| Series | Coverage Area (Sq. Ft) | ||
| Indoor Mount Type | Indoor Unit BTUs | ||
| Zone/Rooms | AHRI No | ||
| Burner Stages | Cabinet Width | ||
| Airflow Direction | Furnace Efficiency / AFUE | ||
| Furnace BTU | Power Phase ( Single/Three) | 1 Ph | |
| Dimensions - (Shipping Unit Width) | 26.00 in | Dimensions - (Shipping Unit Height) | 32.25 in |
| Dimensions - (Shipping Unit Depth) | 26.75 in | Weight - (Shipping Unit) | 69.090 lb |
| Refrigerant Pre-Charged Line Length | Power Frequency | 60 Hz | |
| Nom. CFM | Motor Speed Type | ||
| MOCP | Min. Circuit Amps | ||
| Min Voltage | Max Voltage | ||
| Max Overcurrent Protection | LoNox | ||
| Valve Size Suction (O.D.) | 0 | Valve Size Liquid (O.D.) | |
| Liquid Line Size | Energy Source | Electric | |
| Expansion Device | Orifice | Decibels (dBA) | |
| Compressor Type | Compressor Stages | ||
| Cased vs Uncased | Cased | Heating Capacity - (Nominal) | |
| Cooling Capacity - (Nominal) | Airflow Rate High Cooling | ||
| Function Category | Package System Type | ||
| Air Handler Mount Type System | Split System Type |

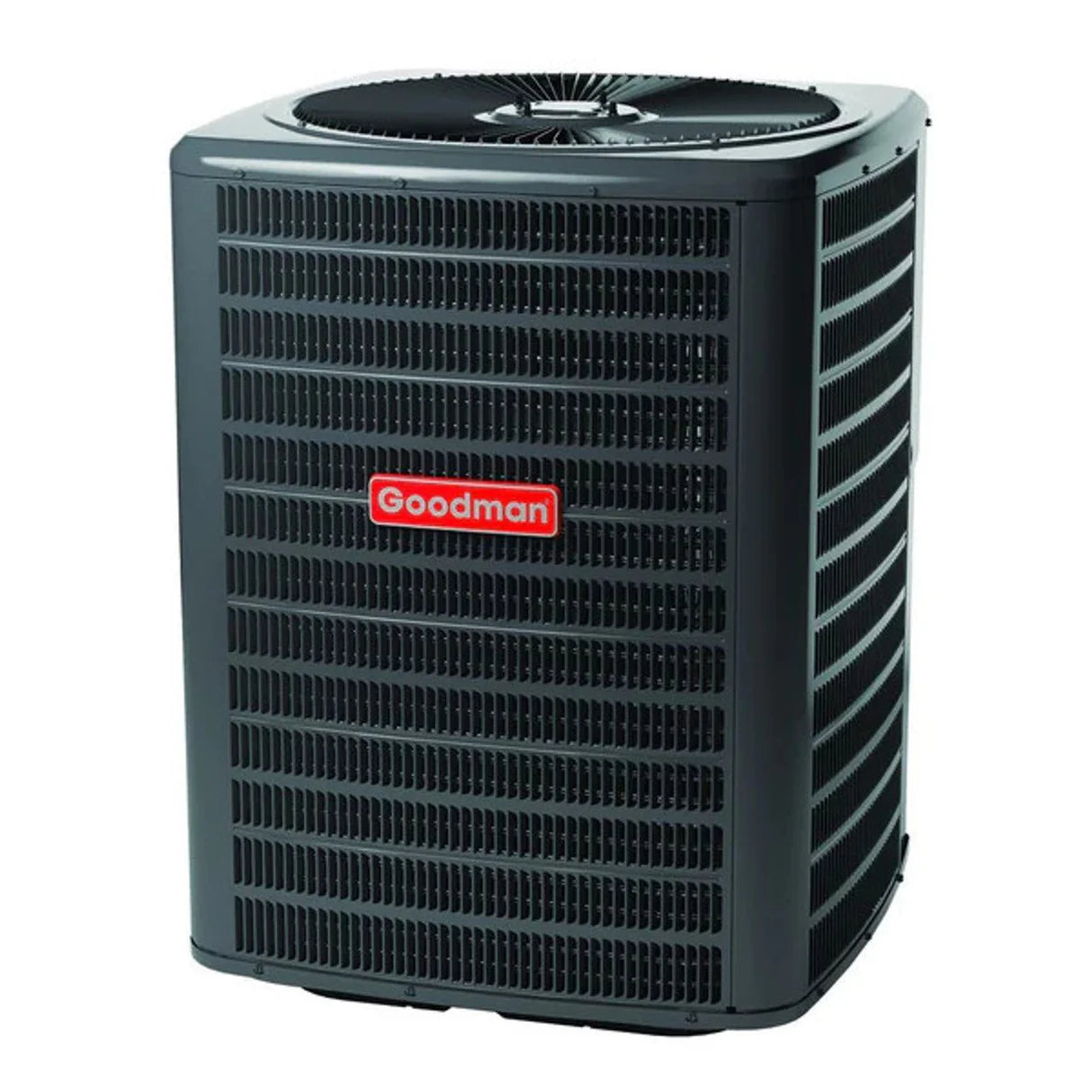

High-capacity, dependable cooling for large residential or light-commercial spaces. The Goodman 5 Ton AC Unit GLXS3BN6010 delivers strong performance with a 13.4 SEER2 efficiency rating and eco-friendly R-32 refrigerant. Designed for expansive rooms or multi-zone applications, it provides reliable comfort, quiet operation, and heavy-duty durability.
The Goodman 5 Ton AC Unit is an ideal solution for customers seeking reliable capacity in a condenser unit built for efficiency and durability. Whether researching GLXS3BN6010 specifications, checking GLXS3BN6010AA details, or comparing options for a 5 Ton central air unit, this model offers proven Goodman quality, eco-conscious design, and lasting performance.
📌 Explore more Goodman models:
| Brand | Goodman | Model # | GLXS3BN6010 |
| SEER2/EER2 | 13.4 | Refrigerant | R-32 |
| Tonnage | 5.0 Ton | Coil Type | |
| Total Indoor Unit(s) BTU | Voltage Requirements | 208V To 230V | |
| Series | Coverage Area (Sq. Ft) | ||
| Indoor Mount Type | Indoor Unit BTUs | ||
| Zone/Rooms | AHRI No | ||
| Burner Stages | Cabinet Width | ||
| Airflow Direction | Furnace Efficiency / AFUE | ||
| Furnace BTU | Power Phase ( Single/Three) | 1 Ph | |
| Dimensions - (Shipping Unit Width) | 37.00 in | Dimensions - (Shipping Unit Height) | 42.00 in |
| Dimensions - (Shipping Unit Depth) | 37.00 in | Weight - (Shipping Unit) | 244.000 lb |
| Refrigerant Pre-Charged Line Length | 15 ft | Power Frequency | 60 Hz |
| Nom. CFM | Motor Speed Type | ||
| MOCP | Min. Circuit Amps | 31.1 A | |
| Min Voltage | Max Voltage | ||
| Max Overcurrent Protection | 50 A | LoNox | |
| Valve Size Suction (O.D.) | 1-1/8 in | Valve Size Liquid (O.D.) | |
| Liquid Line Size | Energy Source | Electric | |
| Expansion Device | Decibels (dBA) | 74 dBA | |
| Compressor Type | Scroll | Compressor Stages | Single Stage |
| Cased vs Uncased | Heating Capacity - (Nominal) | ||
| Cooling Capacity - (Nominal) | 55000 Btu/H | Airflow Rate High Cooling | |
| Function Category | Split Air Conditioner | Package System Type | |
| Air Handler Mount Type System | Split System Type |
