Discounts Available | Add to Cart for your Savings | Damos la bienvenida a hablantes de español | Authorized Dealer | B2B program
Regular Price: $2,973.00
Sale Price: $1,991.91
You save: 33% ($981.09 )
Goodman GLXS3BN6010 5 Ton 13.4 SEER2 R32 Cooling Only Condenser is backordered and will ship as soon as it is back in stock.
Email us at : sales@acunitsforless.com
Call us at : 678-535-7176
Physical Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia 30142, United States

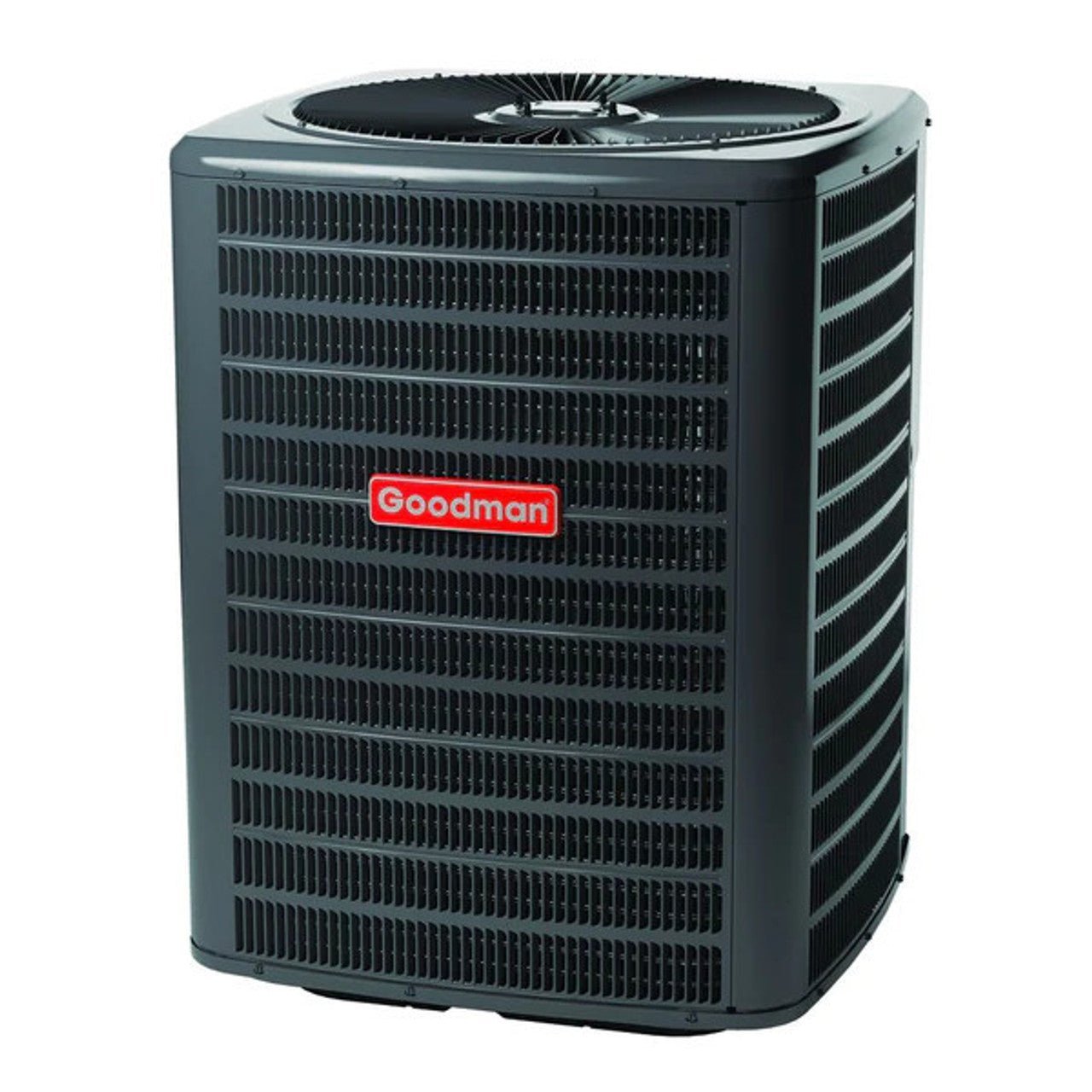

Goodman GLXS3BN6010 5 Ton 13.4 SEER2 R32 Cooling Only Condenser
Regular Price: $2,973.00
Sale Price: $1,991.91
You save: 33% ($981.09 )
Goodman GLXS3BN6010 5 Ton 13.4 SEER2 R32 Cooling Only Condenser is backordered and will ship as soon as it is back in stock.
Once you place an order on AC units for less, we will promptly reach out to express our gratitude for your purchase and address any inquiries you may have. Our team will also review your order with you to ensure that you have selected the right equipment for your specific needs.
Our order process includes a handling or production time in addition to the transit time. Delivery time = handling time + transit time.
All the products undergo a production process, so there will be a handling time of 2–3 business days from Monday to Friday. If your order is placed and payment is received after 2 p.m., then we will process the order the next business day.
Our shipping providers take 3-4 business days to deliver the order. It's an estimate, so there might be a delay.
We primarily use UPS or FEDEX for our deliveries. However, we reserve the right to use other carrier services as required to ensure efficient delivery. After an order ships, the shipping carrier will contact customers to coordinate the delivery schedule.
Once an order has been processed and shipped, it's important to note that the shipping address cannot be altered. Items designated for pickup at the terminal will only be released to the individual listed on the shipping label. A valid driver's license and a signature will be required for the release of the shipment. We adhere strictly to this policy, with no exceptions.
We offer free shipping on all orders except for Flat Bed Shipping or Oversized items. Flat Bed Freight Shipping applies to units larger than 7.5 tons. These items will be delivered via flat bed truck and may require additional delivery coordination. Flat rate charges will be shown at checkout for eligible item. Hot Point PTAC items if ordered under 8 Units different freight is charged
At ACUnitsForLess.com, we are committed to providing our customers with a superior buying experience. We offer free crating to safeguard your equipment during transit, thus eliminating any concerns regarding damage. When you compare our shipping policy to that of our competitors, you'll notice the difference. Customers are not held accountable for any damage to their orders.
Please make your purchase with confidence, knowing that we will ensure you receive the correct equipment that is brand new and in perfect condition.
How do I handle a return shipment?
You may return your unopened order within 60 days for a refund, minus shipping costs and a 25% restocking fee. Customers will be responsible for return shipping costs. Please keep your original box for shipping.
All orders cancelled after 6 hours from the confirmation email will follow the return process, whether or not your order has been shipped. If your order has shipped, you (the buyer) will also be responsible for return shipping charges. Refunds will be issued to the original credit card.
However, if you cancel the order before 6 hours, we will refund your full money.
To process the cancellation, please call us at +1 678-535-7176. We will not be available on Saturday and Sunday, so if somehow you have purchased a product on these days, then contact us on Monday before 3 pm.
If you need any help, feel free to contact us
Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia, 30142, United States
E-Mail: sales@acunitsforless.com
Phone: +1 678-535-7176
Customer Service: Monday to Friday between 9:00 am to 5:00 pm.
If you are not entirely happy with your purchase, you can return your item/s within 60 days of delivery for a full refund of the original payment.
Once we have received the product(s) and, if appropriate, any packaging, a refund will be credited to the payment card account within two weeks; please note that it may take up to 3 days for your bank to credit your account. We are not liable and cannot take responsibility for any bank charges you may incur during the refund process.
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right. In this case, we will cover the cost of return shipping as well as we will not charge any restocking fee.
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item. The cost of return shipping is the responsibility of the customer if you want to Exchange. Also we will charge 25% restocking fee.
Your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging to be eligible for a return. You’ll also need the receipt or proof of purchase.
The following items are not eligible for return:
The cost of return shipping is the responsibility of the customer, except in the case of items that were damaged in transit. In that case, we will cover the cost of return shipping.
We charge 25% Restocking Fee, except product got damaged by carrier.
To start a return, you can contact us at sales@acunitsforless.com. If your return is accepted, we’ll send you a return shipping label and instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
An order that has shipped cannot be cancelled. If you refuse an order which has already been shipped, not due to damage, you will be responsible for paying an ORDER RETURN FEE. We incur a fee from the freight carrier to return items that have been shipped, this fee is dependent on the item refused and the destination location.
There are no returns allowed for products which have been specially built for you and shipped by the manufacturer. These items are not routinely stocked at our warehouse and therefore cannot be returned.
By placing an order, the purchaser expressly acknowledges and agrees to the following terms:
1. No Returns or Exchanges
Final sale items are not eligible for return, exchange, substitution, or store credit for any reason, including but not limited to dissatisfaction, incorrect selection, incompatibility, or change of mind.
2. No Refunds
All sales of final sale items are final and non-refundable. Once an order is placed, it cannot be canceled, modified, or refunded.
3. Assumption of Risk
The purchaser assumes full responsibility for determining product suitability, compatibility, and compliance with applicable codes, regulations, and intended use prior to purchase.
4. Condition and Disclaimer
Final sale items are sold “AS IS” and “WITH ALL FAULTS” with no representations or warranties, express or implied, including but not limited to any implied warranties of merchantability, fitness for a particular purpose, or non-infringement, except where prohibited by law.
5. Shipping and Damage Claims
Any damage occurring during transit must be reported in writing within 48 hours of delivery with supporting photographs. Failure to report within this period constitutes acceptance of the product.
6. Chargebacks and Disputes
The purchaser agrees not to initiate any chargebacks or payment disputes related to final sale items. Any chargeback initiated in violation of this policy may be contested with the payment processor using this agreement as evidence.
7. Severability
If any provision of this policy is deemed unenforceable under applicable law, the remaining provisions shall remain in full force and effect.
If you need any help, feel free to contact us
Address: Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia, 30142, United States
E-Mail: sales@acunitsforless.com
Phone: +1 678-535-7176
Customer Service: Monday to Friday between 9:00 am to 5:00 pm.
We provide a 60-day return policy for your convenience. To initiate a return, it is essential that the items remain unused and in their original manufacturer's packaging. When returning the equipment, please ensure that you reuse all shipping materials that were initially used to protect the equipment during shipment.
We will provide the return label.
Upon receiving your return, we will issue a refund for the full order amount, minus the return shipping cost and a 25% restocking fee.
By placing an order, the purchaser expressly acknowledges and agrees to the following terms:
1. No Returns or Exchanges
Final sale items are not eligible for return, exchange, substitution, or store credit for any reason, including but not limited to dissatisfaction, incorrect selection, incompatibility, or change of mind.
2. No Refunds
All sales of final sale items are final and non-refundable. Once an order is placed, it cannot be canceled, modified, or refunded.
3. Assumption of Risk
The purchaser assumes full responsibility for determining product suitability, compatibility, and compliance with applicable codes, regulations, and intended use prior to purchase.
4. Condition and Disclaimer
Final sale items are sold “AS IS” and “WITH ALL FAULTS” with no representations or warranties, express or implied, including but not limited to any implied warranties of merchantability, fitness for a particular purpose, or non-infringement, except where prohibited by law.
5. Shipping and Damage Claims
Any damage occurring during transit must be reported in writing within 48 hours of delivery with supporting photographs. Failure to report within this period constitutes acceptance of the product.
6. Chargebacks and Disputes
The purchaser agrees not to initiate any chargebacks or payment disputes related to final sale items. Any chargeback initiated in violation of this policy may be contested with the payment processor using this agreement as evidence.
7. Severability
If any provision of this policy is deemed unenforceable under applicable law, the remaining provisions shall remain in full force and effect.
IMPORTANT: HVAC and Water Heater parts and accessories should only be installed by qualified technicians. Failure to understand and follow the manufacturer’s installation and use instructions may result in fire or explosion, electric shock, property damage, injury or loss of life. It is your responsibility to seek professional advice when installing and using these parts and accessories.
When a home has a substantial cooling load, having enough capacity matters just as much as choosing the right equipment platform. The Goodman GLXS3BN6010 is built for those higher-demand applications, offering 5 tons of nominal cooling capacity in a straightforward, cooling-only design. It delivers approximately 60,000 BTU, uses R32 refrigerant, and relies on a single-stage scroll compressor for consistent operation.
The Goodman GLXS3BN6010 is the outdoor portion of a split central air conditioning system. During the cooling cycle, it works with compatible indoor equipment to move heat out of the conditioned space and release it outdoors.
As a Goodman 5 Ton Air Conditioner, this is one of the larger residential capacity options in the GLXS3B family. Its nominal 60,000 BTU output is intended for properties with a cooling load that genuinely calls for a 5 ton system.
That distinction matters. A 60,000 BTU Air Conditioner isn't automatically the right choice simply because a property is large. Insulation, windows, ceiling height, climate, sun exposure, occupancy, and other building characteristics all influence the actual cooling demand.
The unit is listed at 13.4 SEER2, making it a straightforward 13.4 SEER2 Air Conditioner for buyers who need substantial capacity without moving to a more complex compressor platform.
The Goodman 5 Ton AC Condenser focuses on proven components and a relatively simple operating design. Rather than adding multiple compressor stages, it uses single-stage cooling to deliver full output whenever cooling is called for.
5 Ton Nominal Capacity: Provides approximately 60,000 BTU of cooling.
13.4 SEER2 Rating: Designed for standard-efficiency residential cooling applications.
R32 Refrigerant: Part of Goodman's current R32 split-system platform.
Single-Stage Scroll Compressor: Uses scroll-compressor technology with straightforward single-stage operation.
Copper Tube and Enhanced Aluminum Fin Coil: Supports effective heat transfer through the outdoor coil.
5 mm Coil Design: Uses enhanced aluminum fins around copper tubing.
Factory Refrigerant Charge: Factory charged for approximately 15 feet of 3/8-inch liquid line.
Factory-Installed Filter Drier: Helps control moisture and contaminants inside the refrigerant circuit.
High-Pressure Switch: Provides additional protection within the refrigeration system.
Enclosed Contactor: Keeps an important electrical component protected inside the cabinet.
Extended-Life Capacitors: Designed to support dependable electrical operation.
Steel Louver Coil Guard: Helps protect the condenser coil from outdoor exposure.
Architectural Gray Finish: Uses a powder-painted cabinet designed for outdoor conditions.
PSC Condenser Fan Motor: Uses a 1/4 HP PSC outdoor fan motor.
For someone comparing a Goodman 5 Ton R32 Condenser, the appeal of this model is fairly simple: high cooling capacity, R32 refrigerant, a scroll compressor, and a conventional single-stage design.
|
Specification |
Details |
|
Brand |
Goodman |
|
Model |
GLXS3BN6010 |
|
Product Type |
Cooling-Only Split AC Condenser |
|
Nominal Capacity |
5 Ton |
|
Nominal Cooling Capacity |
60,000 BTU/h |
|
Listed Efficiency |
13.4 SEER2 |
|
Refrigerant |
R32 |
|
Compressor Type |
Scroll |
|
Compressor Stage |
Single Stage |
|
Voltage |
208/230V |
|
Phase |
Single Phase |
|
Frequency |
60 Hz |
|
Minimum Circuit Ampacity |
31.1 A |
|
Maximum Overcurrent Protection |
50 A |
|
Liquid Line Size |
3/8 in |
|
Suction Line Size |
1-1/8 in |
|
Liquid Valve Size |
3/8 in |
|
Suction Valve Size |
7/8 in |
|
Valve Connection |
Sweat |
|
Sound Level |
74 dBA |
|
Width |
35.5 in |
|
Depth |
35.5 in |
|
Height |
39.5 in |
|
Weight |
Approx. 244 lbs |
With a cabinet measuring approximately 35.5 inches wide, 35.5 inches deep, and 39.5 inches high, this isn't one of Goodman's smaller outdoor condensers. The larger cabinet makes sense given the amount of coil area and hardware needed for a 5 ton cooling platform.
The unit itself weighs about 229 pounds, while its listed shipping weight is approximately 244 pounds.
As a 5 Ton R32 AC Condenser, its nominal cooling capacity is 60,000 BTU per hour. That puts it at the upper end of the GLXS3B residential range and makes proper capacity matching especially important. Bigger isn't automatically better—an oversized cooling system can behave differently from equipment correctly matched to the building's cooling load.
This Goodman R32 Air Conditioner makes the most sense when the property genuinely requires a 5 ton cooling-only system and the indoor equipment is compatible with the same R32 platform.
It may be a suitable choice for:
Larger homes with a calculated 5 ton cooling requirement
Properties needing approximately 60,000 BTU of nominal cooling
Buyers looking for a high-capacity Goodman condenser
R32 split systems using compatible indoor equipment
Properties where heating is provided separately
Buyers who prefer straightforward single-stage operation
Applications using 208/230V single-phase power
Locations that can accommodate a 35.5" × 35.5" outdoor cabinet
This condenser is designed for cooling only. It isn't a heat pump, so it does not reverse the refrigeration cycle to provide heating.
Q1. How much cooling capacity does this Goodman condenser provide?
It provides 60,000 BTU/h of nominal cooling capacity, placing it in the 5 ton equipment class.
Q2. Does this model use a scroll compressor?
Yes. Goodman specifies a single-stage scroll compressor for the 5 ton model.
Q3. What refrigerant does this condenser use?
It uses R32 refrigerant and belongs to Goodman's current R32 split-system equipment family.
Q4. How loud is the outdoor unit?
Goodman's specification sheet lists the 5 ton model at approximately 74 dBA.
Q5. What size are the refrigerant connections?
Goodman specifies a 3/8-inch liquid valve and 7/8-inch suction valve. The recommended 25-foot line-set sizes are 3/8-inch liquid and 1-1/8-inch suction.
Q6. What are the dimensions and weight?
The cabinet measures approximately 35.5" W × 35.5" D × 39.5" H. Equipment weight is about 229 pounds, while shipping weight is approximately 244 pounds.
