Goodman Goodman  |  SKU: GLXS5BA4810
96706534-0933-4108-A7F9-5DA8667402EE Created with sketchtool. Free Shipping

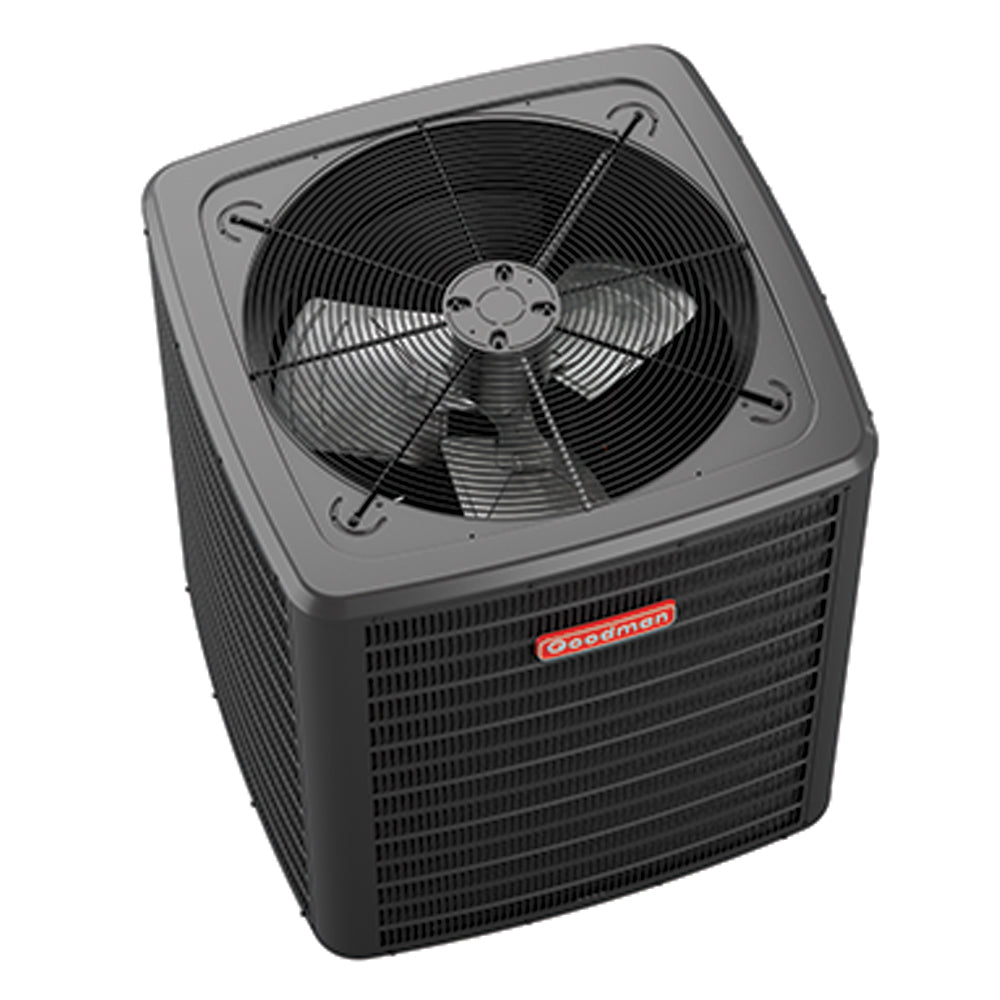

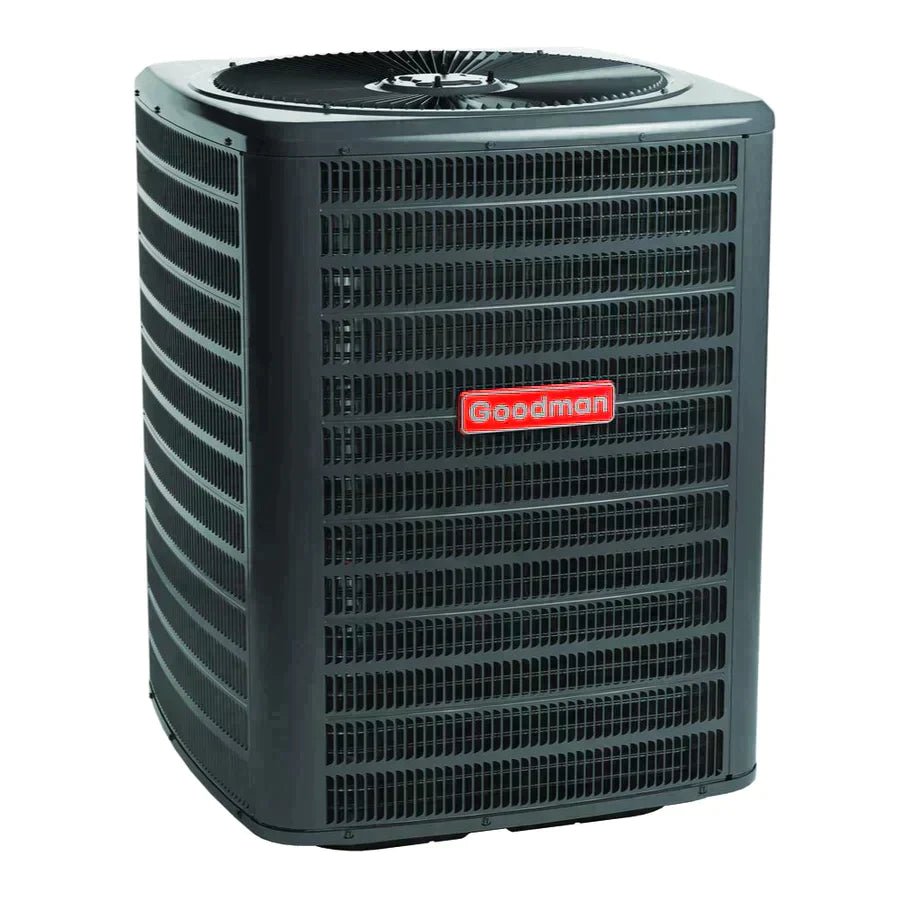

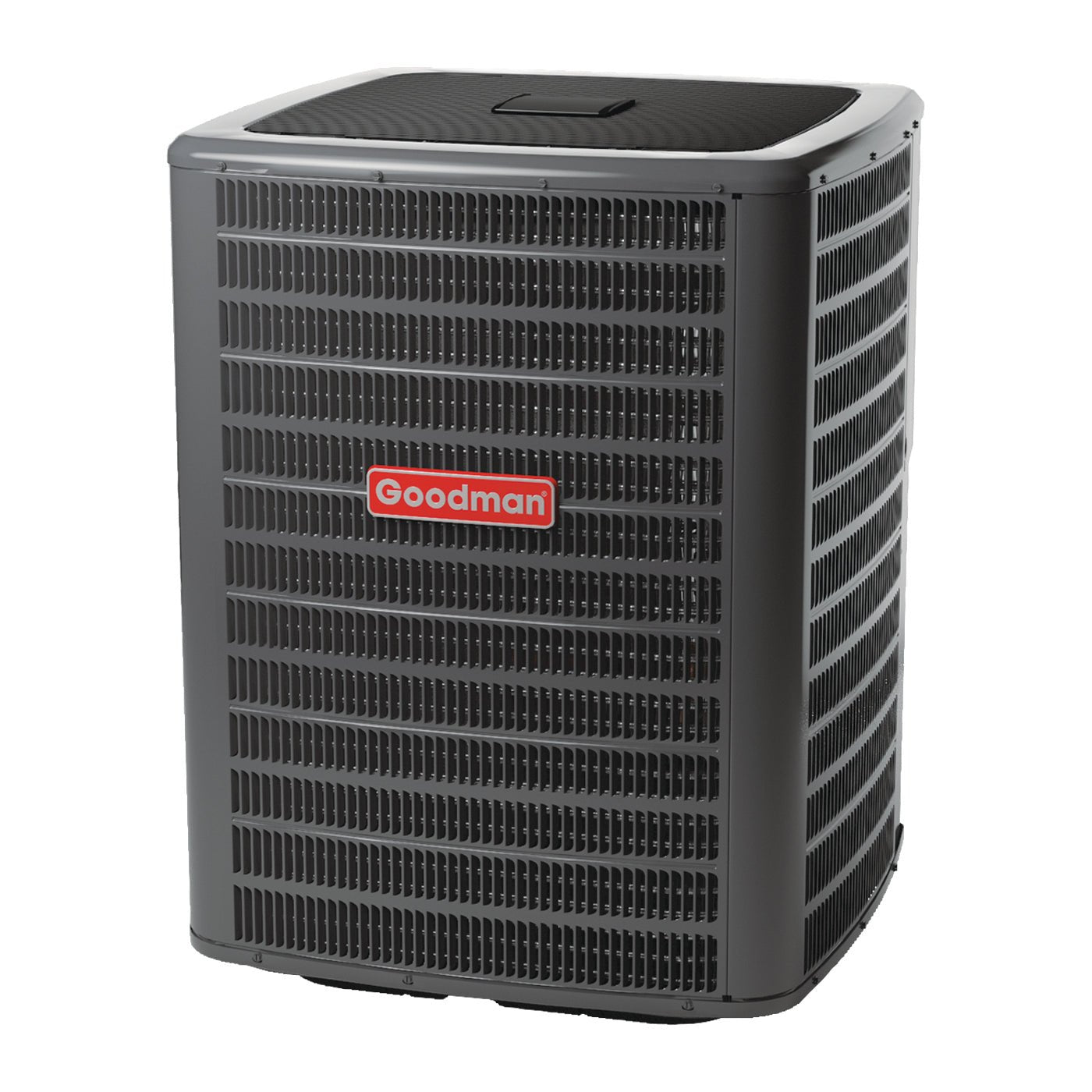

Goodman GLXS5BA4810 4 Ton 15.2 SEER2 R32 Cooling Only Condenser

$3,515.00
Try this (Save $$$$)

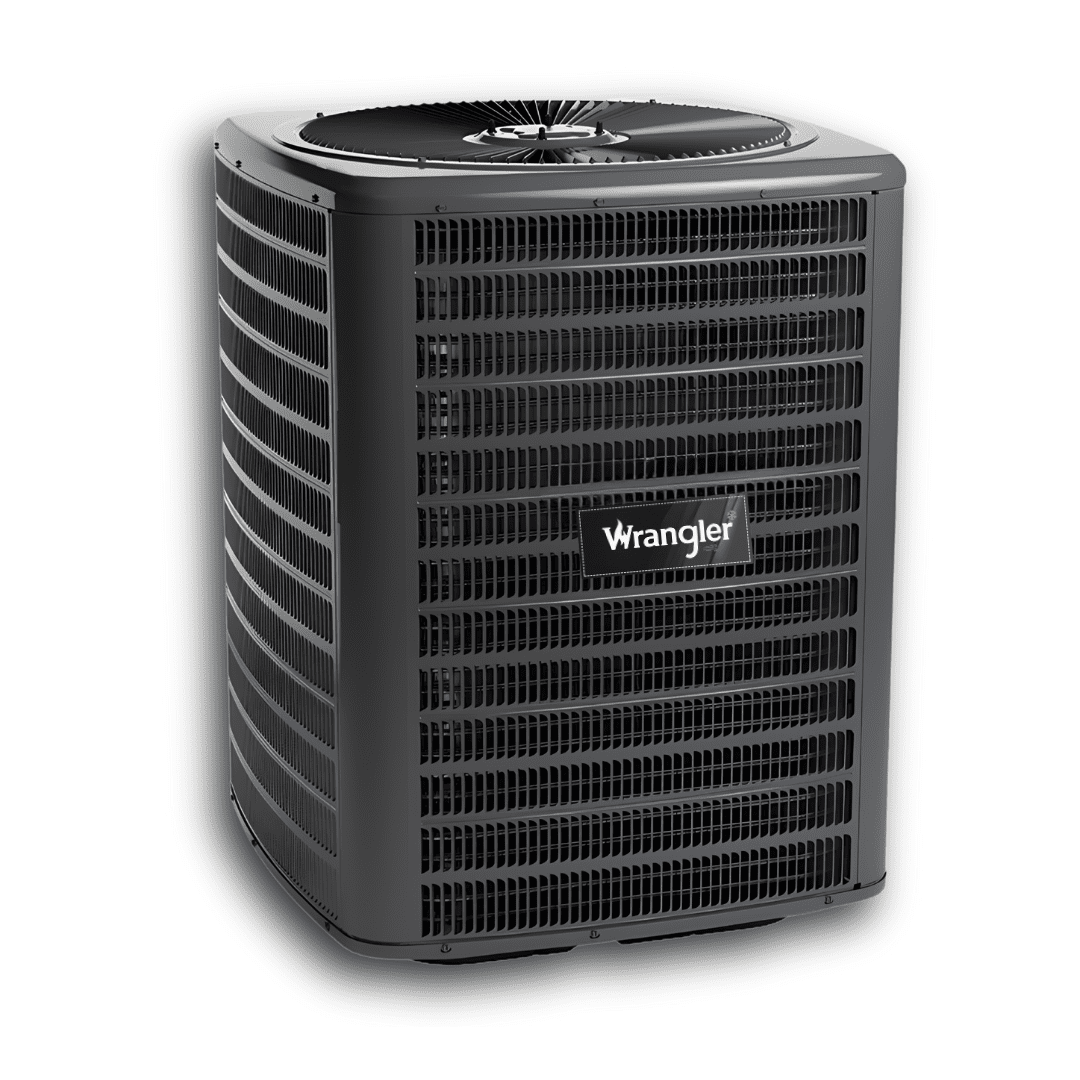

Wrangler 4.0 Ton 15.2 SEER2 R-32 Split Air Conditioner WR-GLXS5BA4810 - acunitsforless.com
Wrangler 4.0 Ton 15.2 SEER2 R-32 Split Air Conditioner WR-GLXS5BA4810
$2,420.00
Vendor: Wrangler (Private Label)
Model: WR-GLXS5BA4810
See More Options

Product Manuals
pdf

Service Manual

pdf

Specification Sheet

pdf

Installation Manual

pdf

Install Checklist

pdf

Full Install Manual

pdf

Warranty

Is this system right for you?
0 BTU's
0
48,000 BTUS's
Width
35.5 in
Height
36.5 in
Depth
35.5 in
Weight
271 lbs
V Voltage
208V/230V
Bundled
Purchase
All in
One Buy
Good for
Replacements

What's in the box

  • Goodman GLXS5BA4810 4 Ton 15.2 SEER2 R32 Cooling Only Condenser

  • Product Specs

  • Product Brochure

  • Parts Manual

  • Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)

Need help with choosing a system or have other questions? Talk with one of our trusted HVAC professionals today! 678-535-7176

Email us at : sales@acunitsforless.com

Call us at : 678-535-7176

 Physical Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia 30142, United States
  • Factory Warranty
  • Secure Checkout
  • 60-Day Returns*
  • Pro Support
  • Authorized Dealer

Tags: 48000 btu, Air conditioner condenser, Goodman_split_air_conditioner, Gsp, R32 glxs5ba4810

Shipping Policy

Once you place an order on AC units for less, we will promptly reach out to express our gratitude for your purchase and address any inquiries you may have. Our team will also review your order with you to ensure that you have selected the right equipment for your specific needs.

Order Process

Our order process includes a handling or production time in addition to the transit time. Delivery time = handling time + transit time.

Handling Time

All the products undergo a production process, so there will be a handling time of 2–3 business days from Monday to Friday. If your order is placed and payment is received after 2 p.m., then we will process the order the next business day.

Transit Time

Our shipping providers take 3-4 business days to deliver the order. It's an estimate, so there might be a delay.

Shipping Providers

We primarily use UPS or FEDEX for our deliveries. However, we reserve the right to use other carrier services as required to ensure efficient delivery. After an order ships, the shipping carrier will contact customers to coordinate the delivery schedule.

Once an order has been processed and shipped, it's important to note that the shipping address cannot be altered. Items designated for pickup at the terminal will only be released to the individual listed on the shipping label. A valid driver's license and a signature will be required for the release of the shipment. We adhere strictly to this policy, with no exceptions.

Shipping Rates

We offer free shipping on all orders except for Flat Bed Shipping or Oversized items. Flat Bed Freight Shipping applies to units larger than 7.5 tons. These items will be delivered via flat bed truck and may require additional delivery coordination. Flat rate charges will be shown at checkout for eligible item. Hot Point PTAC items if ordered under 8 Units different freight is charged

Damages and shipping issues

At ACUnitsForLess.com, we are committed to providing our customers with a superior buying experience. We offer free crating to safeguard your equipment during transit, thus eliminating any concerns regarding damage. When you compare our shipping policy to that of our competitors, you'll notice the difference. Customers are not held accountable for any damage to their orders.

Please make your purchase with confidence, knowing that we will ensure you receive the correct equipment that is brand new and in perfect condition.

How do I handle a return shipment?

You may return your unopened order within 60 days for a refund, minus shipping costs and a 25% restocking fee. Customers will be responsible for return shipping costs. Please keep your original box for shipping.

Cancellation

All orders cancelled after 6 hours from the confirmation email will follow the  return process,  whether or not your order has been shipped. If your order has shipped, you (the buyer) will also be responsible for return shipping charges. Refunds will be issued to the original credit card.

However, if you cancel the order before 6 hours, we will refund your full money.

To process the cancellation, please call us at +1  678-535-7176. We will not be available on Saturday and Sunday, so if somehow you have purchased a product on these days, then contact us on Monday before 3 pm.

If you need any help, feel free to contact us

Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia, 30142, United States
E-Mail: sales@acunitsforless.com
Phone: +1  678-535-7176
Customer Service: Monday to Friday between 9:00 am to 5:00 pm.

Return Policy

If you are not entirely happy with your purchase, you can return your item/s within 60 days of delivery for a full refund of the original payment.

Once we have received the product(s) and, if appropriate, any packaging, a refund will be credited to the payment card account within two weeks; please note that it may take up to 3 days for your bank to credit your account. We are not liable and cannot take responsibility for any bank charges you may incur during the refund process.

Damages and issues

Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right. In this case, we will cover the cost of return shipping as well as we will not charge any restocking fee.

Exchanges

The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item. The cost of return shipping is the responsibility of the customer if you want to Exchange. Also we will charge 25% restocking fee.

Return Eligibility

Your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging to be eligible for a return. You’ll also need the receipt or proof of purchase.

Non-returnable items

The following items are not eligible for return:

  • Items that weren't returned within 60 days from the date the customer received the item
  • Items that have been used or damaged by the customer
  • Items that are not in their original packaging
  • Items that do not have all tags and accessories
  • Unfortunately, we cannot accept returns on sale items or gift cards.
  • Items that are consumable and  other wise stated cannot be returned examples are parts, compressors, misc items
  • Special order units
  • Custom-configured products
  • Commercial Units
  • Consumable parts
Return Costs

The cost of return shipping is the responsibility of the customer, except in the case of items that were damaged in transit. In that case, we will cover the cost of return shipping.

Restocking Fee

We charge 25% Restocking Fee, except product got damaged by carrier.

To start a return, you can contact us at sales@acunitsforless.com. If your return is accepted, we’ll send you a return shipping label and instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.

Cancelled Orders

An order that has shipped cannot be cancelled. If you refuse an order which has already been shipped, not due to damage, you will be responsible for paying an ORDER RETURN FEE. We incur a fee from the freight carrier to return items that have been shipped, this fee is dependent on the item refused and the destination location.

Built-to-Order Items

There are no returns allowed for products which have been specially built for you and shipped by the manufacturer. These items are not routinely stocked at our warehouse and therefore cannot be returned.

Final Sale Policy

 By placing an order, the purchaser expressly acknowledges and agrees to the following terms:

1. No Returns or Exchanges
Final sale items are not eligible for return, exchange, substitution, or store credit for any reason, including but not limited to dissatisfaction, incorrect selection, incompatibility, or change of mind.

2. No Refunds
All sales of final sale items are final and non-refundable. Once an order is placed, it cannot be canceled, modified, or refunded.

3. Assumption of Risk
The purchaser assumes full responsibility for determining product suitability, compatibility, and compliance with applicable codes, regulations, and intended use prior to purchase.

4. Condition and Disclaimer
Final sale items are sold “AS IS” and “WITH ALL FAULTS” with no representations or warranties, express or implied, including but not limited to any implied warranties of merchantability, fitness for a particular purpose, or non-infringement, except where prohibited by law.

5. Shipping and Damage Claims
Any damage occurring during transit must be reported in writing within 48 hours of delivery with supporting photographs. Failure to report within this period constitutes acceptance of the product.

6. Chargebacks and Disputes
The purchaser agrees not to initiate any chargebacks or payment disputes related to final sale items. Any chargeback initiated in violation of this policy may be contested with the payment processor using this agreement as evidence.

7. Severability
If any provision of this policy is deemed unenforceable under applicable law, the remaining provisions shall remain in full force and effect.

If you need any help, feel free to contact us

Address: Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia, 30142, United States
E-Mail: sales@acunitsforless.com
Phone: +1  678-535-7176
Customer Service: Monday to Friday between 9:00 am to 5:00 pm.

Refund Policy

We provide a 60-day return policy for your convenience. To initiate a return, it is essential that the items remain unused and in their original manufacturer's packaging. When returning the equipment, please ensure that you reuse all shipping materials that were initially used to protect the equipment during shipment.

We will provide the return label.

Upon receiving your return, we will issue a refund for the full order amount, minus the return shipping cost and a 25% restocking fee.

Final Sale Policy

 By placing an order, the purchaser expressly acknowledges and agrees to the following terms:

1. No Returns or Exchanges
Final sale items are not eligible for return, exchange, substitution, or store credit for any reason, including but not limited to dissatisfaction, incorrect selection, incompatibility, or change of mind.

2. No Refunds
All sales of final sale items are final and non-refundable. Once an order is placed, it cannot be canceled, modified, or refunded.

3. Assumption of Risk
The purchaser assumes full responsibility for determining product suitability, compatibility, and compliance with applicable codes, regulations, and intended use prior to purchase.

4. Condition and Disclaimer
Final sale items are sold “AS IS” and “WITH ALL FAULTS” with no representations or warranties, express or implied, including but not limited to any implied warranties of merchantability, fitness for a particular purpose, or non-infringement, except where prohibited by law.

5. Shipping and Damage Claims
Any damage occurring during transit must be reported in writing within 48 hours of delivery with supporting photographs. Failure to report within this period constitutes acceptance of the product.

6. Chargebacks and Disputes
The purchaser agrees not to initiate any chargebacks or payment disputes related to final sale items. Any chargeback initiated in violation of this policy may be contested with the payment processor using this agreement as evidence.

7. Severability
If any provision of this policy is deemed unenforceable under applicable law, the remaining provisions shall remain in full force and effect.

genuine_parts

IMPORTANT: HVAC and Water Heater parts and accessories should only be installed by qualified technicians. Failure to understand and follow the manufacturer’s installation and use instructions may result in fire or explosion, electric shock, property damage, injury or loss of life. It is your responsibility to seek professional advice when installing and using these parts and accessories.

Goodman HVAC Systems - Affordable, Energy-Efficient Air Conditioners & Heat Pumps Made in the USA.

Goodman is one of America's most trusted HVAC brands, offering energy-efficient air conditioners, heat pumps, and gas furnaces for reliable residential heating and cooling. Every Goodman system is USA-assembled, ISO 9001-certified, and backed by an industry-leading 10-Year Parts & Unit Replacement Limited Warranty.

  • The Goodman GLXS5BA4810 is a 4 ton cooling-only condenser designed for residential split air conditioning systems with higher cooling requirements. It provides approximately 48,000 BTU of nominal cooling capacity and combines a 15.2 SEER2 efficiency rating with R32 refrigerant and single-stage scroll compressor operation. Its durable outdoor cabinet and high-capacity design make it a practical choice for properly sized residential cooling applications.

    Goodman GLXS5BA4810 Overview

    The Goodman GLXS5BA4810 serves as the outdoor condenser component of a central split air conditioning system. It works with compatible indoor HVAC equipment to transfer heat from inside the property to the outdoors and maintain comfortable indoor temperatures during warm weather.

    As a Goodman 4 Ton Air Conditioner, this model provides approximately 48,000 BTU of nominal cooling capacity. That level of output places it in a higher residential capacity range for properties with substantial cooling requirements.

    Buyers comparing a 48,000 BTU Air Conditioner should consider more than tonnage alone. This condenser also uses R32 refrigerant, operates on 208/230V single-phase power, and uses a single-stage scroll compressor for straightforward cooling operation.

    Its efficiency rating also makes it a suitable 15.2 SEER2 Air Conditioner option within Goodman's R32 residential cooling lineup.

    Key Features of Goodman 4 Ton R32 Condenser

    The Goodman 4 Ton AC Condenser combines large residential cooling capacity with practical system features and straightforward single-stage operation.

    • 4 Ton Cooling Capacity: Provides approximately 48,000 BTU of nominal cooling.

    • 15.2 SEER2 Efficiency: Designed for efficient seasonal cooling when used with compatible indoor equipment.

    • R32 Refrigerant: Uses R32 refrigerant for current-generation residential air conditioning applications.

    • Single-Stage Scroll Compressor: Provides consistent full-stage cooling whenever there is a demand for conditioned air.

    • Factory Refrigerant Charge: Supplied with refrigerant for approximately 15 feet of tubing.

    • Factory-Installed Filter Drier: Helps control moisture and contaminants within the refrigerant circuit.

    • Copper Tube and Enhanced Aluminum Fin Coil: Supports effective heat transfer through the outdoor condenser coil.

    • High-Pressure Switch: Helps protect key refrigerant-system components.

    • Steel Louver Coil Guard: Helps shield the coil from direct outdoor exposure.

    • 208/230V Electrical Configuration: Designed for a common residential split-system power setup.

    • 25.5A Minimum Circuit Ampacity: Provides a clear electrical requirement for proper system matching.

    • 40A Maximum Overcurrent Protection: Supports appropriate electrical protection for the outdoor unit.

    • 74.7 dBA Sound Rating: Listed operating sound level for this condenser.

    For buyers comparing a Goodman 4 Ton R32 Condenser, the GLXS5BA4810 offers a useful combination of 48,000 BTU cooling capacity, R32 refrigerant, single-stage operation, and 15.2 SEER2 efficiency.

    Technical Specifications

    Specification

    Details

    Brand

    Goodman

    Model Number

    GLXS5BA4810

    Product Type

    Cooling-Only Split AC Condenser

    Nominal Capacity

    4 Ton

    Nominal Cooling Capacity

    48,000 BTU

    Efficiency

    15.2 SEER2

    Refrigerant

    R32

    Compressor Type

    Scroll

    Compressor Stages

    Single Stage

    Voltage

    208/230V

    Phase

    Single Phase

    Frequency

    60 Hz

    Minimum Circuit Ampacity

    25.5 A

    Maximum Overcurrent Protection

    40 A

    Suction Valve Size

    7/8 in

    Liquid Valve Size

    3/8 in

    Factory Refrigerant Charge

    Approx. 15 ft of tubing

    Sound Level

    74.7 dBA

    Width

    35.5 in

    Depth

    35.5 in

    Height

    36.5 in

    Shipping Weight

    249 lbs

    GLXS5BA4810 Dimensions & Capacity

    The GLXS5BA4810 measures approximately 35.5 inches wide, 35.5 inches deep, and 36.5 inches high. Its listed shipping weight is approximately 249 pounds. These dimensions provide the cabinet space required for a higher-capacity residential condenser while keeping the outdoor footprint manageable.

    As a 4 Ton R32 AC Condenser, this unit delivers approximately 48,000 BTU of nominal cooling capacity. A 4 ton system is generally intended for properties with higher cooling loads, but property size alone should not determine the correct AC capacity.

    Insulation quality, ceiling height, window area, sun exposure, local climate, occupancy, air leakage, duct characteristics, and building orientation can all influence cooling requirements. The correct equipment size should therefore match the actual cooling load of the property.

    Who Should Buy Goodman 4 Ton AC Unit?

    This Goodman R32 Air Conditioner is best suited for residential applications that require approximately 4 tons or 48,000 BTU of nominal cooling capacity and need a cooling-only outdoor condenser.

    This model may be suitable for:

    • Larger residential properties with a 4 ton cooling requirement

    • Spaces requiring approximately 48,000 BTU of nominal cooling

    • Buyers comparing Goodman cooling-only condensers

    • Split AC configurations using compatible R32 indoor equipment

    • Properties where heating is handled by separate equipment

    • Buyers who prefer straightforward single-stage cooling

    • Applications requiring 208/230V single-phase power

    • Properties where a 35.5" × 35.5" outdoor condenser footprint is appropriate

    The unit is designed specifically for cooling and does not function as a heat pump. Indoor equipment, refrigerant compatibility, electrical requirements, airflow, and total system capacity should all be compatible with the outdoor condenser.

    FAQ

    Q1: How much cooling capacity does this 4 ton condenser provide?

    This unit provides approximately 48,000 BTU of nominal cooling capacity, which corresponds to a 4 ton residential air conditioning system.

    Q2: What is the efficiency rating of this Goodman condenser?

    The condenser is rated at 15.2 SEER2. Final system efficiency depends on the compatible indoor and outdoor equipment combination.

    Q3: What refrigerant does this AC condenser use?

    This model uses R32 refrigerant and should be paired with compatible indoor HVAC equipment designed for the same refrigerant platform.

    Q4: Is this Goodman 4 ton unit a heat pump?

    No. It is a cooling-only condenser and does not provide reverse-cycle heat-pump heating.

    Q5: What are the dimensions of this outdoor condenser?

    The cabinet measures approximately 35.5 inches wide, 35.5 inches deep, and 36.5 inches high. Its listed shipping weight is approximately 249 pounds.

    Q6: Is the GLXS5BA4810 a complete AC system?

    No. The GLXS5BA4810 is the outdoor condenser component of a split air conditioning system and works with compatible indoor HVAC equipment.
