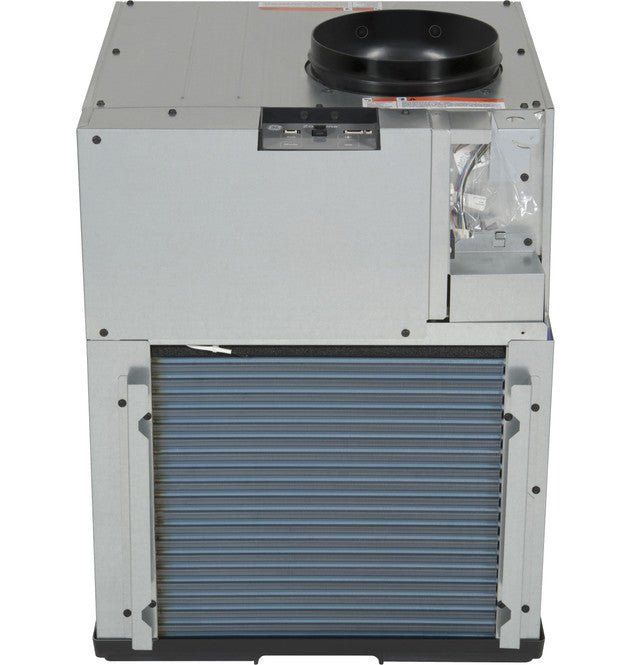

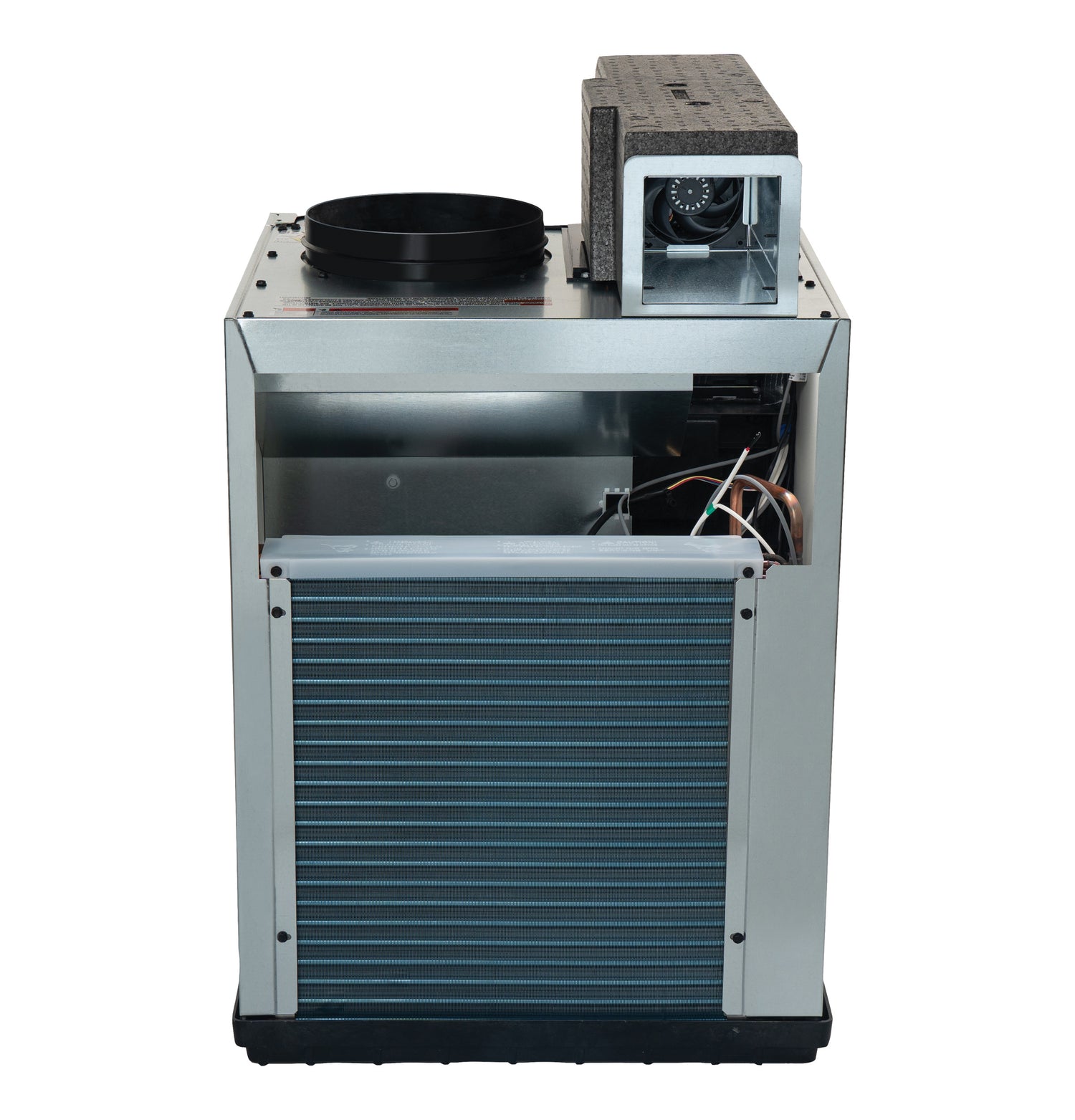

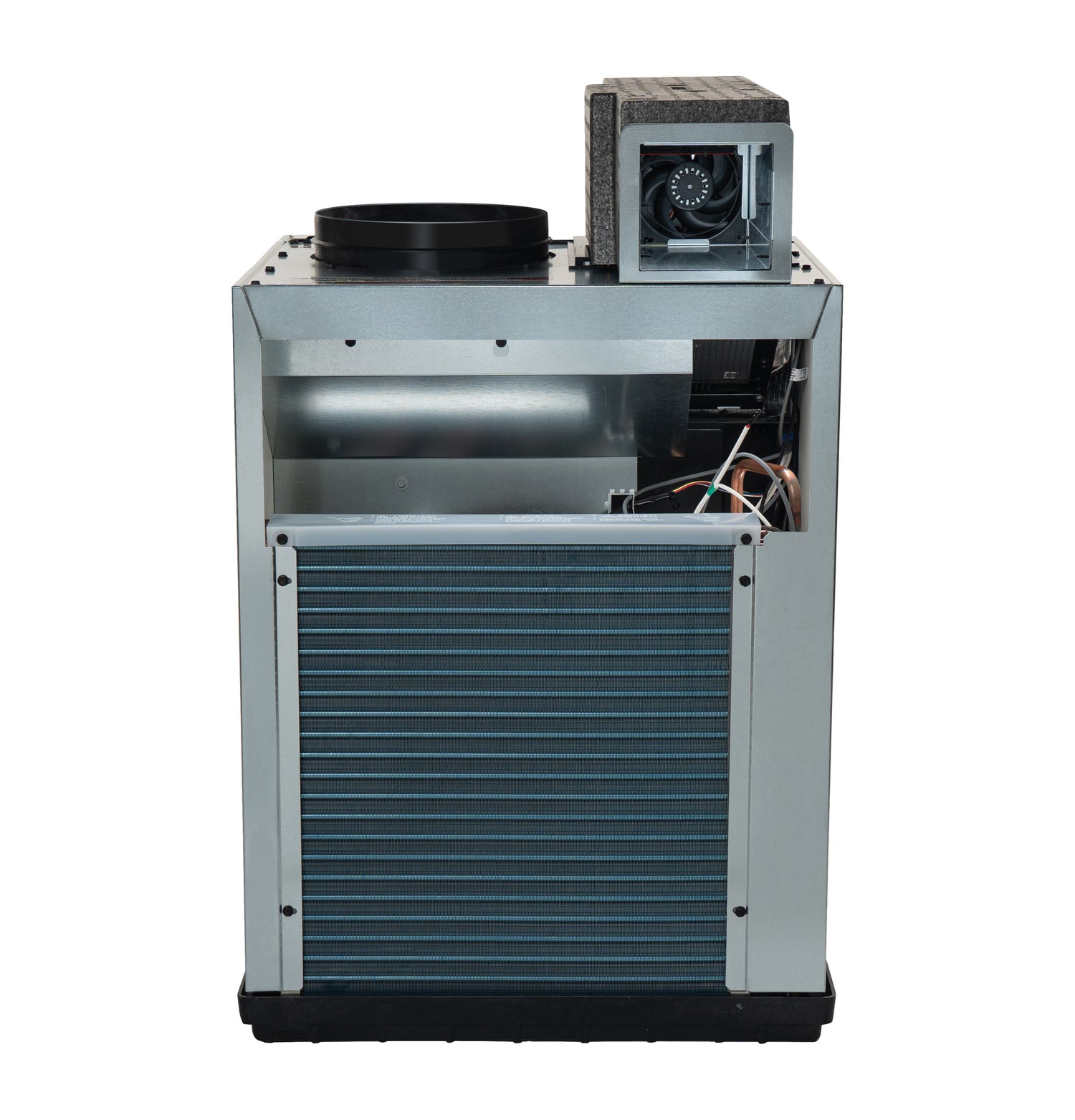

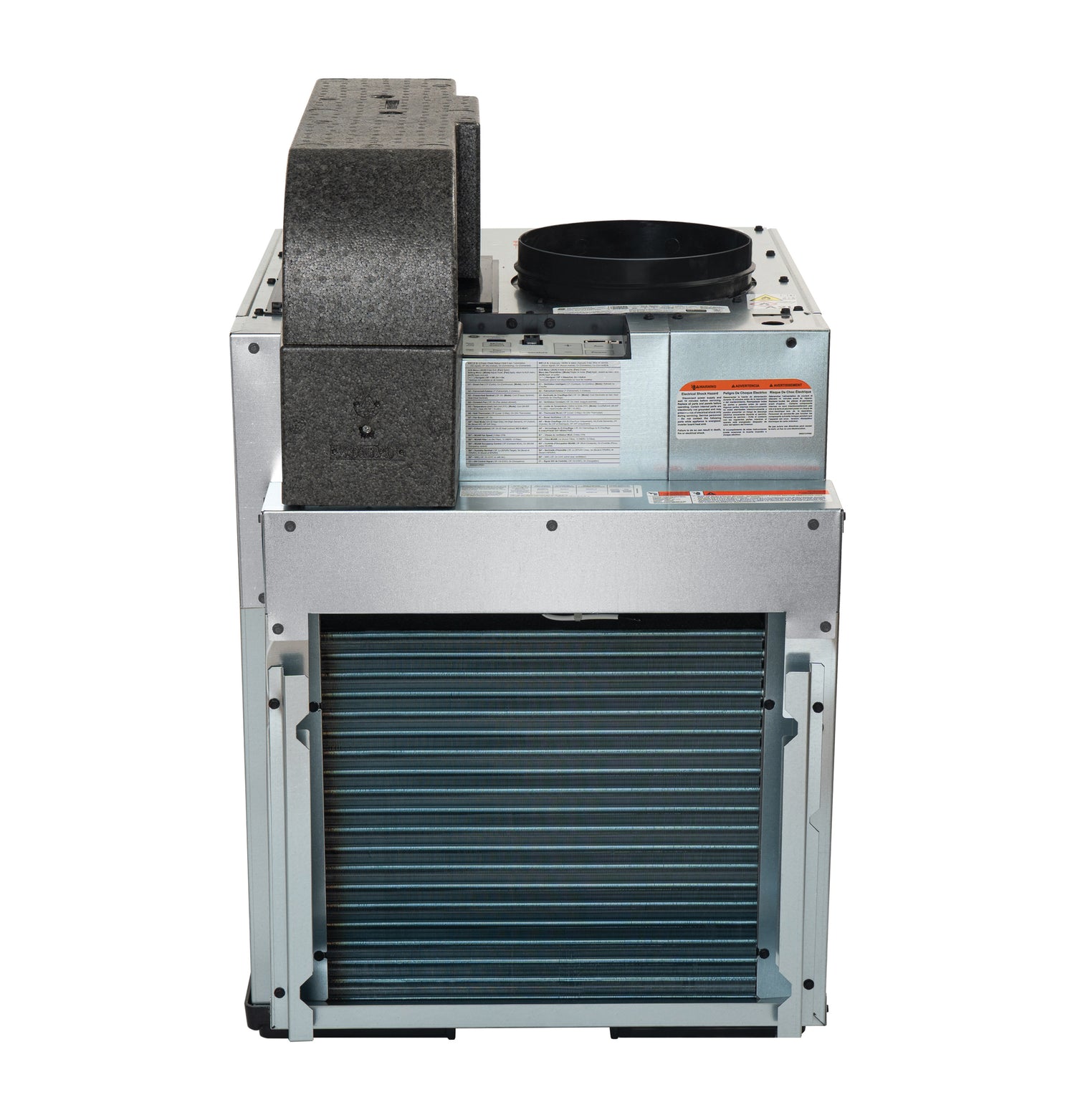

GE AVVL12DMXWA – Smart Vertical Heat Pump with Make‑Up Air
The GE AVVL12DMXWA is a high-performance 12,000 BTU vertical inverter heat pump designed for advanced climate control and energy efficiency. Operating on 208/230 V, this system features a responsive inverter compressor that adapts to room conditions, maximizing comfort while minimizing energy usage.
Using R‑454B refrigerant, this unit reduces environmental impact and offers extended heating and cooling performance, with a range of 5,200–16,200 BTU for cooling and 4,500–13,000 BTU for heating.
Key features include:
-
Built‑in make-up air system delivering between 25 and 70 CFM, with a factory default of 35 CFM and MERV‑13 filtration support
-
Wi‑Fi connectivity enabled via SmartHQ™ for remote control, scheduling, and diagnostics
-
Corrosion-resistant build with coastal-ready components including a reinforced base pan and bulkhead
-
High efficiency ratings: SEER2 16.5, EER2 12.0, HSPF2 7.1, and COP2 of 3.5 at 47 °F
-
Quiet inverter operation, onboard diagnostics, and flexible installation with pre-charged lines and quick-connect plumbing
Performance Overview
Feature |
Specification |
Cooling Range |
5,200–16,200 BTU |
Heating Range |
4,500–13,000 BTU |
Cooling Efficiency |
EER2 12.0, SEER2 16.5 |
Heating Efficiency |
HSPF2 7.1, COP2 3.5 |
Ventilation |
25–70 CFM make-up air (default 35 CFM) |
Refrigerant |
R‑454B (Low Global Warming Potential) |
Voltage |
208/230 V |
Weight |
Approx. 137 lb (Net), 150 lb (Shipping) |
Reliable Performance, Modern Comfort
The unit includes Perfect Control™ inverter technology, which intelligently adjusts output for better temperature stability and humidity control. Designed for vertical closets, apartments, hotels, and multifamily housing, it ensures space-saving, energy-efficient, and whisper-quiet performance.
With built-in make-up air, optional high-grade filtration, and smart control access, the GE AVVL12DMXWA is engineered for today’s most demanding environments—delivering comfort, compliance, and quality in one compact package.
Frequently Asked Questions (FAQs)
Q: What makes the V12 series different from other Zoneline models?
A: The V12 series uses an inverter compressor for superior efficiency and quieter performance. It also includes a makeup air module and WiFi support for smart control.
Q: Is this model suitable for coastal climates?
A: Yes, it’s built with corrosion-resistant materials for long-term durability in coastal environments.
Q: What is makeup air?
A: Makeup air is fresh, filtered outside air brought into the room to meet ventilation codes and improve indoor air quality.
Q: Can I control this unit remotely?
A: Yes, the built-in WiFi module enables remote access via mobile app or integration with building systems.
Q: What type of thermostat is compatible?
A: The unit works with GE-compatible thermostats, including wireless and wall-mounted options.
