Upgrade your HVAC system with the Goodman 5 Ton Evaporator Coil CAPTA6030C3. This high-efficiency indoor coil is equipped with an internal TXV (thermostatic expansion valve) and is designed for use with low-GWP R‑32 refrigerant. Ideal for upflow or downflow installation, this cased A-coil delivers precise refrigerant control and enhanced airflow to maximize performance in larger residential or light commercial systems.
Key Features
-
5 Ton Cooling Capacity – Optimally matched to 5-ton Goodman outdoor units to ensure peak efficiency and performance.
-
R‑32 Refrigerant–Ready – Engineered to work seamlessly with environmentally responsible R‑32 refrigerant.
-
Internal TXV – Provides accurate refrigerant metering for improved energy efficiency and dependable operation.
-
All-Aluminum Coil Construction – Resistant to corrosion, featuring high thermal conductivity for long-term reliability.
-
Upflow/Downflow Compatible – Supports versatile installation configurations to suit different duct system layouts.
-
Insulated, Cased Cabinet – Reduces air leakage and noise, maintaining steady airflow and system efficiency.
Design & Installation
-
Galvanized Steel Housing – Powder-coated for added durability and resistance to outdoor moisture.
-
Foil-Faced Insulation – Prevents moisture intrusion and eliminates loose fibers in the airstream.
-
Dual Drain Ports – Allows flexible condensate routing from either side of the unit.
-
Sweat-Connection Refrigeration Fittings – Simplify installation and maintenance for HVAC professionals.
-
AHRI Certified & ETL Listed – Meets industry standards for safety, quality, and performance.
Performance & Compatibility
The Goodman R‑32 TXV Coil is designed to seamlessly pair with matching R‑32 outdoor units—such as heat pumps and air conditioners—ensuring balanced airflow, optimized refrigerant control, and high seasonal energy efficiency. The Goodman 5 Ton Evaporator Coil CAPTA6030C3 supports reliable and consistent performance for homeowners and contractors investing in modern, eco-conscious HVAC systems.
Product Specification Table
Brand | Goodman |
Model # | CAPTA6030C3 |
SEER2/EER2 | |
Refrigerant | R-32 |
Tonnage | 5.0 Ton |
Coil Type | Upflow/Downflow |
Total Indoor Unit(s) BTU | |
Voltage Requirements | |
Series | |
Coverage Area (Sq. Ft) | |
Indoor Mount Type | |
Indoor Unit BTUs | |
Zone/Rooms | |
AHRI No | CAPTA6030C3 |
Burner Stages | |
Cabinet Width | |
Airflow Direction | Upflow |
Furnace Efficiency / AFUE | |
Furnace BTU | |
Power Phase ( Single/Three) | |
Dimensions - (Shipping Unit Width) | 26.00 in |
Dimensions - (Shipping Unit Height) | 32.75 in |
Dimensions - (Shipping Unit Depth) | |
Weight - (Shipping Unit) | 71.000 lb |
Refrigerant Pre-Charged Line Length | 0 |
Power Frequency | 0 |
Nom. CFM | |
Motor Speed Type | 0 |
MOCP | |
Min. Circuit Amps | 0 |
Min Voltage | 0 |
Max Voltage | 0 |
Max Overcurrent Protection | 0 |
LoNox | |
Valve Size Suction (O.D.) | 0 |
Valve Size Liquid (O.D.) | 0 |
Liquid Line Size | |
Energy Source | 0 |
Expansion Device | TXV |
Decibels (dBA) | 0 |
Compressor Type | 0 |
Compressor Stages | 0 |
Cased vs Uncased | |
Heating Capacity - (Nominal) | 0 |
Cooling Capacity - (Nominal) | 0 |
Airflow Rate High Cooling | |
Function Category | |
Package System Type | |
Air Handler Mount Type System | |
Split System Type | |

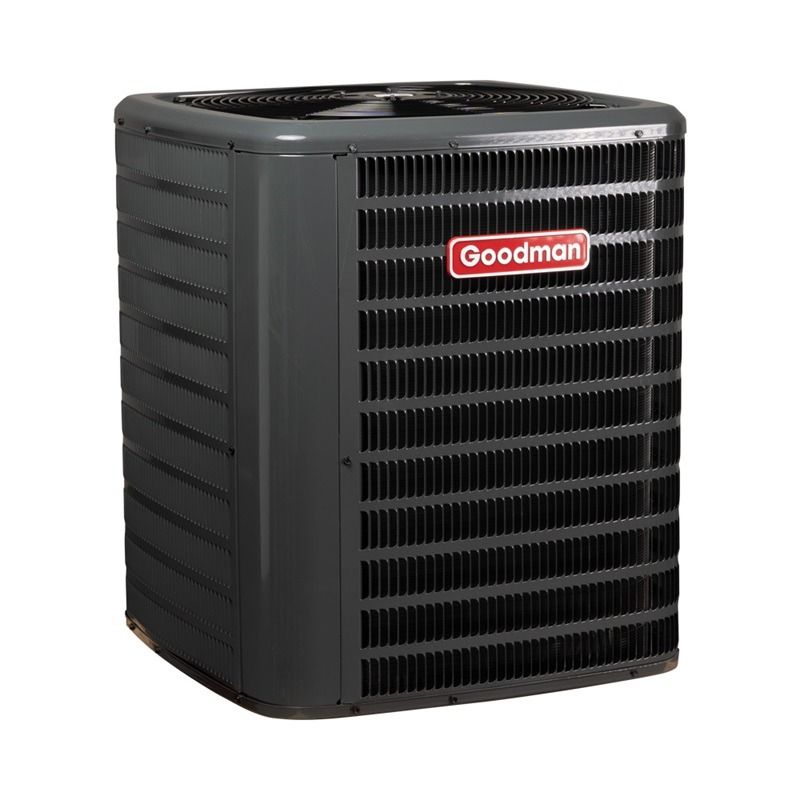

Powerful and efficient cooling solution for large residential spaces. The GLXS3BN4810 delivers reliable performance for homes between 2,000 to 2,400 square feet. With its 13.4 SEER2 rating and eco-friendly R‑32 refrigerant, this unit balances energy savings and dependable year-round comfort.
Key Features & Performance
-
13.4 SEER2 Efficiency with R‑32 Refrigerant – Helps lower utility bills while reducing environmental impact.
-
Scroll Compressor – Designed for reliable, quiet, and smooth operation.
-
Factory-Installed Filter Drier – Protects the system from moisture and debris for long-lasting performance.
-
Pre-Charged for 15 ft Line Set – Allows for simplified installation with most setups.
-
Copper Tube/Aluminum Fin Coil – Durable and efficient heat transfer components.
-
Low Noise Operation – Operates at approximately 71 dB to ensure minimal sound disruption.
-
Durable Cabinet Construction – Heavy-gauge steel with powder-coated finish for weather resistance.
-
Installer-Friendly Design – Includes service valves, gauge ports, removable access panel, and high-pressure switch.
-
Certified and Backed by Warranty – AHRI and ETL compliant with a 10-year limited parts warranty when registered.
Specifications
-
Cooling Capacity: 48,000 BTU/h (4 Ton)
-
Dimensions: 29″ W × 29″ D × 39.5″ H
-
Weight: Approx. 188 lb
-
Sound Level: Around 71 dBA
-
Electrical: 208/230V, single phase, 40A breaker
-
Refrigerant Line Sizes: Liquid Line 3/8", Suction Line 7/8"
Installation Compatibility
- Designed for use with matching Goodman indoor air handlers or evaporator coils.
- Meets current building codes, including coastal and wind-load requirements when properly anchored.
- Perfect for retrofit and new construction applications with central air conditioning needs.
📌 Explore more Goodman models:
Goodman R32 Air Conditioners
Goodman Air Conditioners
Product Specification Table
Brand | Goodman |
Model # | GLXS3BN4810 |
SEER2/EER2 | 13.4 |
Refrigerant | R-32 |
Tonnage | 4.0 Ton |
Coil Type | |
Total Indoor Unit(s) BTU | |
Voltage Requirements | 208V To 230V |
Series | |
Coverage Area (Sq. Ft) | |
Indoor Mount Type | |
Indoor Unit BTUs | |
Zone/Rooms | |
AHRI No | |
Burner Stages | |
Cabinet Width | |
Airflow Direction | |
Furnace Efficiency / AFUE | |
Furnace BTU | |
Power Phase ( Single/Three) | 1 Ph |
Dimensions - (Shipping Unit Width) | 30.00 in |
Dimensions - (Shipping Unit Height) | 42.00 in |
Dimensions - (Shipping Unit Depth) | 30.50 in |
Weight - (Shipping Unit) | 203.000 lb |
Refrigerant Pre-Charged Line Length | 15 ft |
Power Frequency | 60 Hz |
Nom. CFM | |
Motor Speed Type | |
MOCP | |
Min. Circuit Amps | 25.6 A |
Min Voltage | |
Max Voltage | |
Max Overcurrent Protection | 40 A |
LoNox | |
Valve Size Suction (O.D.) | 1-1/8 in |
Valve Size Liquid (O.D.) | |
Liquid Line Size | |
Energy Source | Electric |
Expansion Device | |
Decibels (dBA) | 71 dBA |
Compressor Type | Scroll |
Compressor Stages | Single Stage |
Cased vs Uncased | |
Heating Capacity - (Nominal) | |
Cooling Capacity - (Nominal) | 45500 Btu/H |
Airflow Rate High Cooling | |
Function Category | Split Air Conditioner |
Package System Type | |
Air Handler Mount Type System | |
Split System Type | |

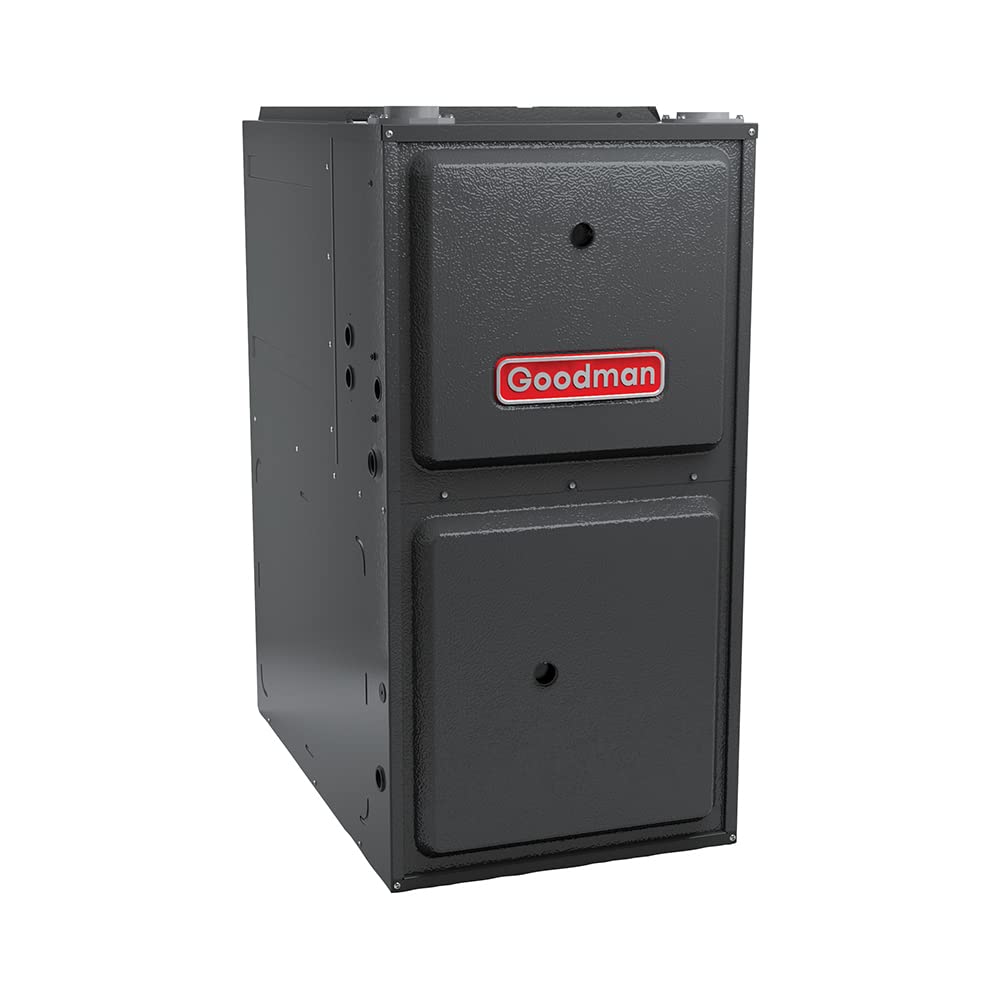

The Goodman GR9S920805CN is a high-efficiency 80,000 BTU gas furnace designed to deliver reliable and energy-saving heating performance. With a 92% AFUE (Annual Fuel Utilization Efficiency), it ensures that 92% of the fuel consumed is converted into usable heat, reducing energy costs. Its upflow/horizontal configuration offers flexible installation options, making it suitable for various home layouts.
Key Features:
-
80,000 BTU Heating Capacity: Delivers consistent heating performance for medium-sized residential spaces.
-
92% AFUE Efficiency: Converts 92% of fuel into heat, optimizing energy usage and reducing utility bills.
-
Single-Stage Heating: Provides straightforward operation with full-capacity heating when needed.
-
Multi-Speed ECM Blower Motor: Offers quiet operation and consistent airflow for improved indoor comfort.
-
Ultra-Low NOx Emissions: Complies with strict emission standards, making it environmentally friendly.
-
Upflow/Horizontal Configuration: Allows for versatile installation in different home setups.
-
Durable Steel Cabinet: Features a heavy-gauge steel cabinet with a baked-enamel finish for longevity.
-
Self-Diagnostic Control Board: Continuously monitors system performance for easy troubleshooting.
-
Quiet Operation: Engineered for low sound levels to maintain a peaceful indoor environment.
-
10-Year Limited Parts Warranty: Provides peace of mind with long-term coverage when registered.
Specifications:
-
Model: GR9S920805CN
-
Heating Capacity: 80,000 BTU
-
AFUE: 92%
-
Configuration: Upflow/Horizontal
-
Blower Motor: Multi-Speed ECM
-
Cabinet Width: 21 inches
-
Airflow Capacity: Up to 2,000 CFM
-
Fuel Type: Natural Gas (convertible to Propane with kit)
-
Voltage: 115V
-
Phase: Single
-
Frequency: 60 Hz
-
Weight: Approx. 140 lbs
-
Vent Type: PVC Flue
-
Dimensions: 21" W x 28.75" D x 34.5" H
Looking for a reliable and efficient heating solution? Explore our full range of Goodman HVAC Products designed for comfort and energy efficiency.
Product Specification Table
Brand | Goodman |
Model # | GR9S920805CN |
SEER2/EER2 | |
Refrigerant | R-32 |
Tonnage | |
Coil Type | |
Total Indoor Unit(s) BTU | 80000 |
Voltage Requirements | 110V To 120 V |
Series | |
Coverage Area (Sq. Ft) | |
Indoor Mount Type | |
Indoor Unit BTUs | |
Zone/Rooms | |
AHRI No | GR9S920805CN |
Burner Stages | Single Stage |
Cabinet Width | |
Airflow Direction | Upflow |
Furnace Efficiency / AFUE | 92 % |
Furnace BTU | 80,000 BTU's |
Power Phase ( Single/Three) | 1 Ph |
Dimensions - (Shipping Unit Width) | 22.00 in |
Dimensions - (Shipping Unit Height) | 38.50 in |
Dimensions - (Shipping Unit Depth) | |
Weight - (Shipping Unit) | |
Refrigerant Pre-Charged Line Length | |
Power Frequency | 60 Hz |
Nom. CFM | |
Motor Speed Type | Multi Speed ECM |
MOCP | |
Min. Circuit Amps | 16.7 A |
Min Voltage | |
Max Voltage | |
Max Overcurrent Protection | 25 A |
LoNox | |
Valve Size Suction (O.D.) | |
Valve Size Liquid (O.D.) | |
Liquid Line Size | |
Energy Source | Gas |
Expansion Device | |
Decibels (dBA) | |
Compressor Type | |
Compressor Stages | |
Cased vs Uncased | |
Heating Capacity - (Nominal) | |
Cooling Capacity - (Nominal) | |
Airflow Rate High Cooling | |
Function Category | Gas Furnace |
Package System Type | |
Air Handler Mount Type System | |
Split System Type | |
