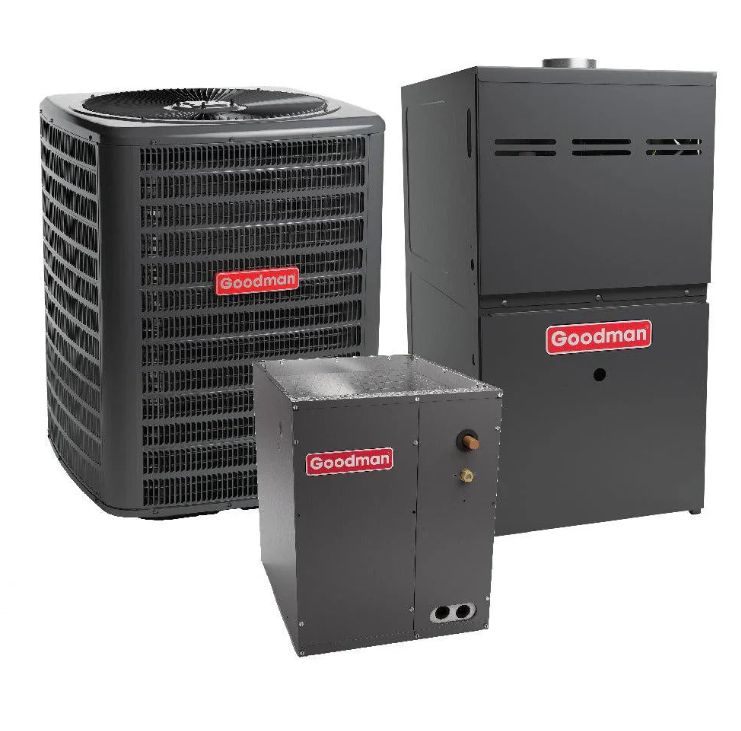

3.0 Ton Goodman 13.4 SEER2 R32 GLXS3BN3610 GR9S800804BX CAPFA6030C3

Goodman 80% AFUE Gas Furnace Nine Speed ECM, Single Stage, GR9S800403AN

Model: GR9S800804BX

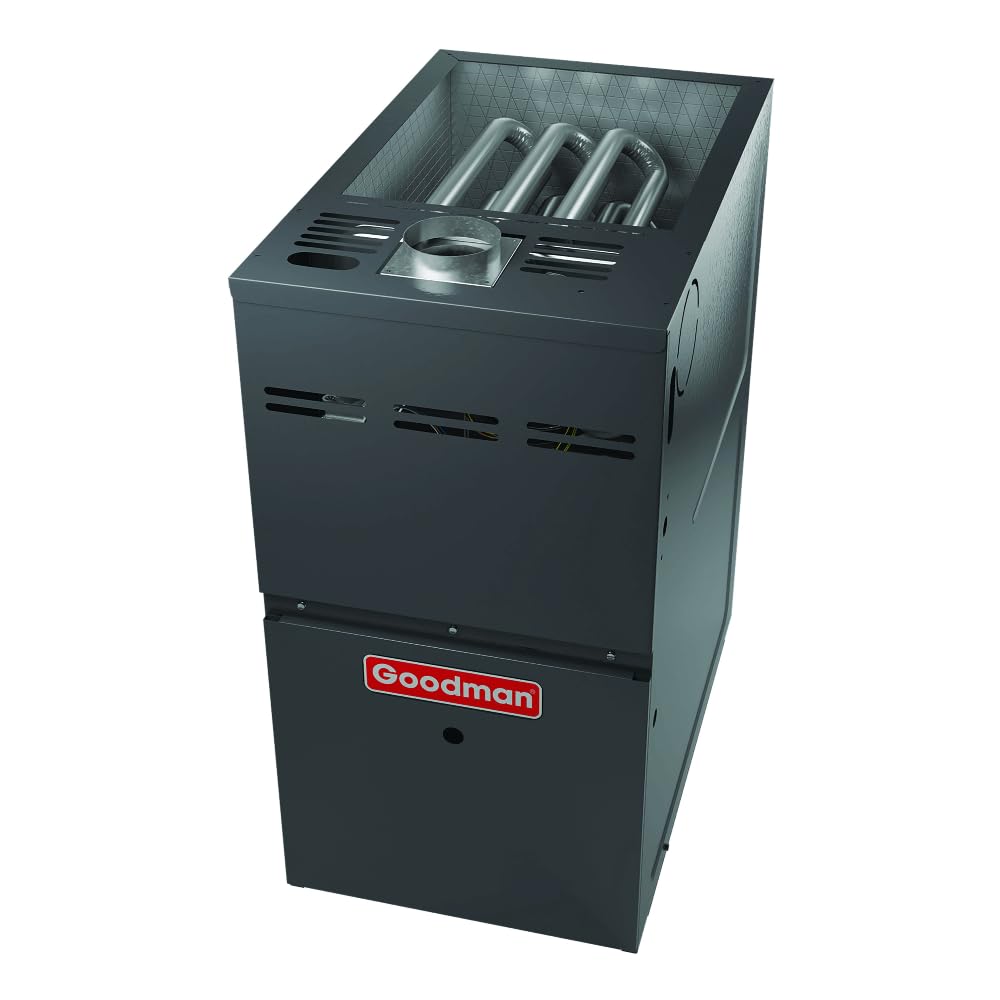

Goodman 80% AFUE Gas Furnace Nine Speed ECM, Single Stage, GR9S800804BX

The GR9S800804BX Gas Furnace Nine Speed Low NOx offers dependable single-stage heating with up to 80% AFUE efficiency. This unit is built with a heavy-duty aluminized-steel tubular heat exchanger and a Nine Speed ECM blower motor, delivering quiet operation and consistent comfort. Ideal for residential applications, it also features a self-diagnostic control board and is compatible with electronic air cleaners and humidifiers for enhanced indoor air quality.

---

Specifications:

1. Heavy-duty aluminized-steel tubular heat exchanger

2. Silicon Nitride igniter

3. Color-coded low-voltage terminals

4. Multi-speed ECM blower motor with continuous fan speed

5. Fault code LED output

6. Single-stage gas valve

7. Single-speed inducer draft blower

---

Product Attributes:

• Model: GR9S800804BX
• AFUE: 80
• Airflow Rate High Heating: 1089
• Brand: Goodman
• Class: Gas Furnace
• Unit Depth: 28"
• Unit Height: 33-3/8"
• Unit Width: 17-1/2"
• Family Description: Single-Stage Multi-Speed ECM Gas Furnace Up to 80% AFUE
• High-Fire Input Capacity: 80,000 BTU
• High-Fire Output Capacity: 64,000 BTU
• Min. Circuit: 12.45
• Model Efficiency: 0.8
• Motor Speed Type: Nine Speed ECM
• Power Frequency: 60 Hz
• Power Phase: 1
• Power Voltage: 115 V
• Unit Type: Indoor
• Unit Weight: 120 lbs
• Category: Gas Furnace
• Family: GR9S80
• Product ID Barcode: GR9S800804BX
• Prop65 Label Required: TRUE

---

Product Benefits:

• High reliability and build quality
• Durable Silicon Nitride igniter for long life
• Provisions for electronic air cleaner and humidifier
• Energy-efficient and quiet circulation
• Self-diagnostic control board with constant memory
• Simple installation and setup
• Quiet and dependable operation

---

Warranty:

Standard Warranties (Unregistered):

• Residential:

Heat Exchanger: 20 Years

All Parts: 5 Years

• Multi-Family:

Heat Exchanger: 20 Years

All Parts: 5 Years

• Commercial:

Heat Exchanger: 20 Years

All Parts: 5 Years

Registered Warranties:

• Residential:

Heat Exchanger: Lifetime

All Parts: 10 Years

• Multi-Family:

Heat Exchanger: 20 Years

All Parts: 10 Years

• Commercial:

Heat Exchanger: 20 Years

All Parts: 5 Years

Documents:

Warranty Certificate

Specification Sheet

Installation Manual

The Goodman GLXS3BN3610 is a reliable and energy-efficient 3-ton split-system air conditioner, ideal for cooling larger homes around 1,500–1,800 sq. ft. With a 13.4 SEER2 rating and eco-friendly R-32 refrigerant, this unit provides dependable performance, reduced environmental impact, and quiet operation.

Key Features & Performance

• 13.4 SEER2 Efficiency & R-32 Refrigerant – Meets current energy standards and utilizes an environmentally responsible refrigerant.
• Single-Stage Scroll Compressor – Ensures steady, efficient cooling for everyday comfort.
• Copper Tube & Enhanced Aluminum Fin Coil – Boosts heat transfer and durability.
• Factory-Installed Filter Drier – Protects internal components from moisture and debris.
• Quiet Operation (~69 dB) – Designed with sound-reducing technology for quieter performance.
• Durable Galvanized Cabinet – Built with heavy-gauge steel and powder-coated finish for long-term protection.
• Service-Friendly Design – Features top and side access, sweat-type service valves, enclosed contactor, and pressure switches for easy maintenance.
• Certified & Warrantied – AHRI and ETL certified, with a 10-year parts warranty upon registration.
• Hurricane-Ready Build – Meets wind-load requirements when properly anchored, making it suitable for coastal and high-wind zones.

Specifications

• Cooling Capacity: 36,000 BTU/h (3 Ton)
• SEER2 Rating: 13.4 (up to 13.7 depending on matched components)
• Noise Level: Approx. 69 dB(A)
• Refrigerant: R-32, pre-charged for 15 ft line set
• Dimensions: 26″ W × 26″ D × 32.5″ H
• Weight: Approx. 136–151 lbs
• Electrical: 208/230 V, single-phase; recommended breaker size: 25–30 A
• Piping Sizes: Liquid Line – 3/8", Suction Line – 7/8"

Installation & Compatibility

The GLXS3BN3610 is designed to pair with compatible indoor coils or air handlers to create a full split-system AC setup. It comes pre-charged for faster installation and features accessible service ports for contractor convenience. This unit is approved for use in the Northern Region of the U.S. and meets updated DOE guidelines. It is not approved for installation in Southern regions due to specific efficiency requirements.

Keywords Included

• Goodman 3 Ton Air Conditioner
• GLXS3BN3610
• Goodman 13.4 SEER2 R‑32 Cooling Unit

Summary

The Goodman GLXS3BN3610 delivers consistent, high-capacity cooling with a 13.4 SEER2 rating and R-32 refrigerant. Built for energy savings, environmental compliance, and quiet operation, it's a durable and efficient solution for large residential spaces in Northern regions. Its design, certifications, and 10-year warranty make it a strong long-term investment.
