2.5 Ton Goodman 13.4 SEER2 R32 GLXS3BN3010 GR9S800603BN CAPFA3022B3
Goodman 80% AFUE Gas Furnace Nine Speed ECM, Single Stage, GR9S800403AN

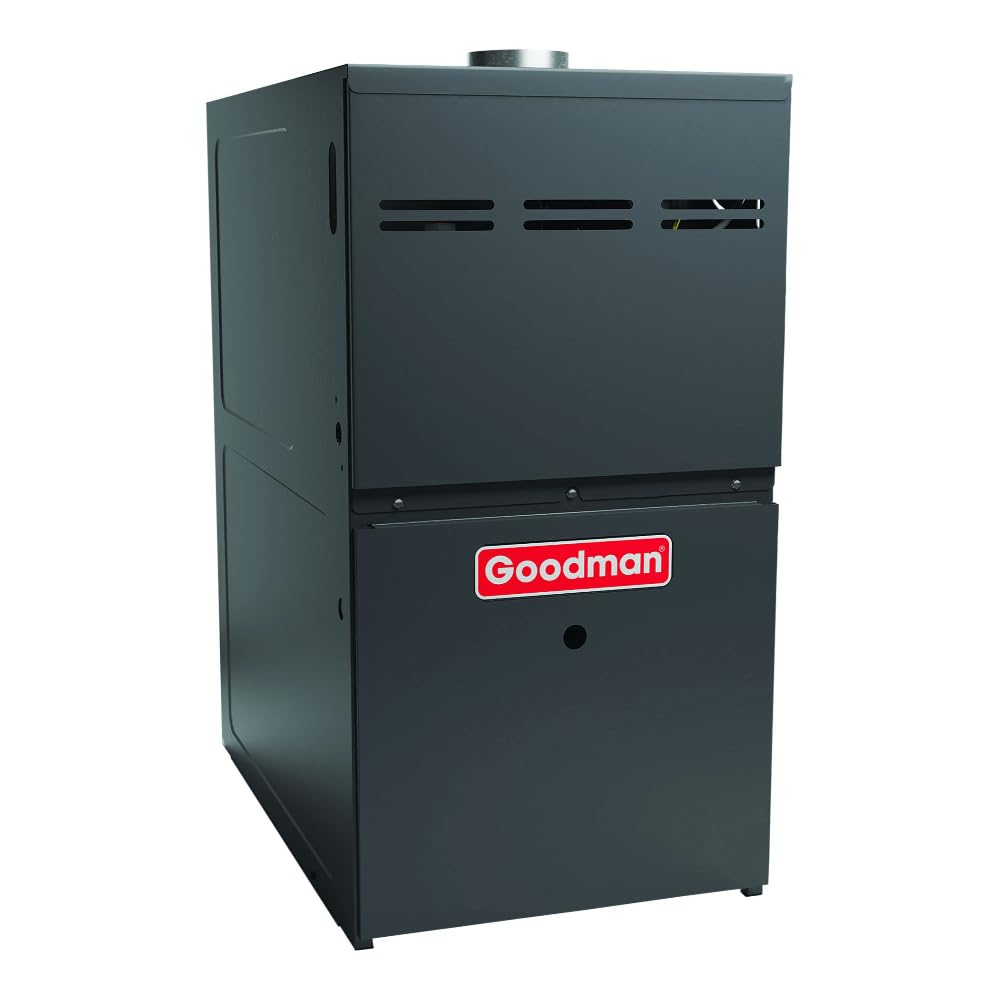

The GR9S800603BN is a powerful and compact gas furnace from Goodman, designed to deliver dependable home heating with energy efficiency and low noise. With an AFUE rating of 80% and a high-fire output of 48,000 BTU, this Furnace system is ideal for small to medium-sized homes looking to upgrade their HVAC performance while staying on budget.
Explore our full range of Furnace system options for more Goodman heating solutions tailored to your home.
Documents:
| Brand | Goodman | Model # | GR9S800603BN |
| SEER2/EER2 | Refrigerant | R-32 | |
| Tonnage | Coil Type | ||
| Total Indoor Unit(s) BTU | 60000 | Voltage Requirements | 110V To 120 V |
| Series | Coverage Area (Sq. Ft) | ||
| Indoor Mount Type | Indoor Unit BTUs | ||
| Zone/Rooms | AHRI No | GR9S800603BN | |
| Burner Stages | Single Stage | Cabinet Width | 17.5" |
| Airflow Direction | Upflow | Furnace Efficiency / AFUE | 80% |
| Furnace BTU | 60,000 BTU's | Power Phase ( Single/Three) | 1 Ph |
| Dimensions - (Shipping Unit Width) | 18.50 in | Dimensions - (Shipping Unit Height) | 35.50 in |
| Dimensions - (Shipping Unit Depth) | Weight - (Shipping Unit) | ||
| Refrigerant Pre-Charged Line Length | Power Frequency | 60 Hz | |
| Nom. CFM | Motor Speed Type | Multi Speed ECM | |
| MOCP | Min. Circuit Amps | 8.7 A | |
| Min Voltage | Max Voltage | ||
| Max Overcurrent Protection | 15 A | LoNox | |
| Valve Size Suction (O.D.) | Valve Size Liquid (O.D.) | ||
| Liquid Line Size | Energy Source | ||
| Expansion Device | Decibels (dBA) | ||
| Compressor Type | Compressor Stages | ||
| Cased vs Uncased | Heating Capacity - (Nominal) | ||
| Cooling Capacity - (Nominal) | Airflow Rate High Cooling | ||
| Function Category | Gas Furnace | Package System Type | |
| Air Handler Mount Type System | Split System Type |
The Goodman CAPFA3022B3 is a high-performance 2.5 Ton evaporator coil built for upflow/downflow residential cooling systems. It features a factory-installed TXV (Thermal Expansion Valve) for precise refrigerant control and is optimized for use with R-32 refrigerant, supporting improved energy efficiency. The 17.5-inch cabinet width makes it suitable for standard system installations.
Key Features and Benefits:
This unit is part of the reliable Goodman HVAC Products collection, built to deliver long-term durability and comfort.
| Brand | Goodman | Model # | CAPFA3022B3 |
| SEER2/EER2 | Refrigerant | R-32 | |
| Tonnage | Coil Type | Cased | |
| Total Indoor Unit(s) BTU | Voltage Requirements | 208V To 230V | |
| Series | Coverage Area (Sq. Ft) | ||
| Indoor Mount Type | Indoor Unit BTUs | ||
| Zone/Rooms | AHRI No | ||
| Burner Stages | Cabinet Width | ||
| Airflow Direction | Furnace Efficiency / AFUE | ||
| Furnace BTU | Power Phase ( Single/Three) | 1 Ph | |
| Dimensions - (Shipping Unit Width) | 20.00 in | Dimensions - (Shipping Unit Height) | 24.50 in |
| Dimensions - (Shipping Unit Depth) | 26.00 in | Weight - (Shipping Unit) | 42.090 lb |
| Refrigerant Pre-Charged Line Length | Power Frequency | 60 Hz | |
| Nom. CFM | Motor Speed Type | ||
| MOCP | Min. Circuit Amps | ||
| Min Voltage | Max Voltage | ||
| Max Overcurrent Protection | LoNox | ||
| Valve Size Suction (O.D.) | 0 | Valve Size Liquid (O.D.) | |
| Liquid Line Size | Energy Source | Electric | |
| Expansion Device | Orifice | Decibels (dBA) | |
| Compressor Type | Compressor Stages | ||
| Cased vs Uncased | Cased | Heating Capacity - (Nominal) | |
| Cooling Capacity - (Nominal) | Airflow Rate High Cooling | ||
| Function Category | Package System Type | ||
| Air Handler Mount Type System | Split System Type |
The Goodman 2.5 Ton AC Unit GLXS3BN3010 is engineered to deliver reliable cooling performance with energy-efficient operation and a smaller environmental footprint. Featuring 13.4 SEER2 efficiency and R-32 refrigerant, this split-system air conditioner is ideal for residential applications looking for consistent comfort, durability, and long-term savings.
The Goodman R-32 Split Air Conditioner is designed for pairing with a matching air handler or evaporator coil to complete a full split-system setup. It’s ideal for replacing outdated systems or new installations that require dependable performance and eco-friendly refrigerant technology.
Goodman is known for its high-quality HVAC systems that provide efficient cooling, long-term reliability, and reduced energy bills. The Goodman 2.5 Ton R-32 Air Conditioner delivers exceptional climate control, making it a top choice for residential and light commercial spaces.
📌 Explore more Goodman models:
| Brand | Goodman | Model # | GLXS3BN3010 |
| SEER2/EER2 | 13.4 | Refrigerant | R-32 |
| Tonnage | 2.5 Ton | Coil Type | |
| Total Indoor Unit(s) BTU | Voltage Requirements | 208V To 230V | |
| Series | Coverage Area (Sq. Ft) | ||
| Indoor Mount Type | Indoor Unit BTUs | ||
| Zone/Rooms | AHRI No | ||
| Burner Stages | Cabinet Width | ||
| Airflow Direction | Furnace Efficiency / AFUE | ||
| Furnace BTU | Power Phase ( Single/Three) | 1 Ph | |
| Dimensions - (Shipping Unit Width) | 27.50 in | Dimensions - (Shipping Unit Height) | 34.50 in |
| Dimensions - (Shipping Unit Depth) | 27.50 in | Weight - (Shipping Unit) | 149.000 lb |
| Refrigerant Pre-Charged Line Length | 15 ft | Power Frequency | 60 Hz |
| Nom. CFM | Motor Speed Type | ||
| MOCP | Min. Circuit Amps | 14.7 A | |
| Min Voltage | Max Voltage | ||
| Max Overcurrent Protection | 25 A | LoNox | |
| Valve Size Suction (O.D.) | 3/4 in | Valve Size Liquid (O.D.) | |
| Liquid Line Size | Energy Source | Electric | |
| Expansion Device | Decibels (dBA) | 74 dBA | |
| Compressor Type | Rotary | Compressor Stages | Single Stage |
| Cased vs Uncased | Heating Capacity - (Nominal) | ||
| Cooling Capacity - (Nominal) | 28600 Btu/H | Airflow Rate High Cooling | |
| Function Category | Split Air Conditioner | Package System Type | |
| Air Handler Mount Type System | Split System Type |
