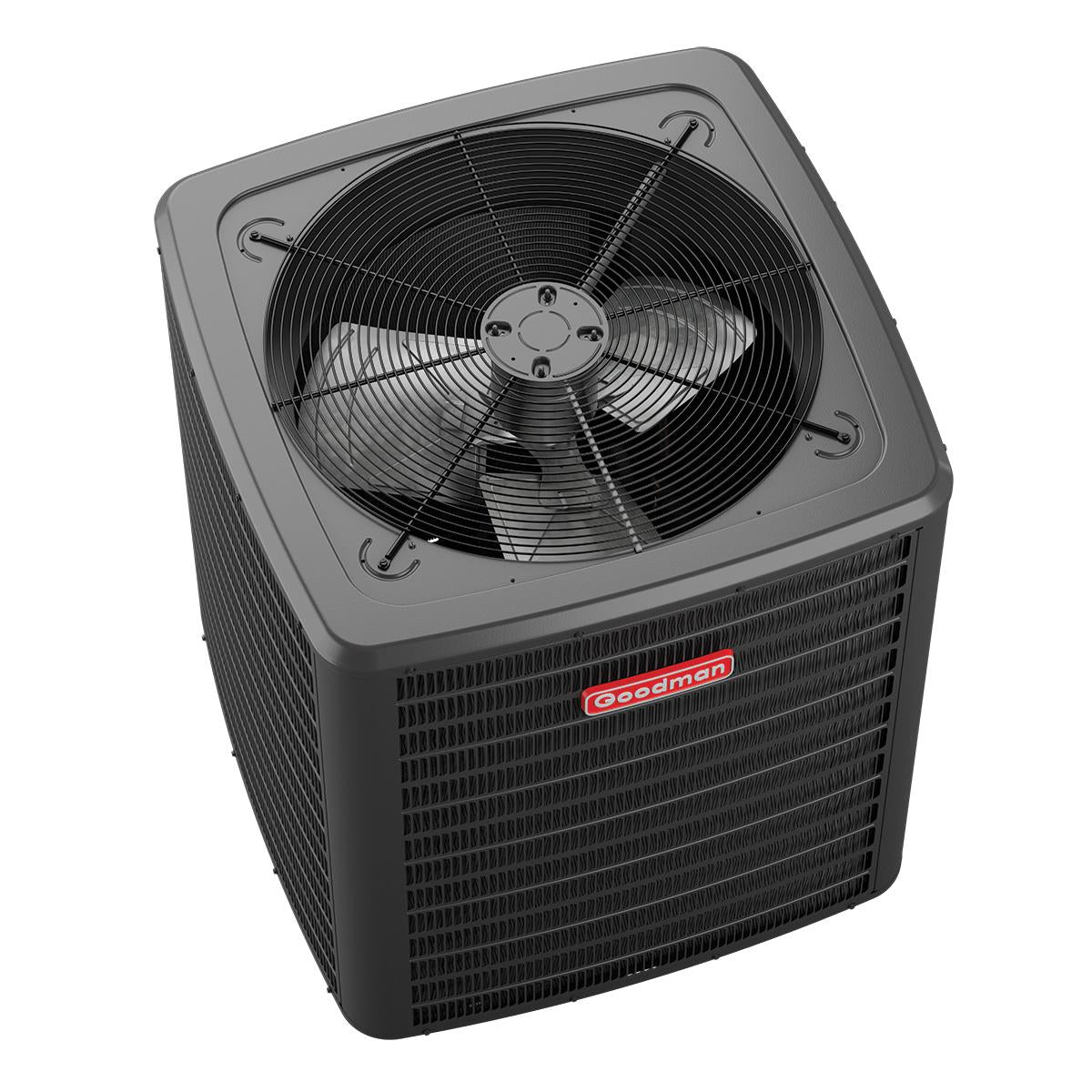

The Goodman GLXS5BA1810 is a 1.5 ton cooling-only condenser made for residential split AC systems with smaller cooling loads. It delivers approximately 18,000 BTU of nominal cooling and carries a 15.2 SEER2 efficiency rating. The unit uses R32 refrigerant along with a single-stage scroll compressor. Its 26-inch-wide cabinet also keeps the outdoor footprint fairly compact, which can be useful when equipment space is limited.
Goodman GLXS5BA1810 Overview
The Goodman GLXS5BA1810 is the outdoor portion of a central split air conditioning system. During operation, it works with compatible indoor equipment to move heat from inside the home to the outdoors.
As a Goodman 1.5 Ton Air Conditioner, this model provides approximately 18,000 BTU of nominal cooling. That puts it toward the smaller end of residential central AC equipment and makes it relevant for homes or spaces where a 1.5 ton cooling load has been determined.
Buyers comparing an 18,000 BTU Air Conditioner should look beyond capacity alone. This condenser runs on 208/230V single-phase power, uses R32 refrigerant, and has a single-stage scroll compressor. It's a fairly straightforward setup without multi-stage cooling controls.
The listed efficiency rating is 15.2 SEER2, making it a 15.2 SEER2 Air Conditioner option within Goodman's R32 condenser lineup. But the outdoor unit is only part of the system. The indoor equipment and overall system match will affect the final cooling performance and efficiency.
Key Features of Goodman 1.5 Ton R32 Condenser
The Goodman 1.5 Ton AC Condenser keeps things relatively simple. Its main specifications center on 18,000 BTU capacity, R32 refrigerant, and single-stage cooling.
-
1.5 Ton Nominal Capacity: Provides approximately 18,000 BTU of nominal cooling.
-
15.2 SEER2 Efficiency: Rated for 15.2 SEER2 when used with the appropriate matched equipment.
-
R32 Refrigerant: Built for Goodman's newer R32 residential cooling platform.
-
Single-Stage Scroll Compressor: Runs at one cooling stage when the system calls for conditioned air.
-
Compact Cabinet: Measures approximately 26 inches wide and 26 inches deep.
-
Factory Refrigerant Charge: Supplied with refrigerant for approximately 15 feet of tubing.
-
Factory-Installed Filter Drier: Helps manage moisture and contaminants inside the refrigerant circuit.
-
Protective Coil Guard: Provides physical protection around the outdoor coil while allowing airflow through the condenser.
-
208/230V Electrical Configuration: Uses a common residential split-system electrical setup.
-
72.6 dBA Sound Rating: Listed operating sound level is approximately 72.6 dBA.
-
3/8-Inch Liquid Connection: Uses a 3/8-inch liquid service valve.
-
3/4-Inch Suction Connection: Uses a 3/4-inch suction service valve.
For someone researching a Goodman 1.5 Ton R32 Condenser, the GLXS5BA1810 offers the expected 18,000 BTU capacity in a relatively small cabinet. The single-stage design also keeps its operation uncomplicated.
Technical Specifications
|
Specification
|
Details
|
|
Brand
|
Goodman
|
|
Model Number
|
GLXS5BA1810
|
|
Product Type
|
Cooling-Only Split AC Condenser
|
|
Nominal Capacity
|
1.5 Ton
|
|
Nominal Cooling Capacity
|
18,000 BTU
|
|
Efficiency Rating
|
15.2 SEER2
|
|
Refrigerant
|
R32
|
|
Compressor Type
|
Scroll
|
|
Compressor Stages
|
Single Stage
|
|
Voltage
|
208/230V
|
|
Phase
|
Single Phase
|
|
Frequency
|
60 Hz
|
|
Minimum Circuit Ampacity
|
11.1 A
|
|
Maximum Overcurrent Protection
|
15 A
|
|
Suction Valve Size
|
3/4 in
|
|
Liquid Valve Size
|
3/8 in
|
|
Factory Refrigerant Charge
|
Approx. 15 ft of tubing
|
|
Sound Level
|
72.6 dBA
|
|
Width
|
26 in
|
|
Depth
|
26 in
|
|
Height
|
27 in
|
|
Shipping Weight
|
Approx. 134 lbs
|
GLXS5BA1810 Dimensions & Capacity
The GLXS5BA1810 measures approximately 26 inches wide, 26 inches deep, and 27 inches high. Its listed shipping weight is about 134 pounds. Compared with larger-capacity condensers, the cabinet doesn't take up much outdoor space.
As a 1.5 Ton R32 AC Condenser, it supplies approximately 18,000 BTU of nominal cooling. That capacity often appears in smaller residential applications, though square footage shouldn't be the only factor used to choose AC tonnage.
A home with large windows or high ceilings can have very different cooling needs from another property with the same floor area. Insulation, local climate, sun exposure, air leakage, occupancy, and ductwork matter too. That's why the actual cooling load should determine whether a 1.5 ton condenser is the right size.
Who Should Buy Goodman 1.5 Ton AC Unit?
The GLXS5BA1810 is aimed at residential applications where roughly 18,000 BTU of nominal cooling is appropriate. It also makes sense for buyers who specifically need a cooling-only R32 condenser instead of a heat pump.
This Goodman R32 Air Conditioner may suit:
-
Homes with a calculated 1.5 ton cooling requirement
-
Residential spaces needing around 18,000 BTU of nominal cooling
-
Buyers comparing smaller Goodman cooling-only condensers
-
Split AC systems with compatible R32 indoor equipment
-
Properties where heating is provided separately
-
Buyers who want simple single-stage cooling
-
Locations where a 26" × 26" outdoor footprint works well
This condenser only handles cooling. It doesn't reverse the refrigeration cycle to provide heat. And because it forms one part of a split system, the indoor equipment must match the refrigerant, electrical, airflow, and capacity requirements of the outdoor unit.
FAQ
Q1. How much cooling capacity does this 1.5 ton condenser provide?
This condenser provides approximately 18,000 BTU of nominal cooling capacity, placing it in the 1.5 ton residential AC category.
Q2. What is the efficiency rating of this Goodman condenser?
The condenser is rated at 15.2 SEER2. Actual system efficiency depends on the indoor equipment paired with the outdoor unit and the complete system configuration.
Q3. Which refrigerant does this AC condenser use?
It uses R32 refrigerant, which is found in Goodman's newer residential cooling equipment.
Q4. Is this Goodman 1.5 ton AC unit a heat pump?
No. This is a cooling-only condenser. It provides air conditioning and does not use reverse-cycle operation for heating.
Q5. What are the dimensions of this outdoor condenser?
The cabinet is approximately 26 inches wide, 26 inches deep, and 27 inches high. Its listed shipping weight is about 134 pounds.
Q6. Is the GLXS5BA1810 a complete AC system?
No. The GLXS5BA1810 is the outdoor condenser portion of a split air conditioning system. It needs compatible indoor HVAC equipment to form a complete central cooling system.
