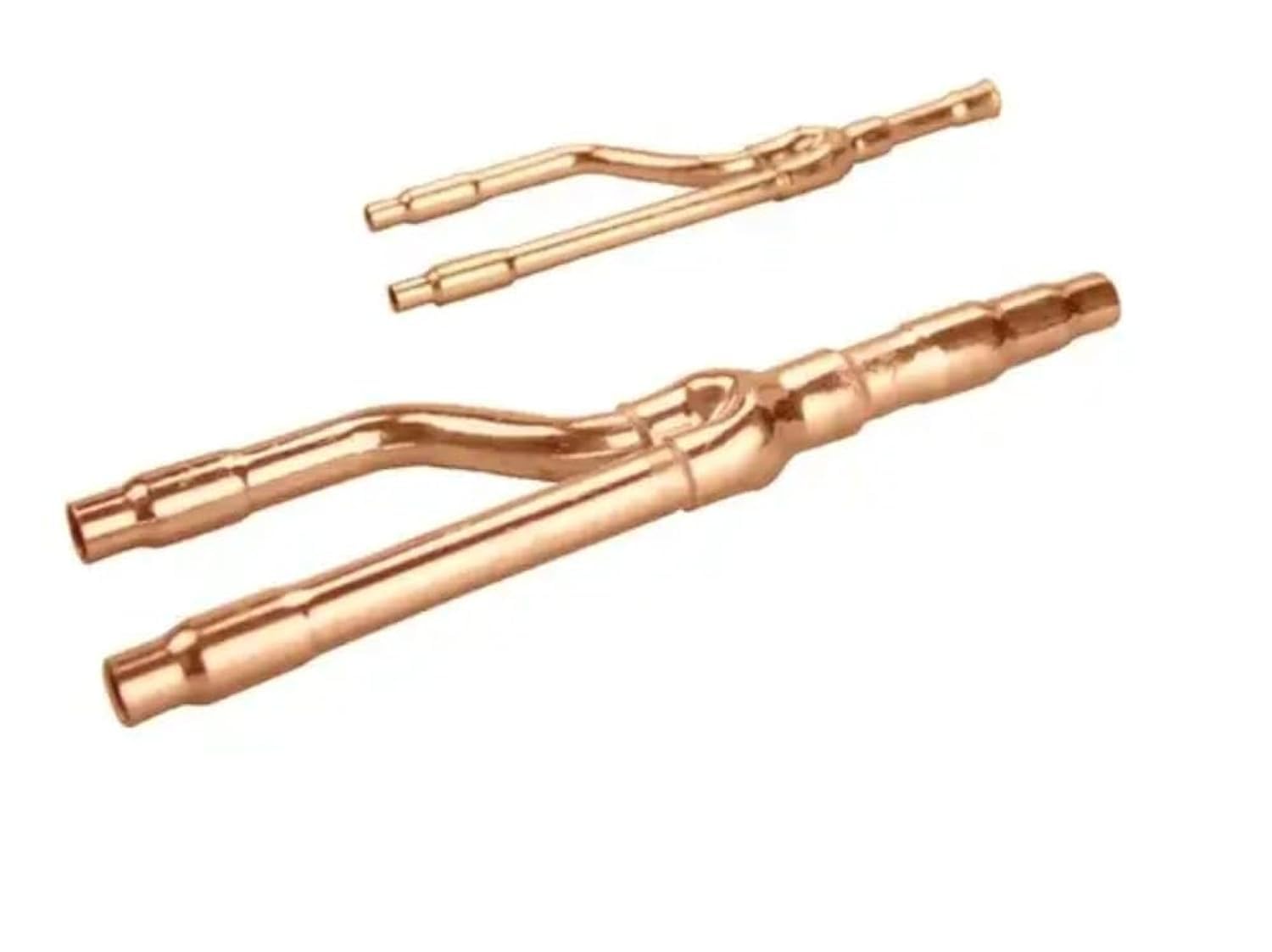

A distribution pipe (also called a Y-branch joint or header pipe) is a refrigerant fitting used in multi-zone mini split and VRF systems to divide refrigerant flow from one main line into multiple branch lines.
It allows a single outdoor unit to supply multiple indoor units efficiently
1. Splits Refrigerant Flow
It divides the liquid and suction refrigerant lines into separate branches for multiple indoor units.
2. Maintains Proper Flow Balance
Manufacturer-designed internal geometry ensures even refrigerant distribution and proper oil return.
3. Reduces Installation Complexity
Instead of running separate lines from the outdoor unit to each indoor unit, installers can split the lines closer to the indoor zones.
4. Supports Multi-Zone Systems
Used when the outdoor unit supports multiple indoor heads but does not require a branch box.
Distribution Pipe vs Branch Box
| Distribution Pipe | Branch Box |
|---|---|
| Passive copper fitting | Enclosed control module |
| Used in many standard multi-zone systems | Often used in heat recovery systems |
| No internal electronic controls | May contain valves and control components |
| Typically Y-shaped | Typically rectangular enclosure |
When Is It Required?
A distribution pipe is required when:
-
The outdoor unit allows multiple indoor connections via branch joints
-
The installation layout benefits from splitting refrigerant lines closer to indoor units
-
The manufacturer specifies a branch joint kit for that model
It must always match the specific outdoor unit capacity and refrigerant type (R-410A, R-32, etc.).
