The Goodman GLXS4BA3610 is a 3 ton cooling-only condenser built for residential split AC systems that need 36,000 BTU of nominal cooling capacity. It carries a 15.2 SEER2 efficiency rating, uses R32 refrigerant, and runs with a single-stage scroll compressor. For homes with a properly calculated 3 ton cooling load, this model offers a straightforward central air conditioning setup without the added controls found in multi-stage equipment.
Goodman GLXS4BA3610 Overview

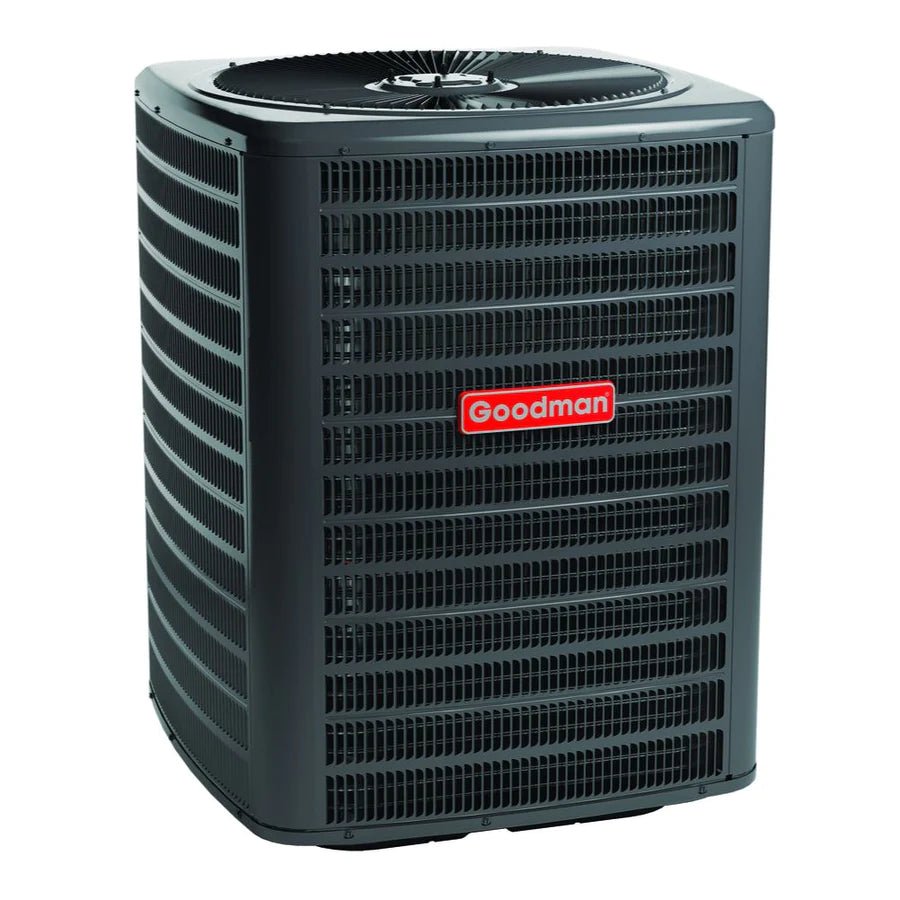

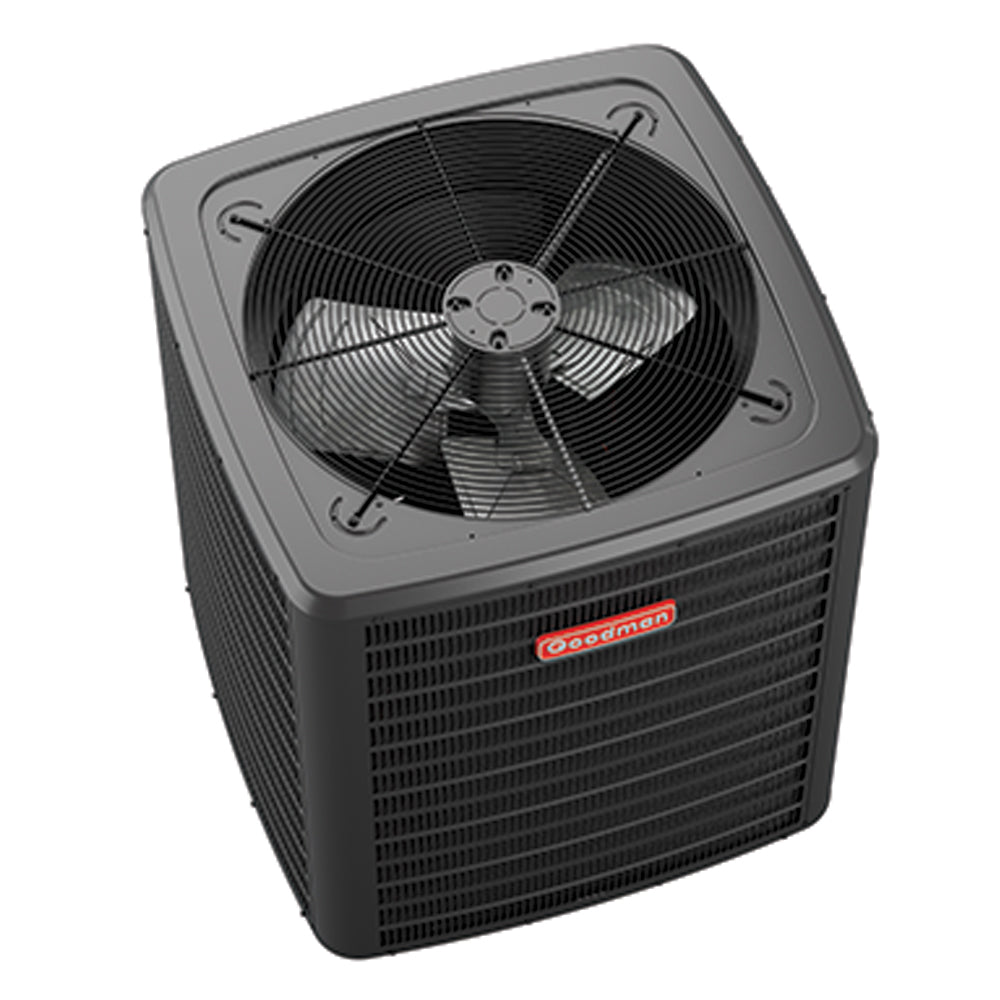

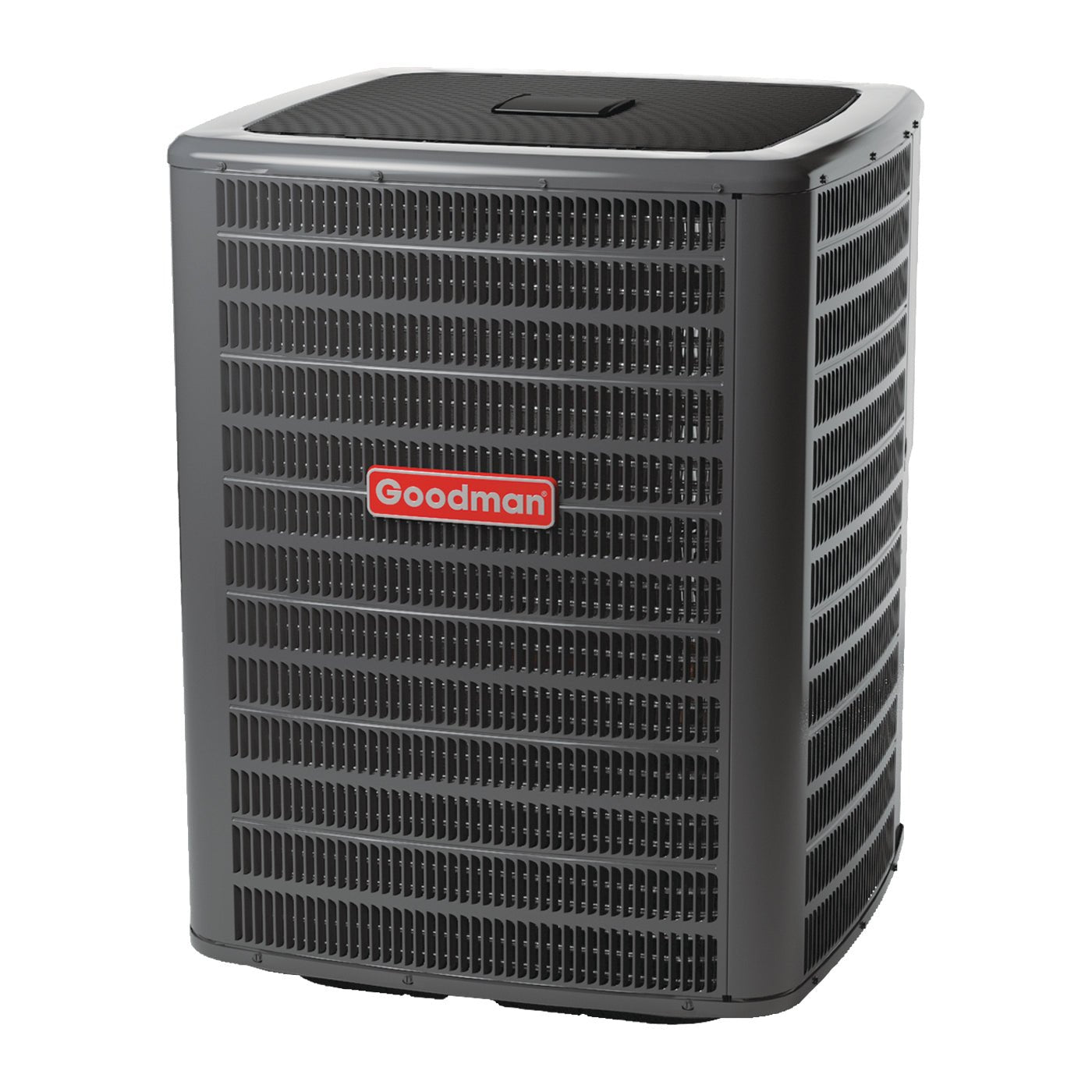

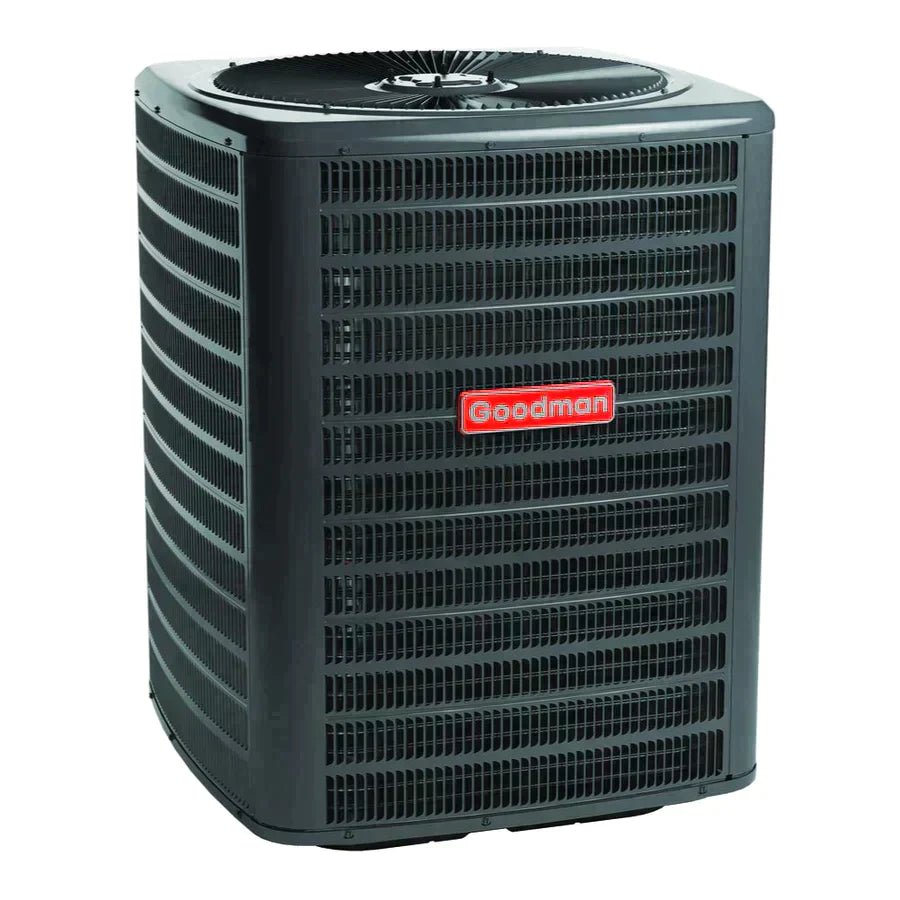

The Goodman GLXS4BA3610 is the outdoor condenser portion of a central split air conditioning system. It works with compatible indoor HVAC equipment to move heat from inside the home to the outdoors during the cooling cycle.
As a Goodman 3 Ton Air Conditioner, the unit provides approximately 36,000 BTU of nominal cooling. Three tons is a common residential capacity, but that doesn't mean it's right for every medium-sized home. Actual cooling demand depends on the building itself, so the equipment should be sized to the property's calculated load.
When comparing a 36,000 BTU Air Conditioner, capacity is only part of what matters. The GLXS4BA3610 uses R32 refrigerant and operates on 208/230V single-phase power. Its single-stage scroll compressor runs at full cooling output whenever the thermostat calls for cooling.
With a listed 15.2 SEER2 rating, it also fits buyers searching for a 15.2 SEER2 Air Conditioner in Goodman's current R32 lineup. The final efficiency of the complete AC system will depend on the indoor equipment paired with the condenser.
Key Features of Goodman 3 Ton R32 Condenser
The Goodman 3 Ton AC Condenser sticks to a fairly simple design. Its main features focus on the cooling capacity, electrical requirements, refrigerant system, and outdoor construction.
-
3 Ton Cooling Capacity: Provides approximately 36,000 BTU of nominal cooling.
-
15.2 SEER2 Efficiency: Rated for efficient seasonal operation when paired with compatible indoor equipment.
-
R32 Refrigerant: Uses R32 refrigerant for newer residential split AC applications.
-
Single-Stage Scroll Compressor: Operates at one cooling stage whenever there is a call for cooling.
-
Factory Refrigerant Charge: Comes charged for approximately 15 feet of refrigerant tubing.
-
Factory-Installed Filter Drier: Helps manage moisture and contaminants inside the refrigerant circuit.
-
Protective Outdoor Cabinet: Helps shield the condenser coil and internal parts from normal outdoor exposure.
-
208/230V Electrical Configuration: Designed for single-phase residential electrical systems.
-
17.75A Minimum Circuit Ampacity: Listed minimum circuit ampacity for the condenser.
-
30A Maximum Overcurrent Protection: Specifies the maximum overcurrent protection requirement.
-
67 dBA Sound Rating: Listed operating sound level is approximately 67 dBA.
-
7/8-Inch Suction Connection: Uses a 7/8-inch suction service valve.
For someone considering a Goodman 3 Ton R32 Condenser, the GLXS4BA3610 covers the basics without making the system overly complicated. You get 36,000 BTU of nominal capacity, R32 refrigerant, and conventional single-stage operation.
Technical Specifications
|
Specification
|
Details
|
|
Brand
|
Goodman
|
|
Model Number
|
GLXS4BA3610
|
|
Product Type
|
Cooling-Only Split AC Condenser
|
|
Nominal Capacity
|
3 Ton
|
|
Nominal Cooling Capacity
|
36,000 BTU
|
|
Efficiency
|
15.2 SEER2
|
|
Refrigerant
|
R32
|
|
Compressor Type
|
Scroll
|
|
Compressor Stages
|
Single Stage
|
|
Voltage
|
208/230V
|
|
Phase
|
Single Phase
|
|
Frequency
|
60 Hz
|
|
Minimum Circuit Ampacity
|
17.75 A
|
|
Maximum Overcurrent Protection
|
30 A
|
|
Suction Valve Size
|
7/8 in
|
|
Factory Refrigerant Charge
|
Approx. 15 ft of tubing
|
|
Sound Level
|
67 dBA
|
|
Width
|
29 in
|
|
Depth
|
29 in
|
|
Height
|
39.5 in
|
|
Shipping Weight
|
Approx. 173 lbs
|
GLXS4BA3610 Dimensions & Capacity
The GLXS4BA3610 measures approximately 29 inches wide, 29 inches deep, and 39.5 inches high. Its listed shipping weight is around 173 pounds. The 29 × 29-inch base gives it a manageable outdoor footprint for a condenser in the 3 ton class.
As a 3 Ton R32 AC Condenser, it provides approximately 36,000 BTU of nominal cooling capacity. That may be suitable for many residential properties with moderate or higher cooling loads, but choosing AC tonnage based only on square footage can lead to the wrong system size.
Two homes with similar floor areas can have noticeably different cooling requirements. Insulation, ceiling height, windows, sun exposure, ductwork, and local climate all play a part. Air leakage and building orientation matter as well. A load calculation gives a much better picture of whether 36,000 BTU is appropriate for the property.
Who Should Buy Goodman 3 Ton AC Unit?
This Goodman R32 Air Conditioner is intended for homes where a 3 ton cooling system has been properly sized for the space. It also suits applications that need cooling only, particularly when heating is already handled by separate equipment.
This model may make sense for:
-
Homes with a calculated 3 ton cooling requirement
-
Residential spaces needing around 36,000 BTU of nominal cooling
-
Buyers comparing Goodman cooling-only condensers
-
Split AC systems using compatible R32 indoor equipment
-
Properties with a separate source of heating
-
Buyers who want straightforward single-stage operation
-
Systems requiring 208/230V single-phase equipment
-
Locations where a 29" × 29" condenser footprint fits the available space
The GLXS4BA3610 is a cooling-only condenser, so it doesn't operate as a heat pump. And because it's only the outdoor portion of a split system, the indoor HVAC equipment needs to match its refrigerant, capacity, airflow, and electrical requirements.
FAQ
Q1. How much cooling capacity does this 3 ton condenser provide?
This condenser provides approximately 36,000 BTU of nominal cooling capacity, which places it in the 3 ton residential AC category.
Q2. What is the efficiency rating of this Goodman condenser?
The condenser has a listed efficiency rating of 15.2 SEER2. Actual system efficiency depends on the compatible indoor equipment paired with the outdoor unit.
Q3. What refrigerant does this AC condenser use?
This condenser uses R32 refrigerant. The indoor HVAC equipment paired with it should also be designed for the same refrigerant platform.
Q4. Is this Goodman 3 ton AC unit a heat pump?
No. It is a cooling-only condenser. The unit provides air conditioning and doesn't use reverse-cycle operation for heating.
Q5. What are the dimensions of this outdoor condenser?
The cabinet measures approximately 29 inches wide, 29 inches deep, and 39.5 inches high. Its listed shipping weight is about 173 pounds.
Q6. Is the GLXS4BA3610 a complete AC system?
No. The GLXS4BA3610 is the outdoor condenser portion of a split air conditioning system. Compatible indoor HVAC equipment is required to form a complete central cooling system.
