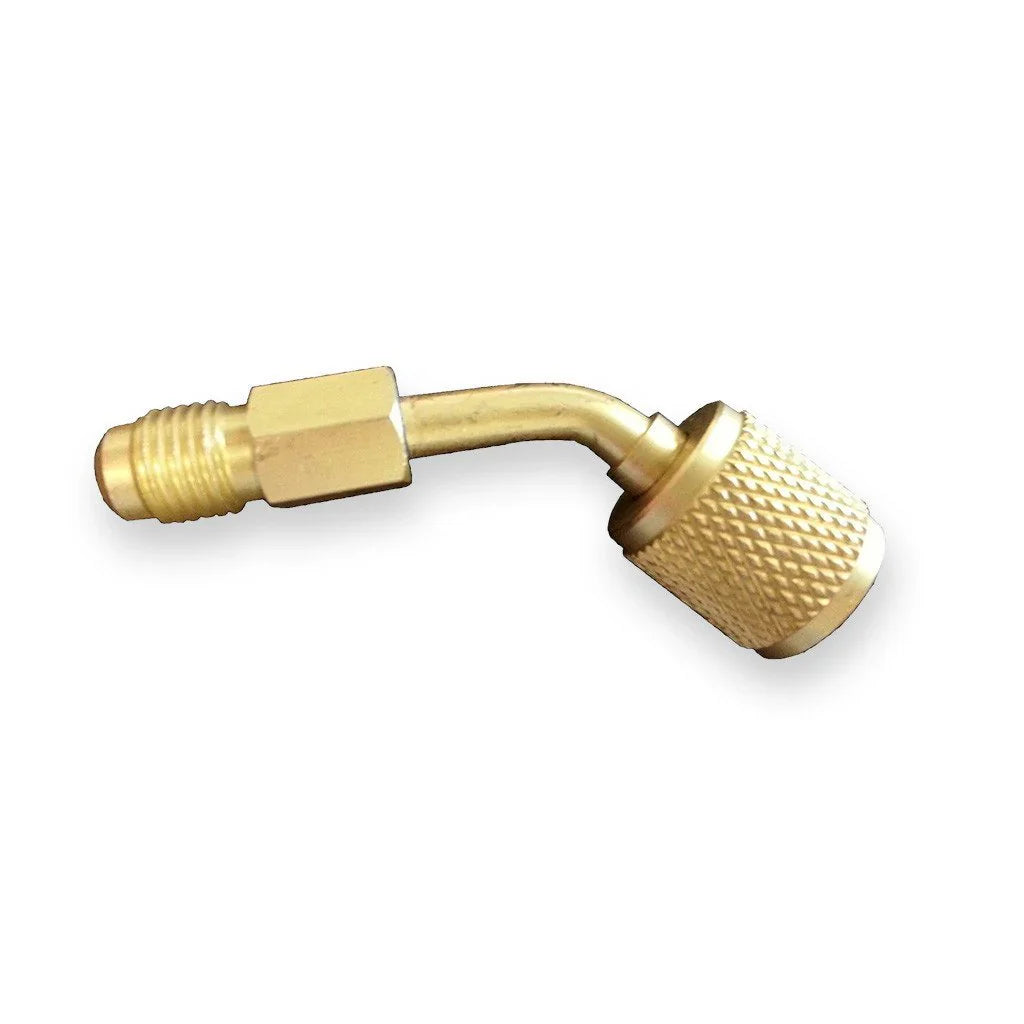

A port adapter in a mini split system is a refrigerant fitting or connector used to adapt the size or configuration of the refrigerant line between components. It ensures proper connection when line diameters or port designs do not match directly.
Why Is a Port Adapter Used?
1. Line Size Conversion
Mini split systems often use different liquid and suction line sizes depending on capacity. A port adapter allows you to connect a smaller or larger line set to the correct system port.
2. Compatibility Between Models
When connecting indoor units to a branch box or outdoor unit, the port size may differ. The adapter ensures correct fitment without altering system integrity.
3. System Expansion
If adding indoor units to a multi-zone system, a port adapter may be required to match the refrigerant connection size.
4. Proper Refrigerant Flow
Using the correct adapter ensures proper pressure, oil return, and refrigerant balance in the system.
Where Is It Installed?
A port adapter may be installed:
-
At the outdoor condenser connection
-
At the indoor unit connection
-
At a branch box port
-
Between line set extensions
It is always specified by the manufacturer and must match the system’s refrigerant type and capacity.
Important Notes
-
Port adapters are manufacturer-specific (for example, Mitsubishi systems use model-specific adapters).
-
Using the wrong adapter can affect system performance or void warranty.
-
Always follow the installation manual for correct sizing and torque specifications.
