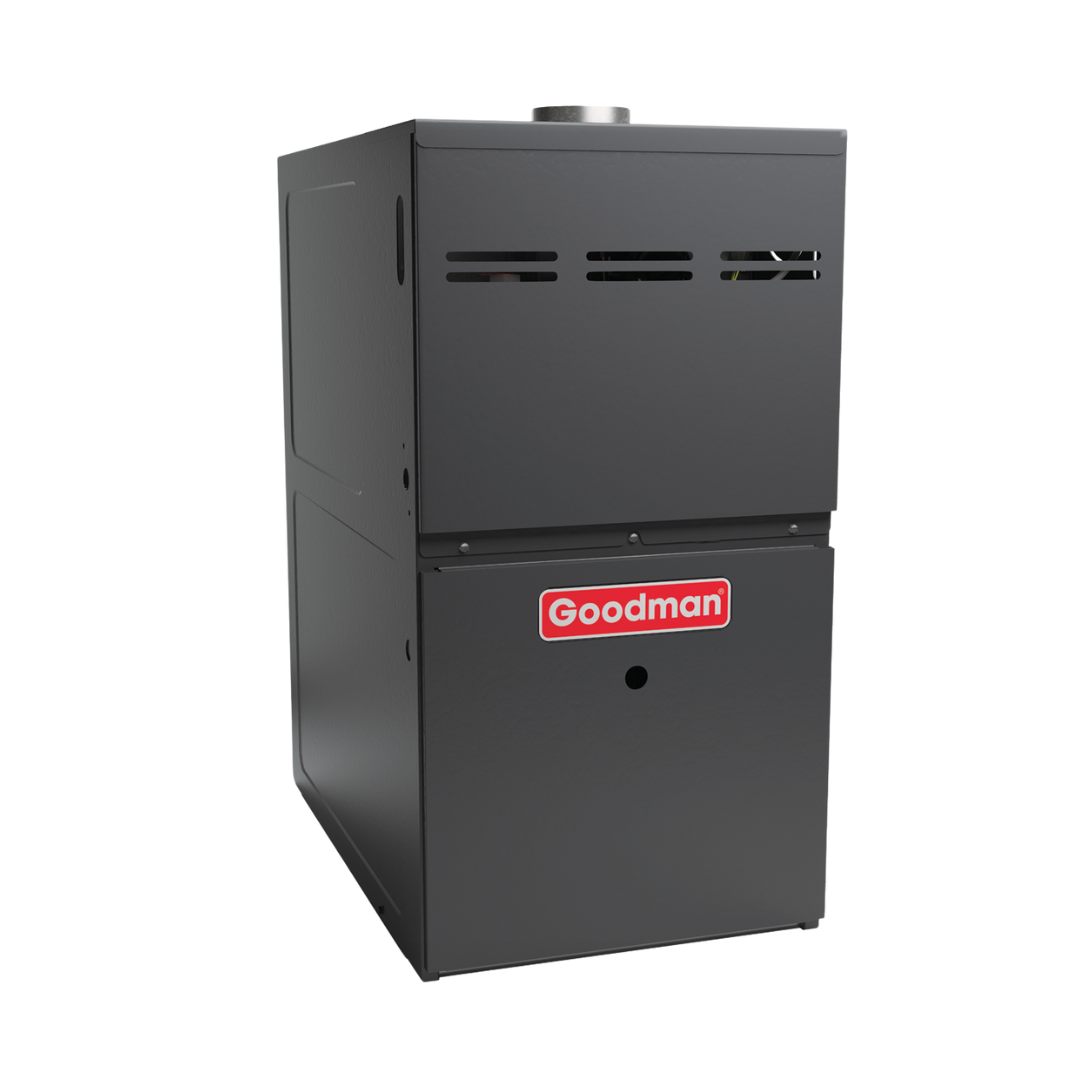

Goodman GR9T800805CX 80,000 BTU 80% AFUE Two-Stage Gas Furnace
Regular Price: $1,644.00
Sale Price: $1,101.48
You save: 33% ($542.52 )
Goodman GR9T800805CX 80,000 BTU 80% AFUE Two-Stage Gas Furnace is backordered and will ship as soon as it is back in stock.
Once you place an order on AC units for less, we will promptly reach out to express our gratitude for your purchase and address any inquiries you may have. Our team will also review your order with you to ensure that you have selected the right equipment for your specific needs.
Our order process includes a handling or production time in addition to the transit time. Delivery time = handling time + transit time.
All the products undergo a production process, so there will be a handling time of 2–3 business days from Monday to Friday. If your order is placed and payment is received after 2 p.m., then we will process the order the next business day.
Our shipping providers take 3-4 business days to deliver the order. It's an estimate, so there might be a delay.
We primarily use UPS or FEDEX for our deliveries. However, we reserve the right to use other carrier services as required to ensure efficient delivery. After an order ships, the shipping carrier will contact customers to coordinate the delivery schedule.
Once an order has been processed and shipped, it's important to note that the shipping address cannot be altered. Items designated for pickup at the terminal will only be released to the individual listed on the shipping label. A valid driver's license and a signature will be required for the release of the shipment. We adhere strictly to this policy, with no exceptions.
We offer free shipping on all orders except for Flat Bed Shipping or Oversized items. Flat Bed Freight Shipping applies to units larger than 7.5 tons. These items will be delivered via flat bed truck and may require additional delivery coordination. Flat rate charges will be shown at checkout for eligible item. Hot Point PTAC items if ordered under 8 Units different freight is charged
At ACUnitsForLess.com, we are committed to providing our customers with a superior buying experience. We offer free crating to safeguard your equipment during transit, thus eliminating any concerns regarding damage. When you compare our shipping policy to that of our competitors, you'll notice the difference. Customers are not held accountable for any damage to their orders.
Please make your purchase with confidence, knowing that we will ensure you receive the correct equipment that is brand new and in perfect condition.
How do I handle a return shipment?
You may return your unopened order within 60 days for a refund, minus shipping costs and a 25% restocking fee. Customers will be responsible for return shipping costs. Please keep your original box for shipping.
All orders cancelled after 6 hours from the confirmation email will follow the return process, whether or not your order has been shipped. If your order has shipped, you (the buyer) will also be responsible for return shipping charges. Refunds will be issued to the original credit card.
However, if you cancel the order before 6 hours, we will refund your full money.
To process the cancellation, please call us at +1 678-535-7176. We will not be available on Saturday and Sunday, so if somehow you have purchased a product on these days, then contact us on Monday before 3 pm.
If you need any help, feel free to contact us
Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia, 30142, United States
E-Mail: sales@acunitsforless.com
Phone: +1 678-535-7176
Customer Service: Monday to Friday between 9:00 am to 5:00 pm.
If you are not entirely happy with your purchase, you can return your item/s within 60 days of delivery for a full refund of the original payment.
Once we have received the product(s) and, if appropriate, any packaging, a refund will be credited to the payment card account within two weeks; please note that it may take up to 3 days for your bank to credit your account. We are not liable and cannot take responsibility for any bank charges you may incur during the refund process.
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right. In this case, we will cover the cost of return shipping as well as we will not charge any restocking fee.
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item. The cost of return shipping is the responsibility of the customer if you want to Exchange. Also we will charge 25% restocking fee.
Your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging to be eligible for a return. You’ll also need the receipt or proof of purchase.
The following items are not eligible for return:
The cost of return shipping is the responsibility of the customer, except in the case of items that were damaged in transit. In that case, we will cover the cost of return shipping.
We charge 25% Restocking Fee, except product got damaged by carrier.
To start a return, you can contact us at sales@acunitsforless.com. If your return is accepted, we’ll send you a return shipping label and instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
An order that has shipped cannot be cancelled. If you refuse an order which has already been shipped, not due to damage, you will be responsible for paying an ORDER RETURN FEE. We incur a fee from the freight carrier to return items that have been shipped, this fee is dependent on the item refused and the destination location.
There are no returns allowed for products which have been specially built for you and shipped by the manufacturer. These items are not routinely stocked at our warehouse and therefore cannot be returned.
By placing an order, the purchaser expressly acknowledges and agrees to the following terms:
1. No Returns or Exchanges
Final sale items are not eligible for return, exchange, substitution, or store credit for any reason, including but not limited to dissatisfaction, incorrect selection, incompatibility, or change of mind.
2. No Refunds
All sales of final sale items are final and non-refundable. Once an order is placed, it cannot be canceled, modified, or refunded.
3. Assumption of Risk
The purchaser assumes full responsibility for determining product suitability, compatibility, and compliance with applicable codes, regulations, and intended use prior to purchase.
4. Condition and Disclaimer
Final sale items are sold “AS IS” and “WITH ALL FAULTS” with no representations or warranties, express or implied, including but not limited to any implied warranties of merchantability, fitness for a particular purpose, or non-infringement, except where prohibited by law.
5. Shipping and Damage Claims
Any damage occurring during transit must be reported in writing within 48 hours of delivery with supporting photographs. Failure to report within this period constitutes acceptance of the product.
6. Chargebacks and Disputes
The purchaser agrees not to initiate any chargebacks or payment disputes related to final sale items. Any chargeback initiated in violation of this policy may be contested with the payment processor using this agreement as evidence.
7. Severability
If any provision of this policy is deemed unenforceable under applicable law, the remaining provisions shall remain in full force and effect.
If you need any help, feel free to contact us
Address: Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia, 30142, United States
E-Mail: sales@acunitsforless.com
Phone: +1 678-535-7176
Customer Service: Monday to Friday between 9:00 am to 5:00 pm.
We provide a 60-day return policy for your convenience. To initiate a return, it is essential that the items remain unused and in their original manufacturer's packaging. When returning the equipment, please ensure that you reuse all shipping materials that were initially used to protect the equipment during shipment.
We will provide the return label.
Upon receiving your return, we will issue a refund for the full order amount, minus the return shipping cost and a 25% restocking fee.
By placing an order, the purchaser expressly acknowledges and agrees to the following terms:
1. No Returns or Exchanges
Final sale items are not eligible for return, exchange, substitution, or store credit for any reason, including but not limited to dissatisfaction, incorrect selection, incompatibility, or change of mind.
2. No Refunds
All sales of final sale items are final and non-refundable. Once an order is placed, it cannot be canceled, modified, or refunded.
3. Assumption of Risk
The purchaser assumes full responsibility for determining product suitability, compatibility, and compliance with applicable codes, regulations, and intended use prior to purchase.
4. Condition and Disclaimer
Final sale items are sold “AS IS” and “WITH ALL FAULTS” with no representations or warranties, express or implied, including but not limited to any implied warranties of merchantability, fitness for a particular purpose, or non-infringement, except where prohibited by law.
5. Shipping and Damage Claims
Any damage occurring during transit must be reported in writing within 48 hours of delivery with supporting photographs. Failure to report within this period constitutes acceptance of the product.
6. Chargebacks and Disputes
The purchaser agrees not to initiate any chargebacks or payment disputes related to final sale items. Any chargeback initiated in violation of this policy may be contested with the payment processor using this agreement as evidence.
7. Severability
If any provision of this policy is deemed unenforceable under applicable law, the remaining provisions shall remain in full force and effect.
IMPORTANT: HVAC and Water Heater parts and accessories should only be installed by qualified technicians. Failure to understand and follow the manufacturer’s installation and use instructions may result in fire or explosion, electric shock, property damage, injury or loss of life. It is your responsibility to seek professional advice when installing and using these parts and accessories.

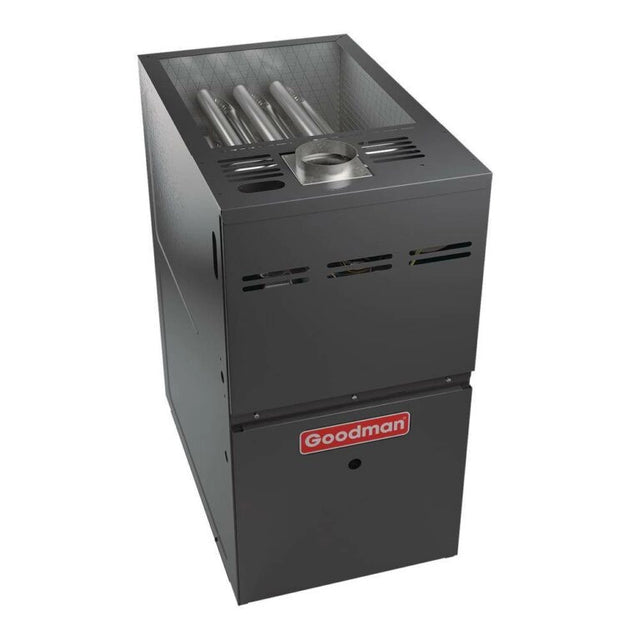

The Goodman GR9T800805CX gas furnace delivers two-stage heating through a 21-inch cabinet designed for upflow or horizontal applications. It pairs an 80,000 BTU input with a nine-speed ECM blower capable of moving up to 2,000 CFM. This Goodman 80000 BTU gas furnace is also a Low-NOx model, while the flexible cabinet makes it a practical Goodman upflow furnace for different duct layouts.
The Goodman GR9T800805CX gas furnace supplies up to 64,000 BTU of usable heating output. As an 80% AFUE gas furnace, it converts 80% of its rated fuel input into indoor heat.
Two-stage operation is the main difference between this model and a standard single-stage furnace. The Goodman two-stage gas furnace can run at a lower firing level during mild weather, then move to full capacity when the heating demand increases. Longer low-stage cycles can help maintain steadier temperatures and reduce sudden bursts of hot air.
The Goodman 80000 BTU gas furnace uses a nine-speed ECM motor instead of a basic fixed-speed blower. Its selectable settings make it possible to match airflow with compatible indoor coils and outdoor cooling equipment.
The Goodman GR9T800805CX gas furnace includes the following equipment features:
Two-stage gas valve for low- and high-stage heating
Nine-speed ECM circulator blower motor
Maximum airflow capacity of 2,000 CFM
Heavy-duty aluminized-steel tubular heat exchanger
SureStart silicon-nitride hot-surface igniter
Self-diagnostic control board with constant memory
Quiet two-speed induced-draft blower
Low continuous-fan airflow setting
Low-NOx burner configuration
Upflow, horizontal-left, and horizontal-right positions
Heavy-gauge insulated steel cabinet
R-32-ready control system for compatible cooling equipment
The lower firing stage is useful when full heating output is unnecessary. And when outdoor temperatures drop, the Goodman two-stage gas furnace can switch to its higher stage to supply its full rated capacity.
|
Specification |
Product Details |
|
Brand |
Goodman |
|
Model Number |
GR9T800805CX |
|
Series |
GR9T80 |
|
Furnace Type |
Gas-fired forced-air furnace |
|
Heating Stages |
Two stage |
|
AFUE Rating |
80% |
|
Heating Input |
80,000 BTU |
|
Maximum Heating Output |
64,000 BTU |
|
Blower Motor |
Nine-speed ECM |
|
Maximum Airflow |
2,000 CFM |
|
Nominal Cooling Capacity |
Up to 5 tons |
|
Airflow Orientation |
Upflow or horizontal |
|
Fuel Type |
Natural gas; LP conversion requires a compatible kit |
|
Emissions Rating |
Low NOx |
|
Electrical Supply |
115V, single phase, 60 Hz |
|
Minimum Circuit Ampacity |
14.3 amps |
|
Maximum Breaker Size |
25 amps |
|
Cabinet Size |
C cabinet |
|
Venting Type |
Metal flue |
|
Height |
33-3/8 inches |
|
Width |
21 inches |
|
Depth |
28 inches |
|
Weight |
129 lbs |
The dimensions, weight, heating output, airflow, and electrical ratings are supported by current model-specific listings from HVACDirect and AC Direct.
The Goodman GR9T800805CX gas furnace uses a C-size cabinet with the following measurements:
Height: 33-3/8 inches
Width: 21 inches
Depth: 28 inches
Weight: Approximately 129 pounds
This Goodman upflow furnace has an 80,000 BTU input rating and a maximum output of 64,000 BTU. Its blower can produce up to 2,000 CFM, allowing the furnace to support compatible cooling equipment with capacities up to five nominal tons.
An 80% AFUE gas furnace requires conventional metal flue venting. The actual heating capacity needed for a property depends on more than floor area. Insulation levels and window exposure have a direct effect, as do regional winter temperatures.
The Goodman GR9T800805CX gas furnace suits buyers who want two-stage heating with high cooling-airflow capacity. Its lower stage handles moderate heating demand, while full output is available during colder conditions.
This Goodman 80000 BTU gas furnace can also work for equipment layouts that need upflow or horizontal airflow. With a 21-inch cabinet and 2,000 CFM capability, it may suit larger matched systems where a narrower furnace cannot provide enough airflow.
The Goodman two-stage gas furnace is especially relevant when steadier heat delivery is preferred over the all-or-nothing operation of a single-stage model.
Q1. What is the output of the Goodman GR9T800805CX gas furnace?
It provides up to 64,000 BTU of heating output from an 80,000 BTU input.
Q2. How does two-stage heating operate?
The furnace starts at a lower heating level and moves to full capacity when the thermostat demand requires more heat.

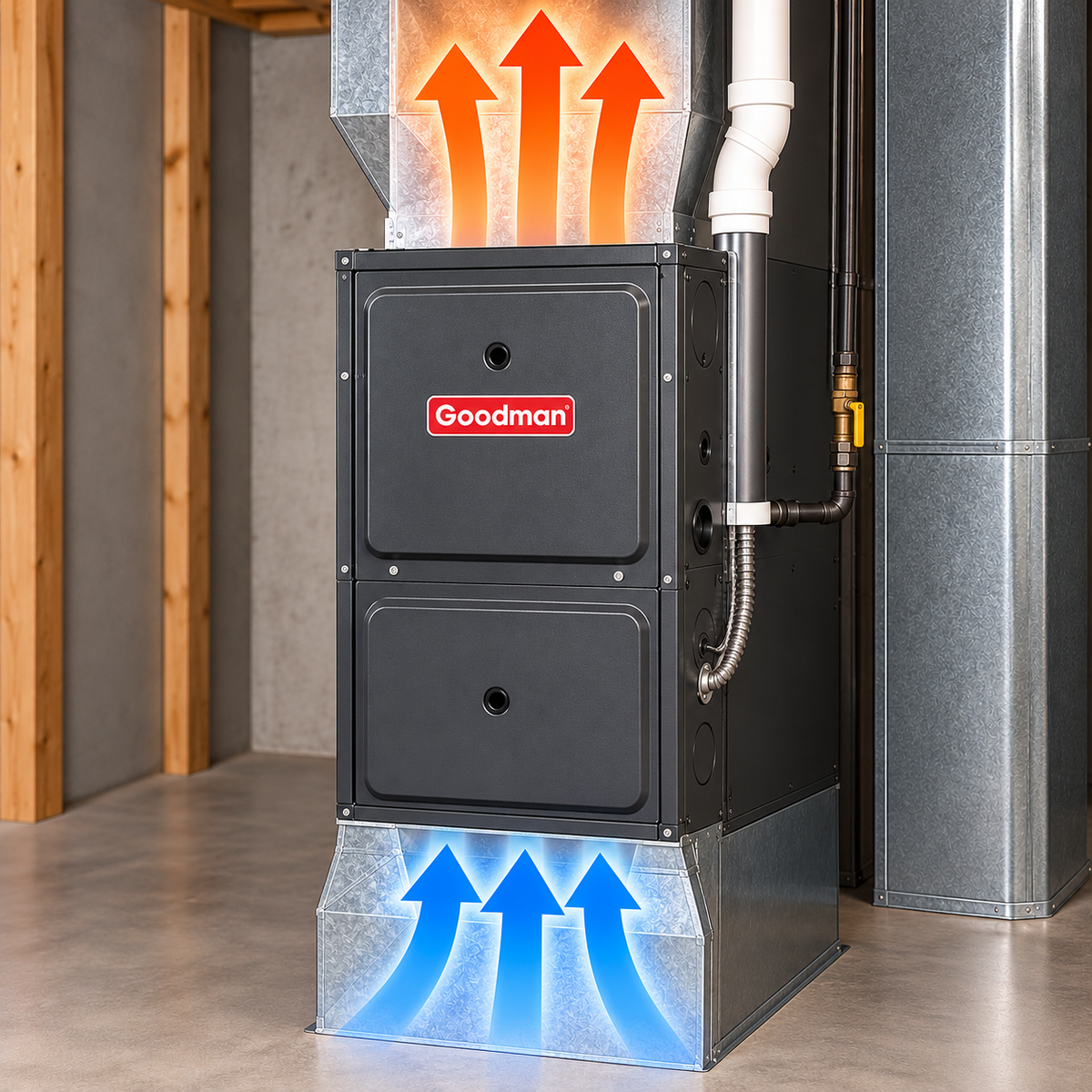

Q3. What airflow positions are available?
The cabinet supports upflow, horizontal-left, and horizontal-right orientations.
Q4. Is this model a Low-NOx furnace?
Yes. The “X” suffix identifies the Low-NOx version of this model.
Q5. What is the airflow capacity of this Goodman upflow furnace?
The Goodman GR9T800805CX gas furnace uses a nine-speed ECM motor capable of delivering up to 2,000 CFM. It is an 80% AFUE gas furnace designed for compatible systems up to five nominal tons.
