Model: GM9C801005CN

Goodman Specifications Sheet Click HERE

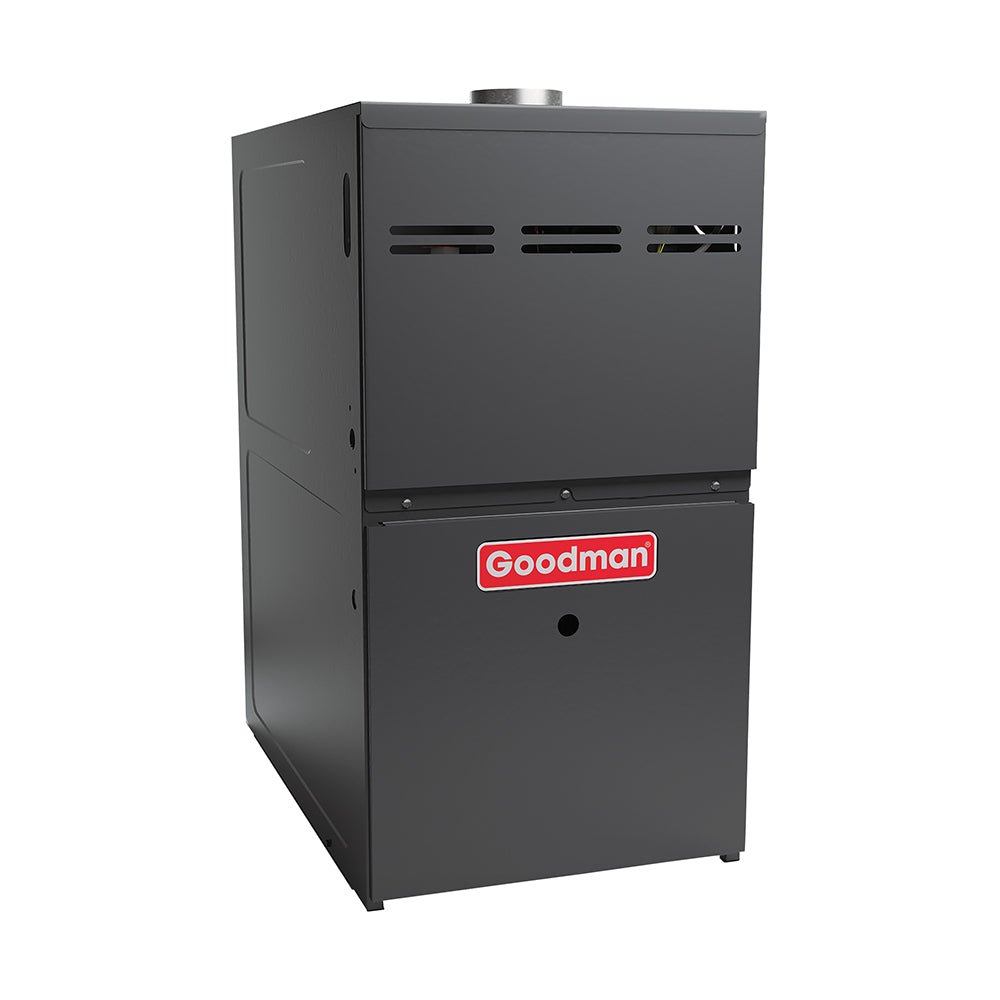

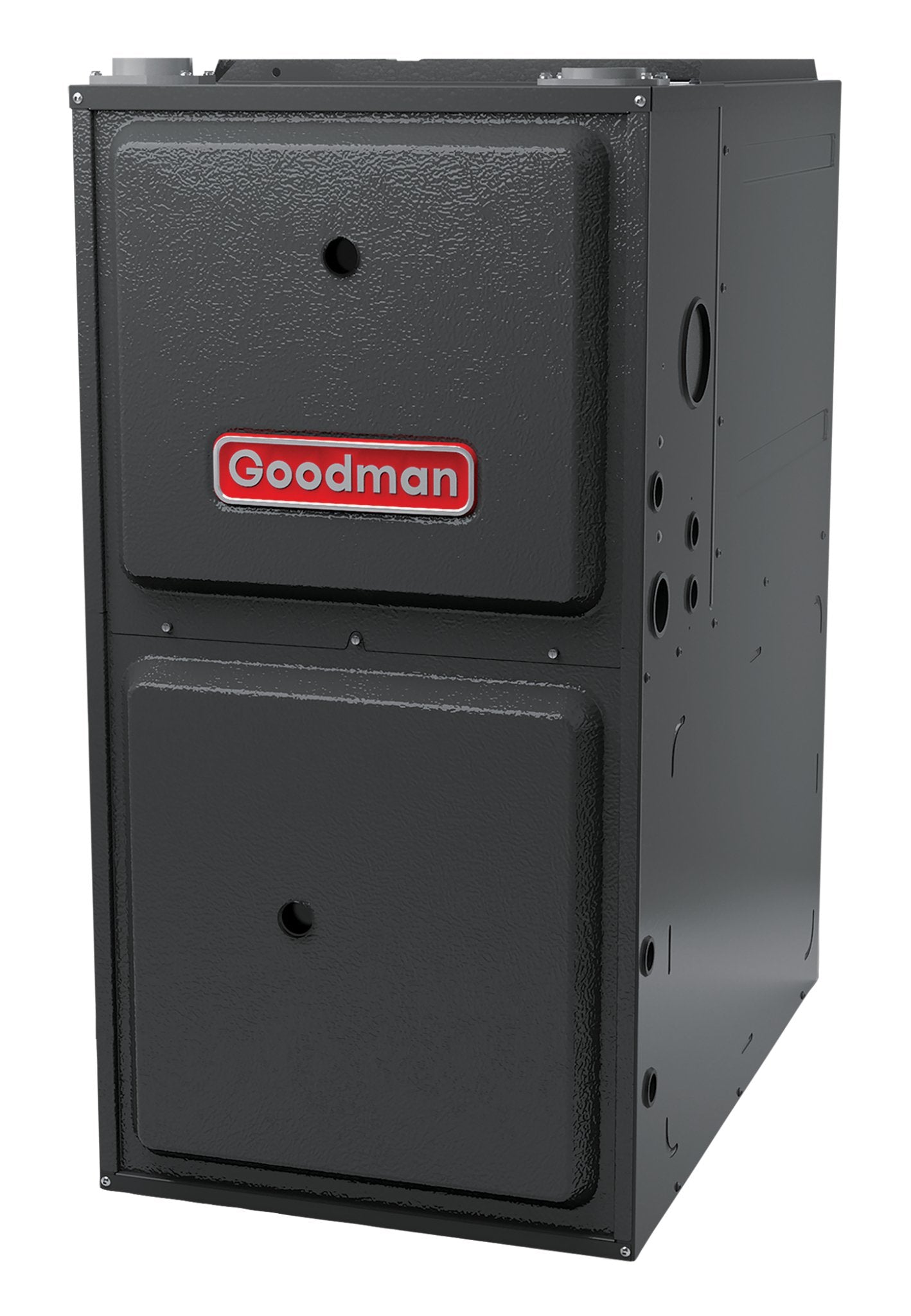

FURNACE: GM9C801005CN

Specifications:

1. Heavy-duty aluminized-steel tubular heat exchanger
2. "Silicon Nitride igniter"
3. Color-coded low-voltage terminals
4. Multi-speed ECM blower motor with continuous fan speed
5. Fault code LED Output
6. Single-Stage gas Valve
7. Single-speed inducer draft blower

Warranty:

• Standard warranties apply.
• Standard parts, residential: ALL PARTS - 5 YEARS PARTS
• HEAT EXCHANGER - 20 YEARS PARTS
• Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
• ALL PARTS - 5 YEARS PARTS
• Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
• HEAT EXCHANGER - 20 YEARS PARTS
• Registered parts, residential: ALL PARTS - 10 YEARS PARTS
• HEAT EXCHANGER - LIFETIME PARTS
• Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
• HEAT EXCHANGER - 20 YEARS PARTS
• Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
• HEAT EXCHANGER - 20 YEARS PARTS

PRODUCT ATTRIBUTES:

AFUE: 80

Brand: Goodman

Class: Gas Furnace

Unit Depth: 28

Unit Height: 33-3/8

Unit Width: 21

Family Description: Two-Stage Multi-Speed ECM Gas Furnace up to 80% AFUE

High-Fire Input Capacity: 100000

High-Fire Output Capacity: 80,000

Min. Circuit: 15.32

Model Efficiency: 0.8

Motor Speed Type: Multi Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 115

Product Benefits:

High reliability and quality

Durable and long igniter life

Provisions for electronic air cleaner and humidifier

Quiet and Economical heating

Energy Efficient and quiet circulation

Self-diagnostic control board with constant memory

Operates on two-stage or single-stage thermostats

Easy Connection for EAC and Humidifier

Category: Gas Furnace

Family: GM9C80

Prop65 Label Required: TRUE

Unit Type: Indoor

Unit Weight: 124

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)
