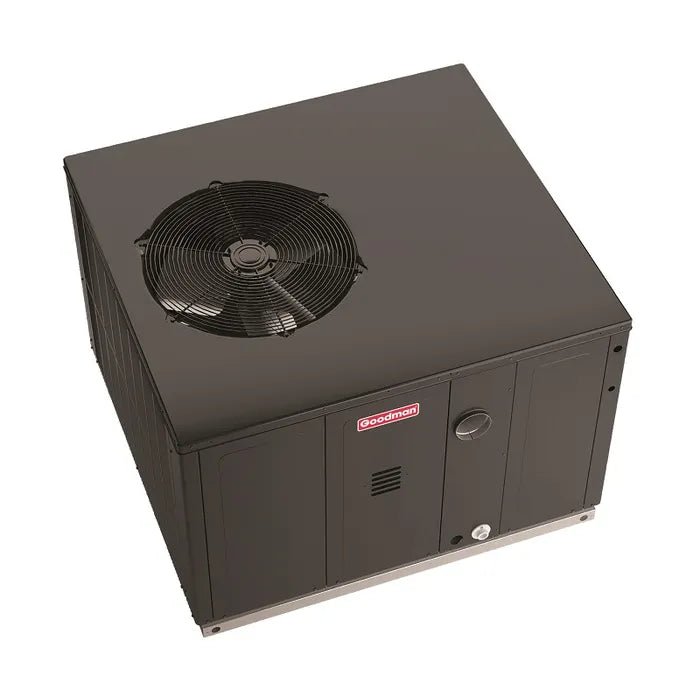

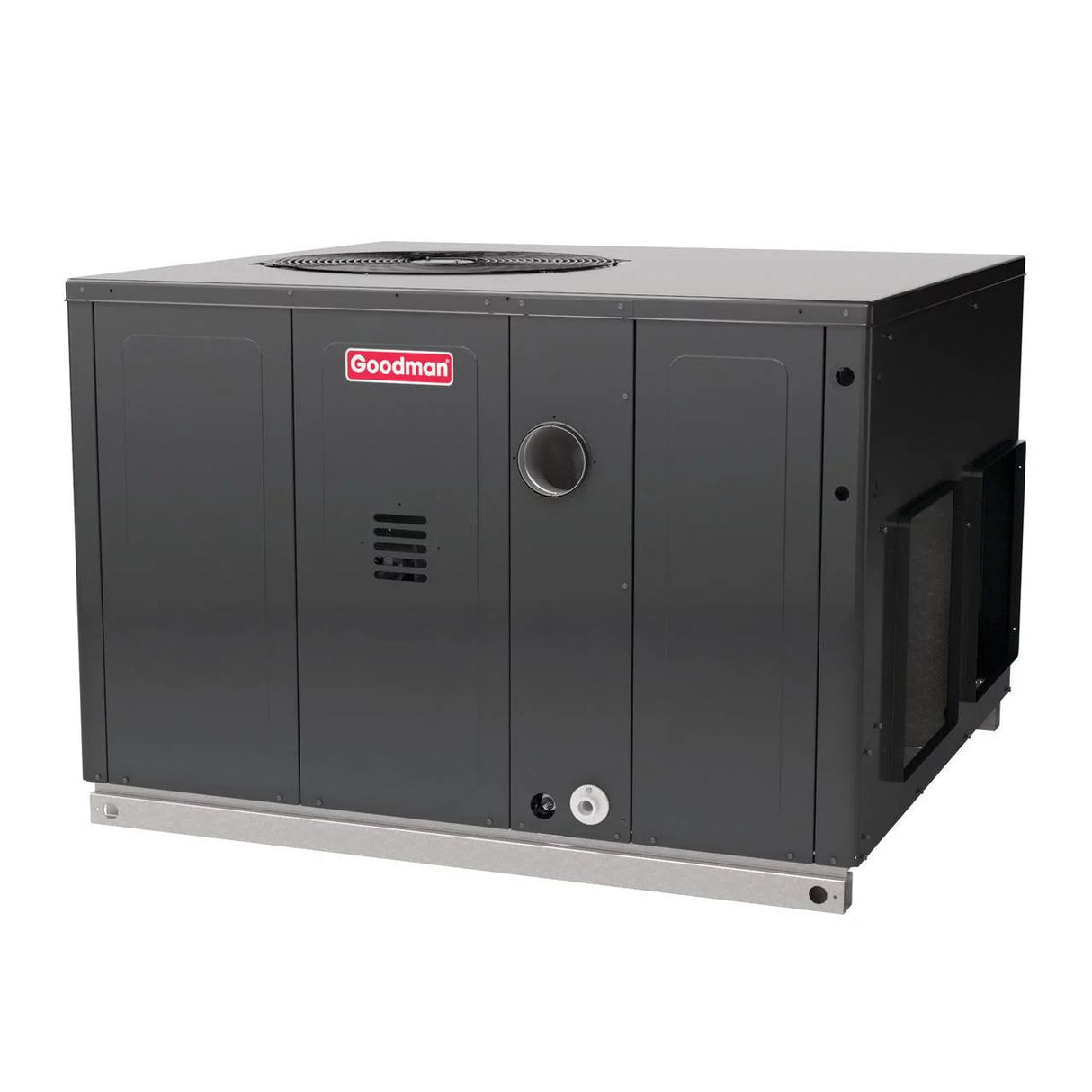

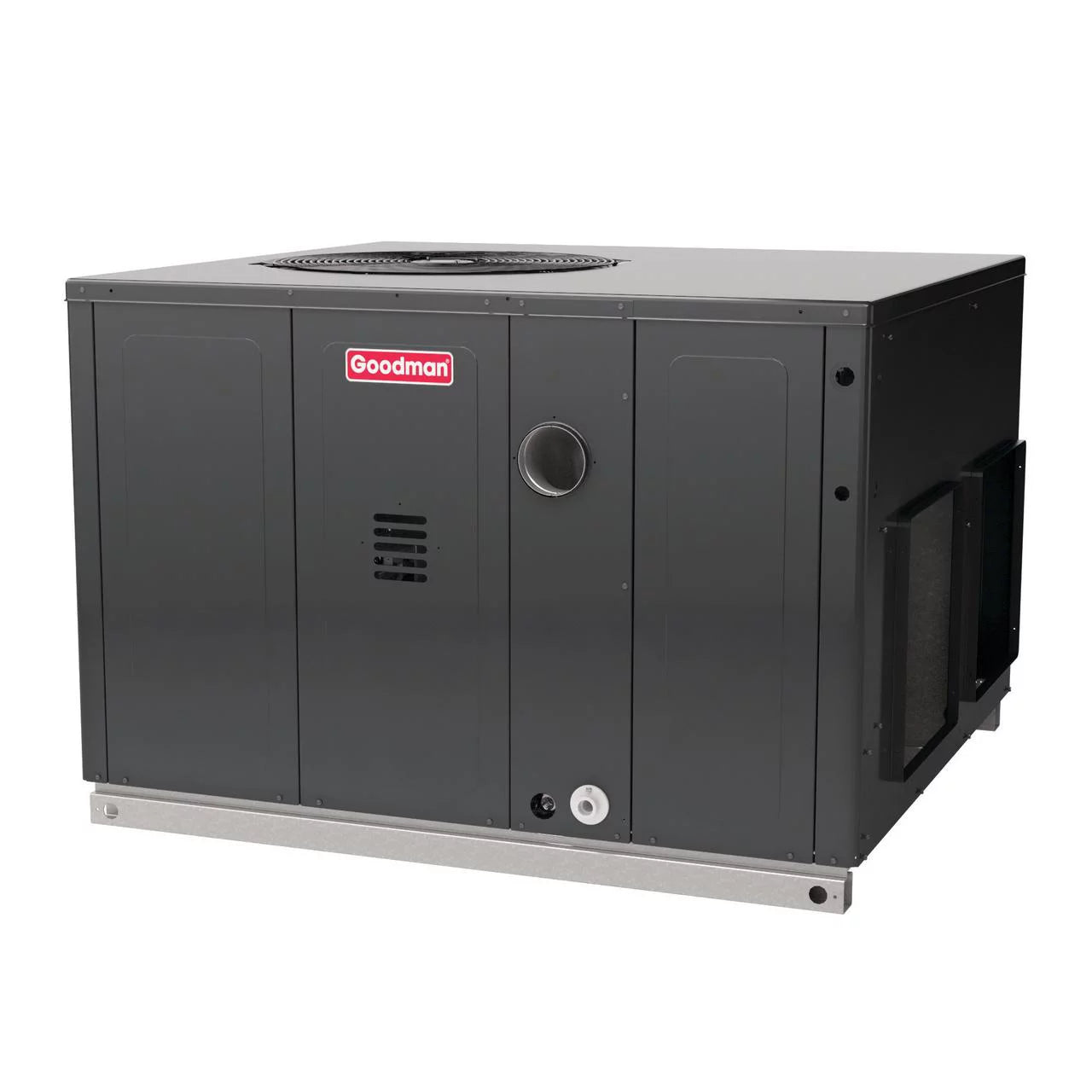

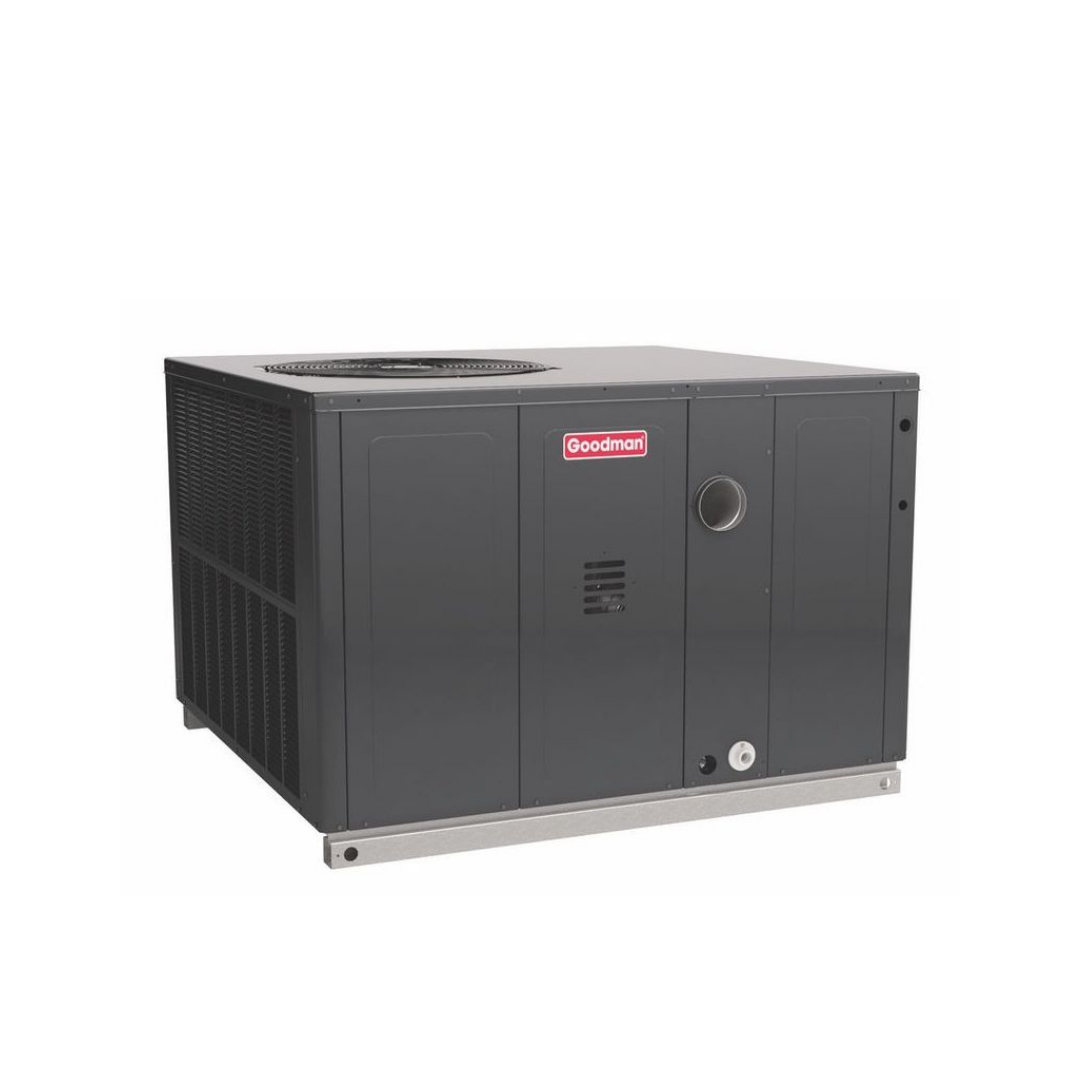

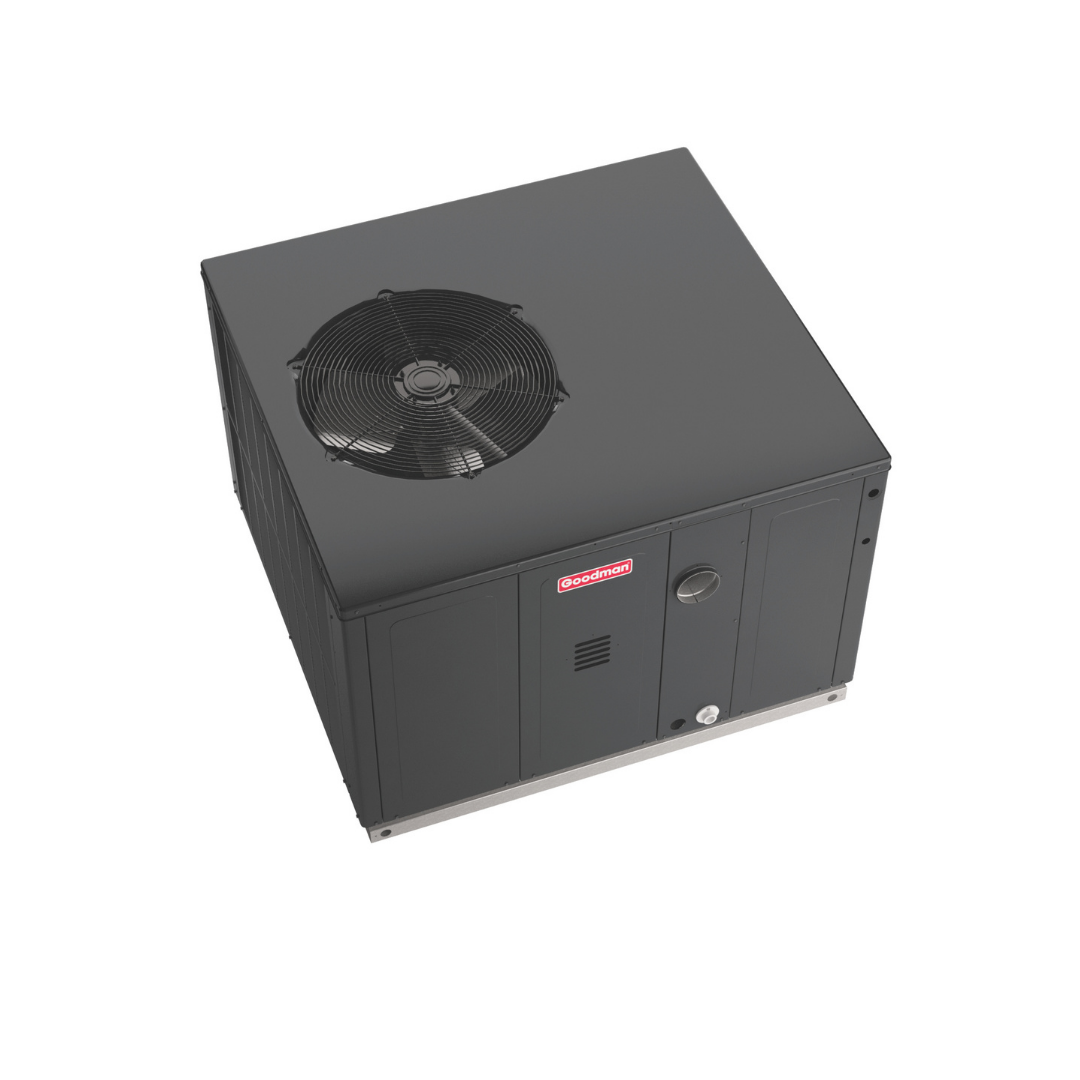

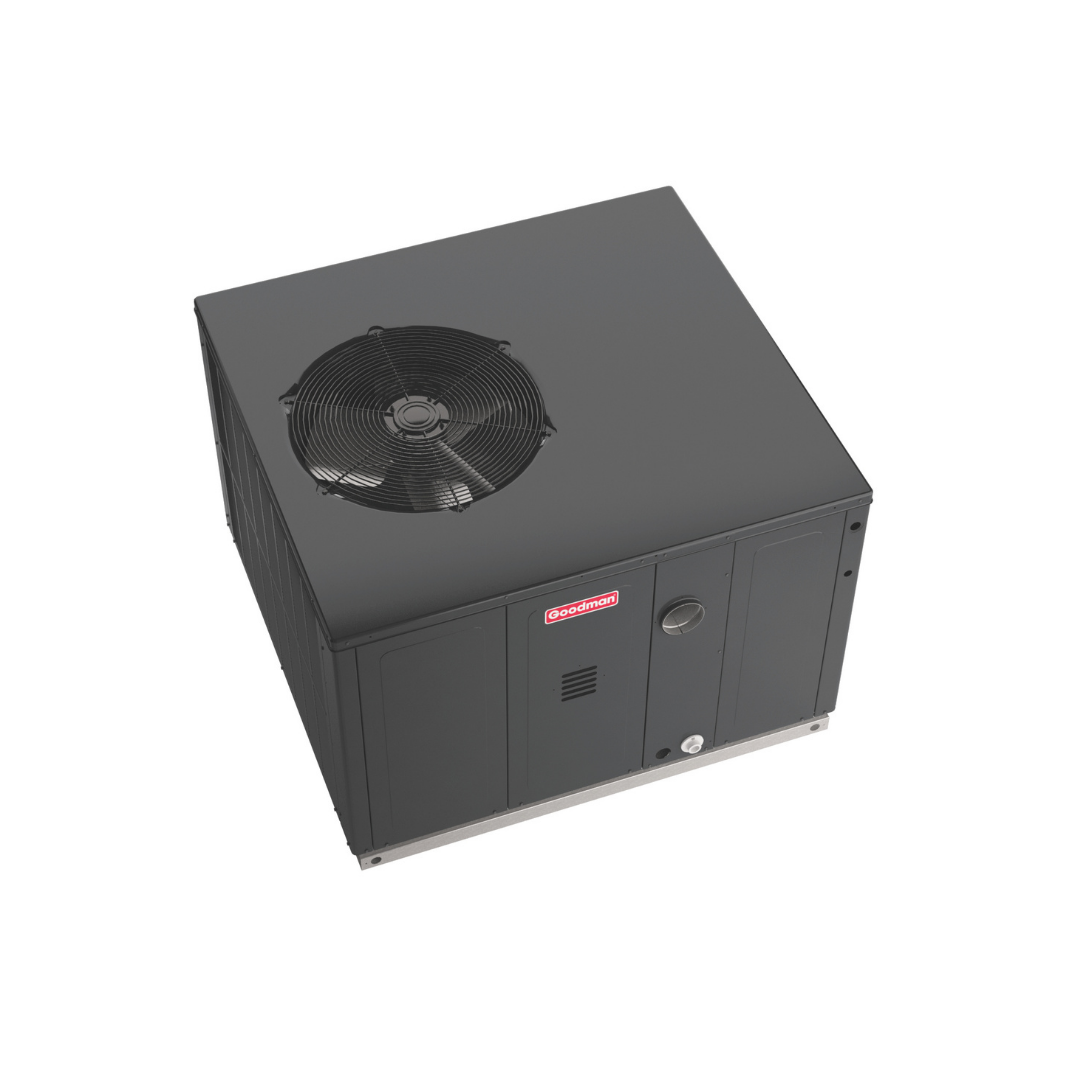

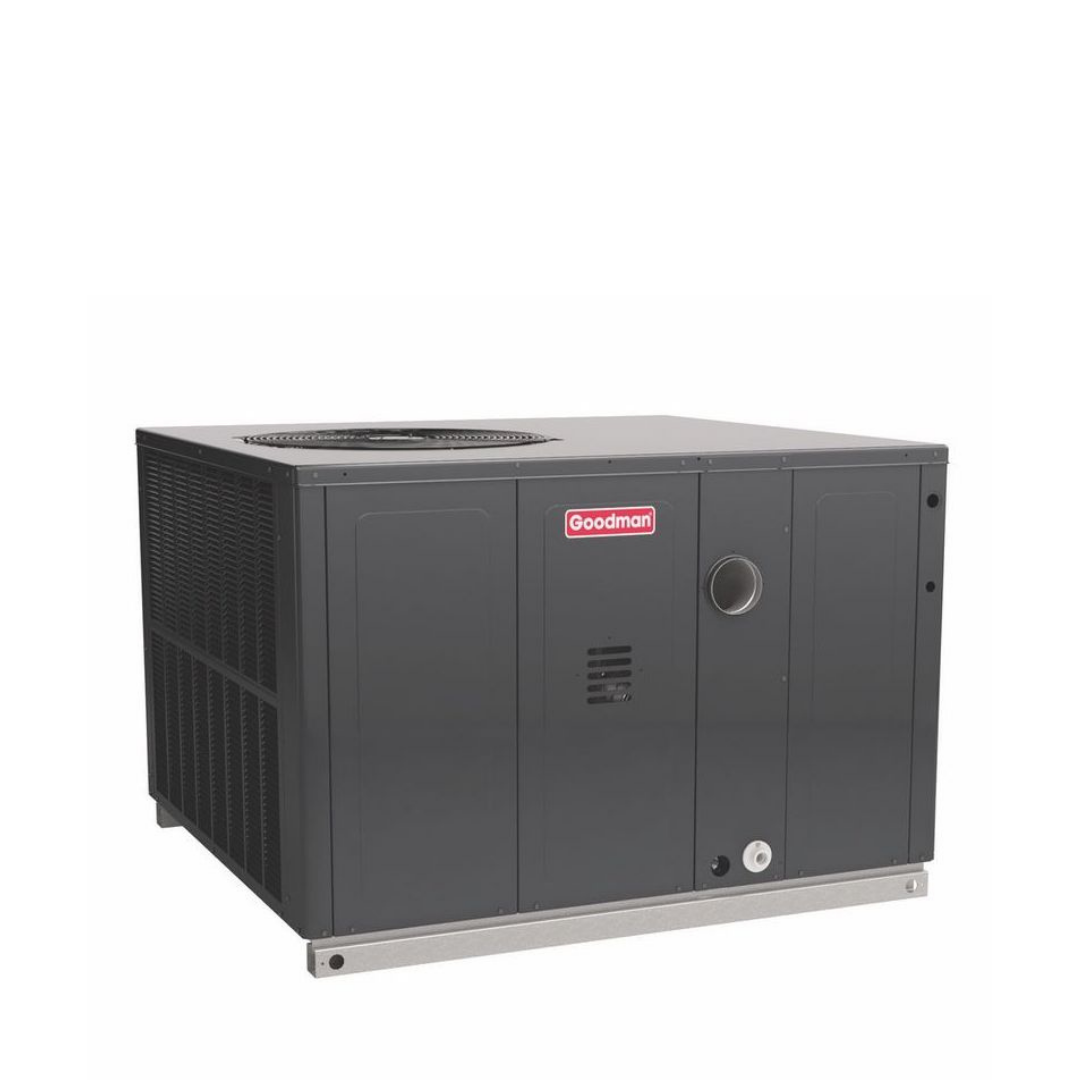

Model: GPGM34806041
Goodman Specifications Sheet Click HERE
Outdoor: GPGM34806041
Specifications:
High-efficiency two-stage scroll compressor

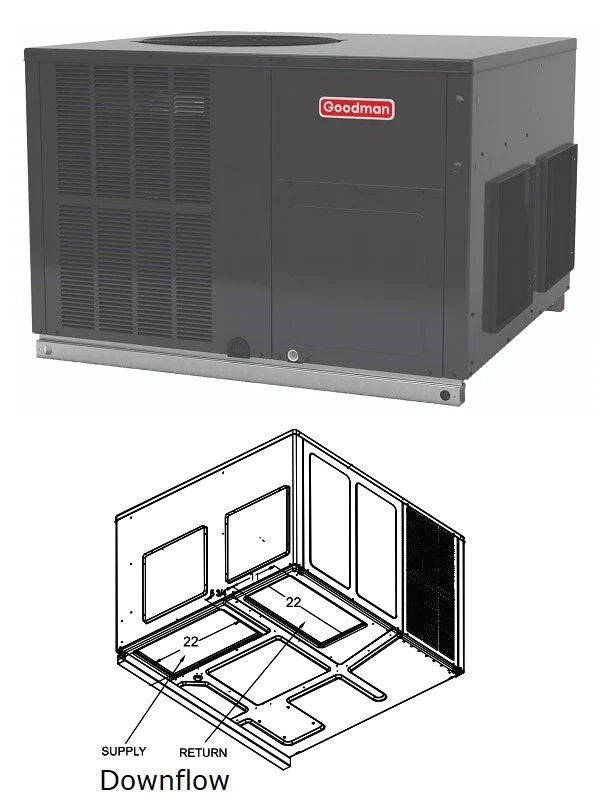

Convertible airflow: horizontal or down flow application
Multi-speed ECM indoor blower motor
Copper tube/aluminium fin condenser coil
All-aluminium evaporator coil on 2- to 4-ton units
Aluminium-copper evaporator coil on 5-ton units
Power-assisted combustion
High and low-pressure switch protection
Direct spark ignition system includes a microprocessor- based control for the entire ignition sequence
All blower operation and all safety circuits complete with self-diagnostics
All models comply with California Low NOx emission standards (40ng/J NOx)
This furnace does not comply with the SCAQMD Rule 1111 nor the SJVAPCD Rule 4905 14 ng/J NOx emission limit and therefore is not eligible for installation in California’s South Coast Air Quality Management District (SCAQMD) nor the San Joaquin Valley Air Pollution Control District (SJVAPCD)
AHRI Certified
ETL Listed
Warranty:
Standard warranties apply.
Standard parts, residential: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Product Attributes:
AFUE: 81
Airflow Rate High Cooling: 1525
Brand: Goodman
Cabinet Features:
Fully insulated heavy-gauge, zinc-coated steel cabinet with UV-resistant powder-paint finish
Horizontal or down flow application
Compressor sound blanket
Convenient access panels
One roof curb fits all units
Fully insulated cabinet
Bottom, 2” high base rails for easier handling
When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds
Class: Packaged Gas/Electric/Dual
Compressor Stages: Single Stage
Compressor Type: Scroll
Cooling Capacity Rated: 46250
Unit Depth: 51
Unit Height: 40
Unit Width: 47
Family Description: Packaged Gas / Electric Units, 13.4 SEER2 / 81% AFUE, 2 to 5 Tons
Heating Capacity Rated: 60000
High-Fire Input Capacity: 60000
High-Fire Output Capacity: 48600
Min. Circuit: 32.3
Model Efficiency: 13.4 SEER2
Motor Speed Type: Multi Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Packaged Gas/Electric/Dual
Family: GPGM3
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 4 tons
Unit Type: Outdoor
Unit Weight: 449
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
SS-GM9S80_GC9S80.pdf (daikincloud.io)
SM-RS6621008.pdf (daikincloud.io)
Product Specification Table
Brand | Goodman |
Model # | GPGM34806041 |
SEER2/EER2 | 13.4 |
Refrigerant | R-410A |
Tonnage | 4.0 Ton |
Coil Type | |
Total Indoor Unit(s) BTU | |
Voltage Requirements | |
Series | |
Coverage Area (Sq. Ft) | 2400 |
Indoor Mount Type | |
Indoor Unit BTUs | |
Zone/Rooms | |
AHRI No | GPGM34806041 |
Burner Stages | Single Stage |
Cabinet Width | |
Airflow Direction | Multi-Position |
Furnace Efficiency / AFUE | 81% |
Furnace BTU | 60,000 BTU's |
Power Phase ( Single/Three) | |
Dimensions - (Shipping Unit Width) | |
Dimensions - (Shipping Unit Height) | |
Dimensions - (Shipping Unit Depth) | |
Weight - (Shipping Unit) | |
Refrigerant Pre-Charged Line Length | |
Power Frequency | |
Nom. CFM | |
Motor Speed Type | |
MOCP | |
Min. Circuit Amps | |
Min Voltage | |
Max Voltage | |
Max Overcurrent Protection | |
LoNox | |
Valve Size Suction (O.D.) | |
Valve Size Liquid (O.D.) | |
Liquid Line Size | |
Energy Source | Natural Gas |
Expansion Device | |
Decibels (dBA) | |
Compressor Type | |
Compressor Stages | |
Cased vs Uncased | |
Heating Capacity - (Nominal) | |
Cooling Capacity - (Nominal) | |
Airflow Rate High Cooling | |
Function Category | |
Package System Type | |
Air Handler Mount Type System | |
Split System Type | |
