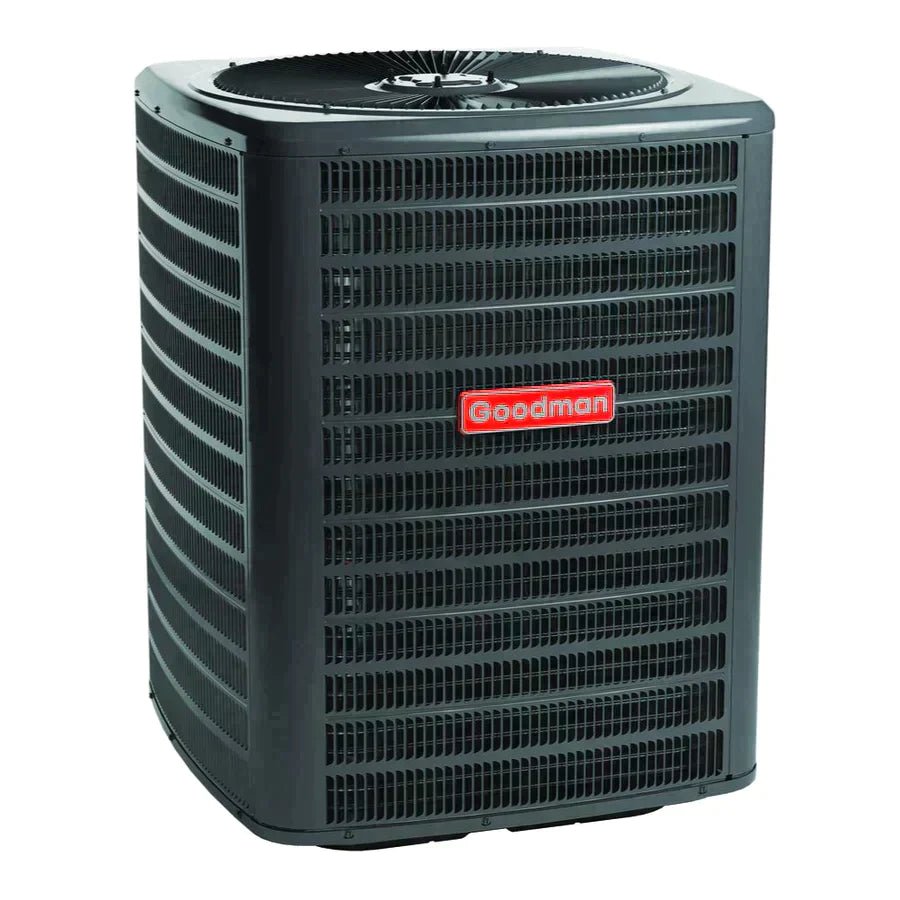

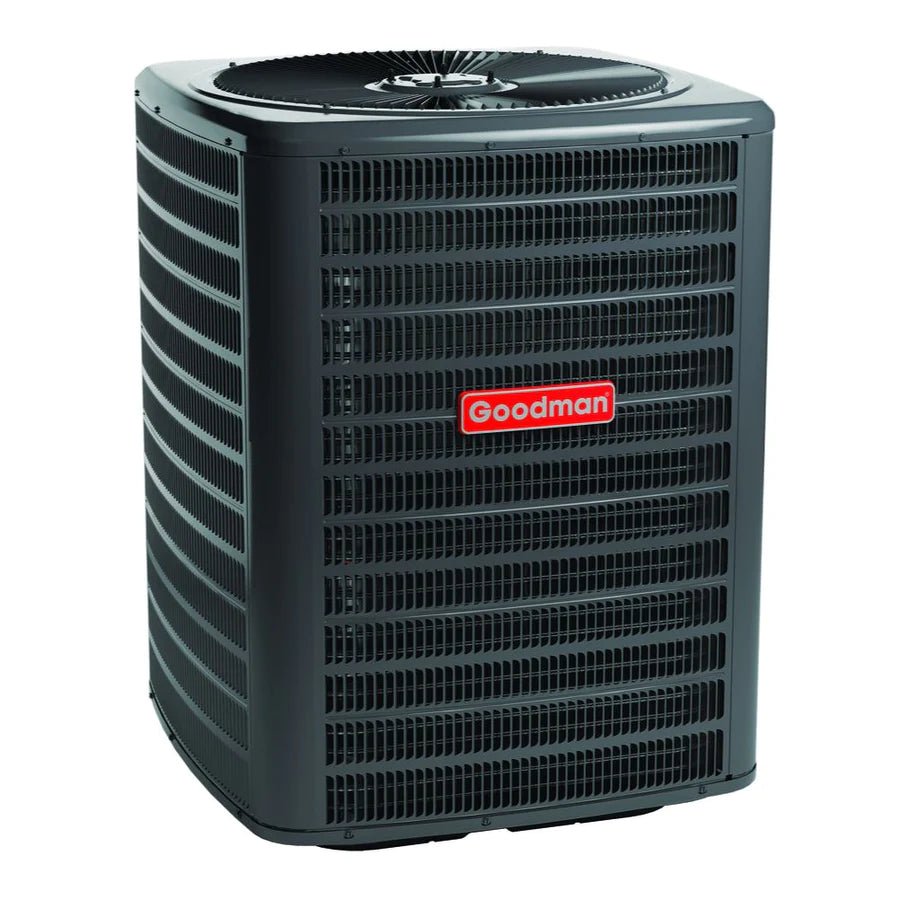

Upgrade to efficient, reliable cooling with the Goodman 3.5 Ton Split AC GLXS3BN4210. This split-system air conditioner delivers consistent comfort using R‑32 refrigerant and modern technology, making it a great choice for homeowners seeking robust cooling and environmental responsibility.
Key Features
13.4 SEER2 Cooling Efficiency – Meets current energy standards to help reduce electricity costs.
R‑32 Refrigerant – An eco-friendly solution with lower global warming potential and superior thermal capabilities.
Single-Stage Scroll Compressor – Offers reliable, quiet operation and consistent temperature control.
Factory-Installed Filter Drier – Protects against moisture and contaminants, extending unit life.
Durable Steel Cabinet – Heavy-gauge construction with a powder-coat finish resists corrosion and outdoor wear.
Service-Friendly Access Panels – Top and side access simplifies maintenance and seasonal servicing.
Design & Installation
Pre-Charged for 15‑Foot Line Sets – Streamlines installation for HVAC professionals.
Sweat-Connection Service Valves with Gauge Ports – Provides easy refrigerant charging and diagnostics.
Compact Footprint – Designed to fit tight outdoor spaces without compromising performance.
AHRI Certified & ETL Listed – Meets rigorous standards for safety, quality, and system compatibility.
Performance & Compatibility
The Goodman R‑32 AC Unit is designed to pair with compatible indoor coils or air handlers to complete a split-system setup. Ideal for both replacement and new installations, this unit delivers quiet operation, reliable airflow, and solid cooling capacity.
📌 Explore more Goodman models:
Goodman R32 Air Conditioners
Goodman Air Conditioners
Product Specification Table
Brand | Goodman |
Model # | GLXS3BN4210 |
SEER2/EER2 | 13.4 |
Refrigerant | R-32 |
Tonnage | 3.5 Ton |
Coil Type | |
Total Indoor Unit(s) BTU | |
Voltage Requirements | 208V To 230V |
Series | |
Coverage Area (Sq. Ft) | 2100 |
Indoor Mount Type | |
Indoor Unit BTUs | |
Zone/Rooms | |
AHRI No | |
Burner Stages | |
Cabinet Width | |
Airflow Direction | |
Furnace Efficiency / AFUE | |
Furnace BTU | |
Power Phase ( Single/Three) | 1 Ph |
Dimensions - (Shipping Unit Width) | 30.00 in |
Dimensions - (Shipping Unit Height) | 38.50 in |
Dimensions - (Shipping Unit Depth) | 30.50 in |
Weight - (Shipping Unit) | 195.000 lb |
Refrigerant Pre-Charged Line Length | 15 ft |
Power Frequency | 60 Hz |
Nom. CFM | |
Motor Speed Type | |
MOCP | |
Min. Circuit Amps | 19.4 A |
Min Voltage | |
Max Voltage | |
Max Overcurrent Protection | 30 A |
LoNox | |
Valve Size Suction (O.D.) | 1-1/8 in |
Valve Size Liquid (O.D.) | |
Liquid Line Size | |
Energy Source | Electric |
Expansion Device | |
Decibels (dBA) | 73 dBA |
Compressor Type | Scroll |
Compressor Stages | Single Stage |
Cased vs Uncased | |
Heating Capacity - (Nominal) | |
Cooling Capacity - (Nominal) | 39500 Btu/H |
Airflow Rate High Cooling | |
Function Category | Split Air Conditioner |
Package System Type | |
Air Handler Mount Type System | |
Split System Type | |
