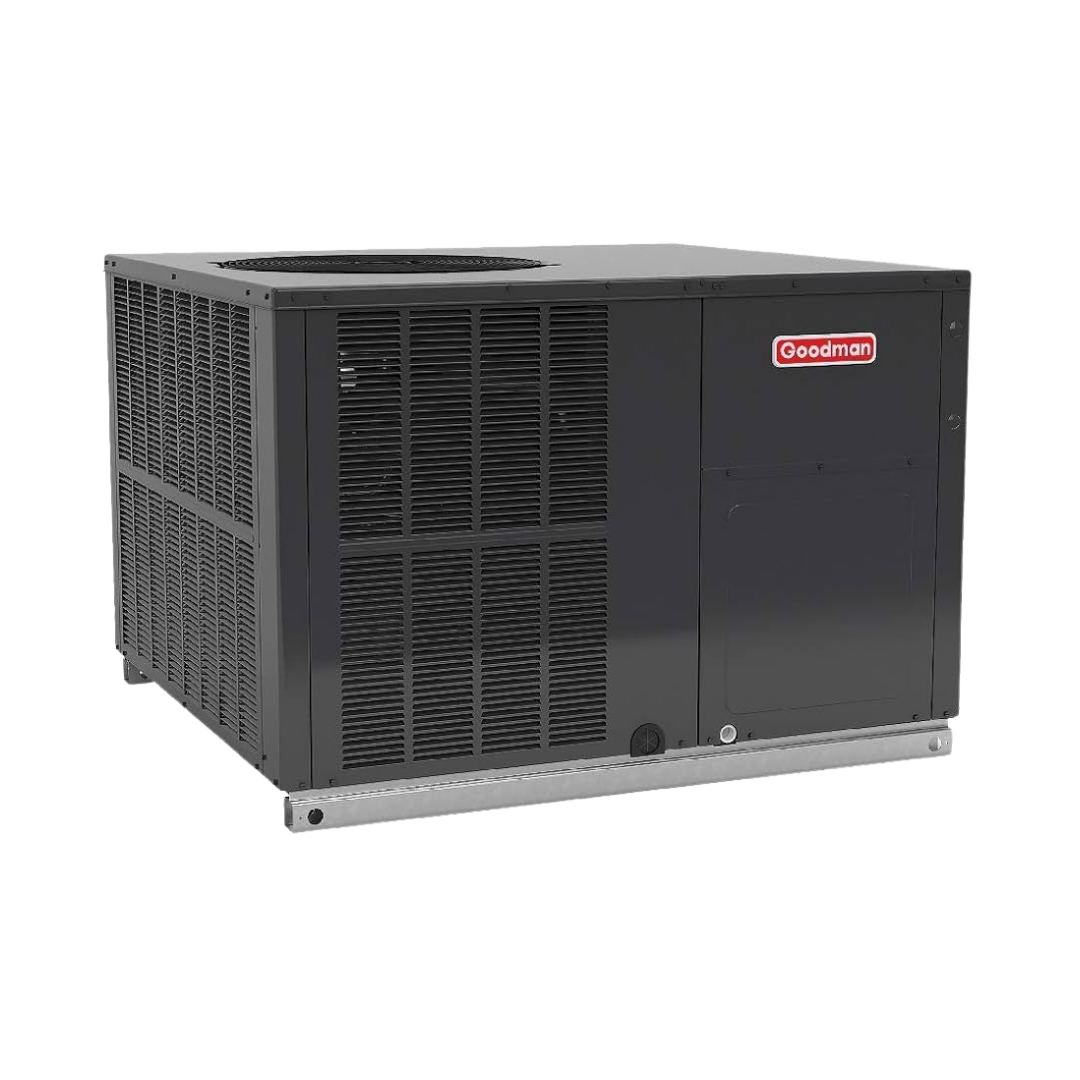

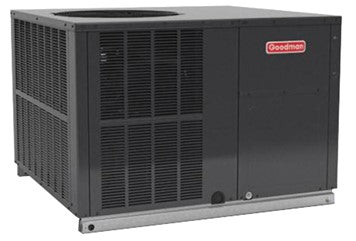

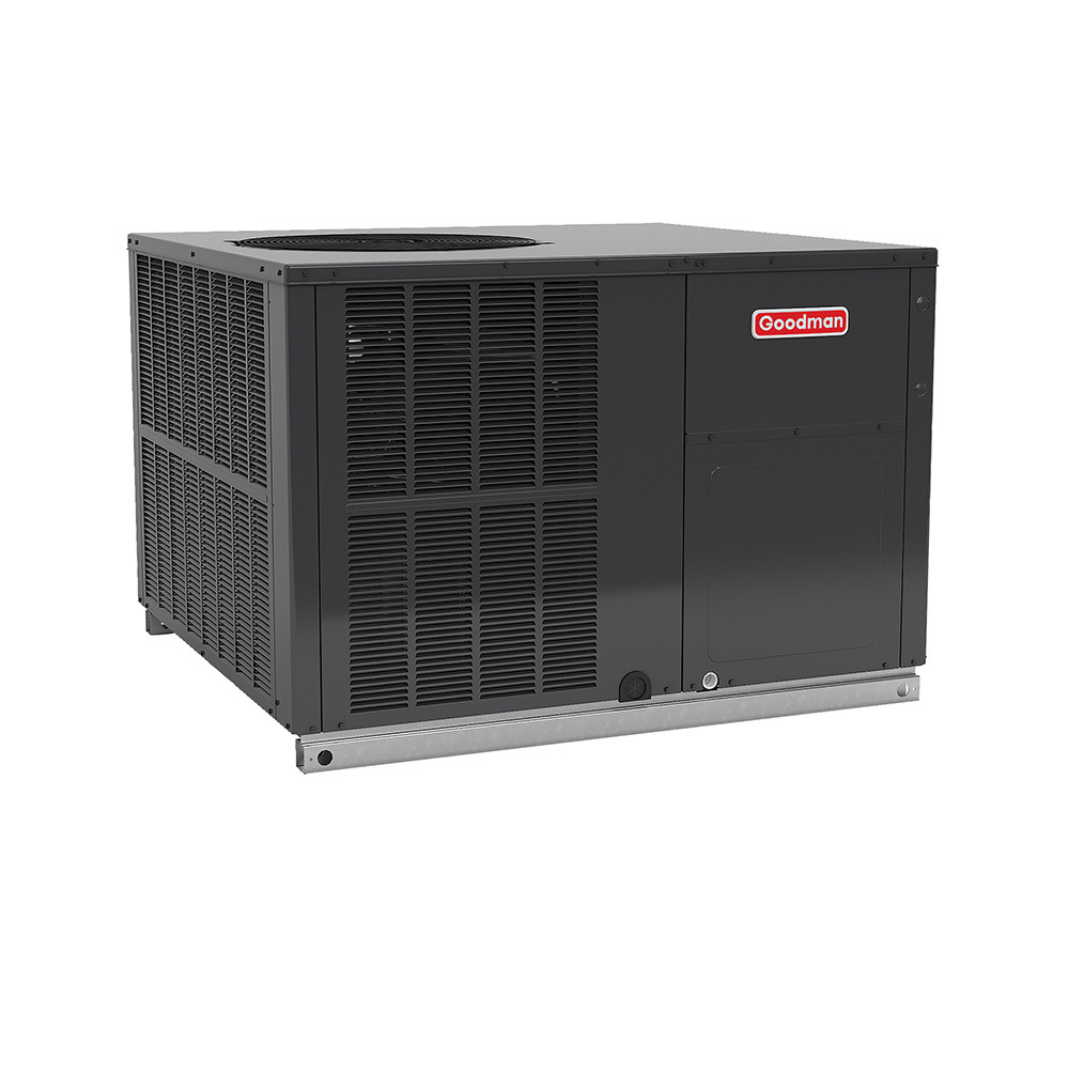

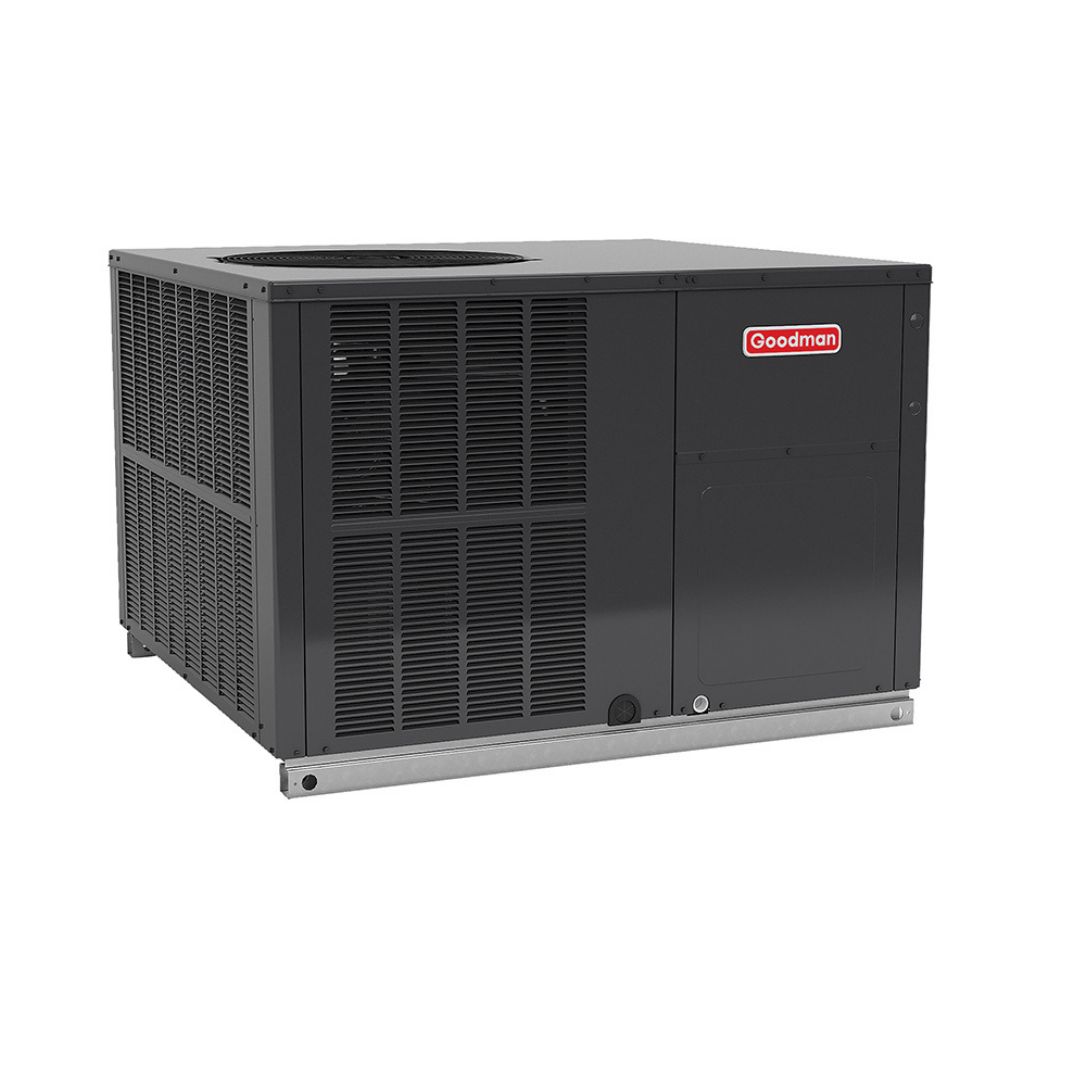

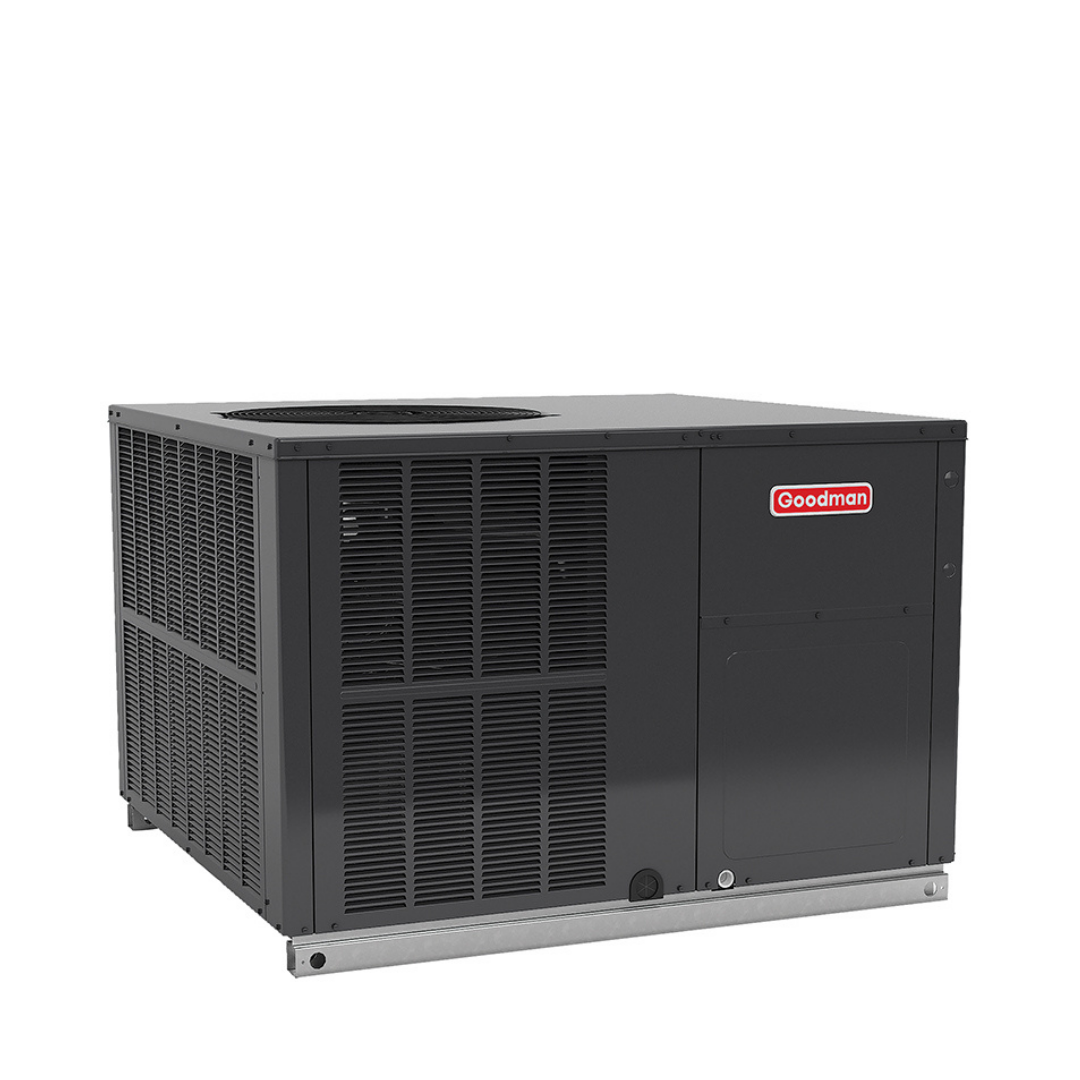

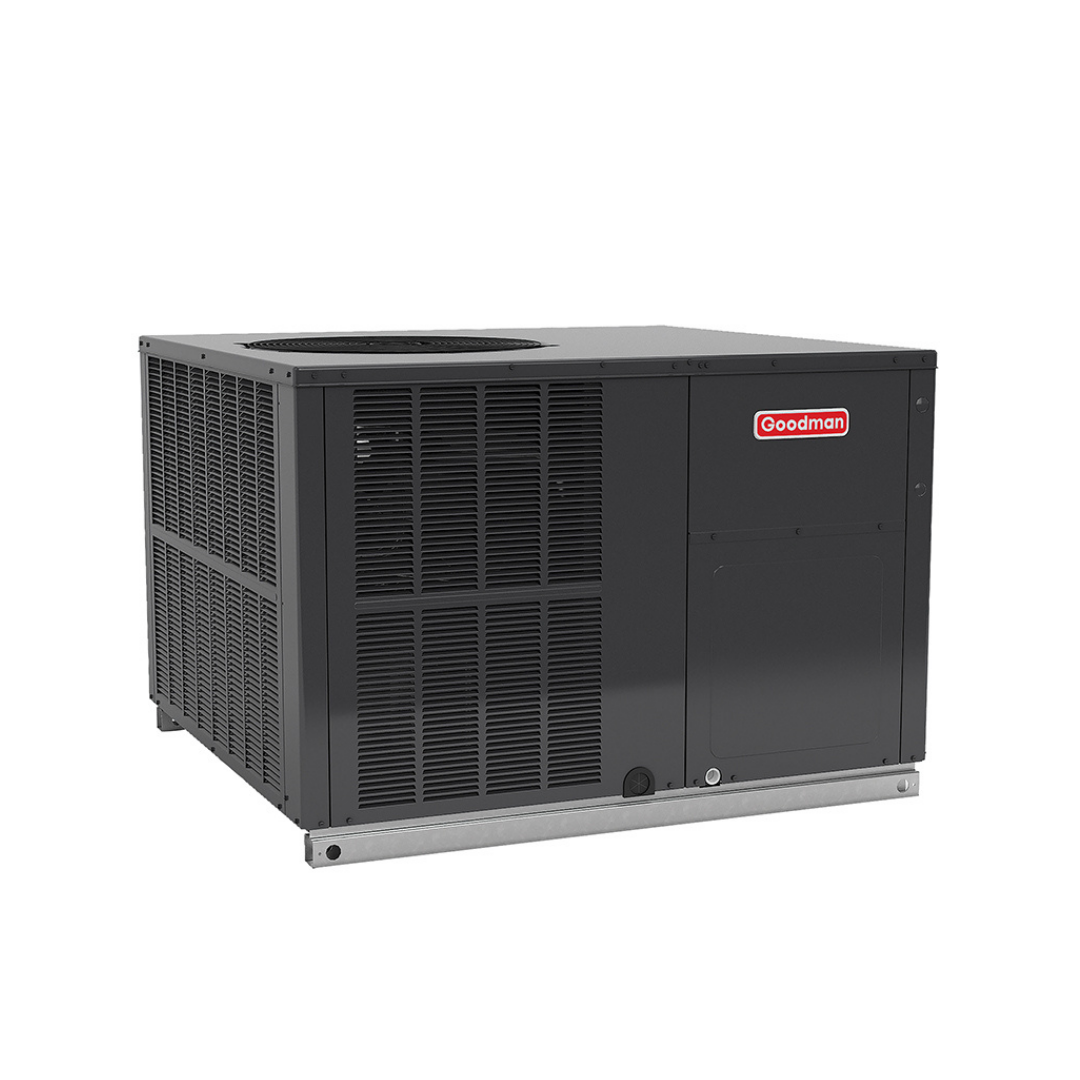

Model: GPHM53041
Goodman Specifications Sheet Click HERE
OUTDOOR: GPHM53041
Specifications
- Energy-efficient compressor with internal relief valve
- Two-stage heating and cooling
- Multi-Speed EEM indoor blower motor
- Liquid-line filter drier
- Convertible airflow: horizontal or downflow
- Copper tube/aluminum fin condenser coils
- All-aluminum evaporator coil on 2- to 4-ton units
- Aluminum-copper evaporator coil on 5-ton units
- Totally enclosed, permanently lubricated condenser fan motor
- Electric heat kit available as a field-installed option
Warranty
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes
Airflow Rate High Cooling: 1050
Airflow Rate High Heating: 1050
Brand: Goodman
Cabinet Features:
Fully insulated heavy-gauge, zinc-coated steel cabinet with UV-resistant grey powder-paint finish (Sandstone Beige for the 5-ton model)
Horizontal or downflow application
Aluminum foil-facing internal insulation reinforced with fiberglass scrim
Compressor sound blanket
Compressor grommets for vibration isolation
Louvered condenser coil protection
Convenient access panels
Bottom, 2-inch high base rails for easier handling
When properly anchored, meets the 2020 FloridaBuilding Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Class: Packaged Heat Pump
Compressor Stages: Two Stage
Compressor Type: Scroll
Cooling Capacity Rated: 29600
Unit Depth: 51
Unit Height: 34.75
Unit Width: 47
Family Description: Packaged Heat Pump Up to 15.2 SEER2 / 6.7 HSPF2 2 to 5 Tons
Heating Capacity Rated: 28600
Max. Voltage: 253
Min. Circuit: 21.5
Min. Voltage: 197
Model Efficiency: 15.2 SEER2
Motor Speed Type: Multi Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Packaged Heat Pump
Family: GPHM5
Product ID Bar Code: GPHM53041
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 2.5 tons
Unit Type: Outdoor
