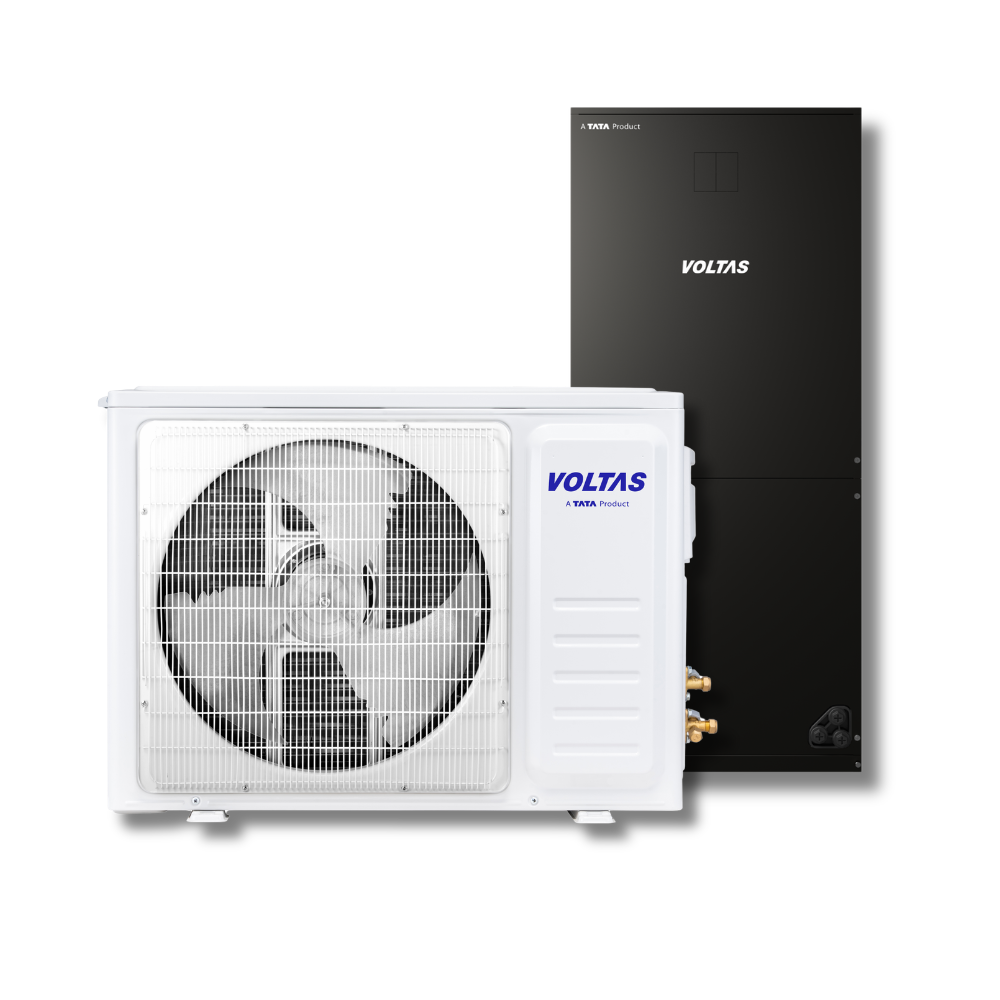

The Voltas VAUWR-48HCDR2 is a 4-ton (48,000 BTU) whole-home ducted heat pump system designed for larger single-family homes, multi-zone residential applications, and light commercial spaces requiring substantial conditioning capacity. Paired with the Voltas Premium Air Handler, this complete system handles both heating and cooling through existing ductwork — delivering SEER2 19 cooling and HSPF2 9 heating efficiency at a capacity tier where most competing systems sacrifice efficiency for output.
Maximum heating capacity reaches 37,000 BTU at 5°F outdoor ambient, providing robust cold-weather heating in climates that regularly see sub-freezing temperatures. The twin rotary inverter compressor modulates from 22,000 to 58,000 BTU in cooling and 19,800 to 52,000 BTU in heating — a wide enough range to handle both mild spring days and peak summer loads without cycling.
Twin Rotary Inverter Compressor
The twin rotary design eliminates the vibrational imbalance inherent to single-piston rotary compressors, operating more quietly and reliably at low-speed modulated conditions — which represent the vast majority of annual runtime hours in most climates.
R-454B Eco-Friendly Refrigerant
R-454B delivers a GWP approximately 78% lower than R-410A with no performance trade-off at 4-ton capacity. The system's A2L leak detection sensor in the air handler provides early warning capability and supports compliance with evolving building codes.
TXV Expansion Valve
Thermostatic expansion valve control maintains precise refrigerant superheat across the full modulation range, protecting compressor reliability and optimizing efficiency at both high-ambient cooling and low-ambient heating conditions.
Base Pan Heater
The outdoor unit base pan heater prevents ice accumulation during extended cold-weather heating cycles, ensuring reliable condensate drainage and protecting the unit base from freeze damage in climates with sustained sub-freezing temperatures.
Variable-Speed DC Condenser Fan
Continuous variable-speed fan control on the outdoor unit matches condenser airflow to real-time system demand, reducing electrical draw and noise during the partial-load operation that dominates most climates' annual runtime.
Space-Saving Side Discharge Design
The 4-ton outdoor unit uses a vertical tower configuration (975 × 1,460 × 330 mm) with side discharge, providing a compact footprint relative to its capacity and enabling installation in spaces with limited clearance at the discharge face.

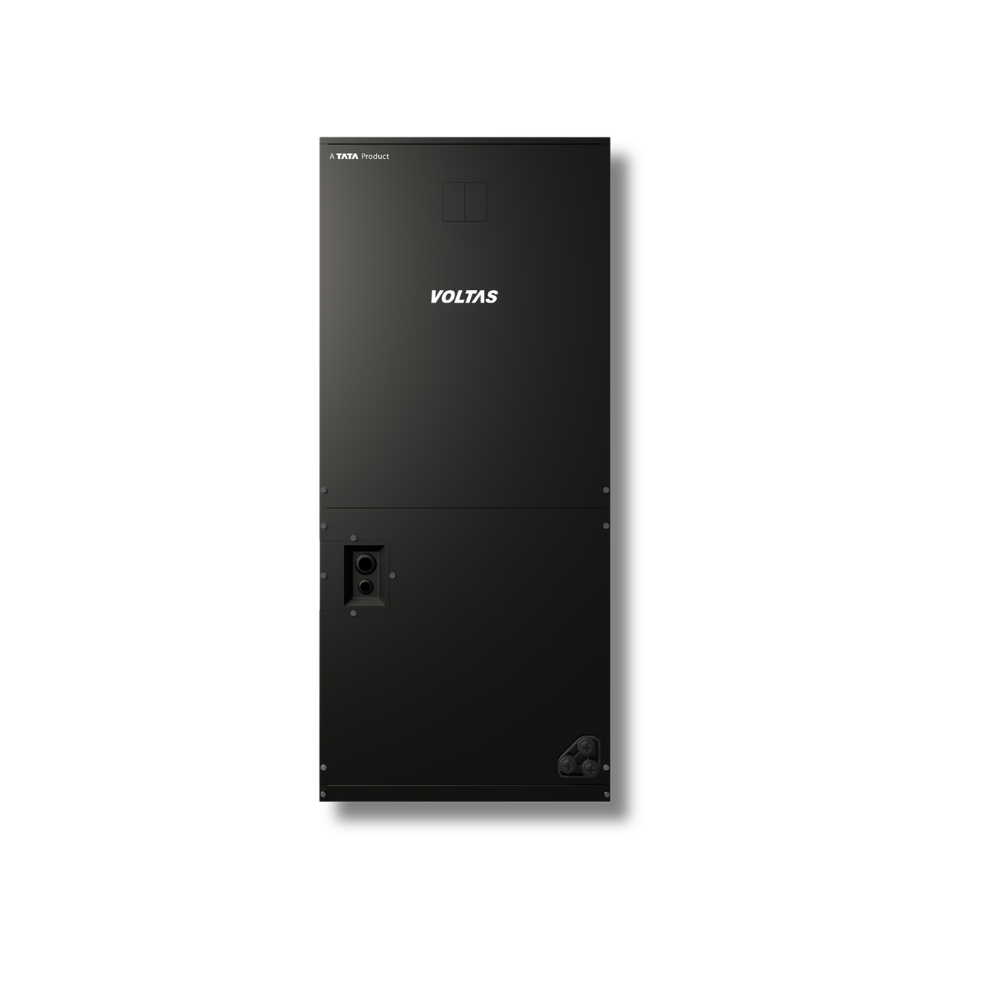

Premium Air Handler — ECM Motor
At 4-ton capacity, the ECM motor's ability to maintain proper airflow at varying static pressures becomes especially important — particularly in duct systems with higher resistance from longer runs, additional zones, or denser filtration. The ECM adjusts automatically, maintaining design airflow without the contractor having to re-tap motor windings.
Enhanced Anti-Corrosion Coils
Anti-corrosion coated indoor coil surfaces resist degradation in high-humidity environments, maintaining heat transfer efficiency and system capacity over the life of the system.
Smart System & Multi-Position Installation
Standard 24V thermostat compatibility with Wi-Fi smart thermostat support. Air handler supports horizontal and vertical installation for attic, utility closet, or mechanical room applications.
Long Piping Flexibility
Maximum pipe run of 246 feet and 98-foot height differential between indoor and outdoor units accommodates challenging installation layouts in larger homes, commercial buildings, and multi-story structures.
Specifications
| Specification | VAUWR-48HCDR2 |
|---|---|
| Cooling Capacity (Rated) | 48,000 BTU/hr |
| Cooling Capacity (Min–Max) | 22,000–58,000 BTU/hr |
| Heating Capacity (Rated) | 48,000 BTU/hr |
| Heating Capacity (Min–Max) | 19,800–52,000 BTU/hr |
| Max Heating Capacity @ 5°F | 37,000 BTU/hr |
| SEER2 | 19 |
| HSPF2 | 9 |
| Refrigerant | R-454B |
| Throttle Type | TXV |
| Power Supply | 208–230V / 1Ph / 60Hz |
| Thermostat | Standard 24V |
| Compressor Type | Twin Rotary Inverter |
| Cooling Operation Range | 5°F – 125°F |
| Heating Operation Range | -13°F – 75°F |
| Max Pipe Length | 246 ft |
| Max Height Difference | 98 ft |
| Outdoor Unit Dimensions (W×H×D) | 975 × 1,460 × 330 mm |
| Outdoor Unit Weight | 244.7 lb |
