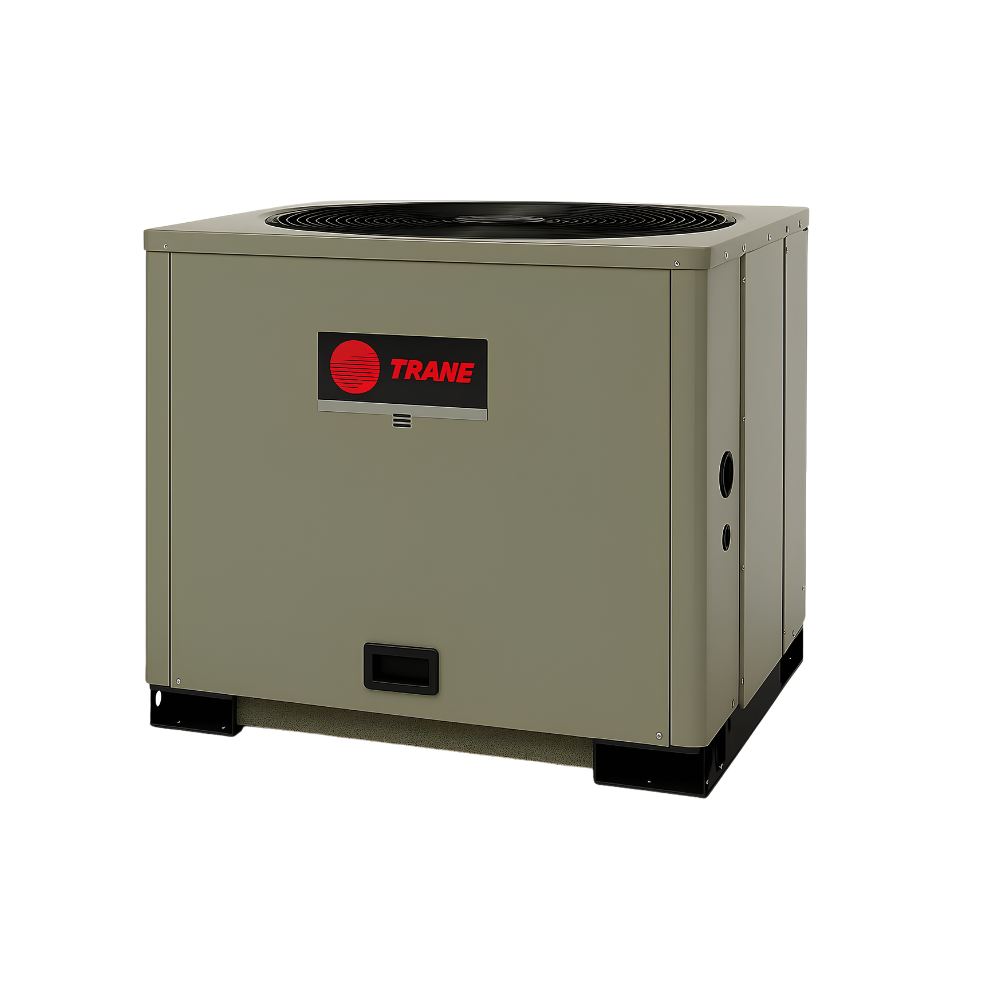

Trane 7.5 Ton Commercial Split Air Conditioner 2-Stage 460V 3Ph R-454B 11.5 EER 14.8 IEER

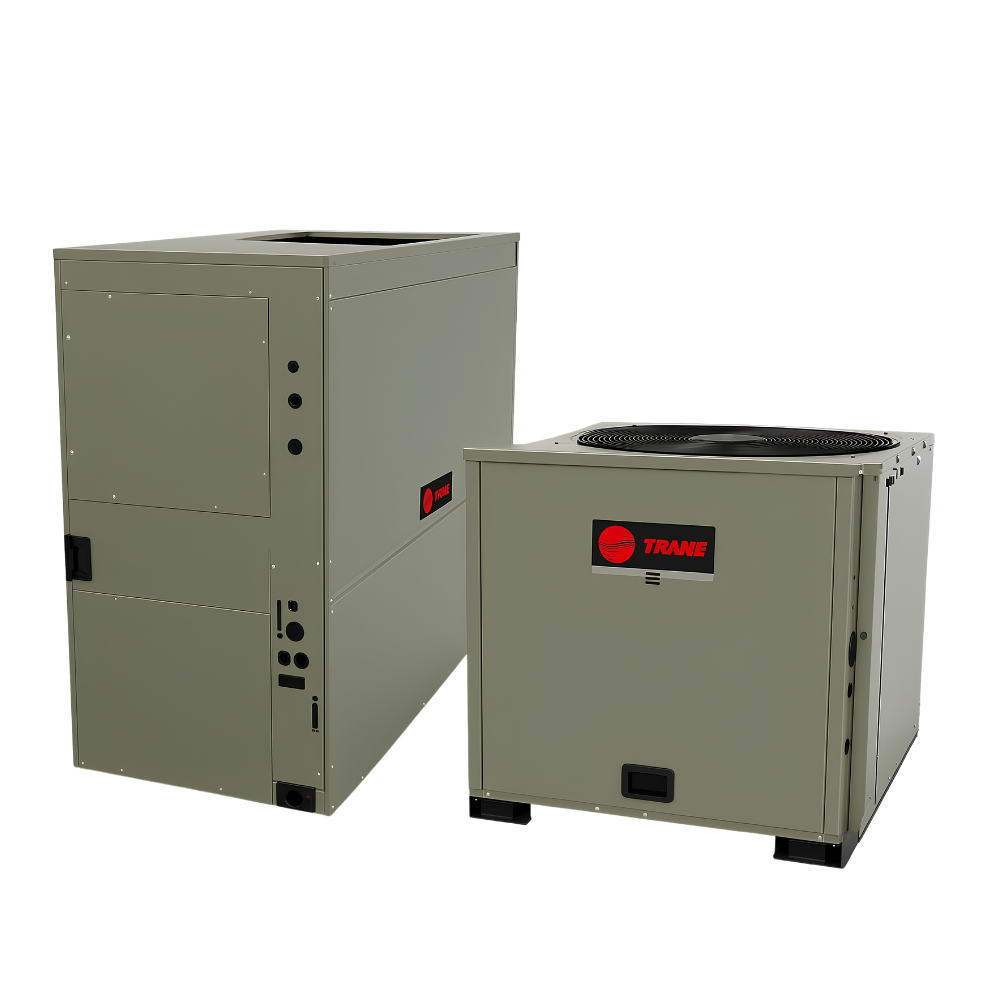

Trane Odyssey 7.5 Ton Two-Stage Commercial Split Air Conditioning System – 460V 3-Phase | R-454B

The Trane Odyssey 7.5-ton two-stage commercial split air conditioning system in 460V 3-phase configuration delivers 11.5 EER and 14.8 IEER — the peak efficiency ratings in the 7.5-ton Odyssey split lineup — on the higher-voltage electrical service standard in larger commercial buildings and institutional facilities. At 90,000 BTU of cooling capacity across two stages, this is the right system for large commercial spaces on 480V nominal 3-phase service with a separate heating system in place, where cooling load dominates the operating year and maximum part-load efficiency is the primary driver of long-term operating cost.

The 460V cooling-only configuration combines two independent efficiency and cost advantages — 460V electrical infrastructure savings and cooling-only refrigerant circuit optimization — making it the lowest total cost of ownership configuration in the 7.5-ton Odyssey lineup for buildings where both conditions apply.

Note that this is a cooling-only system. For applications requiring year-round heating and cooling at 7.5-ton capacity on 460V service, see the Trane Odyssey TWA 460V heat pump series.

460V 3-Phase + Cooling-Only at 7.5 Tons

At 7.5-ton capacity the combined advantages of 460V electrical configuration and cooling-only circuit optimization are most pronounced compared to smaller tonnages:

• Largest absolute amperage reduction at 460V: A 7.5-ton unit on 460V draws roughly half the amperage of the 208/230V equivalent — at this capacity that means substantially smaller wire gauge, conduit fill, and overcurrent protection on what are typically long rooftop equipment runs. On multi-unit projects with several 7.5-ton systems across a large building or portfolio, the electrical infrastructure savings compound significantly across every circuit
• Voltage stability under 7.5-ton compressor load: Inrush current from a 7.5-ton compressor starting at full second-stage capacity on a long 208/230V run produces meaningful voltage sag — stressing motor windings at every start and degrading efficiency under sustained load. 460V service maintains stable voltage at the unit under full second-stage output, protecting compressor longevity and sustaining rated EER through years of commercial operation
• Cooling-only efficiency premium over heat pump: The 7.5-ton cooling-only system achieves 11.5 EER and 14.8 IEER versus the 460V heat pump equivalent's 11.0 EER and 14.1 IEER — a 0.5-point EER advantage and 0.7-point IEER advantage that translates to measurable annual energy cost savings in large commercial buildings running 2,000+ cooling hours per year
• Engineer-specified combination: Mechanical engineers routinely co-specify 460V cooling-only split systems with separate gas or hydronic heating on large commercial projects where 480V electrical distribution is already in place — combining the electrical infrastructure cost savings of 460V equipment with the cooling efficiency premium of the cooling-only refrigerant circuit

Two-Stage Capacity Control

At 7.5 tons, two-stage operation delivers its strongest performance advantages over single-stage alternatives — and the 14.8 IEER rating reflects the full magnitude of those advantages under real-world commercial operating conditions:

• First stage runs at approximately 67–70% of full capacity — long enough cycles to remove humidity effectively from large open-plan spaces, distribute conditioned air evenly, and avoid the demand charge spikes generated by repeated full-capacity compressor starts during business hours
• Second stage engages only when peak summer load genuinely requires full 90,000 BTU output — protecting compressor longevity and maintaining efficiency during the partial-load conditions that dominate most commercial climates' annual cooling hours
• Demand charge management: On commercial utility accounts with demand metering, a 7.5-ton single-stage compressor cycling at full capacity during peak business hours generates significant demand spikes. First-stage two-stage operation substantially reduces these spikes — lowering the demand charge component of the monthly utility bill independent of total energy consumption, a particularly meaningful cost factor in large commercial buildings on commercial rate schedules
• Humidity control at scale: At 7.5-ton capacity, single-stage equipment cycling a large space to setpoint before adequate dehumidification occurs is one of the most common occupant comfort failures in commercial buildings. Two-stage first-stage operation's longer run cycles remove substantially more moisture per operating hour — a measurable comfort and indoor air quality advantage in retail, medical, hospitality, and institutional applications where indoor humidity directly affects occupant experience
• 14.8 IEER vs. 11.5 EER: The 3.3-point spread between full-load and part-load efficiency at 7.5 tons represents significant annual energy cost savings versus single-stage equipment at equivalent nominal capacity — particularly in warm-climate markets where cooling hours dominate the operating year and demand charges represent a substantial portion of the monthly commercial utility bill

R-454B at 7.5-Ton Scale

At 7.5-ton capacity the refrigerant charge is substantial — making the long-term compliance and cost implications of refrigerant selection more significant than at smaller sizes. R-454B's GWP of 466 is approximately 78% lower than R-410A's 2,088. For commercial building operators and property managers responsible for 7.5-ton systems over a 15–20 year service life, the compliance advantage of R-454B avoids the direct cost of refrigerant conversion, the operational disruption of equipment replacement on a commercial cooling-critical schedule, and the rising service cost of R-410A as EPA phase-down rules tighten supply and pricing.

R-454B is A2L-classified under ASHRAE 34. This system is engineered and listed for compliant A2L use per current UL and AHRI standards. Verify local AHJ requirements for A2L refrigerant in your specific occupancy type and jurisdiction prior to installation.

Trane Odyssey Commercial Engineering

• Climatuff® Two-Stage Scroll Compressor: Factory-integrated two-stage capacity control on Trane's commercial-duty Climatuff scroll platform — optimized for cooling-only operation on 460V service without the efficiency trade-offs of heat pump reversing valve circuits. At 7.5-ton capacity on 460V service, compressor platform selection and motor winding integrity at rated voltage are the defining factors in long-term system reliability and service cost
• Spine Fin™ Outdoor Coil: Aluminum spine fin geometry delivers maximum heat transfer surface area while resisting debris accumulation — sustaining the 11.5 EER rating through years of commercial rooftop operation where coil fouling is a persistent efficiency drag on competing coil designs. At 7.5-ton capacity, sustained coil efficiency directly impacts both operating cost and peak-load capacity on the hottest days of the year
• WeatherGuard™ Hardware: Stainless steel fasteners, UV-stabilized cabinet panels, and factory-applied coil coating engineered for long-term outdoor durability across the full range of US commercial climate zones — from high-humidity Gulf Coast rooftops to high-UV Southwest ground-level installations
• 460V 3-Phase Motor: Properly wound, insulated, and rated for 460V nominal service throughout — not a field-adapted 208/230V motor. At 7.5-ton capacity on 460V service, motor winding integrity at rated voltage directly affects compressor efficiency and longevity under sustained commercial cooling duty cycles

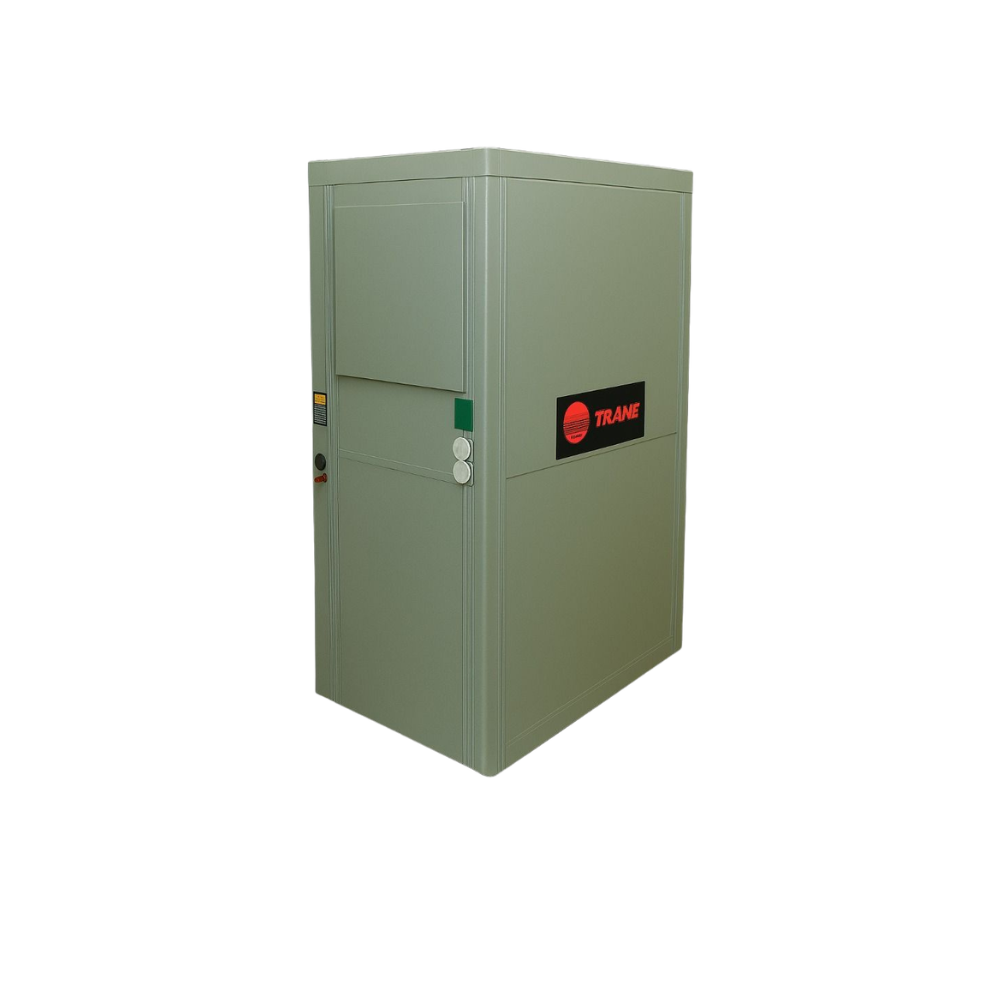

• TWE Multi-Positional Air Handler: Factory-installed expansion device optimized for cooling-only operation supports horizontal, vertical, and upflow installation orientations without field modification — accommodating the range of mechanical room and rooftop curb configurations typical in buildings requiring 7.5-ton split systems

System Efficiency

Application Fit

Ideal for:

• Large retail spaces: 3,000–4,500 sq ft on 480V service with separate heating system
• Medical office buildings and outpatient facilities with gas or hydronic heat on 480V service
• Large restaurant and hospitality dining rooms with existing heating infrastructure on 480V service
• School and university buildings served by central heating plant on 480V electrical distribution
• Light industrial offices, showrooms, and training facilities with gas unit heaters or boiler systems on 480V service
• Large multi-tenant commercial buildouts on 480V service where heating is provided by central plant or separate equipment
• Fitness centers and health clubs with radiant or hydronic heating on 480V service

Not recommended for: 208/230V electrical service — this unit requires 460V/480V 3-phase and cannot be field-converted. Applications requiring heating from the same outdoor unit should see the Trane Odyssey TWA 460V 7.5-ton heat pump. Also not suited for high-latent kitchen environments, 100% outside air DOAS applications, or process cooling requirements.

Installation Notes

• Requires matched Trane TWE indoor air handler — contact us to confirm matched coil and air handler model for this outdoor unit before ordering
• 460V 3-phase power supply required — verify available service voltage, ampacity, and panel capacity before ordering at 7.5-ton capacity; this unit cannot be field-converted to 208/230V
• R-454B (A2L) refrigerant requires A2L-compliant service tools, recovery equipment, and technician familiarity with A2L handling procedures per ASHRAE 15 and local AHJ requirements
• Professional installation by a licensed commercial HVAC contractor required — permit required in most jurisdictions at 7.5-ton capacity
• Rooftop installations require structural review of roof load capacity prior to equipment placement
• 10-year limited warranty on compressor, outdoor coil, and functional parts with registration
