Product: EZPRO-12-HP-11516
Mr Cool DIY Easy Pro 12k BTU Ductless Mini-Split Heat Pump System

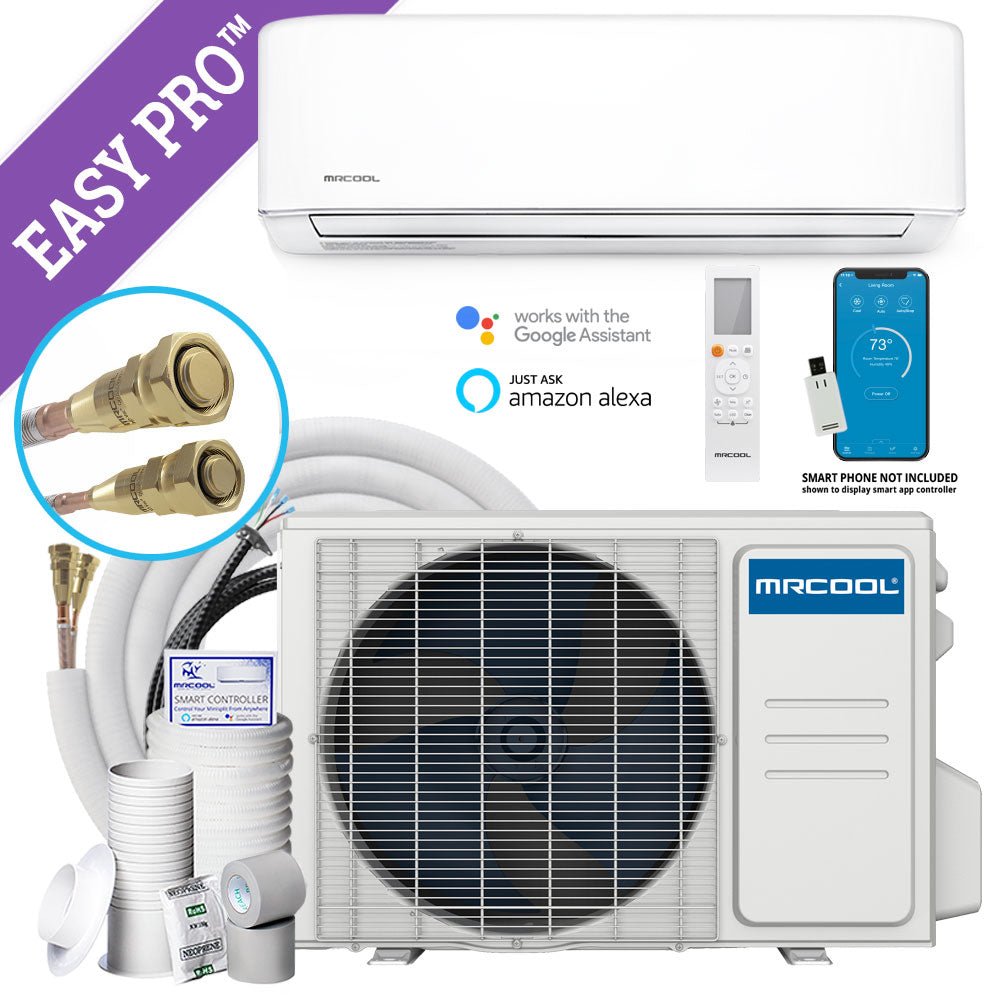

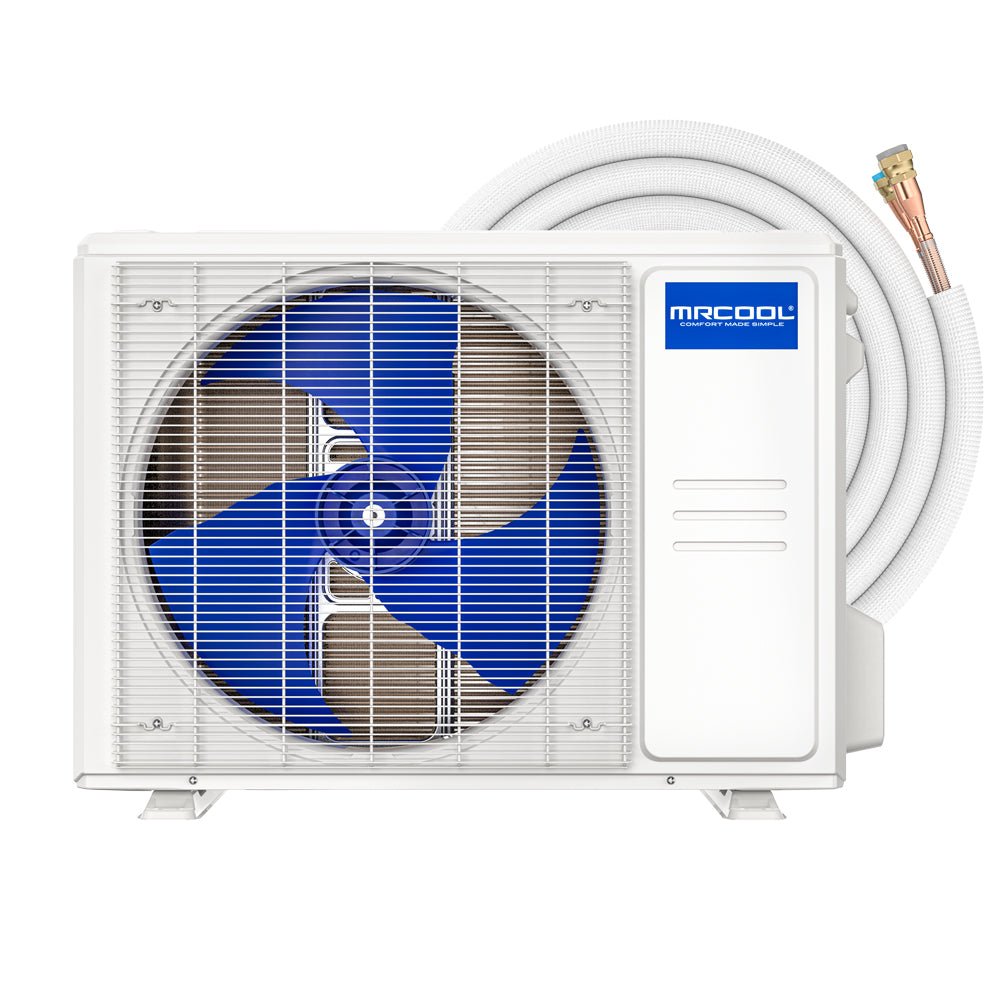

The easy-to-install MRCOOL Easy Pro 12k BTU Ductless Mini-Split Heat Pump System can heat or cool a space of up to 500 square feet with an 18 SEER rating. It includes a 16-foot pre-charged line set with Fast Connection fittings.
This system has many features such as the Follow Me feature that keeps you comfortable no matter where you are in the room, along with convenient operational modes such as Sleep mode, Auto mode, or Timer mode. Maintaining the system is easy as the air filters only need to be rinsed, dried, and replaced, while the indoor and outdoor units only need to be cleaned with a damp or dry cloth.
You can control this system with the included remote, the Smart HVAC app, or your Amazon Alexa or Google Assistant. Enjoy protected comfort thanks to the 1-year compressor warranty and 2-year parts warranty. This energy-efficient, feature-packed HVAC system can be easily installed and easily maintained while providing the ultimate in comfort.
Features
- Up to 18 SEER
- Gold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- Low ambient cooling: cooling down to 5F exterior temperatures, the ideal system for computer server rooms, greenhouses, and any other applications that require cooling all year
- Includes features such as timer mode, refrigerant leakage detection, and more
- Systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
- Quiet Running
Product Specs:

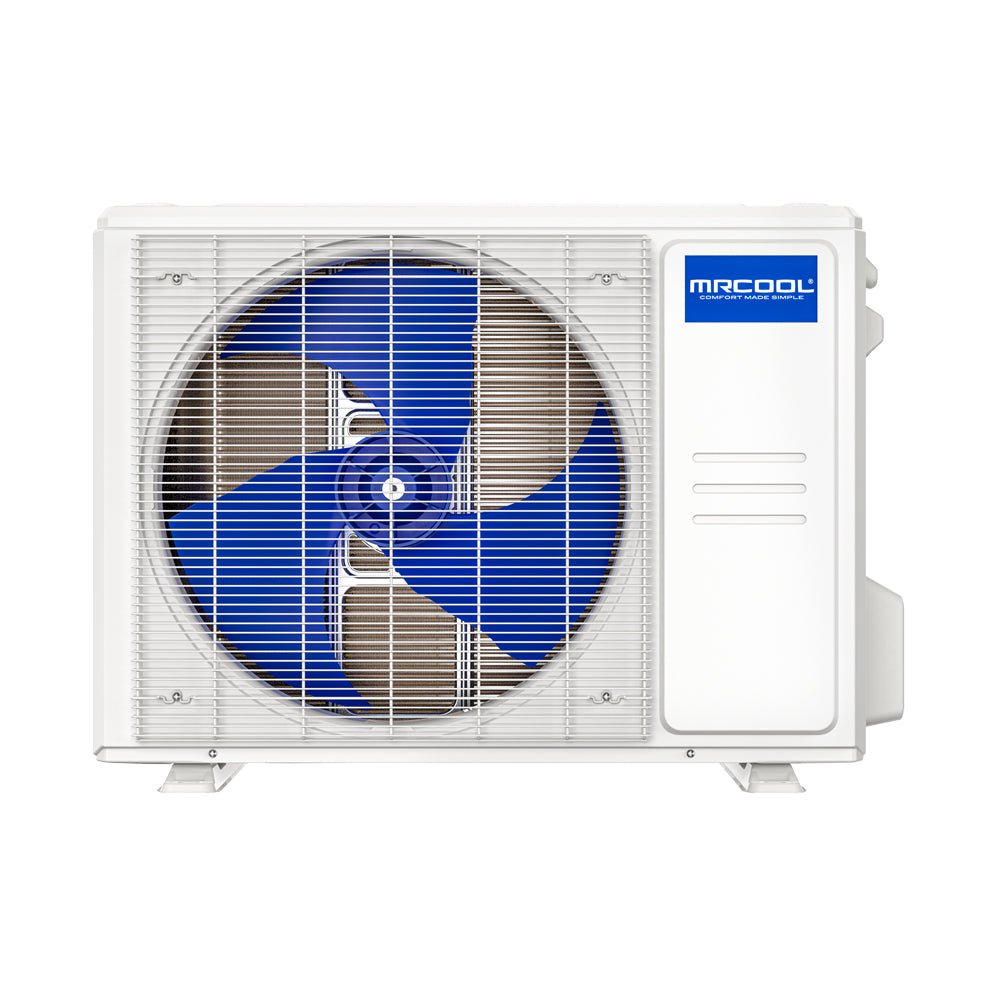

Condenser Dimensions
|
10.63" D x 19.49" H x 28.35" W
|

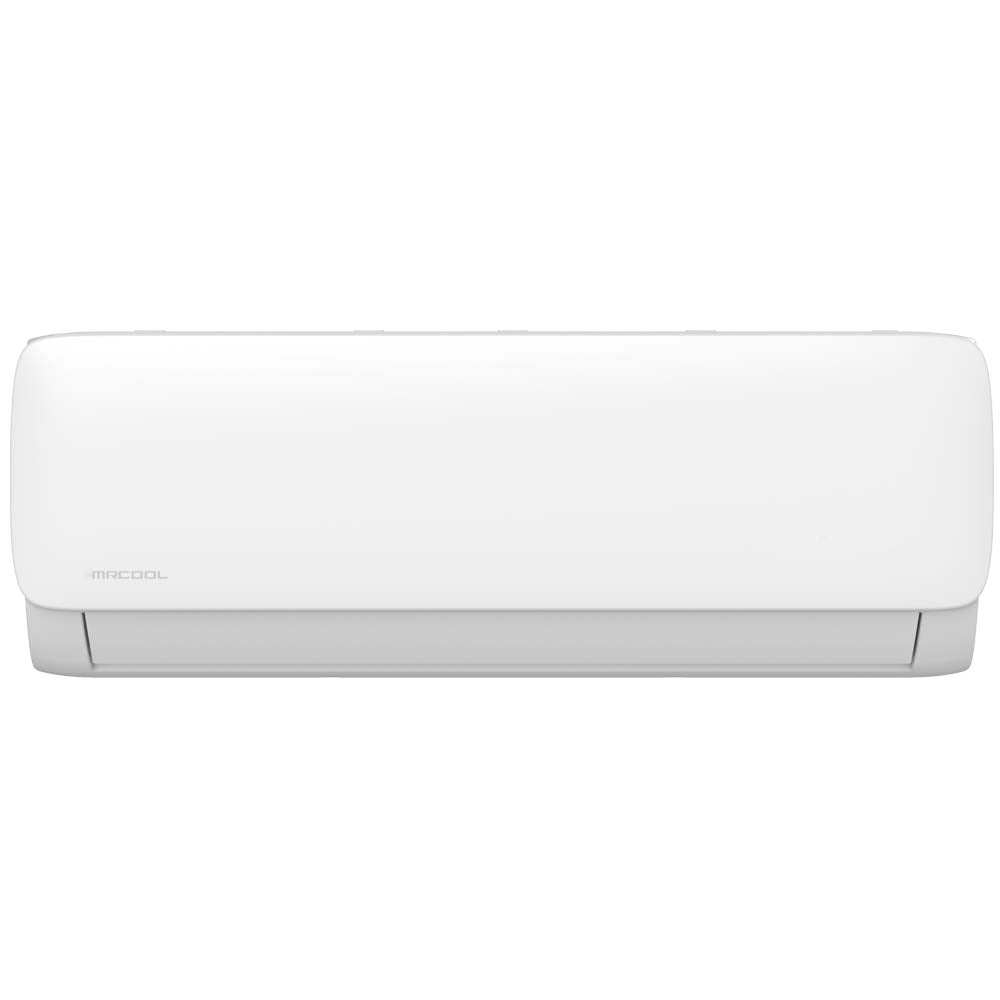

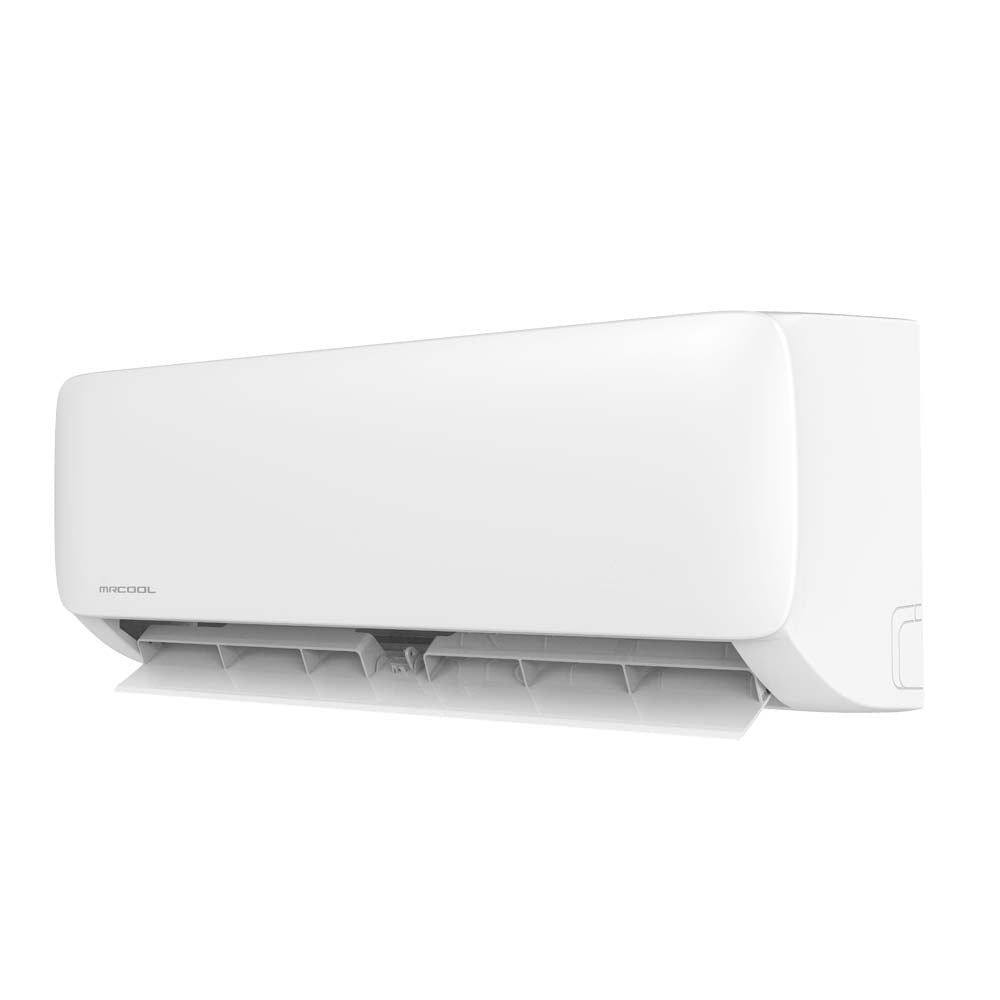

Air Handler Dimensions
|
7.87" D x 11.61" H x 31.57" W
|
SEER
|
18
|
EER
|
9
|
COP 47
|
2.95
|
HSPF
|
hspf4/hspf5 : 11.1/9.5
|
CFM
|
300.00/241.18/176.47
|
Cooling Capacity
|
12000 BTU
|
Heating Capacity
|
12000 BTU
|
Voltage
|
115 V
|
Phase
|
1
|
CYCLE
|
60 Hz
|
Cmax Fuse Breaker
|
30 A
|
Min Circuit Ampacity
|
20 A
|
Rated Load
|
13.9 A
|
Zone Capacity
|
1
|
Refrigerant Type
|
R-410A
|
Refrigerant Volume
|
32.1 oz
|
Decibel Rating
|
35.5 dBA
|
Decibel Rating Low
|
27 dBA
|
Decibel Rating High
|
42 dBA
|
Min Ambient Cool
|
5F - 122F
|
Min Ambient Heat
|
5F - 75.2F
|
Max Lineset Length
|
25ft
|
Liquid Line Size
|
1/4in
|
Suction Line Size
|
1/2in
|
Compressor Motor Type
|
Rotary
|
Condenser Fan Motor Rpm
|
850/500
|
Blower Motor Speeds
|
3
|
Blower Motor Rpm
|
1200/1040/960
|
Filter Type
|
Washable
|
Fan Only Option
|
Yes
|
Sleep Mode
|
Yes
|
Auto Cool
|
Yes
|
Wi-Fi Compatibility
|
yes
|
App Compatibility
|
yes
|
Works With iOS
|
Yes
|
Works With Android
|
Yes
|
Remote Control Included
|
Yes
|
Energy Star Certified
|
yes
|
AHRI Certified
|
yes
|
Registered Warranty
|
2-year Parts/1-year Compressor
|
Registered Parts Warranty
|
2 years
|
Registered Compressor Warranty
|
1 year
|
Condenser Weight
|
55.11 lbs
|
Air Handler Weight
|
24.03 lbs
|
Q: What are the electrical requirements for MRCOOL 12,000 BTU?
A: The MRCOOL 12,000 BTU mini-split typically requires a 110-120V circuit with a dedicated breaker, usually around 15 amps. Be sure to consult the specific model's manual for exact electrical requirements.
Q: How many square feet will a 12,000 BTU mini-split cool?
A: A 12,000 BTU mini-split system is generally capable of cooling spaces up to 500 square feet, depending on factors such as insulation and climate.
Q: Do mini-split heat pumps use a lot of electricity?
A: No, mini-split heat pumps like MRCOOL are designed to be energy-efficient. They use inverter technology, which adjusts the power consumption based on the demand, helping to reduce electricity usage compared to traditional heating and cooling systems.
Q: Is MRCOOL a Chinese company?
A: No, MRCOOL is an American company. It is based in Hickory, Kentucky, and specializes in HVAC systems, including innovative DIY solutions like mini-split systems.
