MR COOL  |  SKU: DIY-B-548HP0909090918
Ships in 4-7 Business Days

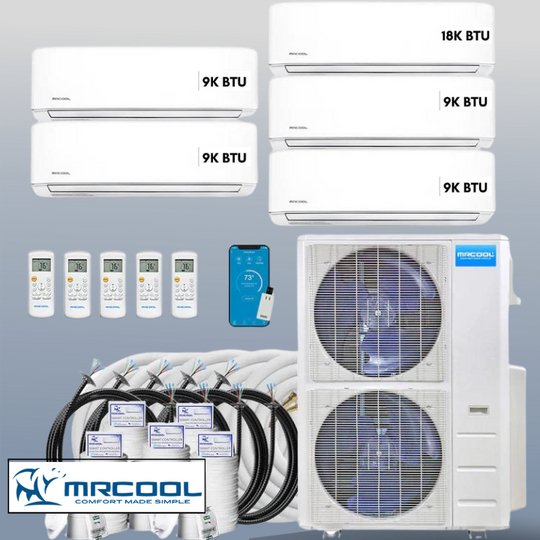

MRCOOL DIY Mini Split 54,000 BTU 5 Zone Ductless Air Conditioner and Heat Pump DIY-B-548HP0909090918

$5,306.00
  • Free
    Shipping
  • 60-Day
    Returns*
  • Authorized
    Dealer
  • Professional Services

Free Shipping

We provide Free Shipping

Need help with choosing a Mini Split system or have other questions?Talk with one of our trusted HVAC professionals today!

Email us at : sales@acunitsforless.com

Call us at : 678-672-0213

 Physical Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia 30142, United States





Not Sure Which Mini Split System Is Right for You?
Talk with one of our trusted comfort advisor today!

Description

MRCOOL DIY Mini Split 54,000 BTU 5 Zone Ductless Air Conditioner and Heat Pump

Model: DIY-B-548HP0909090918

MR COOL Specifications Sheet Click below:

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate

Product Overview:

  • Covers 2250 sq. ft.
  • DIY Installation
  • Wall Mounted
  • Number of Zones: 5
  • Voltage: 208 to 230
  • Outdoor Operating Temp (Cool): 5°F to 122°F
  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

Product Description:

This 4th Generation MRCOOL DIY Mini Split includes everything you need to cool and heat your home, office or more. You'll be sent: 48K BTU Multi-Zone Condenser, four 9K and one 18K BTU Wall Mount Air Handler. The best part about all of this is that you can install it yourself! The MRCOOL DIY Mini Split is flexible enough to be installed virtually anywhere without hiring an expensive HVAC technician or the need to use expensive, specialized equipment.

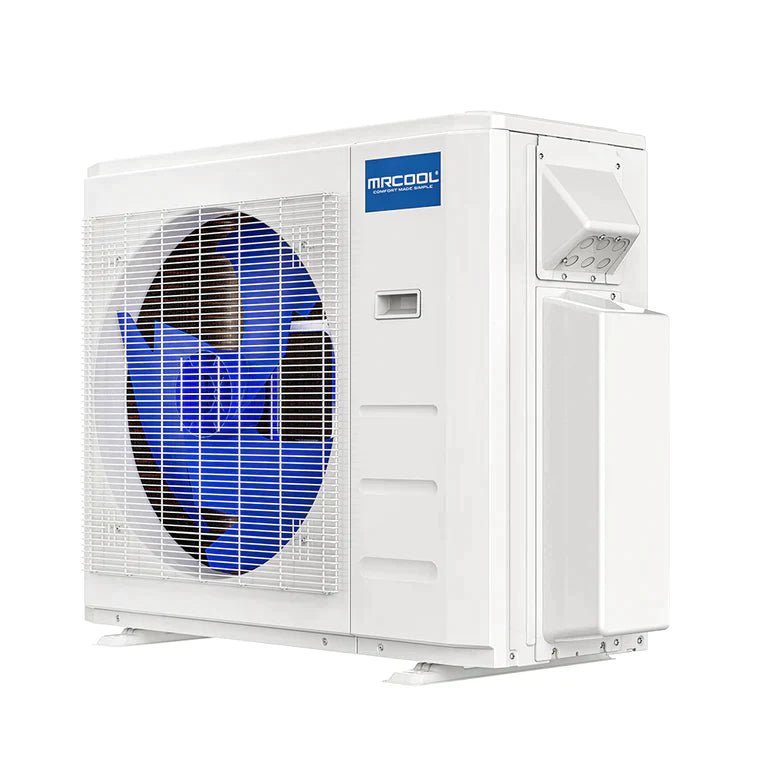

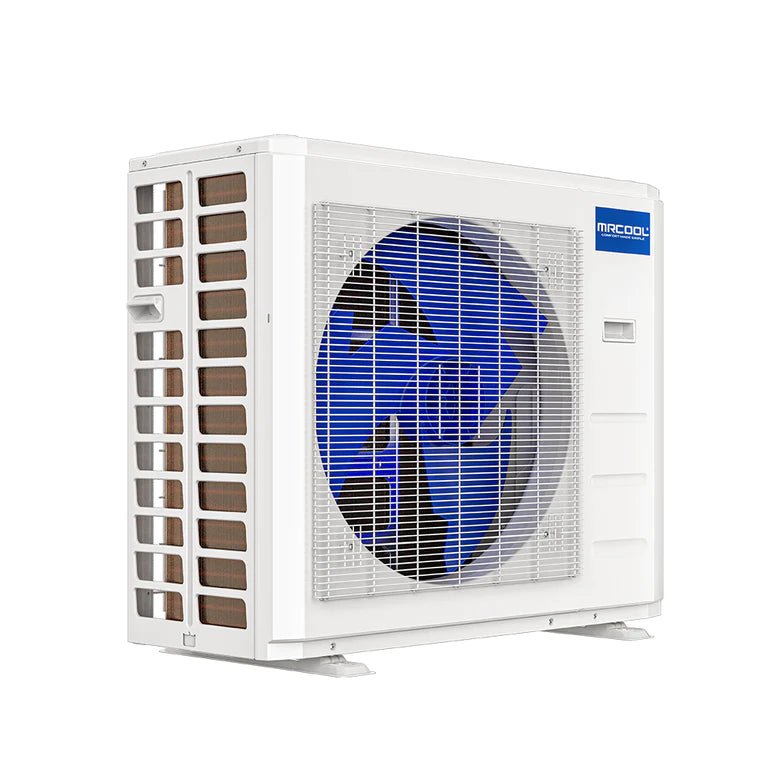

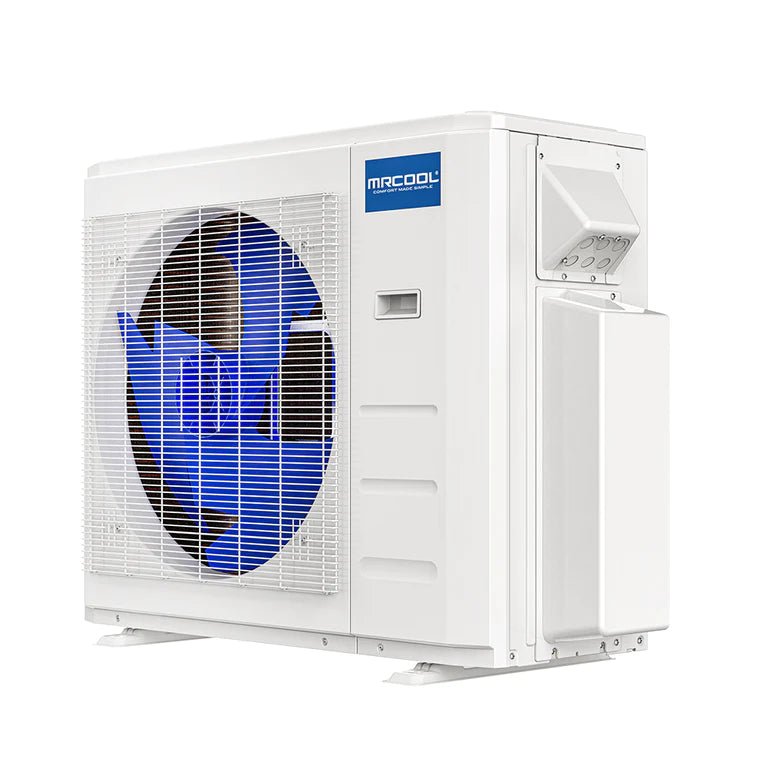

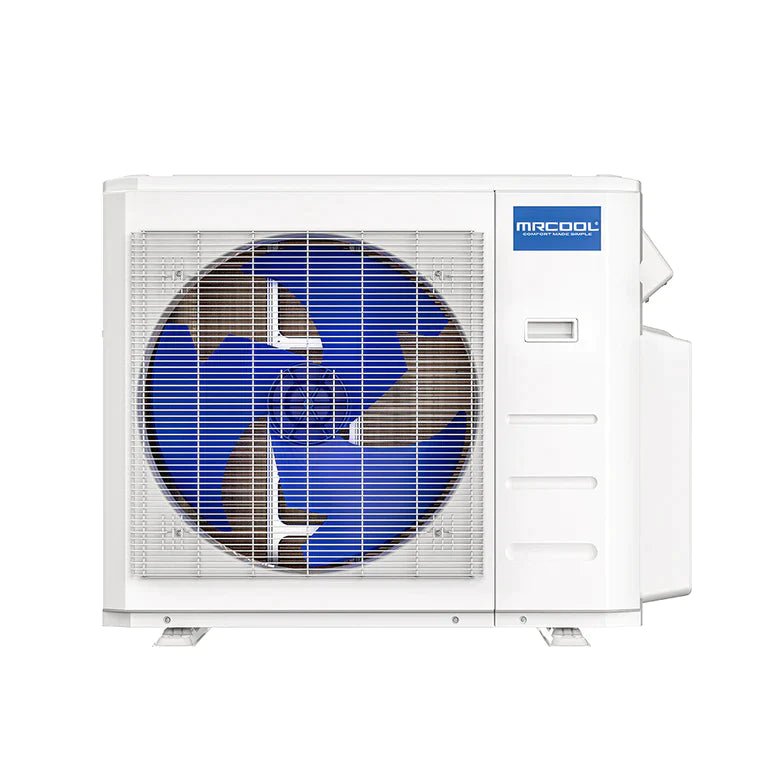

Condenser 48K BTU

  • Energy Efficient. This 48K BTU condenser is capable of producing up to an impressive 20.5 SEER2 efficiency rating. And yes... this qualifies for major savings using energy or tax rebates!
  • Works In Extreme Temperatures. The ability to heat even when temperatures drop to -5°F.
  • Cool and Heat Worry-Free. The condenser comes with a 7 year compressor and 5 year parts warranty. Want lifetime coverage on the compressor? Simply register into the MRCOOL Care Program to get the lifetime warranty!

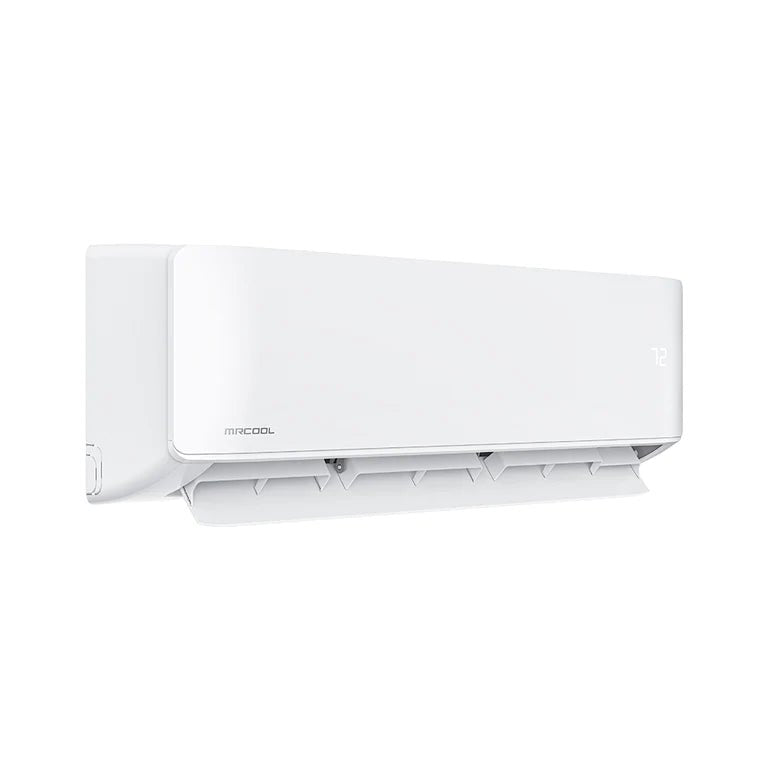

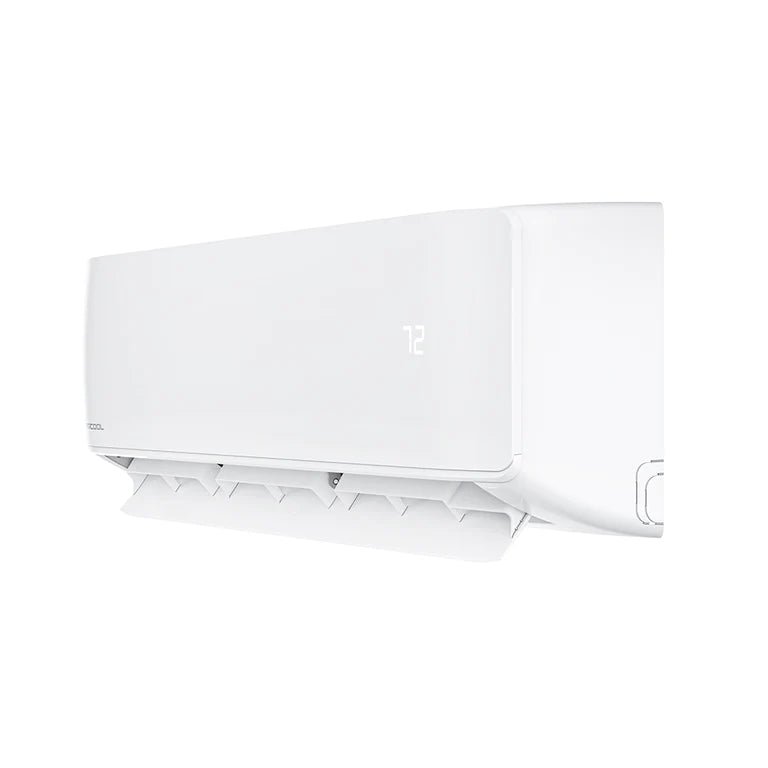

    Air Handler 9K BTU

    • Large Coverage Area. The air handler covers an area between 180 to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

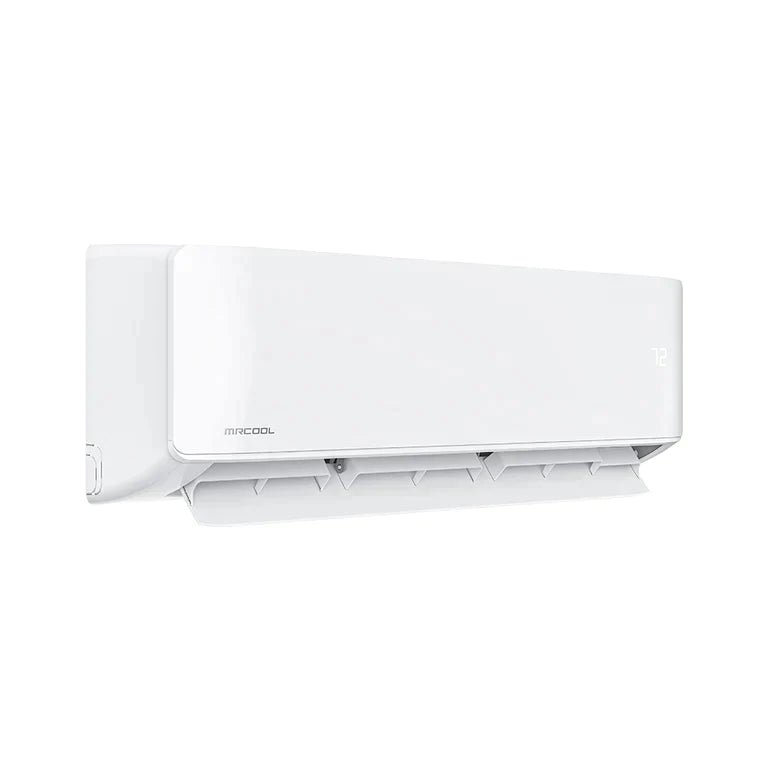

    Air Handler 18K BTU

    • Large Coverage Area. The air handler covers an area between 375 to 750 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

      SPECIFICATIONS AND DIMENSIONS:

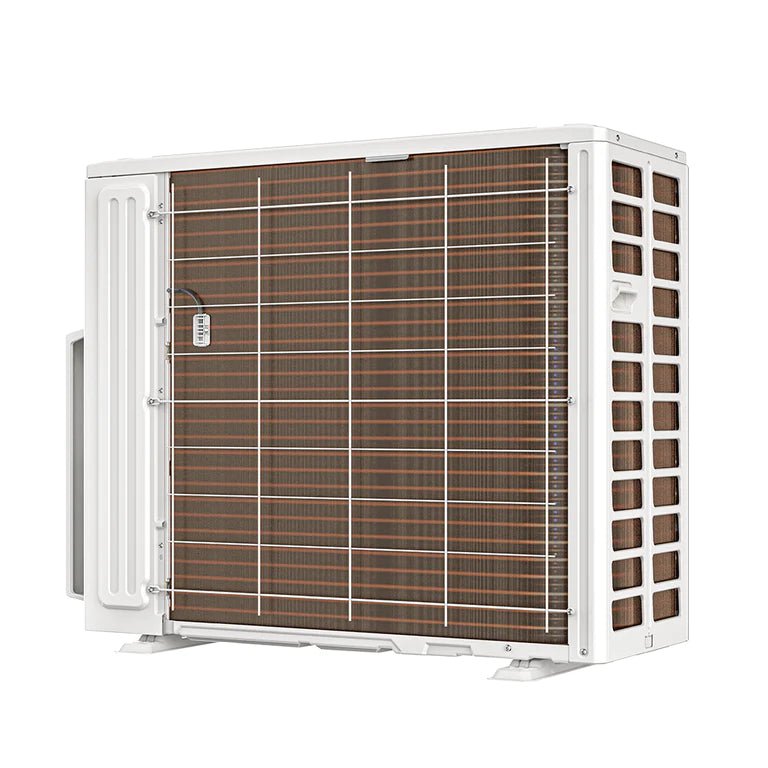

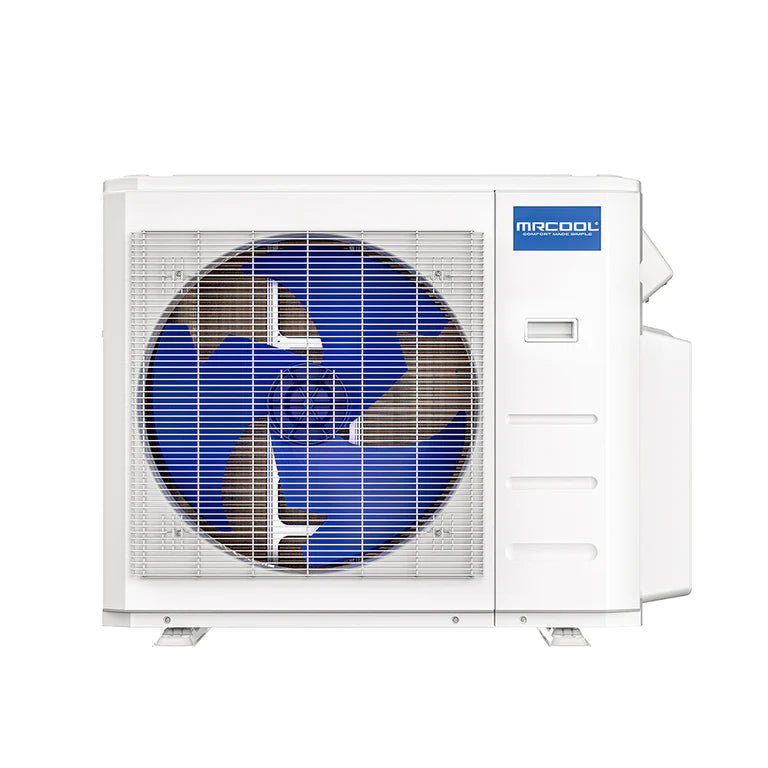

      Condenser



      Product Dimensions 37.48"W x 16.34"D x 52.48"H
      Cooling Capacity 48,000 BTU
      Heating Capacity 48,000 BTU
      Zone Capacity 5
      Cool Mode - Outdoor Operating Temperature Range 5°F ~ 122°F
      Heat Mode - Outdoor Operating Temperature Range 5°F ~ 75.2°F
      SEER2 20.50
      EER2 11
      HSPF2 9.2
      Voltage Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
      Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts


      Air Handler 9K BTU

      Product Dimensions 31.57"W x 7.44"D x 11.69"H
      Mount Type Wall
      Cooling Capacity 9,000 BTU
      Heating Capacity 9,000 BTU
      Registered Warranty 5 Years Parts
      Modes Auto (Auto selects Cool, Heat or Fan-Only)
      Cool
      Heat
      Dry
      Fan Only
      Sleep


      Air Handler 18K BTU

      Product Dimensions 42.52"W x 8.90"D x 13.19"H
      Mount Type Wall
      Cooling Capacity 18,000 BTU
      Heating Capacity 18,000 BTU
      Registered Warranty 5 Years Parts
      Modes Auto (Auto selects Cool, Heat or Fan-Only)
      Cool
      Heat
      Dry
      Fan Only
      Sleep




      COVERAGE AREA:

      Square Feet: 180-375 | BTU = 9K
      Square Feet: 376-500 | BTU = 12K
      Square Feet: 501-750 | BTU = 18K
      Square Feet: 751-1,000 | BTU = 24K
      Square Feet: 1,001-1,500 | BTU = 36K

      Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
