Model: MBVC1601AA-1
Goodman Specifications Sheet Click HERE

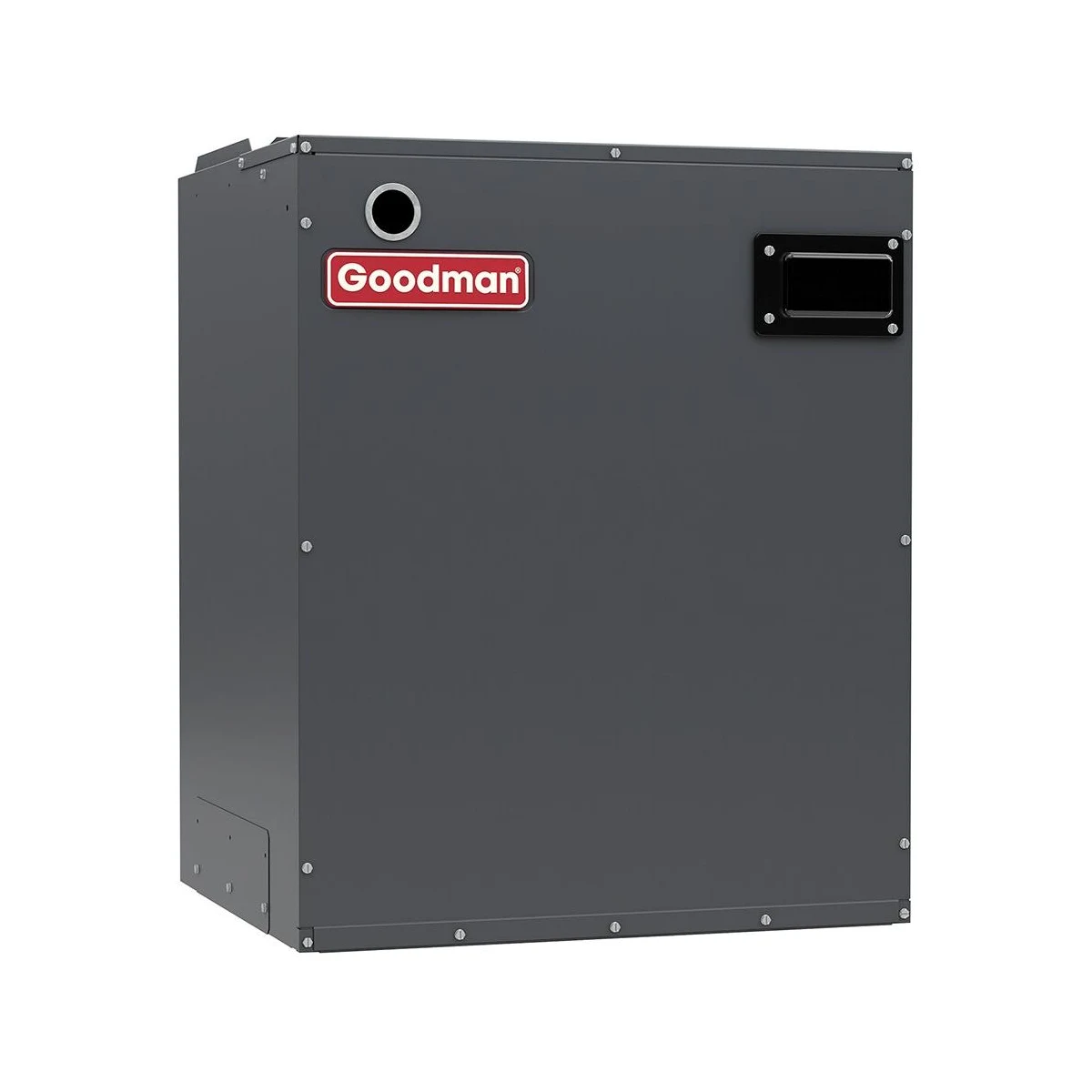

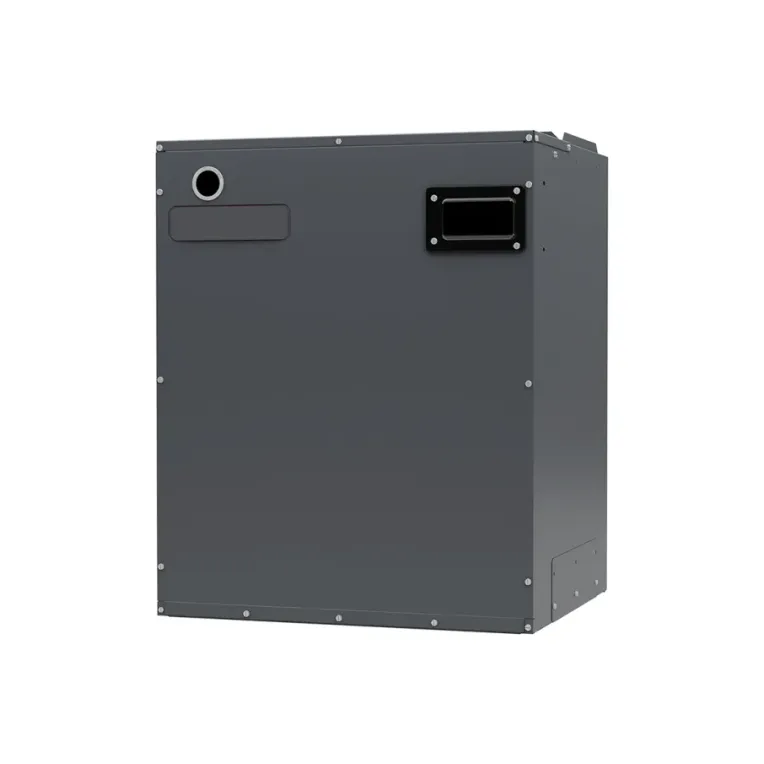

Blower: MBVC1601AA-1
Specifications:
- Variable-speed ECM blower motor
- Integrated communicating ComfortBridge™ technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
- Advanced configuration of the airflow and tonnage in communicating mode
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Provides adjustable low CFM for efficient fan-only operation
- Improved humidity and comfort control
- Built-in compatibility with multi-stage heat pump and cooling applications
- 3 kW – 21 kW electric heat kits
- Blower section usable as electric heater
- AHRI certified
- ETL listedory-installed thermal expansion valves for cooling and heat pump applications
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes:
Brand: Corporate
Cabinet Features:
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193
Class: Air Handler
Family Description: Multi-Position, Variable-Speed ECM-Based, Modular Blower ComfortBridge™ Compatible
Max. Voltage: 253
Min. Voltage: 197
Motor Speed Type: Variable Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 208-230
Category: Air Handler
Family: MBVC_1
Prop65 Label Required: TRUE
Unit Type: Indoor
