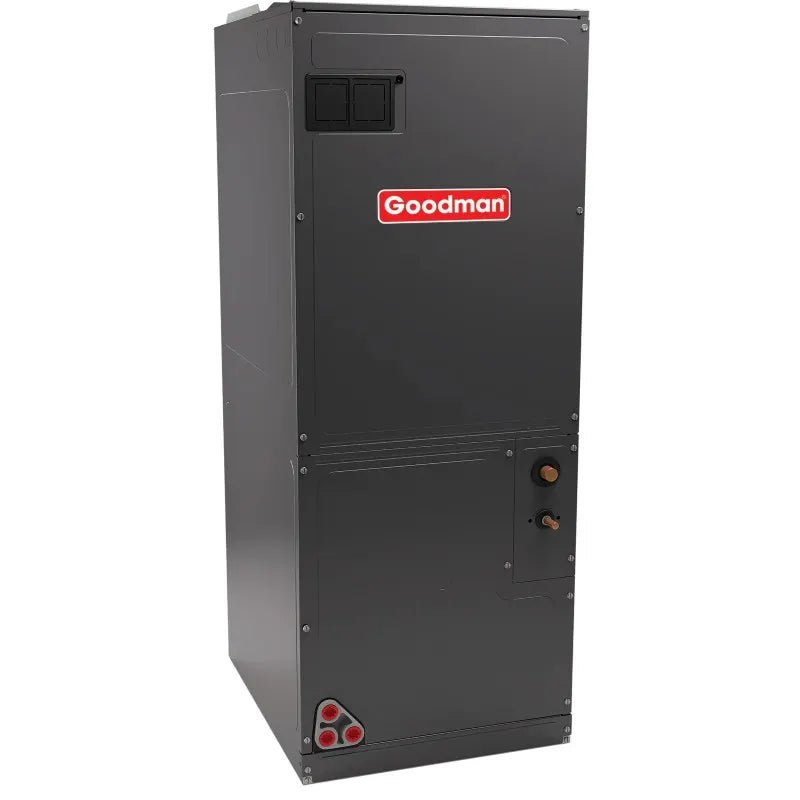

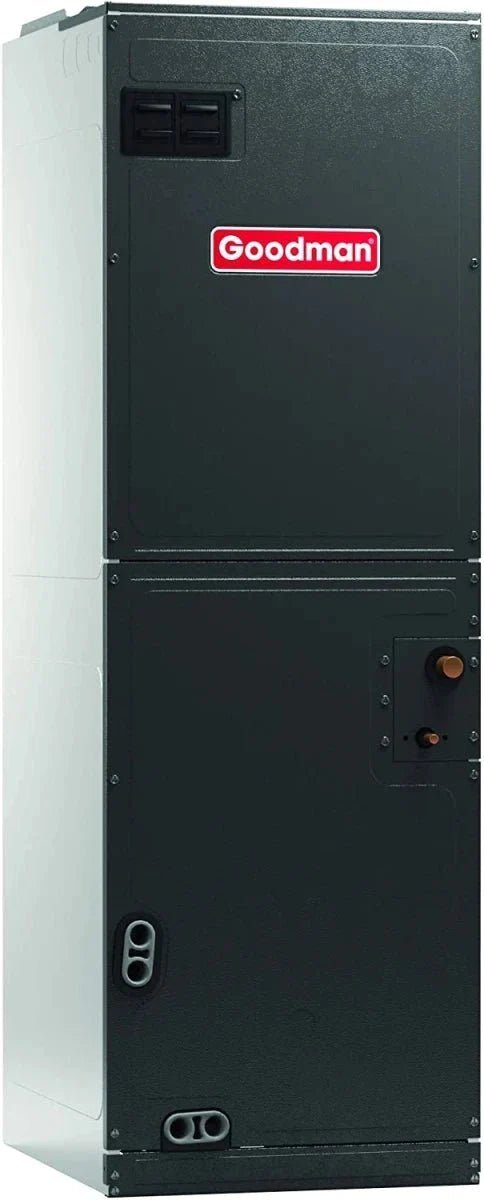

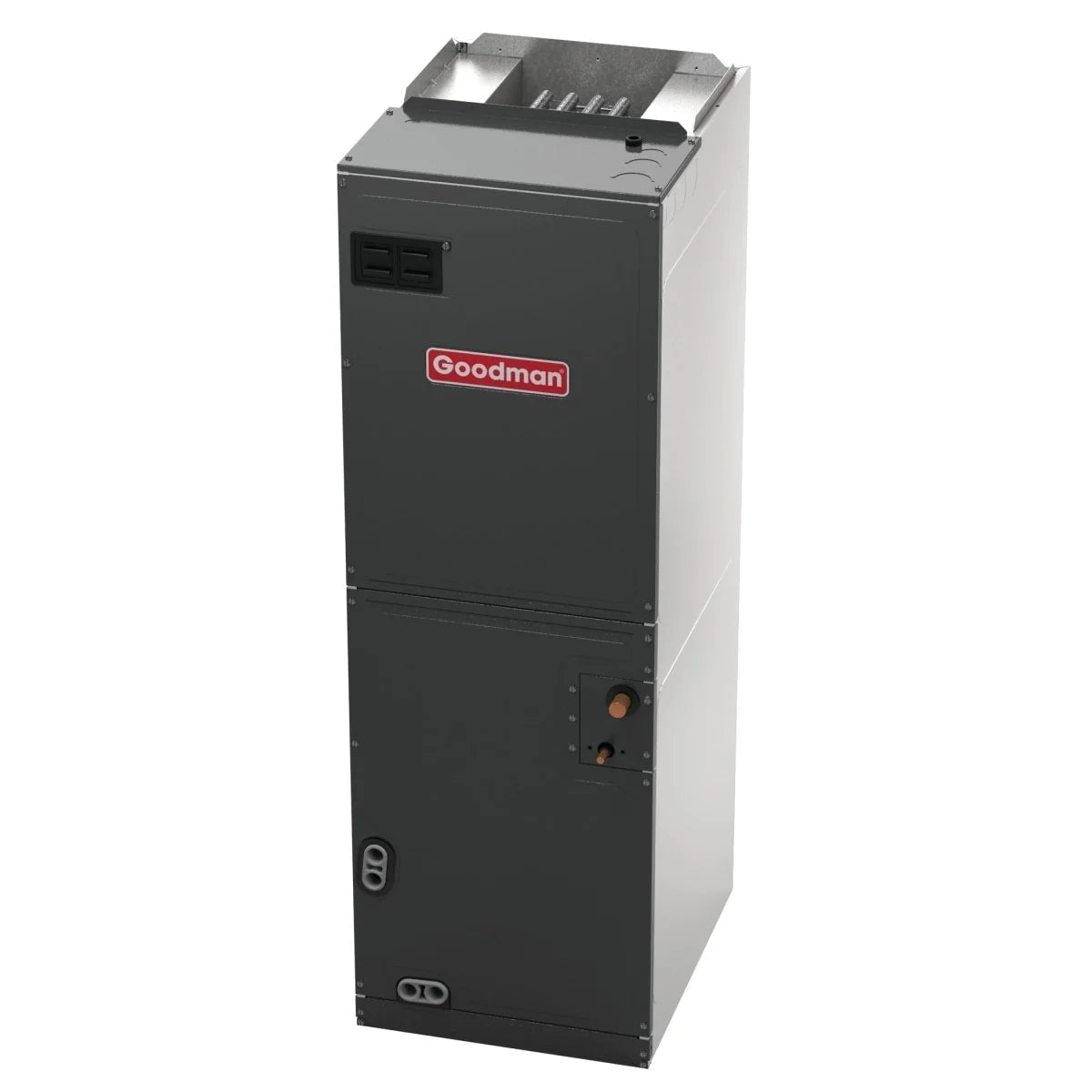

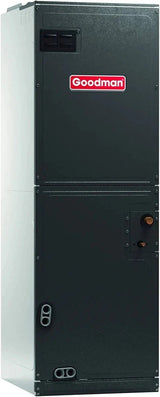

Goodman | Amst 5.0 Ton Air Handler Single Speed Motor AMST60DU1400
Description
Description
Model: AMST60DU1400
Goodman Specifications Sheet Click HERE
FURNACE: AMST60DU1400
Specifications
Internal factory-installed thermal expansion valves for cooling and heat pump applications
Direct drive, 9-speed ECM blower motor
Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models
All-aluminum evaporator coil with high-performance coated fin stock
Coil mounting track for quick repositioning
Optimized for use with R-410A refrigerant
Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
3 kW – 25 kW electric heater kits
AHRI certified
ETL listed
Warranty
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: Not Available
Registered parts, multi-family: Not Available
Registered parts, commercial: Not Available
Product Attributes
Brand: Corporate
Cabinet Features:
Rigid SmartFrame cabinet
Horizontal or vertical configuration capabilities
21” depth for easier attic access
DecaBDE-free thermoplastic drain pan with secondary drain connections
Screw-less sides and back helps to reduce condensation when installed in humid locations
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Glue-less cabinet insulation retention
Tool-less filter access
Class: Air Handler
Unit Depth: 21
Unit Height: 58
Unit Width: 24
Family Description: Multi-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV 1½ to 5 Tons
Max. Voltage: 240
Min. Circuit: 8.6
Min. Voltage: 208
Motor Speed Type: Single Speed
Power Frequency: 50/60
Power Phase: 1
Power Voltage: 208/240
Product Benefits:
All-Aluminum tube/aluminum fin coil
Direct-drive, resilient-mount, 9-speed ECM motor
Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
High-efficiency evaporator coil
Quiet operation
Primary/secondary drain connection in a high-temperature plastic drain pan
Suitable for free-return installation (non-ducted return air)
Galvanized-steel construction
Factory-installed pull-type disconnect
Easy service access
AHRI Certified
ETL Listed
Category: Air Handler
Family: AMST
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 5 tons
Unit Type: Indoor
Unit Weight: 167
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
SS-GM9S80_GC9S80.pdf (daikincloud.io)
SM-RS6621008.pdf (daikincloud.io)
