GE 30A LCDI Power Cord for PTAC Units | Model: RAK330P
“Maximum protection. Maximum power. Built to meet code—safely.”
The GE RAK330P LCDI Power Cord is a 30-amp, 208/230V or 265V plug-in power solution engineered for high-capacity GE and Hotpoint PTAC units. Equipped with Leakage Current Detection and Interruption (LCDI) technology, this cord offers advanced fire prevention, instantly cutting off power in the event of leakage current.
Ideal for installations requiring maximum amperage and code-compliant safety, this factory-approved cord delivers plug-and-play convenience without compromising protection.
Key Features – High Capacity, High Protection
✅ 30A LCDI Safety Cord
- Supports 208/230V or 265V systems at 30 amps
-
Built-in LCDI sensor detects current leakage and cuts power instantly
- Ideal for units with electric heat and higher BTU outputs
✅ Factory-Matched for GE & Hotpoint PTAC Units
- Designed specifically for 30A PTAC systems
- Compatible with sub-bases that include NEMA 6-30R outlets
- Delivers a secure, tamper-resistant plug-in connection
✅ UL & NEC Compliant
- Meets National Electrical Code (NEC) for commercial and residential use
- Fully UL-listed for electrical safety
- Required for many hospitality, healthcare, and multi-family installs
Ideal Applications
- Hotels, motels, and resorts with high-powered PTACs
-
Senior housing and healthcare facilities with 30A electric heat systems
- Apartments and dormitories requiring fire-safe wiring
-
Commercial buildings with plug-in HVAC access
Why Choose the GE RAK330P?
The RAK330P offers the highest level of plug-in safety for PTAC systems that draw up to 30 amps. It’s perfect for contractors, property managers, and developers who need to meet strict fire codes and power demands in one certified solution.
FAQs – GE RAK330P LCDI Cord
Q1: What systems is this cord rated for?
A: It’s rated for 208/230V or 265V, supporting 30A GE or Hotpoint PTAC units.
Q2: What is LCDI and why is it required?
A: LCDI stands for Leakage Current Detection and Interruption. It protects against fire hazards by shutting off power if leakage current is detected. Many building codes require LCDI cords in residential and commercial settings.
Q3: What outlet type does it require?

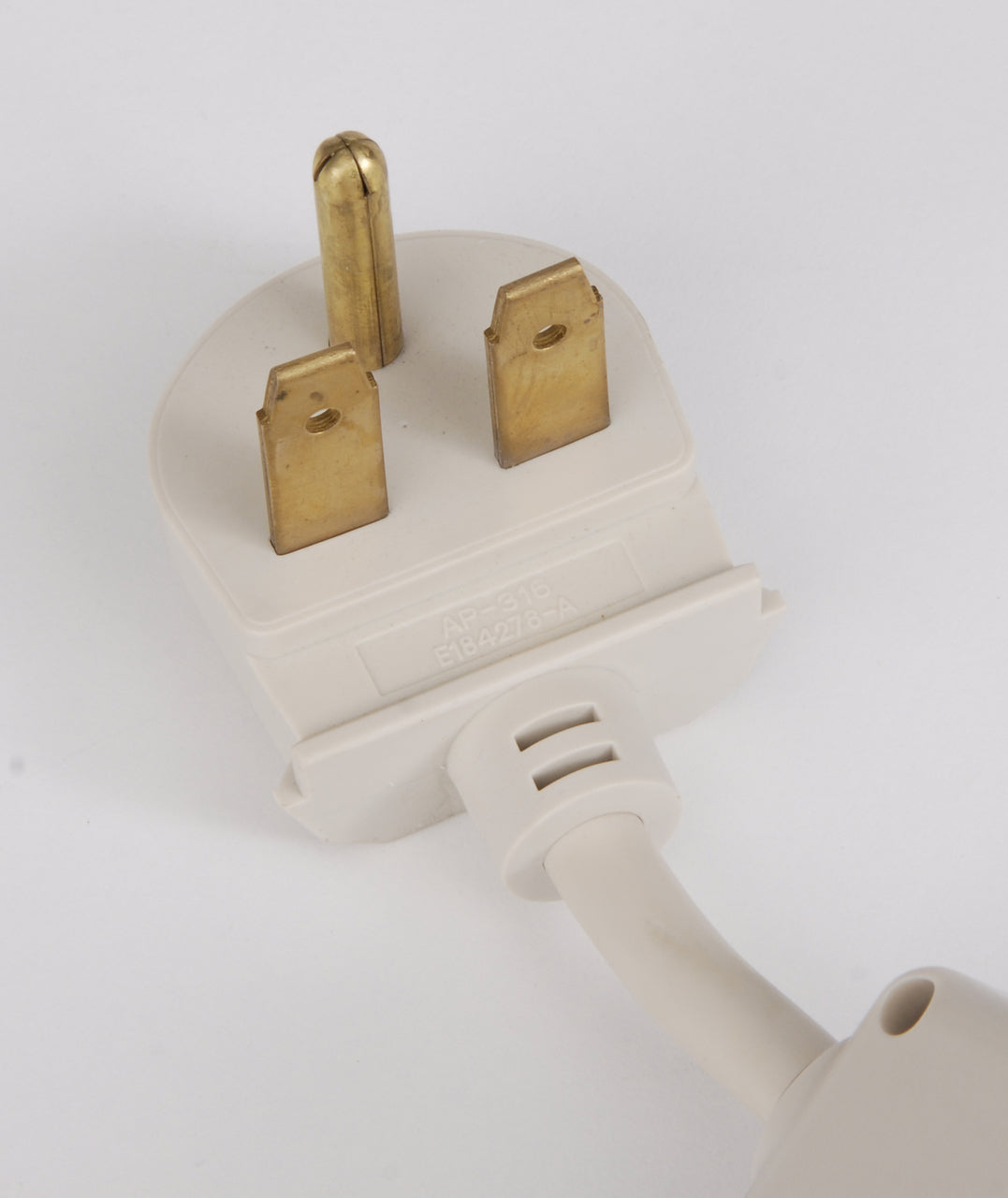

A: This cord is compatible with NEMA 6-30R receptacles, typically found on GE RAK204D30C or RAK204E30C sub-bases.
Q4: Is this UL-listed and code compliant?
A: Yes. The RAK330P is UL-listed and meets NEC code requirements for 30A plug-in installations.
Q5: Can it be used in both residential and commercial properties?
A: Absolutely. It’s designed for use in hotels, apartments, assisted living, and commercial buildings.
