GE 15A Non-LCDI Power Cord for PTAC Units | Model: RAK315SP
“Reliable connection. Basic power. Built for standard installs.”

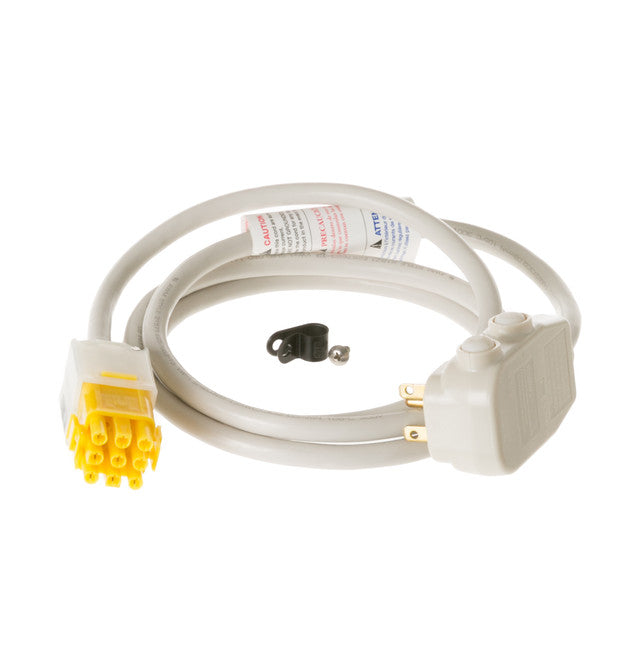

The GE RAK315SP is a 15-amp, 208/230V or 265V non-LCDI power cord specifically designed for GE and Hotpoint PTAC units. It provides a dependable, factory-approved plug-in power solution for properties that do not require LCDI protection under local code.
Ideal for retrofits, controlled-access environments, and cost-conscious projects, the RAK315SP offers a simple, effective way to power GE PTAC units when hardwiring is not desired and LCDI cords are not mandated.
Key Features – Basic Power, Factory-Fit
✅ 15A, Non-LCDI Power Cord
- Compatible with GE Zoneline and Hotpoint PTAC systems
- Rated for 208/230V or 265V operation
- Designed for use with NEMA 6-15R sub-base outlets
✅ Cost-Effective & Code-Aware
- For use in installations where LCDI is not required
- Perfect for budget-sensitive projects or low-risk environments
- Factory-tested for safe, efficient performance
✅ Plug-and-Play Simplicity
- Offers a quick, secure connection without field wiring
- Works with GE RAK204D15C and RAK204E15C sub-bases
- Reduces install time and simplifies servicing
Ideal Applications
- Older properties exempt from LCDI code updates
- Controlled facilities with monitored electrical access
- Budget-conscious commercial retrofits
- PTAC replacements where cord compatibility is critical
Why Choose the GE RAK315SP?
The RAK315SP is a factory-approved solution for PTAC installations that need a basic power cord without LCDI functionality. It’s ideal for applications where compliance is met through other safety controls, and where simplicity and savings are priorities.
FAQs – GE RAK315SP Power Cord
Q1: What voltage and amperage is this rated for?
A: This cord supports 208/230V or 265V systems at 15 amps.
Q2: What’s the difference between this and the LCDI version (RAK315P)?
A: The RAK315SP is a non-LCDI cord, meaning it does not include leakage current detection. It’s suitable where LCDI is not required by local code.
Q3: Is this UL-listed and safe for commercial use?
A: Yes, it is factory-approved by GE and intended for use in appropriate, code-compliant environments.
Q4: What outlets or sub-bases is it compatible with?
A: Works with GE sub-bases such as RAK204D15C and RAK204E15C, which include NEMA 6-15R receptacles.
Q5: When should I use this instead of an LCDI cord?
A: When local codes do not require LCDI protection, and when cost, simplicity, or building control systems justify using a standard power cord.
Documents
RAK315SP
