Daikin MXL Series 3 Zone Multi Split Heat Pump 3MXL24WMVJU9, CTXS07WVJU9 + CTXS07WVJU9 + FTXS15WVJU9

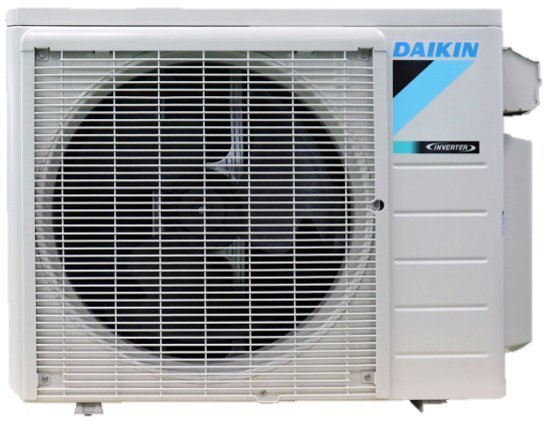

Outdoor Unit - 3MXL24WMVJU9

Specifications:

3 Zone enhanced Capacity Multi-Zone Night Quiet Mode Automatic Defrost Quick Warming Function Automatic Defrosting Priority Room Setting Cool/Heat mode lock Self Diagnosis Wiring error check function Anti-corrosion treatment of outdoor heat exchanger

Warranty:

• Standard warranties apply.
• Standard parts, residential: ALL PARTS - 5 YEARS PARTS
• Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
• Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
• Registered parts, residential: ALL PARTS - 12 YEARS PARTS
• Registered parts, multi-family: ALL PARTS - 12 YEARS PARTS
• Registered parts, commercial: ALL PARTS - 5 YEARS PARTS

Product Attributes:

Airflow Rate High Cooling: 2094
Airflow Rate High Heating: 2094
Airflow Rate Low Cooling: 1979
Airflow Rate High Heating: 1118
Brand: Daikin
Class: Multi-Split Heat Pump
Compressor Stages: Inverter
Compressor Type: Swing
Cooling Capacity Rated: 24000
Unit Depth: 12-5/8
Unit Height: 28-15/16
Unit Width: 34-1/4
Family Description: 2.0 Ton 3-Port Heat Pump
Heating Capacity Rated: 24000
Min. Circuit: 20.1
Power Frequency: 60
Power Phase: 1
Power Voltage: 208-230
Product Benefits:
12 Year limited parts warranty with online registration
PAM controlEnergy efficient operationQuiet outdoor unit operationUnit perfroms self diagnosis and indicates using LED lights""
Category: Multi-Split Heat Pump
Family 3MXL_WMVJU9
Product ID Bar Code: 3MXL24WMVJU9
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 2 tons
Unit Type: Outdoor
Unit Weight: 143

Documents:

Product Flyer
Service Manual
Parts Manual
Product Brochure
Submittal Data Sheet
Engineering Data Manual
Dimensional Drawing
Warranty Certificate
Written Guide Spec
Installation Manual

Indoor Unit (1+2): CTXS07WVJU9

Specifications:

• High Wall Mount Small capacity

Warranty:

• Standard warranties apply.
• Standard parts, residential: ALL PARTS - 5 YEARS PARTS
• Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
• Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
• Registered parts, residential: ALL PARTS - 12 YEARS PARTS
• Registered parts, multi-family: ALL PARTS - 12 YEARS PARTS
• Registered parts, commercial: ALL PARTS - 5 YEARS PARTS

Product Attributes:

Airflow Rate High Cooling: 332
Airflow Rate High Heating: 350
Airflow Rate Low Cooling: 194
Airflow Rate High Heating: 233
Brand: Daikin
Class: Multi-Split Fan Coil
Unit Depth: 8-7/16
Unit Height: 11-5/8
Unit Width: 31-1/2
Family Description: 0.5 - 1.0 Ton Wall Mounted Unit
Power Frequency: 60
Power Phase: 1
Power Voltage: 208-230
Product Benefits: 12 year limited parts warranty with registration
Category: Multi-Split Fan Coil
Family: CTXS_WVJU9
Product ID Bar Code: CTXS07WVJU9
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 0.5 tons
Unit Type: Indoor
Unit Weight: 20

Documents:

Dimensional Drawing
Engineering Data Manual
Installation Manual
Operation Manual
Product Flyer
Service Manual
Operation Manual
Primary Product Image
Parts Manual
Product Brochure
Written Guide Spec
Submittal Data Sheet
Warranty Certificate

Indoor Unit (3): FTXS15WVJU9

Specifications:

• 12 Year limited Warranty for Parts and Compressor

Warranty:

• Standard warranties apply.
• Standard parts, residential: ALL PARTS - 5 YEARS PARTS
• Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
• Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
• Registered parts, residential: ALL PARTS - 12 YEARS PARTS
• Registered parts, multi-family: ALL PARTS - 12 YEARS PARTS
• Registered parts, commercial: ALL PARTS - 5 YEARS PARTS

Product Attributes:

Airflow Rate High Cooling: 568
Airflow Rate High Heating: 593
Airflow Rate Low Cooling: 385
Airflow Rate High Heating: 417
Brand: Daikin
Class: Multi-Split Fan Coil
Unit Depth: 9-3/4
Unit Height: 13-3/8
Unit Width: 41-5/16
Family Description: 0.75 - 2.0 Ton Wall Mounted Unit
Power Frequency: 60
Power Phase: 1
Power Voltage: 208-230
Product Benefits: Quiet operation
Category: Multi-Split Fan Coil
Family: FTXS_WVJU9
Product ID Bar Code: FTXS15WVJU9
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 1.25 tons
Unit Type: Indoor
Unit Weight: 31

Documents:

Dimensional Drawing
Engineering Data Manual
Installation Manual
Operation Manual
Product Flyer
Service Manual
Operation Manual
Primary Product Image
Parts Manual
Product Brochure
Written Guide Spec
Submittal Data Sheet
Warranty Certificate
