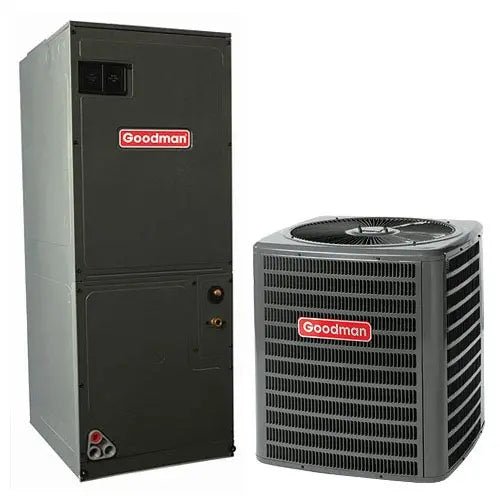

Goodman 3.0 Ton Single Stage Single Piece ECM Heat Pump AMST36CU1400 GSZH503610

$4,290.00 USD
96706534-0933-4108-A7F9-5DA8667402EE Created with sketchtool. Free Shipping
Product Discontinued
Sorry, this product is no longer available.
Try This Instead

Description

Model: AMST36CU1400

Goodman Specifications Sheet Click HERE

Model: GSZH503610

Goodman Specifications Sheet Click HERE

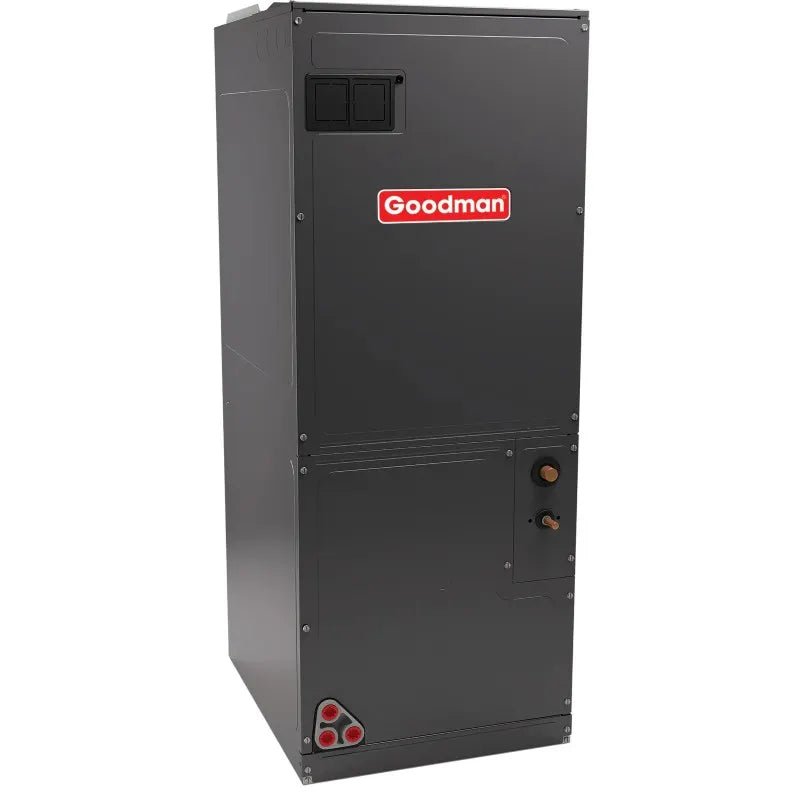

Furnace: AMST36CU1400

Specifications:

Internal factory-installed thermal expansion valves for cooling and heat pump applications

Direct drive, 9-speed ECM blower motor

Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models

All-aluminum evaporator coil with high-performance coated fin stock

Coil mounting track for quick repositioning

Optimized for use with R-410A refrigerant

Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193

Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193

3 kW – 25 kW electric heater kits

AHRI certified

ETL listed



Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS



Product Attributes:

Brand: Corporate

Cabinet Features: Rigid SmartFrame cabinet

Horizontal or vertical configuration capabilities

21” depth for easier attic access

DecaBDE-free thermoplastic drain pan with secondary drain connections

Screw-less sides and back helps to reduce condensation when installed in humid locations

Foil-faced insulation covers the internal casing to reduce cabinet condensation

Galvanized, leather grain-embossed finish

Glue-less cabinet insulation retention

Tool-less filter access

Class: Air Handler

Unit Depth: 21

Unit Height: 49

Unit Width: 21

Family Description: Multi-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV 1½ to 5 Tons

Max. Voltage: 240

Min. Circuit: 7.1

Min. Voltage: 208

Motor Speed Type: Single Speed

Power Frequency: 50/60

Power Phase: 1

Power Voltage: 208-240

Product Benefits:

All-Aluminum tube/aluminum fin coil

Direct-drive, resilient-mount, 9-speed ECM motor

Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW

High-efficiency evaporator coil

Quiet operation

Primary/secondary drain connection in a high-temperature plastic drain pan

Suitable for free-return installation (non-ducted return air)

Galvanized-steel construction

Factory-installed pull-type disconnect

Easy service access

AHRI Certified

ETL Listed

Category: Air Handler

Family: AMST

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 3 tons

Unit Type: Indoor

Unit Weight: 153

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)

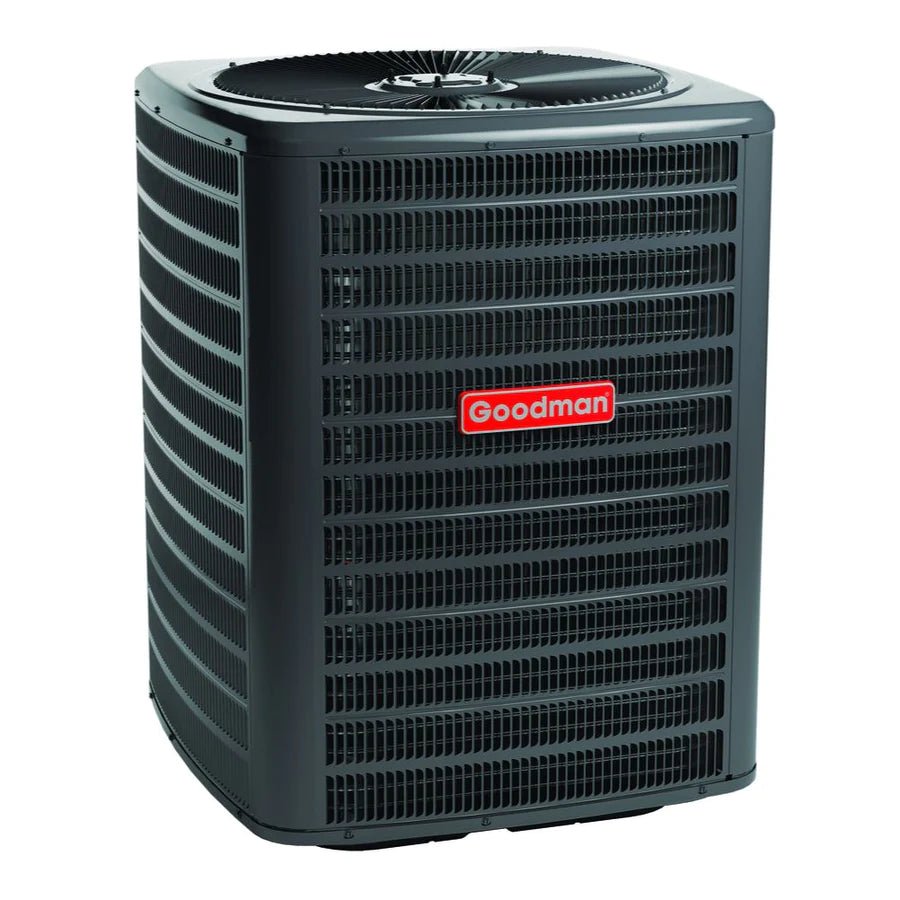

Outdoor: GSZH503610



Specifications:

High-Efficiency scroll compressor

SmartShift® technology to ensure quiet reliable defrost

Copper tube/ enhanced aluminum fin coil- 5mm diameter on 1.5-3.5T

Factory-installed suction-line accumulator

Factory-installed compressor crankcase heater

Factory-installed high-capacity muffler

High- and low-pressure switches

Service valves with sweat connections and easy access to gauge ports

Fully charged for 15' of tubing length

Contactor with lug connection

Ground lug connection

AHRI Certified

ETL Listed

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS



Product Attributes

Brand: Goodman

Cabinet Features: Removable grille style top design compliant with UL 60335-2-40

Steel louver coil guard

Heavy-gauge galvanized-steel cabinet

Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval

Top and side maintenance access

Single panel access to controls with space provided for field-installed accessories

When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available

Class: Split Heat Pump

Compressor Stages: Single Stage

Compressor Type: Scroll

Cooling Capacity Rated: 28400

Unit Depth: 35.5

Unit Height: 39.5

Unit Width: 35.5

Family Description: High-Efficiency Split System Heat Pump Up to 15.2 SEER2 & 7.8 HSPF2

Heating Capacity Rated: 28400

Max. Voltage: 253

Min. Circuit: 18.6

Min. Voltage: 197

Model Efficiency: 15.2 SEER2

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits: Meets the 2023 M1 Test Standards

Category: Split Heat Pump

Family: GSZH5

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 2.5 tons

Unit Type: Outdoor

Suction Valve Outside Diameter: 3/4

Unit Weight: 215



DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)
