2.5 Ton Goodman 15.2 SEER2 R32 GLXS4BA3010 GR9S800603BX CAPTA3626C3
Upgrade your comfort with the Goodman 2.5 Ton 15.2 SEER2 R-32 Split AC (GLXS4BA3010), designed to deliver powerful cooling, long-term reliability, and energy efficiency. Built for residential and light commercial spaces, this system provides around 30,000 BTU of cooling performance, making it an excellent choice for areas up to 1,200–1,500 sq. ft.
The Goodman GLXS4BA3010 is a perfect balance of efficiency, durability, and value. Whether you’re cooling a home, office, or light commercial space, this system delivers reliable performance without unnecessary energy costs. With its eco-friendly refrigerant and warranty coverage, it’s a smart investment for long-term comfort.
| Feature | Details |
|---|---|
| Cooling Capacity | 2.5 Ton (~30,000 BTU) |
| Efficiency Rating | Up to 15.2 SEER2 |
| Refrigerant | R-32 (eco-friendly, pre-charged) |
| Build Quality | Galvanized steel, powder-coated finish |
| Noise Level | Quiet operation design |
| Warranty | 10-Year Limited Parts Warranty |
| Coverage Area | Approx. 1,200–1,500 sq. ft. |
| Brand | Goodman | Model # | GLXS4BA3010 |
| SEER2/EER2 | Refrigerant | R-32 | |
| Tonnage | 2.5 Ton | Coil Type | |
| Total Indoor Unit(s) BTU | Voltage Requirements | ||
| Series | Coverage Area (Sq. Ft) | 1500 | |
| Indoor Mount Type | Indoor Unit BTUs | ||
| Zone/Rooms | AHRI No | GLXS4BA3010 | |
| Burner Stages | Cabinet Width | ||
| Airflow Direction | Furnace Efficiency / AFUE | ||
| Furnace BTU | Power Phase ( Single/Three) | ||
| Dimensions - (Shipping Unit Width) | 30.50 in | Dimensions - (Shipping Unit Height) | 34.50 in |
| Dimensions - (Shipping Unit Depth) | Weight - (Shipping Unit) | 167.000 lb | |
| Refrigerant Pre-Charged Line Length | 15 ft | Power Frequency | 60 Hz |
| Nom. CFM | Motor Speed Type | 0 | |
| MOCP | Min. Circuit Amps | 14.950000000000001 A | |
| Min Voltage | 0 | Max Voltage | 0 |
| Max Overcurrent Protection | 25 A | LoNox | |
| Valve Size Suction (O.D.) | 3/4 in | Valve Size Liquid (O.D.) | 0 |
| Liquid Line Size | Energy Source | 0 | |
| Expansion Device | 0 | Decibels (dBA) | 71 dBA |
| Compressor Type | Rotary | Compressor Stages | Single Stage |
| Cased vs Uncased | Heating Capacity - (Nominal) | 0 | |
| Cooling Capacity - (Nominal) | 30000 Btu/H | Airflow Rate High Cooling | |
| Function Category | Split Air Conditioner | Package System Type | |
| Air Handler Mount Type System | Split System Type |
The Goodman 3 Ton Evaporator Coil CAPTA3626C3 is a high-performance indoor coil designed for efficient heat transfer and long-lasting durability. Equipped with an internal factory-installed TXV and optimized for R-32 refrigerant, this cased A-coil is ideal for upflow or downflow applications in residential split systems.
The Goodman R-32 TXV Coil is built to pair with Goodman R-32 outdoor condensers and heat pumps for maximum efficiency and reliable performance. The Goodman 3 Ton Evaporator Coil CAPTA3626C3 enhances system responsiveness while helping reduce energy usage throughout seasonal operation.
📌 Explore more Goodman models:
| Brand | Goodman | Model # | CAPTA3626C3 |
| SEER2/EER2 | Refrigerant | R-32 | |
| Tonnage | 3.0 Ton | Coil Type | Upflow/Downflow |
| Total Indoor Unit(s) BTU | Voltage Requirements | ||
| Series | Coverage Area (Sq. Ft) | 1800 | |
| Indoor Mount Type | Indoor Unit BTUs | ||
| Zone/Rooms | AHRI No | CAPTA3626C3 | |
| Burner Stages | Cabinet Width | ||
| Airflow Direction | Upflow | Furnace Efficiency / AFUE | |
| Furnace BTU | Power Phase ( Single/Three) | ||
| Dimensions - (Shipping Unit Width) | 26.25 in | Dimensions - (Shipping Unit Height) | 28.50 in |
| Dimensions - (Shipping Unit Depth) | Weight - (Shipping Unit) | 51 lb | |
| Refrigerant Pre-Charged Line Length | 0 | Power Frequency | 0 |
| Nom. CFM | Motor Speed Type | 0 | |
| MOCP | Min. Circuit Amps | 0 | |
| Min Voltage | 0 | Max Voltage | 0 |
| Max Overcurrent Protection | 0 | LoNox | |
| Valve Size Suction (O.D.) | 0 | Valve Size Liquid (O.D.) | 0 |
| Liquid Line Size | Energy Source | 0 | |
| Expansion Device | TXV | Decibels (dBA) | 0 |
| Compressor Type | 0 | Compressor Stages | 0 |
| Cased vs Uncased | Heating Capacity - (Nominal) | 0 | |
| Cooling Capacity - (Nominal) | 0 | Airflow Rate High Cooling | |
| Function Category | Package System Type | ||
| Air Handler Mount Type System | Split System Type |

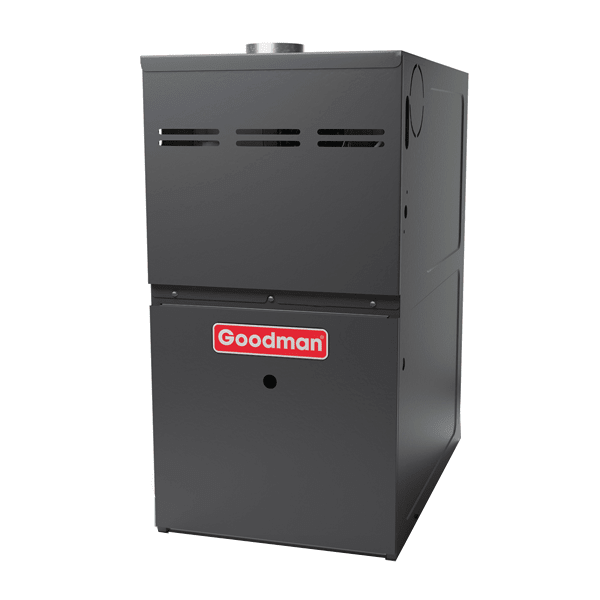

The Goodman GR9S800603BX gas furnace is a high-efficiency, single-stage heating system engineered to deliver powerful performance and reliable indoor comfort. With an 80% AFUE rating and a 60,000 BTU input capacity, the GR9S800603BX is ideal for homeowners seeking dependable, energy-efficient heating with quiet operation.
This model features a multi-speed ECM blower motor, which provides continuous fan speed for consistent airflow and improved comfort. The GR9S800603BX includes a heavy-duty aluminized-steel tubular heat exchanger and a durable Silicon Nitride igniter, ensuring longevity and ignition reliability.
Residential (Registered):
Residential (Standard):
Multi-Family (Registered):
Commercial:
The GR9S800603BX is a compact and powerful solution for homes seeking an affordable, efficient, and reliable gas furnace. With its quiet operation and durable construction, the GR9S800603BX delivers long-lasting performance that meets both comfort and budget needs.
Documents:
| Brand | Goodman | Model # | GR9S800603BX |
| SEER2/EER2 | Refrigerant | R-32 | |
| Tonnage | Coil Type | ||
| Total Indoor Unit(s) BTU | 60000 | Voltage Requirements | 110V To 120 V |
| Series | Coverage Area (Sq. Ft) | ||
| Indoor Mount Type | Indoor Unit BTUs | ||
| Zone/Rooms | AHRI No | GR9S800603BX | |
| Burner Stages | Single Stage | Cabinet Width | 17.5" |
| Airflow Direction | Upflow | Furnace Efficiency / AFUE | 80% |
| Furnace BTU | 60,000 BTU's | Power Phase ( Single/Three) | 1 Ph |
| Dimensions - (Shipping Unit Width) | #N/A | Dimensions - (Shipping Unit Height) | #N/A |
| Dimensions - (Shipping Unit Depth) | Weight - (Shipping Unit) | ||
| Refrigerant Pre-Charged Line Length | Power Frequency | 60 Hz | |
| Nom. CFM | Motor Speed Type | #N/A | |
| MOCP | Min. Circuit Amps | #N/A | |
| Min Voltage | Max Voltage | ||
| Max Overcurrent Protection | #N/A | LoNox | |
| Valve Size Suction (O.D.) | Valve Size Liquid (O.D.) | ||
| Liquid Line Size | Energy Source | ||
| Expansion Device | Decibels (dBA) | ||
| Compressor Type | Compressor Stages | ||
| Cased vs Uncased | Heating Capacity - (Nominal) | ||
| Cooling Capacity - (Nominal) | Airflow Rate High Cooling | ||
| Function Category | Gas Furnace | Package System Type | |
| Air Handler Mount Type System | Split System Type |
