2.5 Ton Goodman 14.5 SEER2 R32 GLXS4BA3010 GR9T800403AN CAPTA3626B3
Upgrade your comfort with the Goodman 2.5 Ton 15.2 SEER2 R-32 Split AC (GLXS4BA3010), designed to deliver powerful cooling, long-term reliability, and energy efficiency. Built for residential and light commercial spaces, this system provides around 30,000 BTU of cooling performance, making it an excellent choice for areas up to 1,200–1,500 sq. ft.
The Goodman GLXS4BA3010 is a perfect balance of efficiency, durability, and value. Whether you’re cooling a home, office, or light commercial space, this system delivers reliable performance without unnecessary energy costs. With its eco-friendly refrigerant and warranty coverage, it’s a smart investment for long-term comfort.
| Feature | Details |
|---|---|
| Cooling Capacity | 2.5 Ton (~30,000 BTU) |
| Efficiency Rating | Up to 15.2 SEER2 |
| Refrigerant | R-32 (eco-friendly, pre-charged) |
| Build Quality | Galvanized steel, powder-coated finish |
| Noise Level | Quiet operation design |
| Warranty | 10-Year Limited Parts Warranty |
| Coverage Area | Approx. 1,200–1,500 sq. ft. |
| Brand | Goodman | Model # | GLXS4BA3010 |
| SEER2/EER2 | Refrigerant | R-32 | |
| Tonnage | 2.5 Ton | Coil Type | |
| Total Indoor Unit(s) BTU | Voltage Requirements | ||
| Series | Coverage Area (Sq. Ft) | 1500 | |
| Indoor Mount Type | Indoor Unit BTUs | ||
| Zone/Rooms | AHRI No | GLXS4BA3010 | |
| Burner Stages | Cabinet Width | ||
| Airflow Direction | Furnace Efficiency / AFUE | ||
| Furnace BTU | Power Phase ( Single/Three) | ||
| Dimensions - (Shipping Unit Width) | 30.50 in | Dimensions - (Shipping Unit Height) | 34.50 in |
| Dimensions - (Shipping Unit Depth) | Weight - (Shipping Unit) | 167.000 lb | |
| Refrigerant Pre-Charged Line Length | 15 ft | Power Frequency | 60 Hz |
| Nom. CFM | Motor Speed Type | 0 | |
| MOCP | Min. Circuit Amps | 14.950000000000001 A | |
| Min Voltage | 0 | Max Voltage | 0 |
| Max Overcurrent Protection | 25 A | LoNox | |
| Valve Size Suction (O.D.) | 3/4 in | Valve Size Liquid (O.D.) | 0 |
| Liquid Line Size | Energy Source | 0 | |
| Expansion Device | 0 | Decibels (dBA) | 71 dBA |
| Compressor Type | Rotary | Compressor Stages | Single Stage |
| Cased vs Uncased | Heating Capacity - (Nominal) | 0 | |
| Cooling Capacity - (Nominal) | 30000 Btu/H | Airflow Rate High Cooling | |
| Function Category | Split Air Conditioner | Package System Type | |
| Air Handler Mount Type System | Split System Type |
The Goodman 3 Ton Cased Evaporator Coil CAPTA3626B3 is a high-efficiency indoor coil designed for seamless performance in split-system installations. Built for use with R-32 refrigerant and featuring a factory-installed TXV, this coil delivers precise refrigerant flow and improved HVAC system efficiency. Engineered for both upflow and downflow applications, it’s ideal for residential HVAC systems that require reliable cooling performance.
3 Ton Capacity – Perfectly sized to match most 3-ton outdoor units, ensuring optimal system balance.
R‑32 Refrigerant Ready – Designed for compatibility with eco-friendly R-32 refrigerant for reduced environmental impact.
Factory-Installed TXV (Thermal Expansion Valve) – Provides accurate refrigerant metering, improving overall efficiency and comfort control.
All-Aluminum Coil – Resistant to corrosion, delivers efficient heat exchange, and ensures long-term reliability.
Upflow/Downflow Configuration – Versatile design accommodates various installation needs in attics, basements, or HVAC closets.
Cased Coil with Insulated Cabinet – Heavy-gauge steel construction minimizes air leakage and noise, enhancing indoor comfort.
Foil-Faced Insulation – Increases moisture resistance and simplifies maintenance without fiber exposure.
Dual Drain Pans – Left or right-side condensate drainage options offer installation flexibility.
Sweat-Connection Service Ports – Built-in access for quick refrigerant charging and diagnostics.
AHRI Certified & ETL Listed – Meets industry standards for safety, performance, and compatibility.
The Goodman R-32 Evaporator Coil is engineered to work with Goodman heat pumps and air conditioners using R-32 refrigerant, delivering efficient and reliable system performance. The Goodman 3 Ton Cased Evaporator Coil CAPTA3626B3 enhances indoor comfort by maintaining optimal refrigerant control and airflow balance across seasons.
| Brand | Goodman | Model # | CAPTA3626B3 |
| SEER2/EER2 | Refrigerant | R-32 | |
| Tonnage | 3.0 Ton | Coil Type | Upflow/Downflow |
| Total Indoor Unit(s) BTU | Voltage Requirements | ||
| Series | Coverage Area (Sq. Ft) | 1800 | |
| Indoor Mount Type | Indoor Unit BTUs | ||
| Zone/Rooms | AHRI No | CAPTA3626B3 | |
| Burner Stages | Cabinet Width | ||
| Airflow Direction | Upflow | Furnace Efficiency / AFUE | |
| Furnace BTU | Power Phase ( Single/Three) | ||
| Dimensions - (Shipping Unit Width) | 26.25 in | Dimensions - (Shipping Unit Height) | 28.50 in |
| Dimensions - (Shipping Unit Depth) | Weight - (Shipping Unit) | 54.000 lb | |
| Refrigerant Pre-Charged Line Length | 0 | Power Frequency | 0 |
| Nom. CFM | Motor Speed Type | 0 | |
| MOCP | Min. Circuit Amps | 0 | |
| Min Voltage | 0 | Max Voltage | 0 |
| Max Overcurrent Protection | 0 | LoNox | |
| Valve Size Suction (O.D.) | 0 | Valve Size Liquid (O.D.) | 0 |
| Liquid Line Size | Energy Source | 0 | |
| Expansion Device | TXV | Decibels (dBA) | 0 |
| Compressor Type | 0 | Compressor Stages | 0 |
| Cased vs Uncased | Heating Capacity - (Nominal) | 0 | |
| Cooling Capacity - (Nominal) | 0 | Airflow Rate High Cooling | |
| Function Category | Package System Type | ||
| Air Handler Mount Type System | Split System Type |

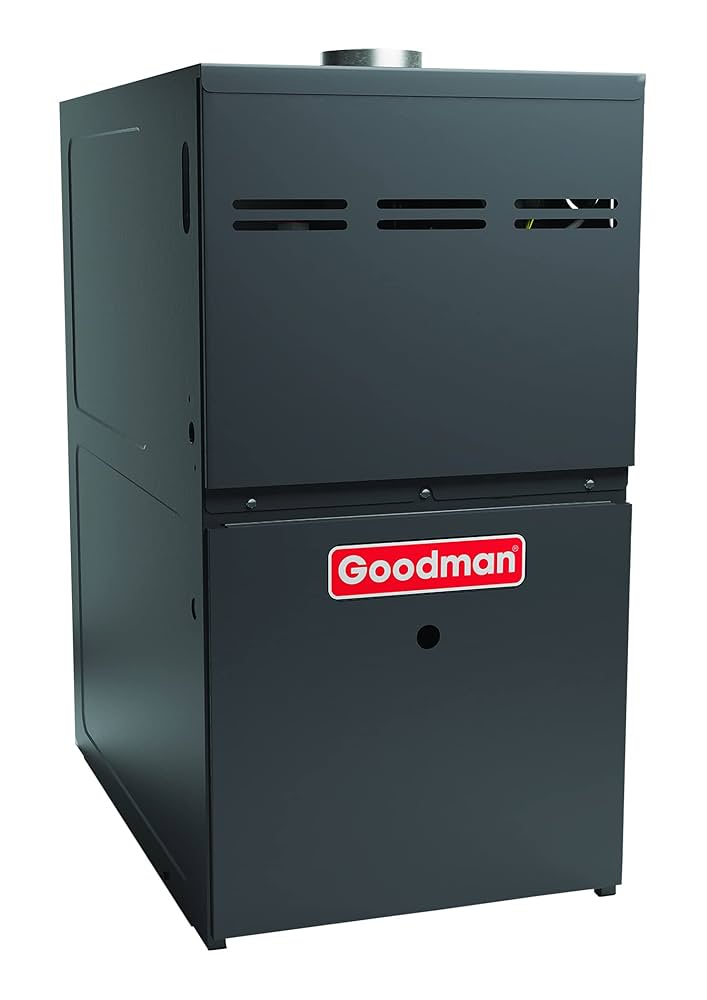

GR9T800403ANEfficient and flexible heating for medium to large homes. The Goodman GR9T800403AN is a two-stage gas furnace equipped with a nine-speed ECM blower motor. Designed for upflow or horizontal installation, it delivers whisper-quiet operation, precise temperature control, and adaptable comfort suited to various climates.
Looking for a reliable and efficient heating solution?
Explore our full range of Goodman HVAC products designed for comfort and energy efficiency.
| Brand | Goodman | Model # | GR9T800403AN |
| SEER2/EER2 | Refrigerant | R-32 | |
| Tonnage | Coil Type | ||
| Total Indoor Unit(s) BTU | 40000 | Voltage Requirements | 110V To 120 V |
| Series | Coverage Area (Sq. Ft) | ||
| Indoor Mount Type | Wall Mount | Indoor Unit BTUs | 40K |
| Zone/Rooms | AHRI No | GR9T800403AN | |
| Burner Stages | Two Stage | Cabinet Width | 14" |
| Airflow Direction | Upflow | Furnace Efficiency / AFUE | 80% |
| Furnace BTU | 40,000 BTU's | Power Phase ( Single/Three) | 1 Ph |
| Dimensions - (Shipping Unit Width) | 15.00 in | Dimensions - (Shipping Unit Height) | 35.50 in |
| Dimensions - (Shipping Unit Depth) | Weight - (Shipping Unit) | ||
| Refrigerant Pre-Charged Line Length | Power Frequency | 60 Hz | |
| Nom. CFM | Motor Speed Type | Nine Speed ECM | |
| MOCP | Min. Circuit Amps | 8.7 A | |
| Min Voltage | Max Voltage | ||
| Max Overcurrent Protection | 15 A | LoNox | |
| Valve Size Suction (O.D.) | Valve Size Liquid (O.D.) | ||
| Liquid Line Size | Energy Source | ||
| Expansion Device | Decibels (dBA) | ||
| Compressor Type | Compressor Stages | ||
| Cased vs Uncased | Heating Capacity - (Nominal) | ||
| Cooling Capacity - (Nominal) | Airflow Rate High Cooling | ||
| Function Category | Gas Furnace | Package System Type | |
| Air Handler Mount Type System | Split System Type |
