Ameristar by Trane  |  SKU: A801X040BM2SCA

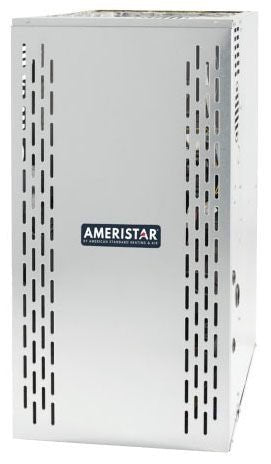

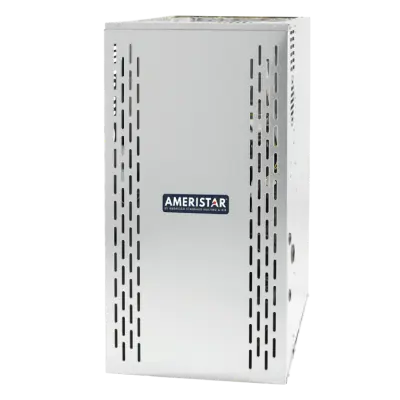

2.0 Ton Gas Fired Furnace 40000 Btu/hr Input BTU 80 % AFUE A801X040BM2SCA

$995.00 USD
Shipping calculated at checkout.

Add to cart for Savings !

Free Shipping

We provide Free Shipping

Need help with choosing a system or have other questions? Talk with one of our trusted HVAC professionals today ! 678-535-7176

Email us at : sales@acunitsforless.com

Call us at : 678-672-0213

 Physical Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia 30142, United States





The Ameristar, produced by Trane, and the American Standard air conditioners, commonly referred to as AC units, are central air conditioners designed for outdoor installation in HVAC systems. These units exclusively provide cooling when they are connected to an evaporator coil.

Description

Model: A801X040BM2SCA

Description:

Gas Furnace; Type 1-Stage, Serial Controlled, Upflow/Downflow/Horizontal Left/Right, Standard System, Multi-Position; Btu per Hour 40000; Capacity 582 to 1325 CFM at 0.1 Inch WC; Control Type Thermostat; Size 17.5 Inch Width x 28.75 Inch Depth x 34 Inch Height; Vent Size 4 Inch Diameter; Inclusion/Features Direct Drive Blower, High Velocity Filter, Centrifugal Combustion Fan, Multi-Port Inshot Burner, 120 Volt Silicon Nitride Igniter Pilot Safety Device, 20 Gauge Stainless Steel Heat Exchanger, Heavy Gauge Steel/Wrap Around Cabinet; Voltage Rating 120 Volt AC 60 Hertz 1-Phase; Current Rating 4.1 Amp FLA (Blower Drive), 1.39 Amp FLA (Combustion Fan), 15 Amp (MOP); Motor Power Rating 1/3 HP (Blower Drive); Nominal Cooling Capacity 2 Ton; Motor Type Constant Torque ECM; Fuel Type Natural Gas; Blower Dimension 11 Inch Diameter x 8 Inch Width; Number of Speed 9; Motor Speed Rating 1075 RPM (Blower Drive), 3300 RPM (Combustion Fan); Number of Burner 2; Pipe Connection Size 1/2 Inch; AFUE Rating 80 Percent (Non-Condensing); Temperature Rating 30 to 60 Deg F; Applicable Standard ETL (Canada and US), ANSI Z21.47/CSA 2.3, ASHRAE 193

Specifications:

Brand

Ameristar Heating And Cooling

BTU Input

40k

Capacity

582 To 1325 CFM At 0.1 Inch WC

Efficiency

80% +

Family

A801X-ECM

Orientation

Multi-Position

Size

17.5 Inch Width X 28.75 Inch Depth X 34 Inch Height

Type

1-Stage, Serial Controlled, Upflow/Downflow/Horizontal Left/Right, Standard System, Multi-Position

Vent Size

4 Inch Diameter

Documents:

Installations manual
