Ameristar by Trane  |  SKU: A801X040AM3SCA

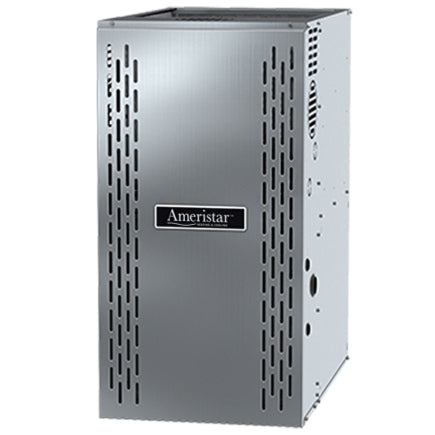

1.5 Ton Gas Fired Furnace 40000 Btu/hr Input BTU 80 % AFUE A801X040AM3SCA

$971.00 USD
Shipping calculated at checkout.

Add to cart for Savings !

Free Shipping

We provide Free Shipping

Need help with choosing a system or have other questions? Talk with one of our trusted HVAC professionals today ! 678-535-7176

Email us at : sales@acunitsforless.com

Call us at : 678-672-0213

 Physical Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia 30142, United States





The Ameristar, produced by Trane, and the American Standard air conditioners, commonly referred to as AC units, are central air conditioners designed for outdoor installation in HVAC systems. These units exclusively provide cooling when they are connected to an evaporator coil.

Description

Model: A801X040AM3SCA

Description:

Ameristar, 40000 Btu/hr Input, 120 VAC, 9.6 A, 1/2 hp, 80 % AFUE, 1 ph, 60 Hz Frequency, 1 Stage, Upflow/Downflow/Horizontal Left/Right Configuration, Molex Connection, 1/2 in Connection, Natural Gas Fuel, 2 Burners, 9 Speed, 11 in Dia x 8 in W Blower Size, 14-1/2 in W x 28-3/4 in D x 34 in H Cabinet, Constant Torque ECM Blower Motor, 1075 rpm Rotational Speed, Vented, 4 in Dia Vent, 3 ton, Silicon Nitride Hot Surface Ignition System, Steel, Galvanized, 30 to 60 deg F Rise

Specifications:

Model      :      A801X040AM3SCA
BTU Rating      :      40000 Btu/hr
AFUE Rating      :      80 %
Configuration      :      Upflow/Downflow/Horizontal Left/Right
Drive Size      :      3 Ton
Cabinet Size      :      A
Connection Size      :      1/2 in


Features:

  • Lowers utility bills
  • Efficient air flow design reduces electrical energy use
  • Lighter, easier to move and fit into tight spaces like short basements or tight closets
  • Works great with larger, high-efficiency coils
  • No knockouts
  • Added application flexibility and reduction in specification errors
  • At least 400 cfm/ton at 0.5 in H20 external static pressure
  • All models are air tight, 1.4% or less air leakage as per ASHRAE 193
  • Open vestibule design provides a full 34 in high open vestibule for ease of installation and service
  • Cabinets compatible with industry standard coils, as well as, other accessories
  • No dip switches
  • Last six errors stored
  • All Molex connections, no spade terminals
  • Rain shield over IFC keeps condensate off the control
  • Tubular aluminized steel heat exchanger
  • Nine speed constant torque blower motor
  • Greater range of operation
  • Higher efficiency versus a standard PSC blower motor

Documents:

Instructions/Installation Manual
