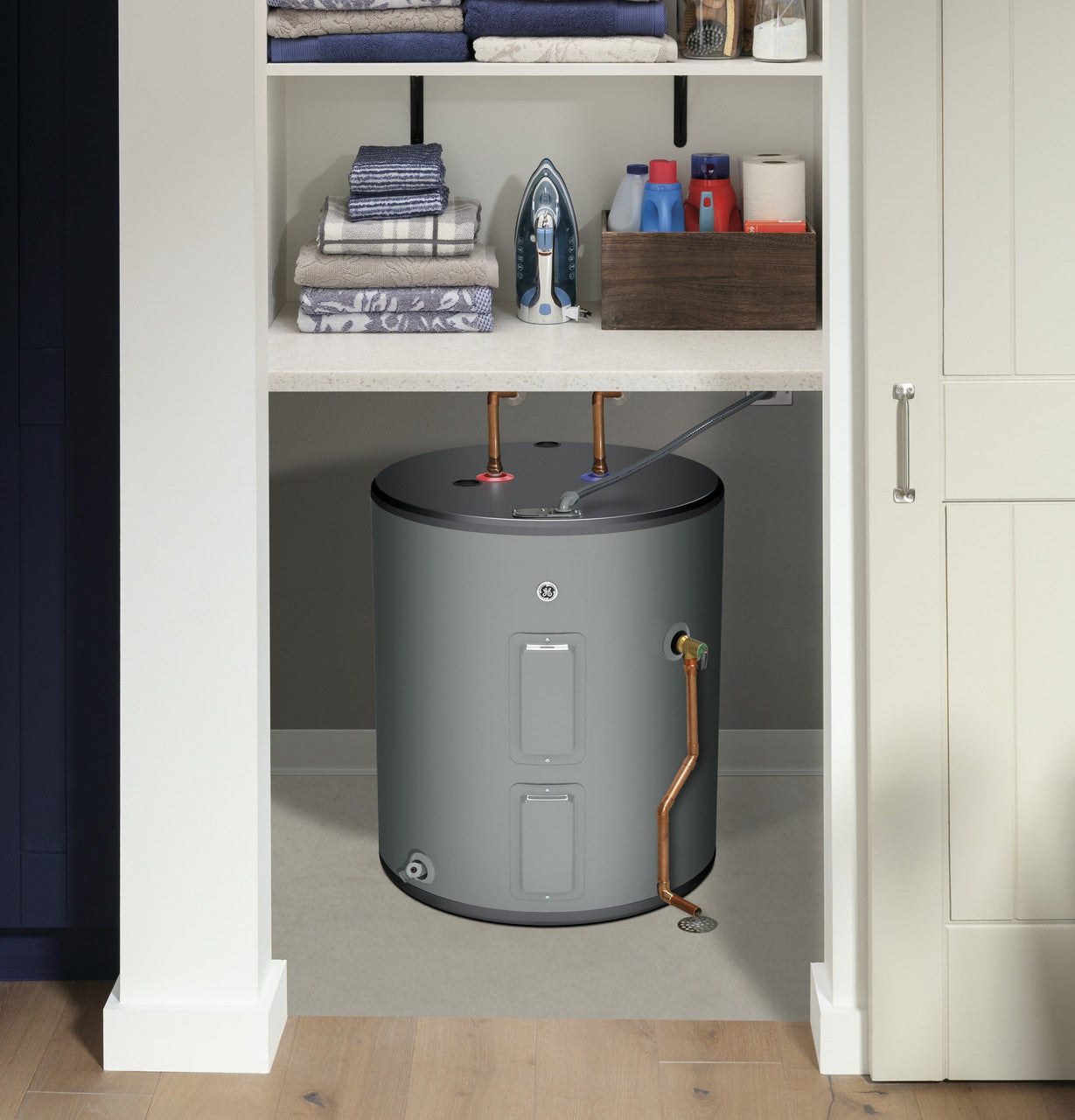

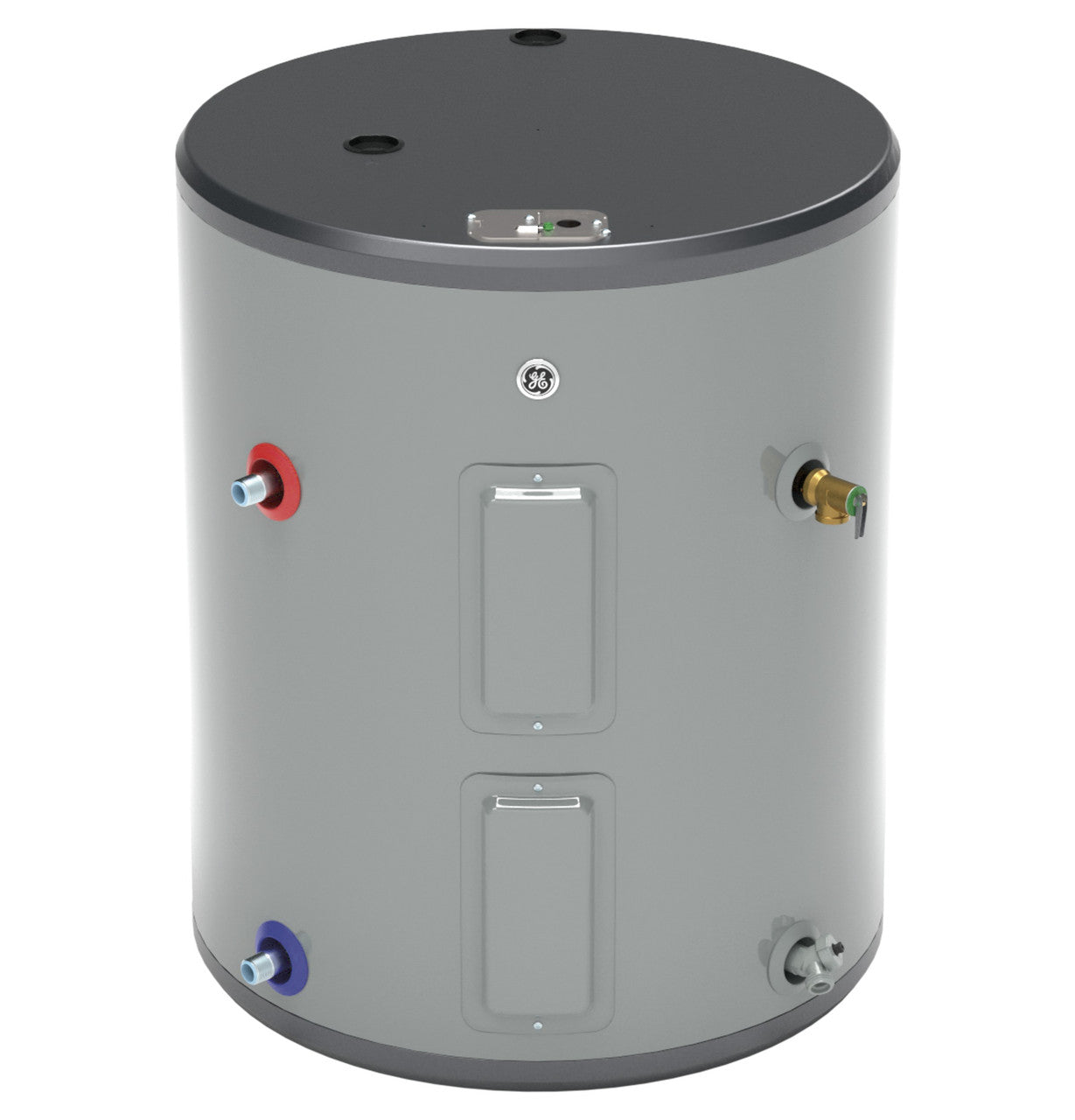

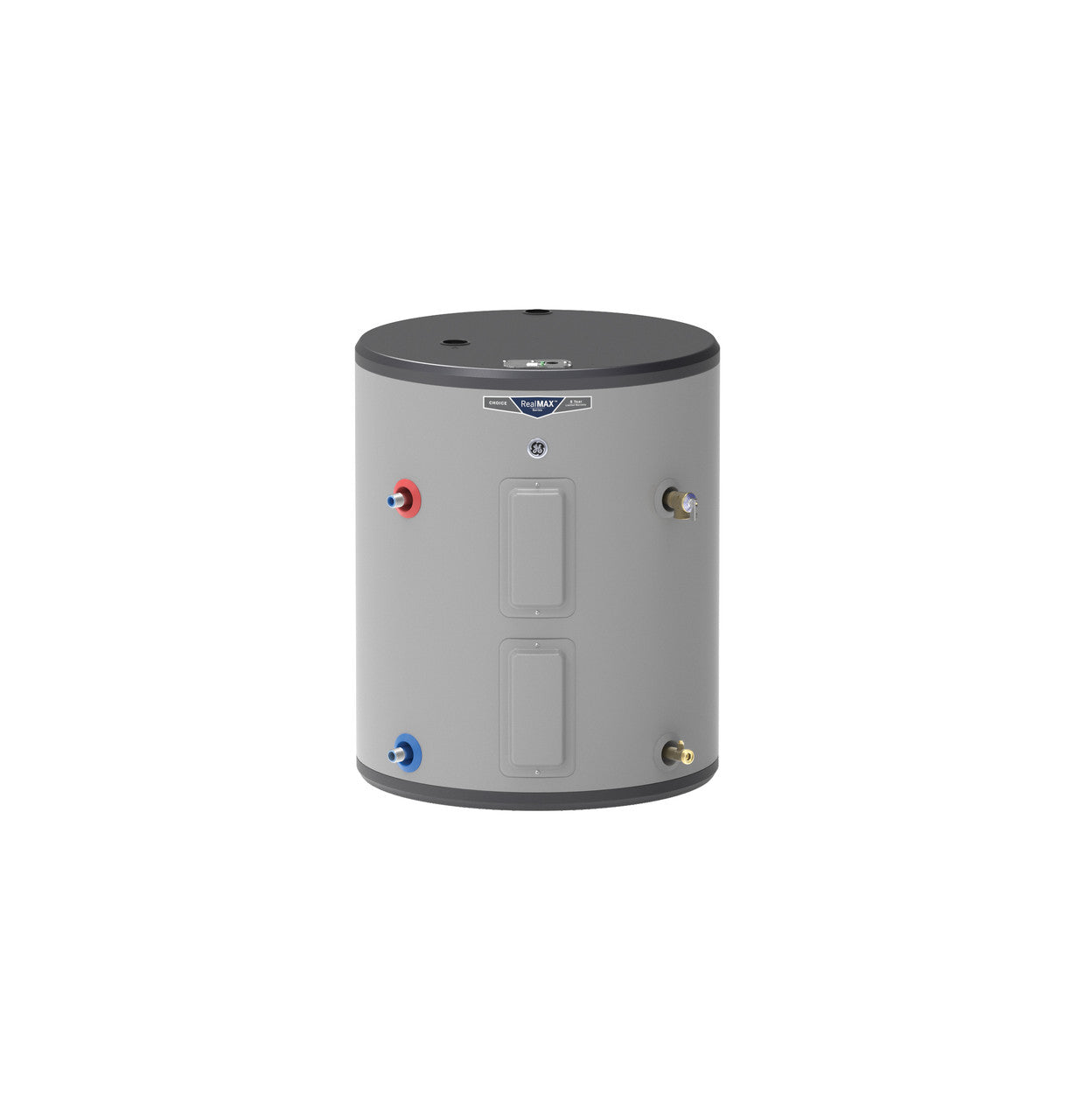

The GE40L08BSM 36‑Gallon Side‑Port Low‑Boy Electric Water Heater is engineered for spaces with height restrictions, providing robust performance and user-friendly features. Its compact low-boy design—measuring approximately 32¾″ tall—fits neatly under stairwells, in crawl spaces, or inside closets, delivering big-tank capacity where standard units won’t work.
Powered by dual 5,500 W heating elements, this model delivers fast water recovery and a high first-hour rating, ensuring ample hot water during peak morning routines or multiple appliance use. The side-mounted thermostat offers easy access for adjusting temperatures between 90°F and 150°F without awkward twisting or lifting.
Built for efficiency and longevity, this heater includes 2.75″ of foam insulation to minimize heat loss, a corrosion-resistant tank with inlet tube refill, and durable brass fittings. A factory-installed temperature & pressure relief valve is included for safety. Whether serving a family of two to four or outfitting a utility area, this heater balances compact convenience with reliable hot water delivery.
Key Features & Benefits:
-
Space-Saving Low‑Boy Design: Approx. 32¾″ tall and 27″ in diameter—ideal for tight vertical spaces.
-
Side Thermostat Control: Convenient access for temperature adjustments from standard height.
-
Dual 5,500 W Elements: Provide rapid heating and strong first-hour performance (~63 gallons).
-
Thick Insulation: 2.75″ foam jacket reduces standby heat loss and energy costs.
-
Built to Last: Corrosion-resistant anode rod and inlet tube for full tank utilization.
-
Safety & Compliance: Includes factory-installed T&P relief valve and meets warranty standards.
-
Reliable Warranty: 8-year tank and part coverage gives long-term peace of mind.
Technical Specifications:
-
Voltage: 208–240 V, 60 Hz
-
Heating: 2 × 5,500 W electric elements
-
Rated Capacity: 36 gallons (nominal)
-
First-Hour Delivery: Approx. 63 gallons
-
Overall Size: ~27″ diameter × 32¾″ height
-
Connections: ¾″ side-port hot/cold inlets, side-mounted thermostat
-
Weight: ~135 lbs (unit only)
What’s in the Box:
- Fully assembled GE40L08BSM heater
- Factory-installed temperature & pressure relief valve
- Comprehensive manuals and warranty paperwork
Perfect for homeowners and installers who need a powerful yet compact electric water heater, the GE40L08BSM brings efficiency, convenience, and capacity together in a low-profile form. Let me know if you'd like efficiency ratings, installation tips, or comparison to similar models!
