GE GE  |  SKU: AVVL24DMXWA
96706534-0933-4108-A7F9-5DA8667402EE Created with sketchtool. Free Shipping

GE Zoneline 2-Ton 24,000 BTU Heat Pump Single Package Vertical AC 230-208V AVVL24DMXWA

Visit the GE Store
$3,199.00 $4,892.00

Is this system right for you?
22,400 BTUH BTU's
21,500 BTUH
Width
23-5/8 in
Height
36-7/8 in
Depth
28-3/8 in
Weight
137 lb
V Voltage
208V/230V
Bundled
Purchase
All in
One Buy
Good for
Replacements

What's in the box

  • GE Zoneline 2-Ton 24,000 BTU Heat Pump Single Package Vertical AC 230-208V AVVL24DMXWA

  • Product Specs

  • Product Brochure

  • Parts Manual

  • Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)

Need help with choosing a system or have other questions? Talk with one of our trusted HVAC professionals today! 678-535-7176

Email us at : sales@acunitsforless.com

Call us at : 678-535-7176

 Physical Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia 30142, United States
  • Factory Warranty
  • Secure Checkout
  • 60-Day Returns*
  • Pro Support
  • Authorized Dealer

Tags: Avvl24dmxwa, Ge zoneline vtac

Shipping Policy

Once you place an order on AC units for less, we will promptly reach out to express our gratitude for your purchase and address any inquiries you may have. Our team will also review your order with you to ensure that you have selected the right equipment for your specific needs.

Order Process

Our order process includes a handling or production time in addition to the transit time. Delivery time = handling time + transit time.

Handling Time

All the products undergo a production process, so there will be a handling time of 2–3 business days from Monday to Friday. If your order is placed and payment is received after 2 p.m., then we will process the order the next business day.

Transit Time

Our shipping providers take 3-4 business days to deliver the order. It's an estimate, so there might be a delay.

Shipping Providers

We primarily use UPS or FEDEX for our deliveries. However, we reserve the right to use other carrier services as required to ensure efficient delivery. After an order ships, the shipping carrier will contact customers to coordinate the delivery schedule.

Once an order has been processed and shipped, it's important to note that the shipping address cannot be altered. Items designated for pickup at the terminal will only be released to the individual listed on the shipping label. A valid driver's license and a signature will be required for the release of the shipment. We adhere strictly to this policy, with no exceptions.

Shipping Rates

We offer free shipping on all orders except for Flat Bed Shipping or Oversized items. Flat Bed Freight Shipping applies to units larger than 7.5 tons. These items will be delivered via flat bed truck and may require additional delivery coordination. Flat rate charges will be shown at checkout for eligible item. Hot Point PTAC items if ordered under 8 Units different freight is charged

Damages and shipping issues

At ACUnitsForLess.com, we are committed to providing our customers with a superior buying experience. We offer free crating to safeguard your equipment during transit, thus eliminating any concerns regarding damage. When you compare our shipping policy to that of our competitors, you'll notice the difference. Customers are not held accountable for any damage to their orders.

Please make your purchase with confidence, knowing that we will ensure you receive the correct equipment that is brand new and in perfect condition.

How do I handle a return shipment?

You may return your unopened order within 60 days for a refund, minus shipping costs and a 25% restocking fee. Customers will be responsible for return shipping costs. Please keep your original box for shipping.

Cancellation

All orders cancelled after 6 hours from the confirmation email will follow the  return process,  whether or not your order has been shipped. If your order has shipped, you (the buyer) will also be responsible for return shipping charges. Refunds will be issued to the original credit card.

However, if you cancel the order before 6 hours, we will refund your full money.

To process the cancellation, please call us at +1  678-535-7176. We will not be available on Saturday and Sunday, so if somehow you have purchased a product on these days, then contact us on Monday before 3 pm.

If you need any help, feel free to contact us

Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia, 30142, United States
E-Mail: sales@acunitsforless.com
Phone: +1  678-535-7176
Customer Service: Monday to Friday between 9:00 am to 5:00 pm.

Return Policy

If you are not entirely happy with your purchase, you can return your item/s within 60 days of delivery for a full refund of the original payment.

Once we have received the product(s) and, if appropriate, any packaging, a refund will be credited to the payment card account within two weeks; please note that it may take up to 3 days for your bank to credit your account. We are not liable and cannot take responsibility for any bank charges you may incur during the refund process.

Damages and issues

Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right. In this case, we will cover the cost of return shipping as well as we will not charge any restocking fee.

Exchanges

The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item. The cost of return shipping is the responsibility of the customer if you want to Exchange. Also we will charge 25% restocking fee.

Return Eligibility

Your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging to be eligible for a return. You’ll also need the receipt or proof of purchase.

Non-returnable items

The following items are not eligible for return:

  • Items that weren't returned within 60 days from the date the customer received the item
  • Items that have been used or damaged by the customer
  • Items that are not in their original packaging
  • Items that do not have all tags and accessories
  • Unfortunately, we cannot accept returns on sale items or gift cards.
  • Items that are consumable and  other wise stated cannot be returned examples are parts, compressors, misc items
  • Special order units
  • Custom-configured products
  • Commercial Units
  • Consumable parts
Return Costs

The cost of return shipping is the responsibility of the customer, except in the case of items that were damaged in transit. In that case, we will cover the cost of return shipping.

Restocking Fee

We charge 25% Restocking Fee, except product got damaged by carrier.

To start a return, you can contact us at sales@acunitsforless.com. If your return is accepted, we’ll send you a return shipping label and instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.

Cancelled Orders

An order that has shipped cannot be cancelled. If you refuse an order which has already been shipped, not due to damage, you will be responsible for paying an ORDER RETURN FEE. We incur a fee from the freight carrier to return items that have been shipped, this fee is dependent on the item refused and the destination location.

Built-to-Order Items

There are no returns allowed for products which have been specially built for you and shipped by the manufacturer. These items are not routinely stocked at our warehouse and therefore cannot be returned.

Final Sale Policy

 By placing an order, the purchaser expressly acknowledges and agrees to the following terms:

1. No Returns or Exchanges
Final sale items are not eligible for return, exchange, substitution, or store credit for any reason, including but not limited to dissatisfaction, incorrect selection, incompatibility, or change of mind.

2. No Refunds
All sales of final sale items are final and non-refundable. Once an order is placed, it cannot be canceled, modified, or refunded.

3. Assumption of Risk
The purchaser assumes full responsibility for determining product suitability, compatibility, and compliance with applicable codes, regulations, and intended use prior to purchase.

4. Condition and Disclaimer
Final sale items are sold “AS IS” and “WITH ALL FAULTS” with no representations or warranties, express or implied, including but not limited to any implied warranties of merchantability, fitness for a particular purpose, or non-infringement, except where prohibited by law.

5. Shipping and Damage Claims
Any damage occurring during transit must be reported in writing within 48 hours of delivery with supporting photographs. Failure to report within this period constitutes acceptance of the product.

6. Chargebacks and Disputes
The purchaser agrees not to initiate any chargebacks or payment disputes related to final sale items. Any chargeback initiated in violation of this policy may be contested with the payment processor using this agreement as evidence.

7. Severability
If any provision of this policy is deemed unenforceable under applicable law, the remaining provisions shall remain in full force and effect.

If you need any help, feel free to contact us

Address: Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia, 30142, United States
E-Mail: sales@acunitsforless.com
Phone: +1  678-535-7176
Customer Service: Monday to Friday between 9:00 am to 5:00 pm.

Refund Policy

We provide a 60-day return policy for your convenience. To initiate a return, it is essential that the items remain unused and in their original manufacturer's packaging. When returning the equipment, please ensure that you reuse all shipping materials that were initially used to protect the equipment during shipment.

We will provide the return label.

Upon receiving your return, we will issue a refund for the full order amount, minus the return shipping cost and a 25% restocking fee.

Final Sale Policy

 By placing an order, the purchaser expressly acknowledges and agrees to the following terms:

1. No Returns or Exchanges
Final sale items are not eligible for return, exchange, substitution, or store credit for any reason, including but not limited to dissatisfaction, incorrect selection, incompatibility, or change of mind.

2. No Refunds
All sales of final sale items are final and non-refundable. Once an order is placed, it cannot be canceled, modified, or refunded.

3. Assumption of Risk
The purchaser assumes full responsibility for determining product suitability, compatibility, and compliance with applicable codes, regulations, and intended use prior to purchase.

4. Condition and Disclaimer
Final sale items are sold “AS IS” and “WITH ALL FAULTS” with no representations or warranties, express or implied, including but not limited to any implied warranties of merchantability, fitness for a particular purpose, or non-infringement, except where prohibited by law.

5. Shipping and Damage Claims
Any damage occurring during transit must be reported in writing within 48 hours of delivery with supporting photographs. Failure to report within this period constitutes acceptance of the product.

6. Chargebacks and Disputes
The purchaser agrees not to initiate any chargebacks or payment disputes related to final sale items. Any chargeback initiated in violation of this policy may be contested with the payment processor using this agreement as evidence.

7. Severability
If any provision of this policy is deemed unenforceable under applicable law, the remaining provisions shall remain in full force and effect.

genuine_parts

IMPORTANT: HVAC and Water Heater parts and accessories should only be installed by qualified technicians. Failure to understand and follow the manufacturer’s installation and use instructions may result in fire or explosion, electric shock, property damage, injury or loss of life. It is your responsibility to seek professional advice when installing and using these parts and accessories.

The GE Zoneline Heat Pump AVVL24DMXWA is a vertical packaged system engineered to provide reliable year-round heating and cooling for residential, hospitality, and commercial spaces. With 22,400 BTU cooling capacity and a nominal 21,500 BTU heat pump heating capacity, advanced R-454B refrigerant, and energy-efficient design, this system delivers consistent comfort with precise room-by-room temperature control. Its vertical configuration allows flexible installation in spaces requiring compact, self-contained HVAC solutions.

Product Overview of GE AVVL24DMXWA

The GE AVVL24DMXWA is a single-package vertical zoneline heat pump integrating both cooling and heating functions in one compact cabinet. This R454B vertical heat pump uses modern zoneline technology to maintain consistent indoor temperatures while reducing energy use. Its vertical design is ideal for multi-unit residences, hotels, offices, and commercial spaces where independent zone comfort is required.

Quick Facts

  • Brand: GE
  • Model Number: AVVL24DMXWA
  • Product Type: Vertical Zoneline Heat Pump – Single Package Vertical AC
  • Cooling Capacity: 22,400 BTU (2 Ton)
  • Heating Capacity: 21,500 BTU nominal
  • Refrigerant: R-454B
  • Voltage: 208/230V
  • Phase: Single phase
  • Efficiency: Up to 16.0 SEER2 / 8.9 EER2
  • Application: Residential, hospitality, and commercial heating & cooling

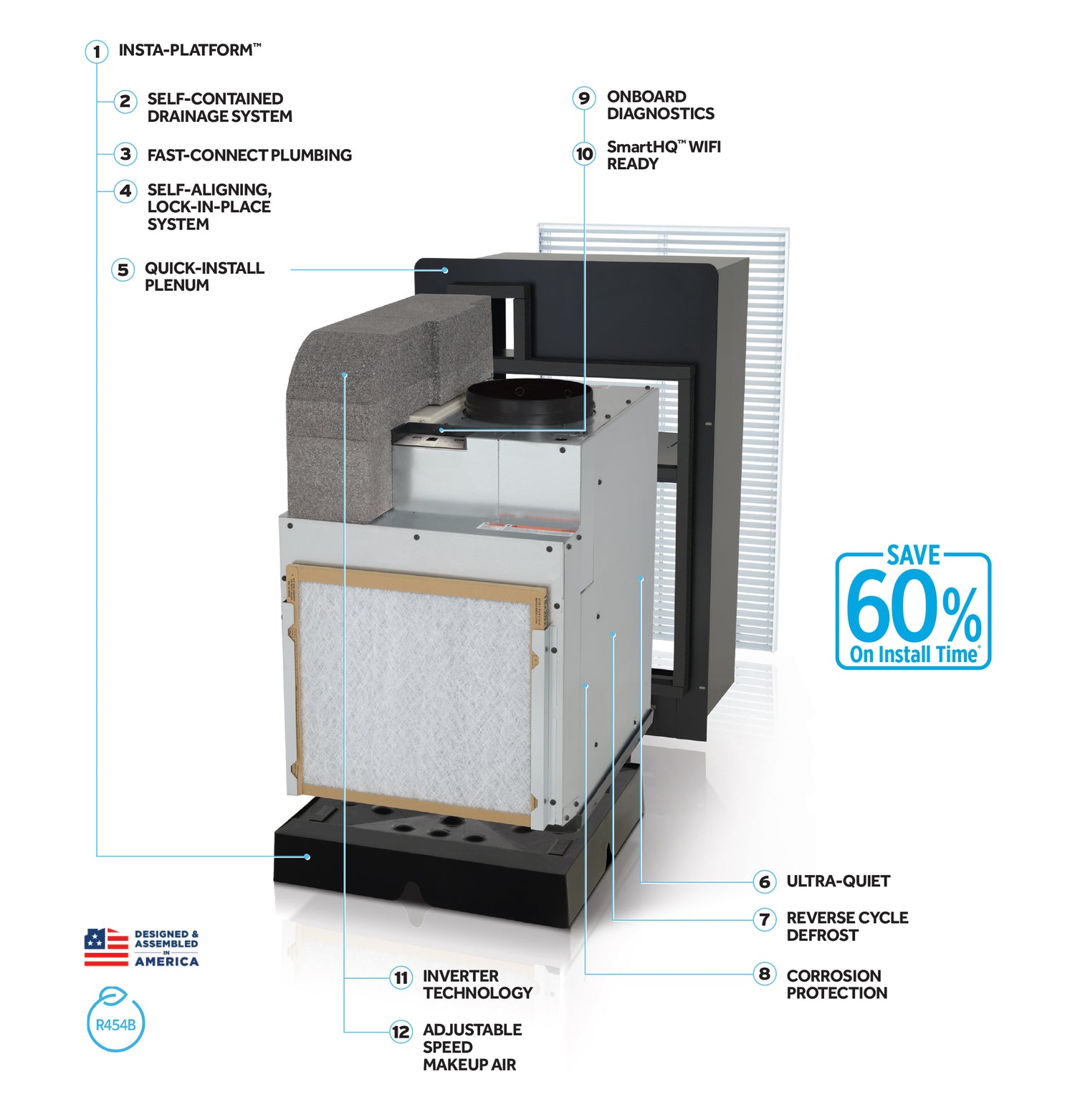

Key Features of GE AVVL24DMXWA

  • 22,400 BTU cooling capacity
  • Nominal 21,500 BTU heat pump heating capacity
  • Advanced R-454B refrigerant system
  • Single-package vertical zoneline design
  • Compact and space-saving configuration
  • Efficient, reliable single-stage compressor
  • Ideal for individual zone temperature control
  • Built-in controls for easy operation
  • Designed for multi-unit and commercial applications

The AVVL24DMXWA delivers reliable heating and cooling performance in a single vertical package. Its integrated design supports efficient room-by-room comfort control while maintaining energy-efficient operation.

Cooling Capacity and Coverage

The GE 22,400 BTU vertical zoneline heat pump provides consistent cooling for medium to large rooms or commercial spaces. Its nominal 24,000 BTU cooling output ensures indoor temperatures remain comfortable during hot conditions. Actual coverage depends on room size, insulation, and installation conditions.

Energy Efficiency of GE AVVL24DMXWA

This vertical zoneline heat pump achieves up to 16.0 SEER2 for cooling and 8.9 EER2, ensuring energy-efficient performance while delivering reliable seasonal heating and cooling. Proper installation and routine maintenance optimize energy efficiency and system longevity.

R454B Refrigerant Benefits

The R454B Vertical Heat Pump uses modern refrigerant technology designed for efficient heat transfer and reliable performance. R-454B supports environmentally responsible operation and meets current HVAC efficiency standards.

Construction and Design

The GE AVVL24DMXWA features a durable vertical cabinet that houses both cooling and heating components. Its self-contained, single-package structure simplifies installation and saves space. The vertical design allows flexible placement in apartments, hotels, offices, and other commercial spaces requiring zoned comfort.

Installation and Compatibility

The GE 2 Ton Vertical AC is designed for vertical zoneline applications. The unit requires proper electrical connections and professional installation to ensure optimal airflow, temperature control, and long-term reliability.

Ideal Applications

  • Hotels and hospitality properties
  • Apartments and multi-family residences
  • Offices and commercial buildings
  • Individual room climate control
  • Renovation projects with limited floor space
  • Residential spaces needing zoned comfort

Why Choose GE AVVL24DMXWA?

Customers looking to buy GE Zoneline 2 Ton Heat Pump can choose the AVVL24DMXWA for its integrated cooling and heat pump heating functions, compact vertical package, and advanced R-454B refrigerant technology. This vertical packaged HVAC system delivers reliable year-round comfort with energy-efficient operation.

Maintenance Tips

  • Clean or replace air filters regularly
  • Keep intake and exhaust areas clear
  • Inspect coils periodically
  • Maintain proper airflow around the unit
  • Check electrical connections routinely
  • Keep the installation area clean and unobstructed
  • Schedule professional HVAC inspections

Technical Specifications

Specification

Details

Brand

GE

Model Number

AVVL24DMXWA

Product Type

Vertical Zoneline Heat Pump – Single Package Vertical AC

Cooling Capacity

22,400 BTU (2 Ton)

Heating Capacity

21,500 BTU nominal

Efficiency

Up to 16.0 SEER2 / 8.9 EER2

Refrigerant

R-454B

Compressor

Single stage

Voltage

208/230V

Phase

Single phase

Width

23.625 inches

Height

36.875 inches

Depth

28.375 inches

Weight

Approximately 137 lbs

Application

Residential, hospitality, and commercial heating & cooling

Frequently Asked Questions

Q1. What type of system is GE AVVL24DMXWA?
 The AVVL24DMXWA is a single-package vertical zoneline heat pump that provides both cooling and heat pump heating.

Q2. What refrigerant does this unit use?
 This system uses R-454B refrigerant, designed for efficient, modern HVAC performance.

Q3. What is the nominal heating capacity of this heat pump?
 The nominal heat pump output is 21,500 BTU for year-round comfort.

Q4. Where is this unit typically installed?
 It is ideal for hotels, apartments, offices, and other commercial or residential spaces requiring zoned comfort.

Q5. What are the benefits of a vertical zoneline design?
 The vertical configuration saves floor space, allows flexible placement, and delivers efficient room-by-room temperature control.
