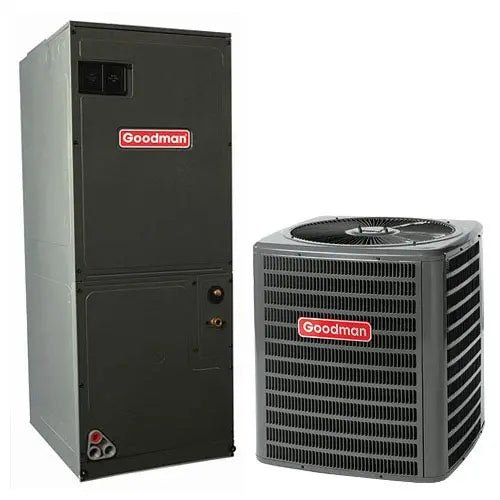

Goodman 3.0 Ton SEER Heat Pump ECM AH AMST36CU1400 GSZB403610 HKSX10XC

(31)
$4,028.00 USD $4,100.00
96706534-0933-4108-A7F9-5DA8667402EE Created with sketchtool. Free Shipping
Product Discontinued
Sorry, this product is no longer available.
Try This Instead

Description

Model: AMST36CU1400

Goodman Specifications Sheet Click HERE

Model: GSZB403610

Goodman Specifications Sheet Click HERE

Model: HKSX10XC

Goodman Specifications Sheet Click HERE

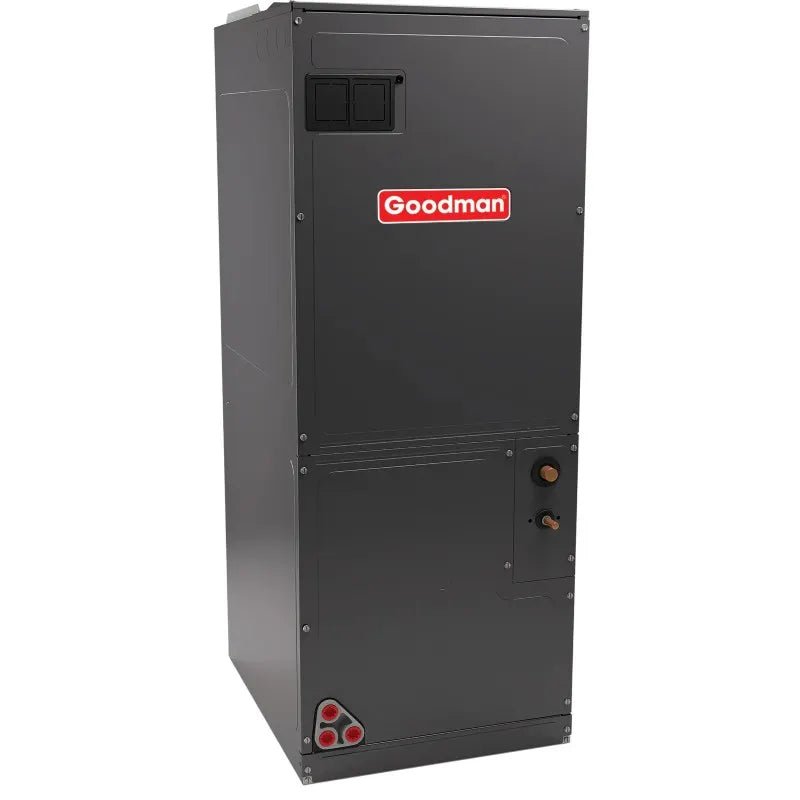

Air Handler: AMST36CU1400

Specifications:

Internal factory-installed thermal expansion valves for cooling and heat pump applications

Direct drive, 9-speed ECM blower motor

Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models

All-aluminum evaporator coil with high-performance coated fin stock

Coil mounting track for quick repositioning

Optimized for use with R-410A refrigerant

Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193

Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193

3 kW – 25 kW electric heater kits

AHRI certified

ETL listed

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes:

Brand: Corporate
Cabinet Features:
Rigid SmartFrame cabinet
Horizontal or vertical configuration capabilities
21” depth for easier attic access
DecaBDE-free thermoplastic drain pan with secondary drain connections
Screw-less sides and back helps to reduce condensation when installed in humid locations
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Glue-less cabinet insulation retention
Tool-less filter access
Class:
Air Handler
Unit Depth:
21
Unit Height:
49
Unit Width:
21
Family Description:
Multi-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV 1½ to 5 Tons
Max. Voltage:
240
Min. Circuit:
7.1
Min. Voltage:
208
Motor Speed Type:
Single Speed
Power Frequency:
50/60
Power Phase:
1
Power Voltage:
208-240
Product Benefits:
All-Aluminum tube/aluminum fin coil
Direct-drive, resilient-mount, 9-speed ECM motor
Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
High-efficiency evaporator coil
Quiet operation
Primary/secondary drain connection in a high-temperature plastic drain pan
Suitable for free-return installation (non-ducted return air)
Galvanized-steel construction
Factory-installed pull-type disconnect
Easy service access
AHRI Certified
ETL Listed
Category:
Air Handler
Family:
AMST
Product ID Bar Code:
AMST36CU1400
Prop65 Label Required:
TRUE
Refrigerant:
R-410A
Tonnage:
3 tons
Unit Type:
Indoor
Unit Weight:
153



DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)

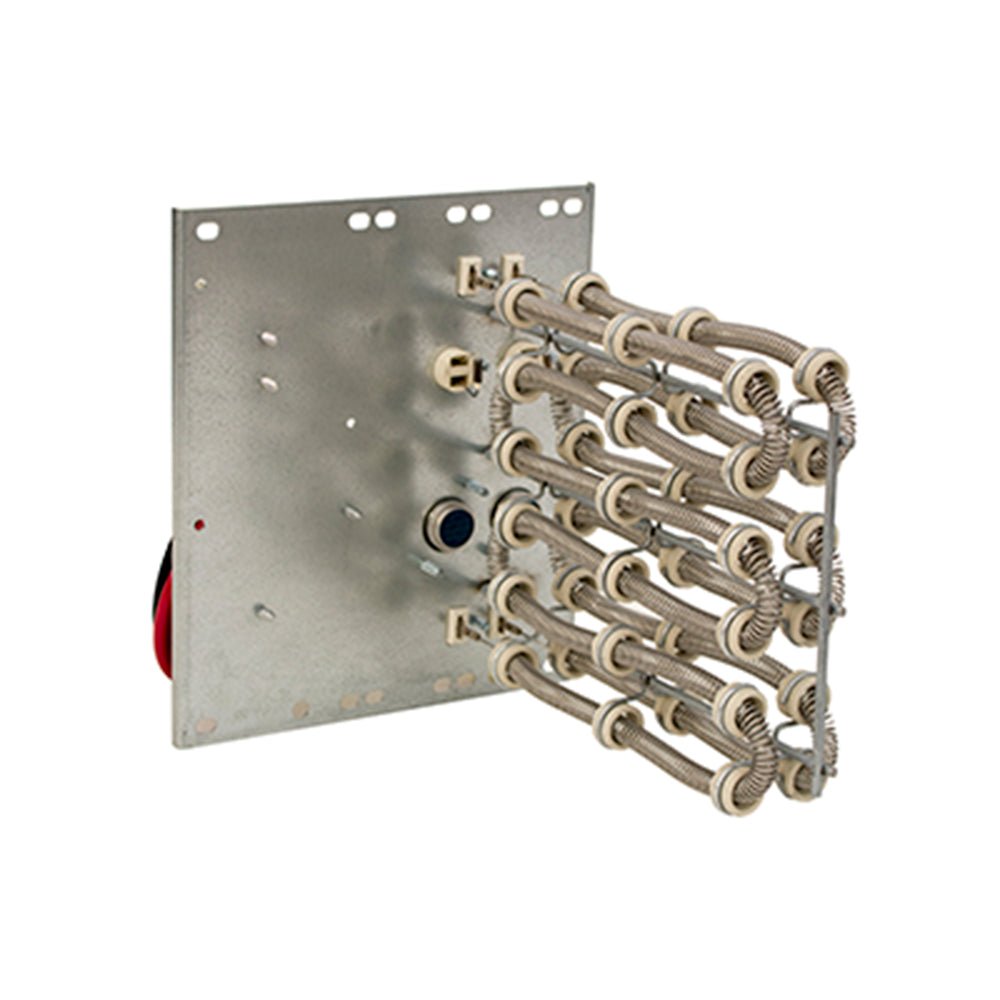

Blower: HKSX10XC

Product Attributes

Brand: PartsAndAccessories

Class: Heat Kits

Category: Parts, Supplies & Accesories

Prop65 Label Required: No

Vendor: Zoppas Industries De Mexico SA DE

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)

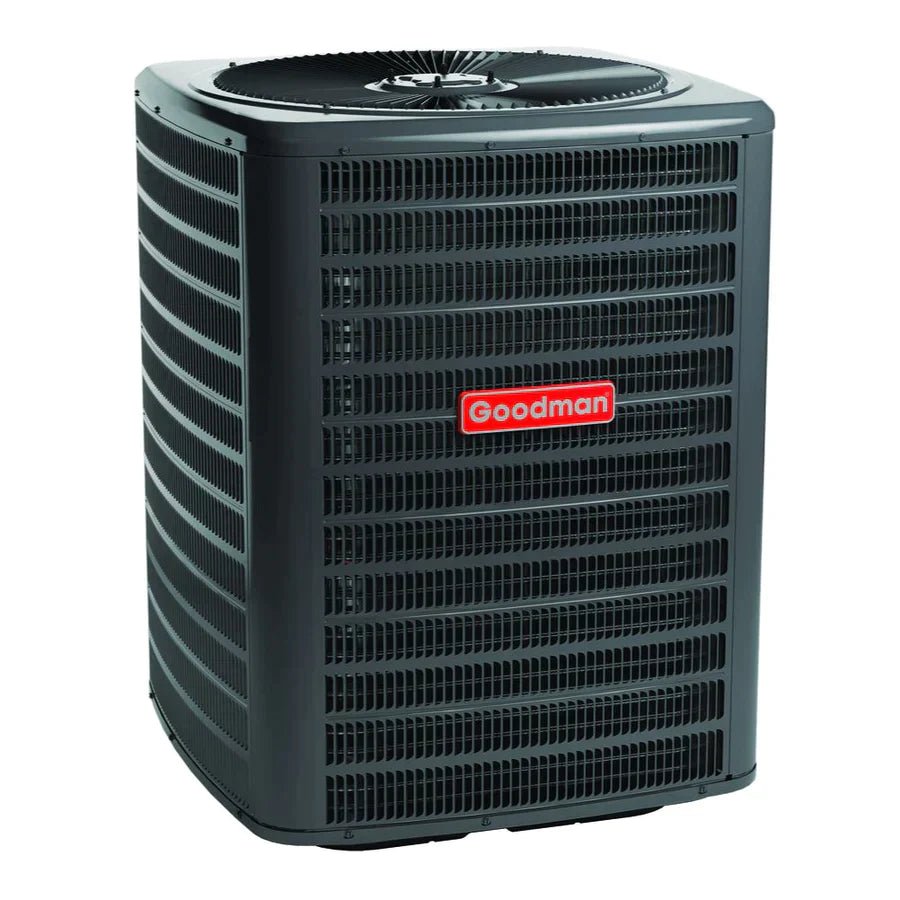

OUTDOOR: GSZB403610

Specifications

High-Efficiency scroll compressor

SmartShift® technology to ensure quiet reliable defrost

Copper tube/ enhanced aluminum fin coil- 5mm diameter on 1.5-3.5T

Factory-installed suction-line accumulator

Factory-installed compressor crankcase heater

Factory-installed high-capacity muffler

High- and low-pressure switches

Service valves with sweat connections and easy access to gauge ports

Fully charged for 15' of tubing length

Contactor with lug connection

Ground lug connection

AHRI Certified

ETL Listed

Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Brand: Goodman
Cabinet Features:
Removable grill-style top design compliant with UL 60335-2-40
Increased airflow and enhanced air movement via new, optimized venturi rings
Steel louver coil guard
Heavy-gauge galvanized-steel cabinet
Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
Top and side maintenance access
When properly anchored, it meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Class: Split Heat Pump
Compressor Stages: Single Stage
Compressor Type: Scroll
Cooling Capacity Rated: 34400
Unit Depth: 35.5
Unit Height: 39.6095
Unit Width: 35.5
Family Description: Energy-Efficient Split System Heat Pump, 14.3 SEER2 and 7.5 HSPF2, 1-1/2 to 5 Tons
Heating Capacity Rated: 34400
Max. Voltage: 253
Min. Voltage: 197
Model Efficiency: 14.3 SEER2
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Split Heat Pump
Family: GSZB4
Product ID Bar Code: GSZB403610
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 3 tons
Unit Type: Outdoor
Suction Valve Outside Diameter: 7/8
Unit Weight: 214



DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)



Reviews (31)

Customer Reviews

Based on 31 reviews
32%
(10)
61%
(19)
6%
(2)
0%
(0)
0%
(0)
R
Rosemberg Garcia
Very good

All very well. The equipment arrived quickly and in good condition.

A
Andrew Bell
A great investment

Goodman 3.0 Ton Heat Pump from AC Unit for less company is a great investment. Professional installation, efficient performance. Highly recommend.

B
Benjamin
Free Shipping

Impressive energy efficiency! This product boasts a SEER rating that ensures lower energy bills. Plus, with a robust warranty, customers can enjoy peace of mind. Free shipping adds value, making it a smart investment in home comfort."

R
Ram S
Average product

This Unit gets the job done. It provides adequate cooling and heating for our home. Installation was straightforward, and we haven't encountered any major issues so far.

W
Walter
Expertise in Installation

Highly impressed with Goodman 3.0 Ton Heat Pump . Reliable performance, expert installation. Great value for money.

FAQ's for Goodman

  1. What is the SEER rating of this unit?

    SEER (Seasonal Energy Efficiency Ratio) is a measure of the efficiency of your air conditioning system. The higher the SEER rating, the more energy-efficient the unit. This Goodman 3.0 Ton SEER Heat Pump ECM AH AMST36CU1400 GSZB403610 HKSX10XC has a SEER rating of 14.3.

  2. What size air conditioner do I need for my home?

    Choosing the right size unit depends on the square footage of your home. For example:

    • Up to 1,200 sq. ft. – 1.5 to 2 tons
    • 1,200 to 1,600 sq. ft. – 2 to 3 tons
    • 1,600 to 2,100 sq. ft. – 3 to 4 tons
    Our experts can help you determine the best size based on your specific needs.

  3. Is this unit compatible with my existing system?

    The Goodman 3.0 Ton SEER Heat Pump ECM AH AMST36CU1400 GSZB403610 HKSX10XC is compatible with a variety of HVAC systems. For specific compatibility with your current setup, please consult with our support team or refer to the product manual.

  4. How long is the warranty for this unit?

    This unit comes with a manufacturer warranty of Manufactured warranty. You can also purchase extended warranties for added peace of mind.

  5. How energy efficient is this unit?

    The Goodman 3.0 Ton SEER Heat Pump ECM AH AMST36CU1400 GSZB403610 HKSX10XC is designed to be highly energy efficient, which can help reduce your electricity bills. With a SEER rating of 14.3, it meets or exceeds federal efficiency standards.

  6. What maintenance does this unit require?

    Regular maintenance includes cleaning or replacing air filters, inspecting ducts for leaks, and scheduling annual professional tune-ups. Following the manufacturer’s maintenance guidelines will ensure optimal performance.

  7. Can I install this unit myself, or do I need a professional?

    We recommend professional installation for the Goodman 3.0 Ton SEER Heat Pump ECM AH AMST36CU1400 GSZB403610 HKSX10XC to ensure that it functions correctly and maintains its warranty. Improper installation can lead to performance issues and may void the warranty.

  8. How long does shipping take?

    Standard shipping takes between 3-4 Days, depending on your location. Expedited shipping options are also available.

  9. Are there financing options available?

    Yes, we offer financing options through Shopify. Visit our financing page or contact us for more information on available plans.

  10. What are the noise levels of this unit?

    The Goodman 3.0 Ton SEER Heat Pump ECM AH AMST36CU1400 GSZB403610 HKSX10XC operates at approximately decibels, making it relatively quiet during operation. Noise levels may vary depending on the unit’s location and installation.

  11. Does this unit qualify for any rebates or incentives?

    Depending on your location, you may be eligible for local or federal rebates for purchasing energy-efficient HVAC systems. Check with your local energy provider or government for available programs.

  12. What refrigerant does this unit use?

    The AMST36CU1400 GSZB403610 HKSX10XC uses , which is environmentally friendly and complies with modern environmental standards.

  13. What happens if my unit arrives damaged?

    If your unit arrives damaged, please contact us immediately at 678 535 7176. We will arrange for a replacement or repair, depending on the situation.

  14. How can I track my order?

    Once your order ships, we will send you tracking information via email. You can also log into your account to track the status of your shipment at any time.

Shipping Policy

We provide Free Delivery . Please contact us for assistance.

Once you place an order on ACunitsforless.com, we will promptly reach out to express our gratitude for your purchase and address any inquiries you may have. Our team will also review your order with you to ensure that you have selected the right equipment for your specific needs.

Orders will be processed within 48 hours of payment confirmation.

Upon shipping your order, you will receive an email notification containing a tracking number, which allows you to monitor its progress. Please allow 48 hours for the tracking information to become available.

If your order is placed and payment is received by 12 p.m. EST (Monday - Friday), the order typically ships within the next 72 hours. Orders submitted on weekends are processed on Mondays. We kindly request that you allow 3-5 business days for your shipment to arrive, although, in most cases, it arrives sooner.

To ensure smooth communication, customers are advised to confirm that the contact information provided in their order is valid and in working condition. We will use the information on the order page to make phone calls and send emails.

After an order ships, the shipping carrier will contact customers to coordinate the delivery schedule.

Once an order has been processed and shipped, it's important to note that the shipping address cannot be altered. Items designated for pickup at the terminal will only be released to the individual listed on the shipping label. A valid driver's license and a signature will be required for the release of the shipment. We adhere strictly to this policy, with no exceptions.

Damages and Shipping Issues:

At ACUnitsForLess.com, we are committed to providing our customers with a superior buying experience. We offer free crating to safeguard your equipment during transit, thus eliminating any concerns regarding damage. When you compare our shipping policy to that of our competitors, you'll notice the difference. Customers are not held accountable for any damage to their orders.

Please make your purchase with confidence, knowing that we will ensure you receive the correct equipment, brand new and in perfect condition.

Cancellation: If an order is canceled or a delivery is refused after the order is in transit, it will be considered a "Return Request" and subject to the fees outlined in our Return Policy.

We kindly ask that you refrain from scheduling the installation of your equipment until you have received and thoroughly inspected it. ACUnitsForLess.com cannot be held responsible for any costs associated with pre-scheduled appointments that are missed due to shipping delays or damages.

Please contact us with any questions:

sales@acunitsforless.com

678-535-7176

Return Policy

RETURN POLICY

If you are not entirely happy with your purchase, you can return your item/s within 60 days of delivery for a full refund of the original payment.

Once we have received the product(s) and, if appropriate, any packaging, a refund will be credited to the payment card account within two weeks; please note that it may take up to 3 days for your bank to credit your account. We are not liable and cannot take responsibility for any bank charges you may incur during the refund process.

DAMAGES AND ISSUES

Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right. In this case, we will cover the cost of return shipping as well as we will not charge any restocking fee.

EXCHANGES

The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item. The cost of return shipping is the responsibility of the customer if you want to Exchange. Also we will charge 10% restocking fee.

RETURN ELIGIBILITY

Your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging to be eligible for a return. You’ll also need the receipt or proof of purchase.

NON-RETURNABLE ITEMS

The following items are not eligible for return:

  • Items that weren't returned within 60 days from the date the customer received the item
  • Items that have been used or damaged by the customer
  • Items that are not in their original packaging
  • Items that do not have all tags and accessories
  • Unfortunately, we cannot accept returns on sale items or gift cards.

RETURN COSTS

We will refund the full order amount minus the return shipping cost and a 10% restocking fee.

RESTOCKING FEE

We charge 10% Restocking Fee, except product got damaged by carrier.

To start a return, you can contact us at sales@acunitsforless.com. If your return is accepted, we’ll send you a return shipping label and instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.

If you need any help, feel free to contact us

Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia, 30142, United States
E-Mail: sales@acunitsforless.com
Phone: +1  678-535-7176
Customer Service: Monday to Friday between 9:00 am to 5:00 pm.

Refund Policy

We provide a 60-day return policy for your convenience. To initiate a return, it is essential that the items remain unused and in their original manufacturer's packaging. When returning the equipment, please ensure that you reuse all shipping materials that were initially used to protect the equipment during shipment.

We will provide the return label.

Upon receiving your return, we will issue a refund for the full order amount, minus the return shipping cost and a 10% restocking fee.

PRODUCT INFORMATION DISCLAIMERS

Safety Liability Notice

We are not liable for any injuries, damages, or losses resulting from improper service or installation of our products. While we strive to provide reliable and high-quality HVAC products, any issues arising from improper handling, installation, or maintenance are the sole responsibility of the installer or service provider. Customers are encouraged to engage qualified professionals for installation and servicing to ensure safety and optimal performance. By purchasing and using our products, customers agree to hold The Acunitsforless Company harmless from any liability related to improper service or installation. It is essential to follow all manufacturer guidelines, industry standards, and local building codes to mitigate risks and ensure safe operation.

Installation Disclaimer

Please note that all installations should be performed by a licensed and experienced HVAC professional. Improper installation may result in equipment malfunction, reduced performance, increased energy consumption, and potential safety hazards.

Furthermore, it is essential to understand that any installation not conducted by a qualified HVAC professional may result in the voiding of warranty coverage. Manufacturers typically require installations to be carried out by certified technicians to uphold warranty terms and conditions.

By choosing to have your HVAC systems installed by a qualified professional, you not only protect your investment but also ensure the optimal performance and safety of your heating, ventilation, and air conditioning systems while maintaining warranty coverage.

California Prop 65 Warning

In compliance with California's Proposition 65, we are obligated to inform you that some products sold on our website may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

While we prioritize the safety and quality of our products, certain components or materials used in manufacturing may contain trace amounts of chemicals listed under Proposition 65. These chemicals may be present in various forms, including but not limited to coatings, adhesives, plastics, and metals.

It's important to note that the presence of these chemicals does not necessarily indicate any risk of harm when the products are used as intended. However, we encourage you to take all necessary precautions when handling or using our products, especially in accordance with any warnings or instructions provided.

For more information about Proposition 65 and the list of chemicals included, please visit the official website here.

Goodman 3.0 Ton SEER Heat Pump ECM AH AMST36CU1400 GSZB403610 HKSX10XC - AC units for less
Goodman

Goodman 3.0 Ton SEER Heat Pump ECM AH AMST36CU1400 GSZB403610 HKSX10XC

$4,028.00 USD $4,100.00

Model: AMST36CU1400

Goodman Specifications Sheet Click HERE

Model: GSZB403610

Goodman Specifications Sheet Click HERE

Model: HKSX10XC

Goodman Specifications Sheet Click HERE



Air Handler: AMST36CU1400

Specifications:

Internal factory-installed thermal expansion valves for cooling and heat pump applications

Direct drive, 9-speed ECM blower motor

Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models

All-aluminum evaporator coil with high-performance coated fin stock

Coil mounting track for quick repositioning

Optimized for use with R-410A refrigerant

Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193

Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193

3 kW – 25 kW electric heater kits

AHRI certified

ETL listed

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes:

Brand: Corporate
Cabinet Features:
Rigid SmartFrame cabinet
Horizontal or vertical configuration capabilities
21” depth for easier attic access
DecaBDE-free thermoplastic drain pan with secondary drain connections
Screw-less sides and back helps to reduce condensation when installed in humid locations
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Glue-less cabinet insulation retention
Tool-less filter access
Class:
Air Handler
Unit Depth:
21
Unit Height:
49
Unit Width:
21
Family Description:
Multi-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV 1½ to 5 Tons
Max. Voltage:
240
Min. Circuit:
7.1
Min. Voltage:
208
Motor Speed Type:
Single Speed
Power Frequency:
50/60
Power Phase:
1
Power Voltage:
208-240
Product Benefits:
All-Aluminum tube/aluminum fin coil
Direct-drive, resilient-mount, 9-speed ECM motor
Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
High-efficiency evaporator coil
Quiet operation
Primary/secondary drain connection in a high-temperature plastic drain pan
Suitable for free-return installation (non-ducted return air)
Galvanized-steel construction
Factory-installed pull-type disconnect
Easy service access
AHRI Certified
ETL Listed
Category:
Air Handler
Family:
AMST
Product ID Bar Code:
AMST36CU1400
Prop65 Label Required:
TRUE
Refrigerant:
R-410A
Tonnage:
3 tons
Unit Type:
Indoor
Unit Weight:
153



DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)



Blower: HKSX10XC

Product Attributes

Brand: PartsAndAccessories

Class: Heat Kits

Category: Parts, Supplies & Accesories

Prop65 Label Required: No

Vendor: Zoppas Industries De Mexico SA DE

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)

OUTDOOR: GSZB403610

Specifications

High-Efficiency scroll compressor

SmartShift® technology to ensure quiet reliable defrost

Copper tube/ enhanced aluminum fin coil- 5mm diameter on 1.5-3.5T

Factory-installed suction-line accumulator

Factory-installed compressor crankcase heater

Factory-installed high-capacity muffler

High- and low-pressure switches

Service valves with sweat connections and easy access to gauge ports

Fully charged for 15' of tubing length

Contactor with lug connection

Ground lug connection

AHRI Certified

ETL Listed

Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Brand: Goodman
Cabinet Features:
Removable grill-style top design compliant with UL 60335-2-40
Increased airflow and enhanced air movement via new, optimized venturi rings
Steel louver coil guard
Heavy-gauge galvanized-steel cabinet
Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
Top and side maintenance access
When properly anchored, it meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Class: Split Heat Pump
Compressor Stages: Single Stage
Compressor Type: Scroll
Cooling Capacity Rated: 34400
Unit Depth: 35.5
Unit Height: 39.6095
Unit Width: 35.5
Family Description: Energy-Efficient Split System Heat Pump, 14.3 SEER2 and 7.5 HSPF2, 1-1/2 to 5 Tons
Heating Capacity Rated: 34400
Max. Voltage: 253
Min. Voltage: 197
Model Efficiency: 14.3 SEER2
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Split Heat Pump
Family: GSZB4
Product ID Bar Code: GSZB403610
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 3 tons
Unit Type: Outdoor
Suction Valve Outside Diameter: 7/8
Unit Weight: 214



DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)



View product
