Mr Cool DIY 4th Generation E Star 18k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
We provide Free Shipping
Email us at : sales@acunitsforless.com
Call us at : 678-672-0213
Physical Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia 30142, United States
Mr Cool DIY 4th Generation E Star 18k BTU Ductless Mini-Split Heat ...

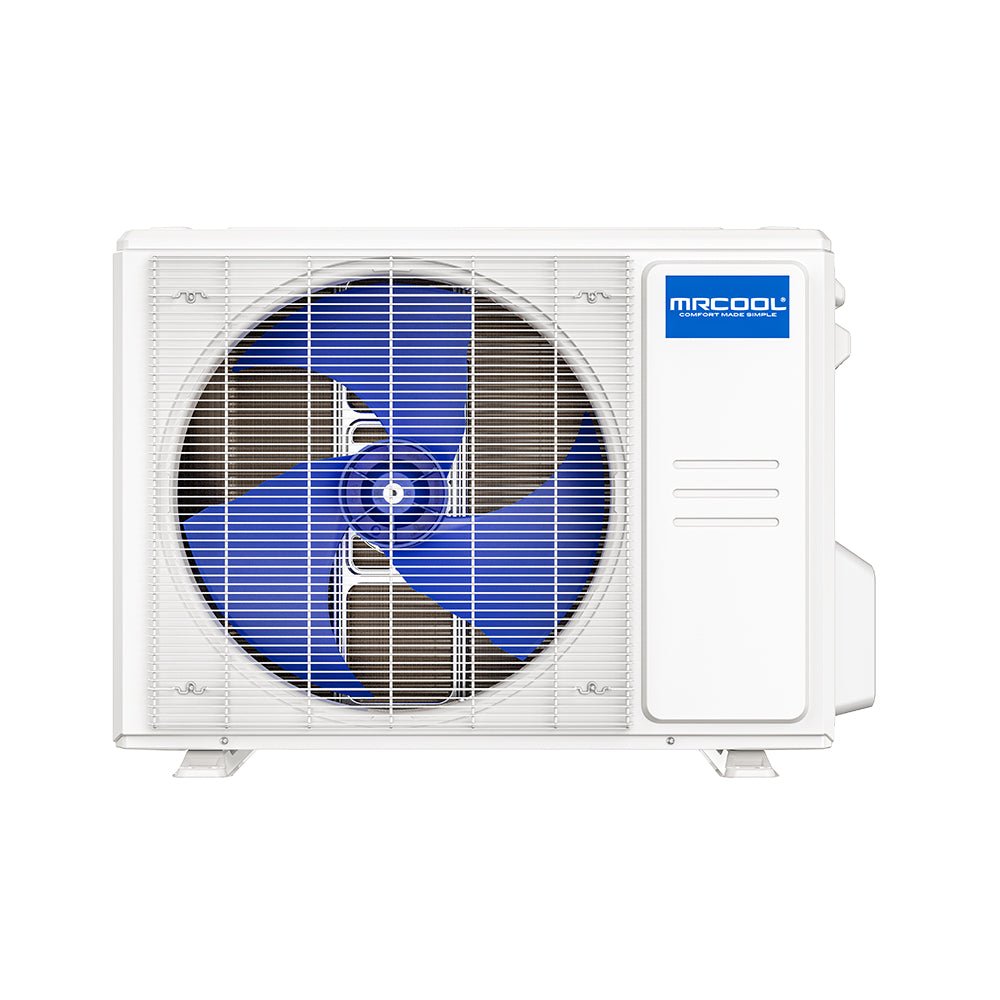

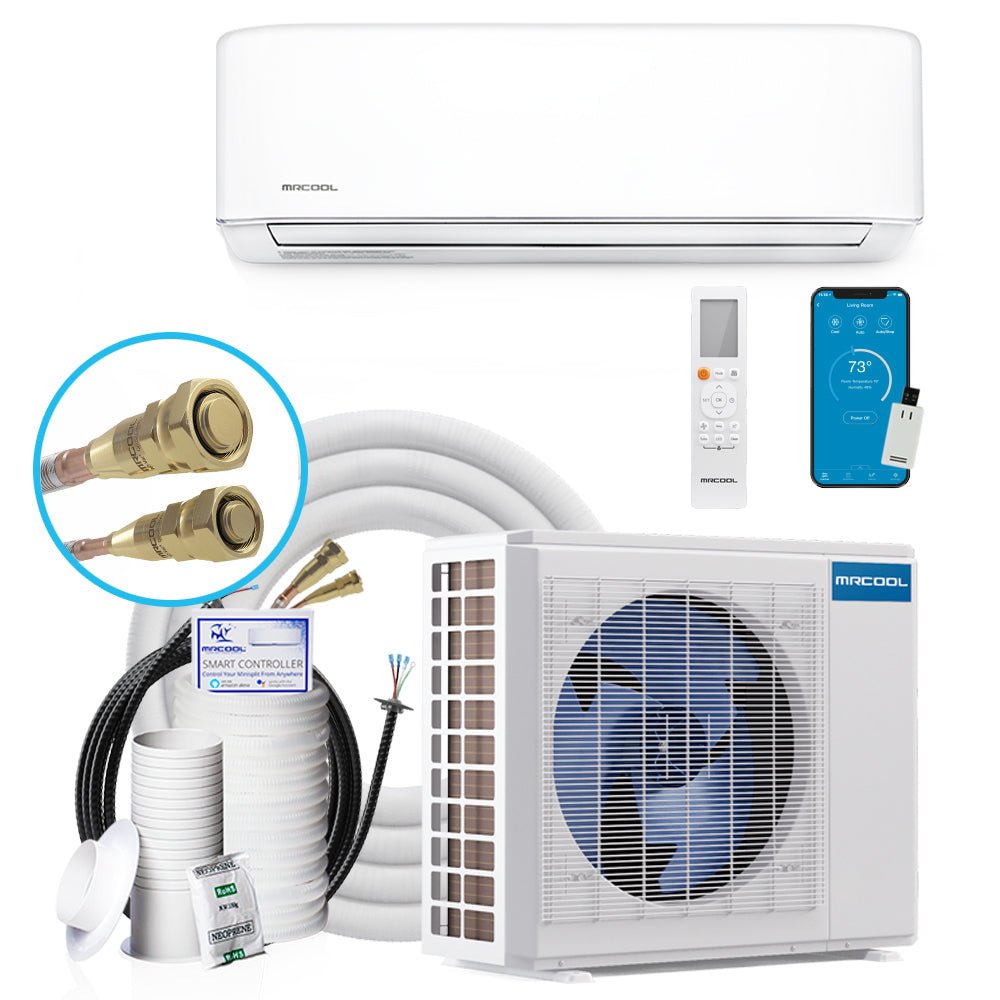

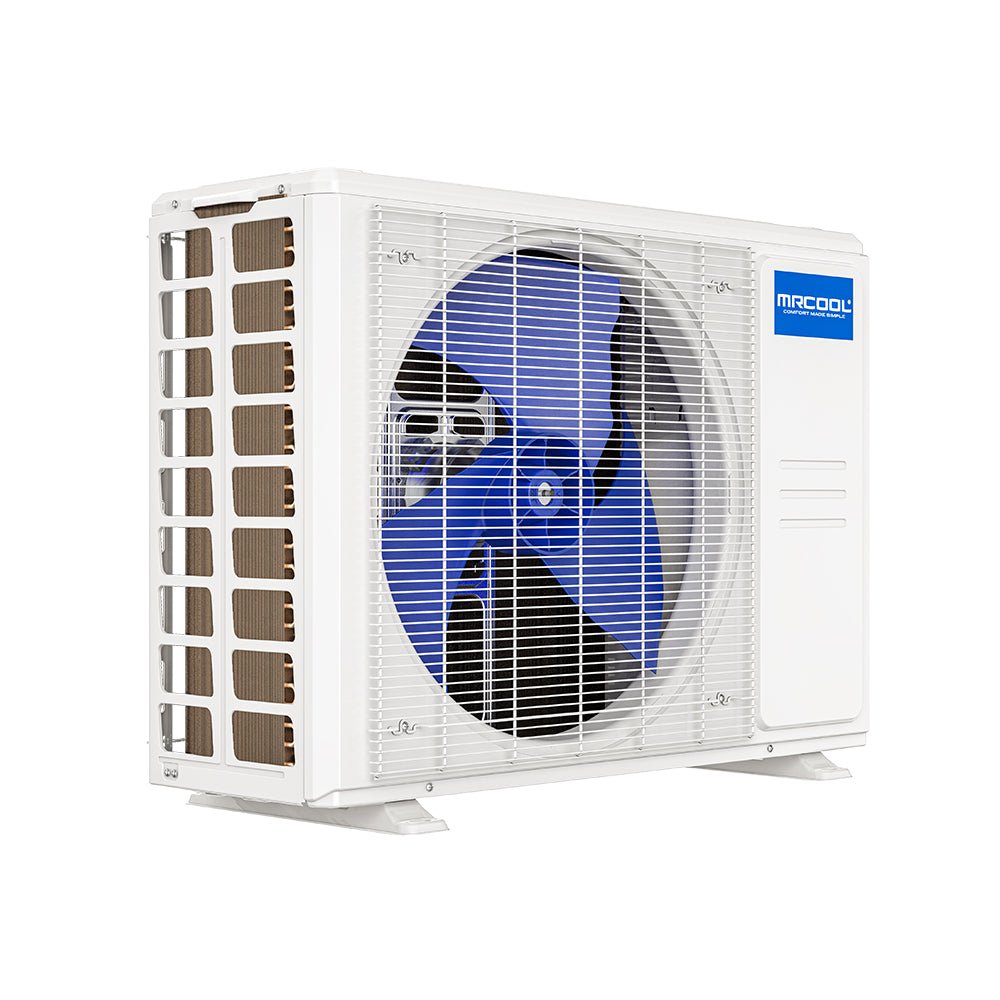

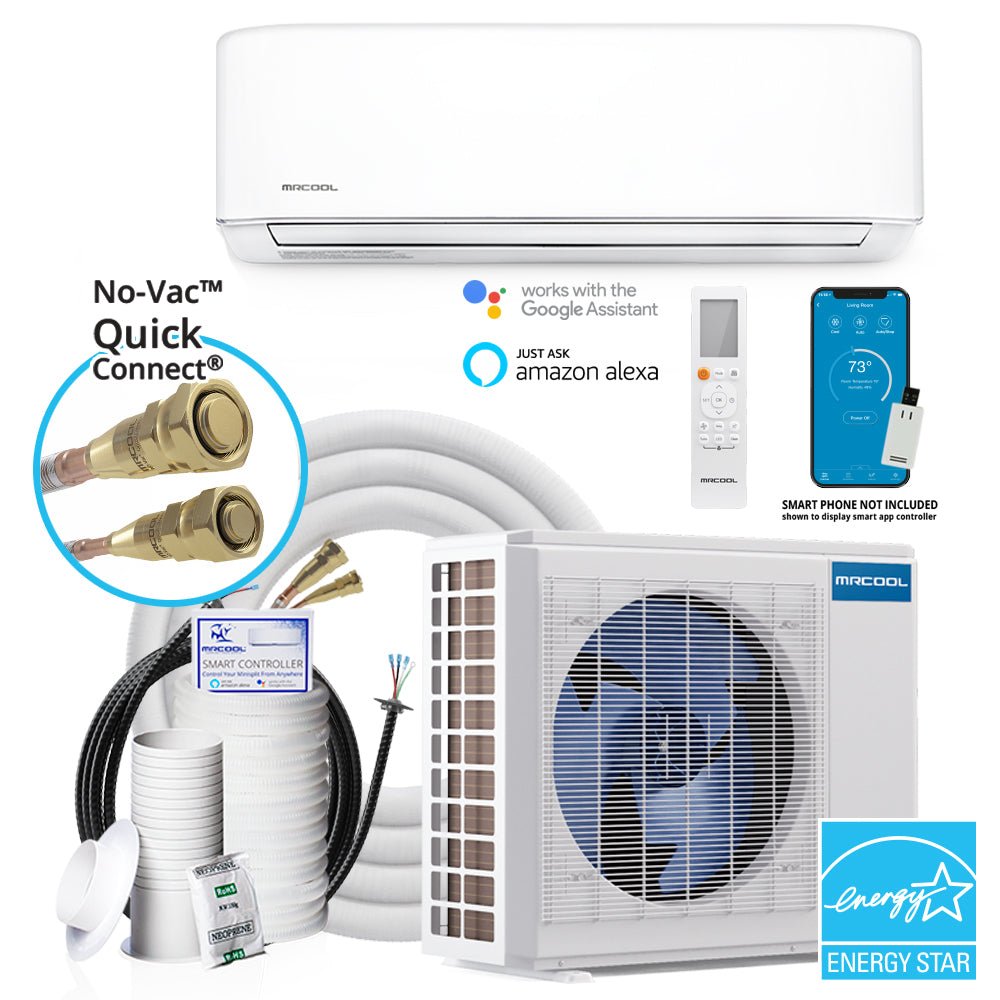

The MRCOOL® 4th Generation DIY 18K BTU, 22 SEER Ductless Heat Pump system offers a complete solution to your home’s heating and cooling needs. This system can heat & cool an area up to 750 sq. ft and is capable of an Energy Star certified, 22 SEER efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged 25 ft. line set, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest. It has multiple operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP. It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you’re not at home? No problem. The MrCool system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MrCool stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty.
|
SEER |
22 |
|
SEER2 |
22.7 |
|
EER |
12.5 |
|
EER2 |
12.6 |
|
COP 47 |
3.74 |
|
HSPF-4 |
11.5 |
|
HSPF-5 |
9 |
|
HSPF2-4 |
9.8 |
|
HSPF2-5 |
7.2 |
|
CFM |
465.29/361.76/304.12 |
|
TONNAGE |
1.5 |
|
COOLING CAPACITY (BTU) |
18000 |
|
HEATING CAPACITY (BTU) |
18000 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
30 |
|
MIN CIRCUIT AMPACITY (A) |
18 |
|
COLOR |
White |
|
COLOR FAMILY |
White |
|
RATED LOAD |
0.25 |
|
MAX COVERAGE AREA |
Up to 750 |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME (OZ) |
56.44 |
|
DECIBEL RATING (DBA) |
44.5/37/31 |
|
DECIBEL RATING LOW (DBA) |
31 |
|
DECIBEL RATING HIGH (DBA) |
44.5 |
|
AIR FLOW DIRECTION |
4-W |
|
OSCILLATION |
Yes |
|
INVERTER |
Yes |
|
MIN AMBIENT COOL (F) |
-13 ~ 122 |
|
MIN AMBIENT HEAT (F) |
-13 ~ 75 |
|
LINE SET LENGTH |
25 |
|
MAX LINESET LENGTH (FT) |
75 |
|
LIQUID LINE SIZE |
1/4 |
|
SUCTION LINE SIZE |
1/2 |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
CONDENSER FAN MOTOR RPM |
810/720 |
|
BLOWER MOTOR RPM |
1120/950/700 |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
No |
|
FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
UL LISTED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-year Parts/7-year Compressor |
|
BASE PARTS WARRANTY |
5-year Parts |
|
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
|
BASE COMPRESSOR WARRANTY |
7-year Compressor |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
GU;PR;VI |
