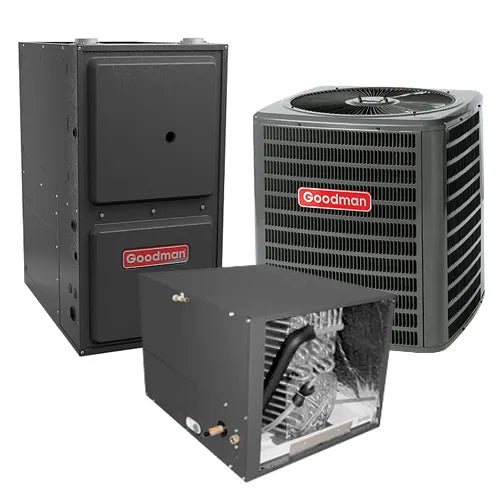

1.5 Ton 60,000 Btu Goodman Furnace 80% Upflow Horizontal Two Stage GM9C800803BN CHPTA1822B4 GSXN401810

Add this product to cart for ADDITIONAL SAVINGS!

Goodman Furnace Model Number: GM9C800803BN

Goodman Specifications Sheet Click HERE

Goodman Horizontal Cased Evaporator Coil Model Number: CHPTA1822B4

Goodman Specifications Sheet Click HERE

Goodman Air Conditioner R410A Model Number: GSXN401810

Goodman Specifications Sheet Click HERE

FURNACE: GM9C800803BN

Specifications

1. Heavy-duty aluminized-steel tubular heat exchanger
2. Efficient and quiet variable-speed Blower
3. Comfort Bridge™ Communicating System compatible
4. Commissioning and diagnostics via on board Bluetooth with the Cool Cloud™ phone and tablet application
5. Silicon Nitride igniter
6. Two-Stage gas valve



Warranty:

Standard warranties apply.

Standard parts, residential: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

HEAT EXCHANGER - LIFETIME PARTS

HEAT EXCHANGER - 79 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 10 YEARS PARTS



Product Attributes:

AFUE: 80

Airflow Rate High Heating: 1400

Airflow Rate High Heating: 980

Brand: Goodman

Cabinet Features: 1. Multi-position installation: upflow, horizontal left or right

2. Convenient left or right connection for gas and electrical service
3. Cabinet air leakage (Qleak) less than or equal to 2%
4. Fully insulated heat exchanger and blower section
5. Bottom or side return air applications
6. Heavy-gage steel cabinet with durable finish

Class: Gas Furnace

Unit Depth: 28

Unit Height: 33.3

Unit Width: 17-1/2

Family Description:

Comfort Bridge™-Compatible Two-Stage, Variable-Speed ECM Gas Furnace 80% AFUE

High-Fire Input Capacity: 80000

High-Fire Output Capacity: 48,000

Min. Circuit: 7.75

Model Efficiency: 0.8

Motor Speed Type: Variable Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 115

Product Benefits:

1. High reliability and quality
2. Airflow system gently ramps up or down according to heating or cooling demand and provides better comfort
3. Capable of using non communicating single-stage thermostats
4. Durable and long igniter life
5. Quiet and Economical heating
6. Operates on single-stage thermostats

Category: Gas Furnace

Family: GMVC80

Prop65 Label Required: TRUE

Unit Type: Indoor

Unit Weight: 105



DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)



COIL: CHPTA1822B4



Specifications

Compact and lightweight all-aluminum evaporator coil with AlumaFin7™ technology

Optimized for use with R-401A refrigerant

Factory-installed thermal expansion valves for cooling applications

Rust resistant, thermoplastic drain pans featuring a low water-retention design

Foil-faced insulation covers the internal casing to reduce cabinet condensation

Single-piece access panel with tight seal helps to keep conditioned air from escaping

Seal tight customized suction and liquid grommets for easy installation and removal

21" depth for easier attic access

Horizontal application

AHRI certified

ETL Listed



Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: Not Available

Registered parts, multi-family: Not Available

Registered parts, commercial: Not Available



Product Attributes

Brand: Corporate

Class: Coil

Unit Depth: 26

Unit Height: 20

Unit Width: 24.50

Family Description: CHPTA AlumaFin7™ Evaporator Coil

Product Benefits:

All-aluminum metallurgy provides superior corrosion resistance

Compatible with R-410A or R-22 refrigerant

Multi-louvered aluminum fin design helps support efficient heat transfer

Hydrophilic fins provide superior condensate management

7mm sized grooved aluminum tubing for enhanced turbulence of refrigerant

DecaBDE-free thermoplastic drain pan with secondary drain connections

Galvanized steel texture and parts used to help reduce corrosion on steel components

Category: Coil

Family: CHPTA

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 1.5 tons

Unit Type: Indoor

Unit Weight: 52

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)



OUTDOOR: GSXN401810



Specifications

Energy-efficient compressor

Copper tube/enahnaced aluminum fin coil-5mm diameter on 1.5-4.0 Ton

Factory-installed filter drier

Fully charged for 15' of tubing length

Service valvess with sweat connections and easy-to-access guage ports

Contactor with lug connection

Ground lug connection

AHRI Certified

ETL Tested



Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Brand: Goodman

Cabinet Features:

Removable grille-style top design compliant with UL 60335-2-40

Venturi for increased velocity of airflow

Heavy-gauge galvanized-steel cabinet

Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval

Steel louver coil guard

Rust-resistant coated screws

Single-panel access to controls with space provided for field-installed accessories

When properly anchored, meets the 2020 Florida Building Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Class: Split Air Conditioner

Compressor Stages: Single Stage

Compressor Type: Rotary

Unit Depth: 26

Unit Height: 27

Unit Width: 26

Family Description: Energy-Efficient Split System Air Conditioner, 13.3 SEER2, 1.5 to 5 Ton

Max. Voltage: 253

Min. Circuit: 13.8

Min. Voltage: 197

Model Efficiency: 14.3 SEER2

Motor Speed Type: PSC

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits: Meets the 2023 M1 Test Standards

Category: Split Air Conditioner

Family: GSXN4

Prop65 Label Required: TRUE

Tonnage: 1.5 tons

Unit Type: Outdoor

Liquid Valve Outside Diameter:  3/8

Suction Valve Outside Diameter: 3/4

Unit Weight: 118
